Pro-Form 490 SPX User Manual page 7

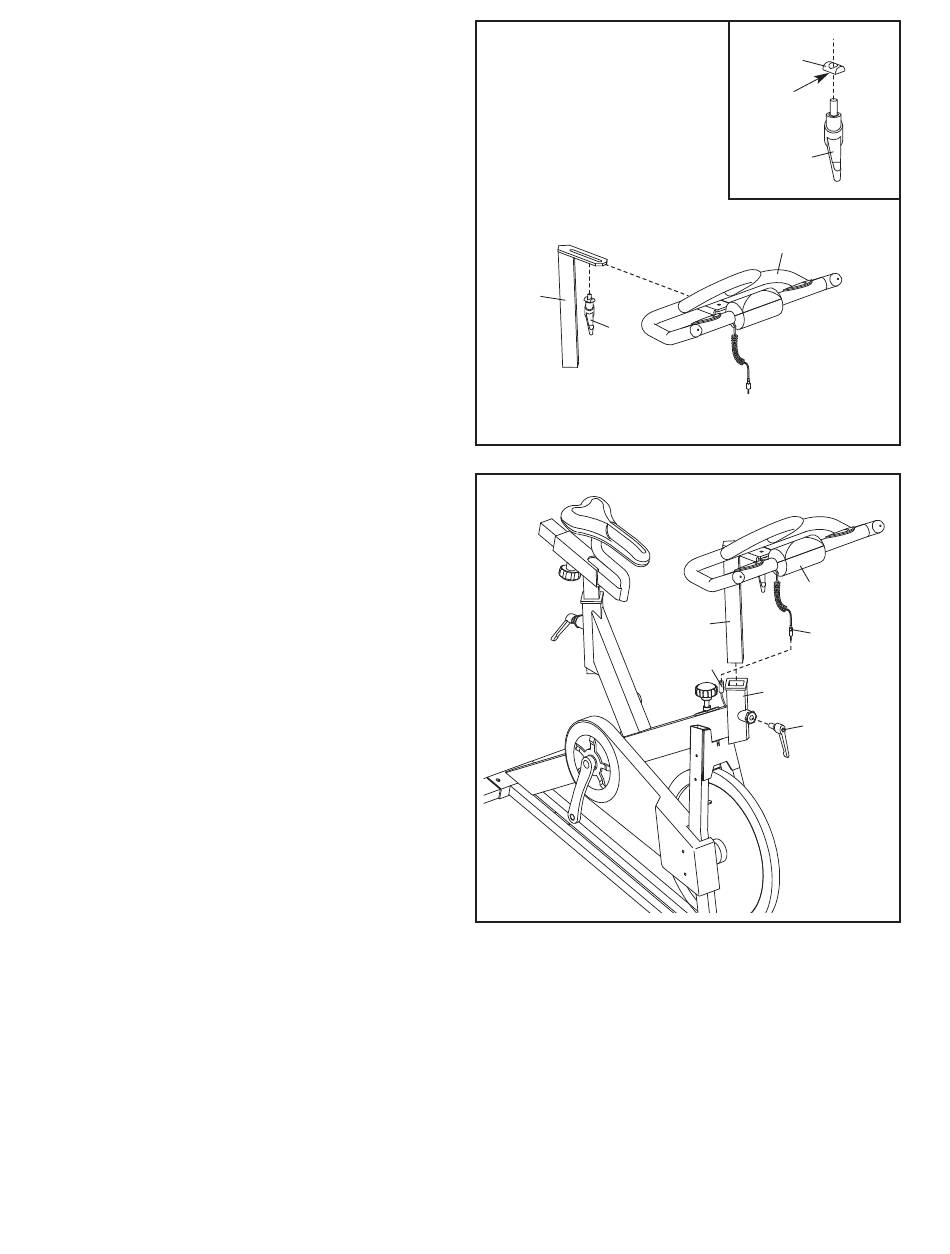

5. See the inset drawing. Tighten the Handlebar
Slide (19) onto the Handlebar Handle (45).
Make sure that the flat side of the Handlebar
Slide is facing the Handlebar Handle.
Orient the Handlebar (6) and the Handlebar
Post (4) as shown. Slide the Handlebar onto the
Handlebar Post.
Slide the Handlebar (6) to the desired position
on the Handlebar Post (4) and then tighten the
Handlebar Handle (45) into the Handlebar Post.
Note: The Handlebar Handle (45) functions like
a ratchet. Turn the handle on the Handlebar
Handle clockwise, pull the handle outward, turn
the handle counterclockwise, push the handle
inward, then turn the handle clockwise again.
Repeat this process until the Handlebar Handle
is tight.
6. Orient the Handlebar Post (4) as shown and
insert it into the Frame (2).
Slide the Handlebar Post (4) upward or down-
ward to the desired position and then tighten a
Post Handle (41) into the Frame (2).
Note: The Post Handle (41) functions like a
ratchet. Turn the handle on the Post Handle
clockwise, pull the handle outward, turn the
handle counterclockwise, push the handle
inward, then turn the handle clockwise again.
Repeat this process until the Post Handle is
tight.
Move the Handlebar Post (4) upward or
downward slightly to make sure that the
Post Handle (41) is firmly tightened against
the Handlebar Post.
Connect the wire on the Console (72) to the
Reed Switch Wire (73).
