Pro-Form 490 SPX User Manual page 8

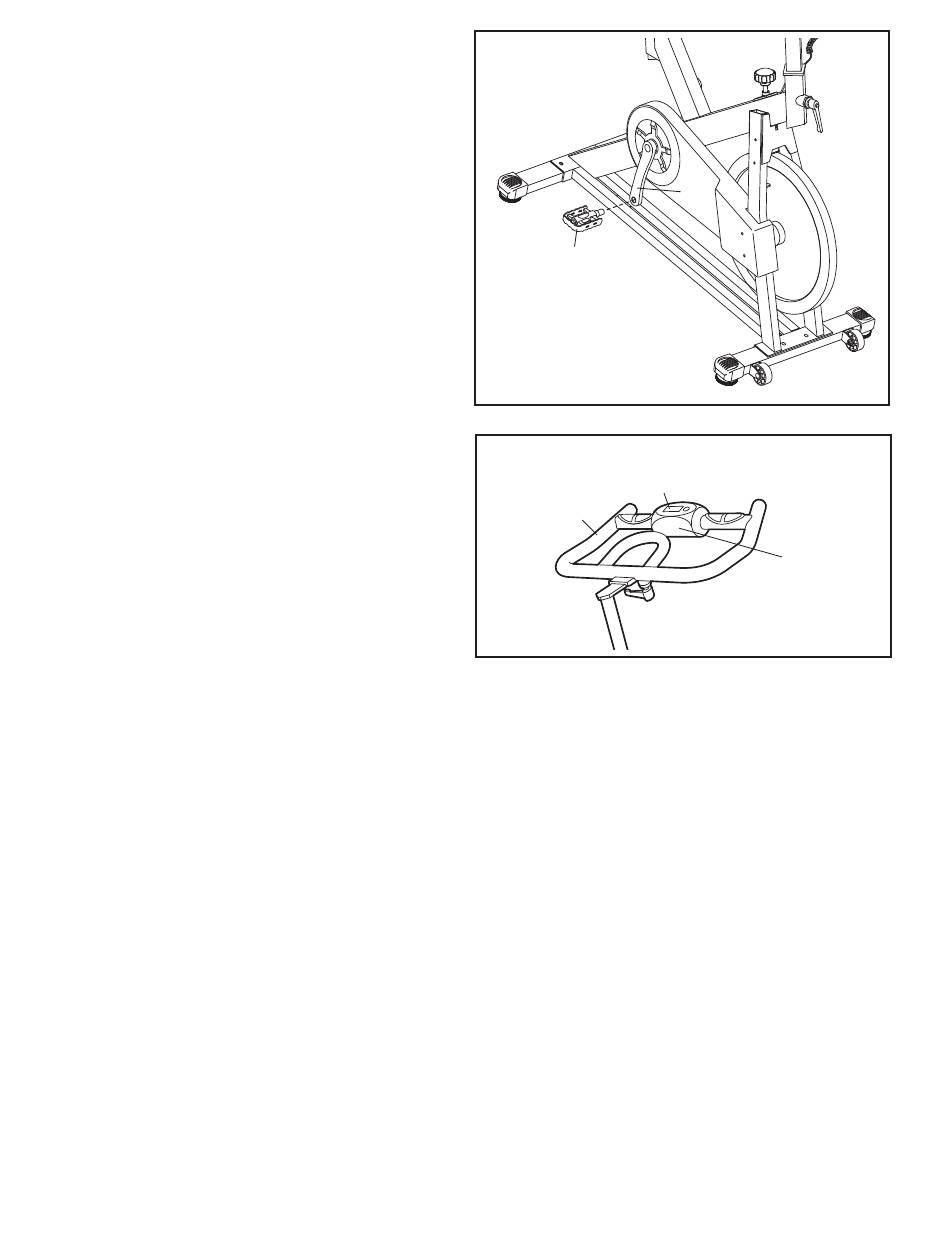

7. Identify the Right Pedal (39), which is marked
with an "R."
Using an adjustable wrench, firmly tighten the
Right Pedal (39) clockwise into the Right Crank
Arm (26).
Tighten the Left Pedal (not shown) counter-
clockwise into the Left Crank Arm (not shown).
IMPORTANT: Tighten both pedals as firmly
as possible. After using the exercise cycle
for one week, retighten the pedals.
8. The Console (72) requires two AAA batteries
(not included); alkaline batteries are recom-
mended.
Remove the top cover of the Console (72) from
the Handlebar (6), insert the batteries into the
battery compartment, and then reattach the top
cover of the Console around the Handlebar.
Make sure that the batteries are oriented as
shown by the diagrams inside the battery
compartment.
9. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly
is completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
7
39
8
6
8
26
72
Top Cover
