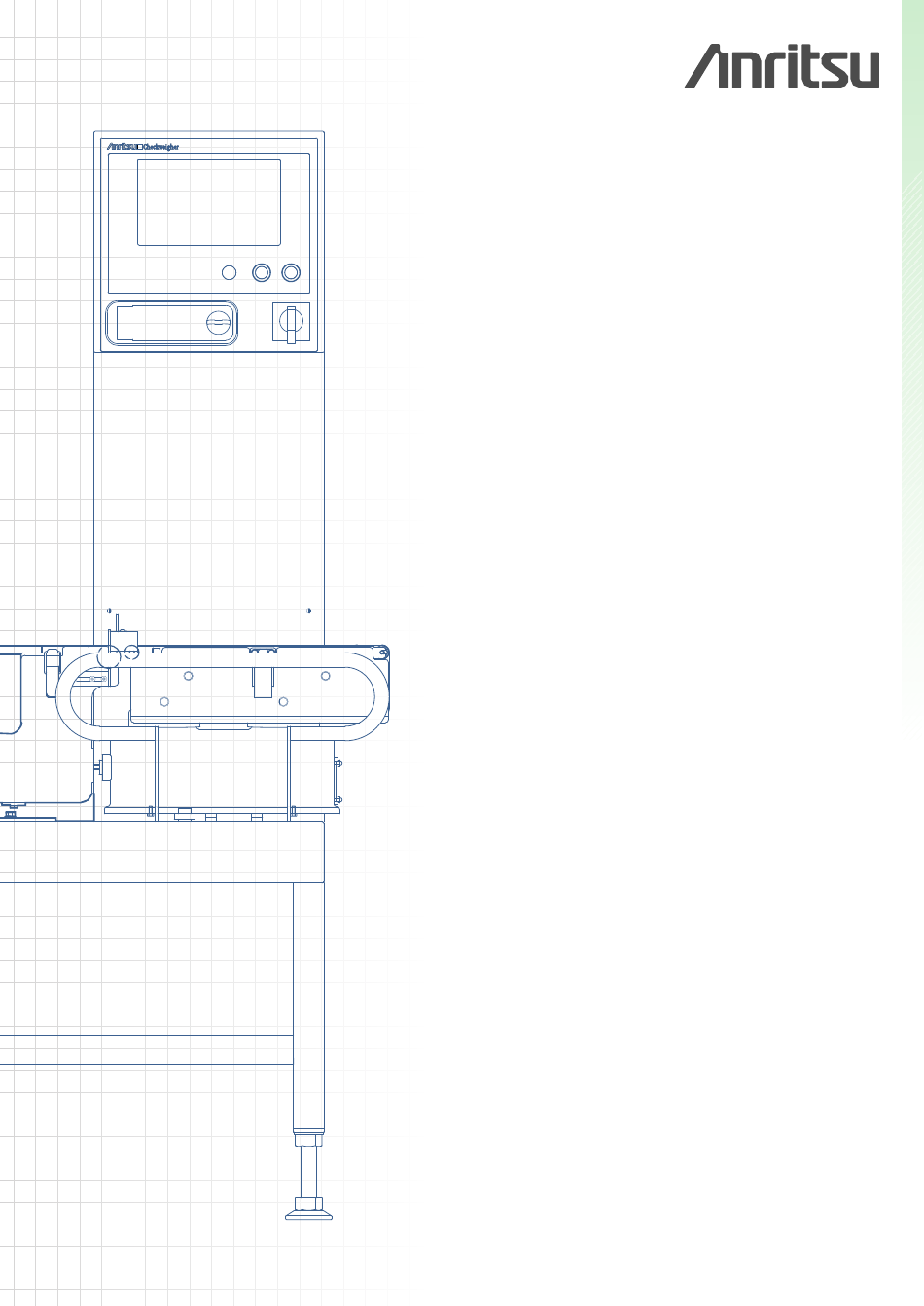

Checkweigher
with Metal Detector
SSV Series
B Type
Operation Manual
6th Edition
This manual covers the software versions V3.50 or
later.
Read this manual before using the equipment.
Keep the manual with the equipment.
* Actual products may differ from photographs /
pictures / illustrations in this manual.
* Content current as of July 2015.
* All rights reserved. No part of this manual may be
reproduced without the prior written permission of
Anritsu Industrial Solutions Co., Ltd..
* The contents of this manual may be changed
without prior notice.
Copyright © 2012-2015, Anritsu Industrial Solutions Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSV Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anritsu SSV Series

Summary of Contents for Anritsu SSV Series

  • Page 1 * All rights reserved. No part of this manual may be reproduced without the prior written permission of Anritsu Industrial Solutions Co., Ltd.. * The contents of this manual may be changed without prior notice. Copyright © 2012-2015, Anritsu Industrial Solutions Co., Ltd.

  • Page 2: Models Covered By This Manual

    KWS5524BP4D/5D/6D, KWS6416BF2E/4E/5E, KWS5524BF2E/4E/5E, KWS6416BP2E/4E/5E, KWS5524BP2E/4E/5E KWS6417BF4D/5D/6D, KWS6417BP4D/5D/6D, KWS6417BF2E/4E/5E, KWS6417BP2E/4E/5E The suffixes D and E indicate the type of metal detector. D indicates the SSV series with duw type metal detector, while E indicates SSV series with duw-h type metal detector.
  • Page 3 Product Models SSV-h Series SSV-i Series SSV-f Series KWS6003BF2R/3R/4R/5R/6R, KWS6265BW2R/3R/4R/5R/6R, KWS5203BF2R/3R/4R/5R/6R, KWS6005BF2R/3R/4R/5R/6R, KWS6366BW2R/3R/4R/5R/6R, KWS5205BF2R/3R/4R/5R/6R, KWS6006BF2R/3R/4R/5R/6R, KWS6472BW2R/3R/4R/5R/6R, KWS5206BF2R/3R/4R/5R/6R, KWS6203BF2R/3R/4R/5R/6R, KWS5265BW2R/3R/4R/5R/6R, KWS5411BF2R/3R/4R/5R/6R, KWS6205BF2R/3R/4R/5R/6R, KWS5366BW2R/3R/4R/5R/6R, KWS5412BF2R/3R/4R/5R/6R, KWS6206BF2R/3R/4R/5R/6R, KWS5472BW2R/3R/4R/5R/6R, KWS5414BF2R/3R/4R/5R/6R, KWS6411BF2R/3R/4R/5R/6R, KWS5476BW2R/3R/4R/5R/6R, KWS5416BF2R/3R/4R/5R/6R, KWS6412BF2R/3R/4R/5R/6R, KWS5577BW2R/3R/4R/5R/6R KWS5417BF2R/3R/4R/5R/6R, KWS6414BF2R/3R/4R/5R/6R, KWS5522BF2R/3R/4R/5R/6R, KWS6416BF2R/3R/4R/5R/6R, KWS5524BF2R/3R/4R/5R/6R, KWS6417BF2R/3R/4R/5R/6R, KWS5203BP2R/3R/4R/5R/6R, KWS6003BP2R/3R/4R/5R/6R, KWS5205BP2R/3R/4R/5R/6R, KWS6005BP2R/3R/4R/5R/6R, KWS5206BP2R/3R/4R/5R/6R, KWS6006BP2R/3R/4R/5R/6R,...

  • Page 4: Introduction

    Indicates supplementary notes and related information. Indicates the items for KWSXXXXBXXD(SSV series with duw type metal detector). Indicates the items for KWSXXXXBXXE (SSV series with duw-h type metal detector). Indicates the items for KWSXXXXBXXR (M5 type metal detector ). Indicates the type of spanner for the work...

  • Page 5: Table Of Contents

    Saving, Inputting, and Outputting Data ······· 102 ■ Safety Symbols ····································· 7 ● Saving Data to the USB Memory ···················102 ■ SSV Series Checkweighers ● Setting External I/O Signals ·························122 with Metal Detector ································ 8 ● Adjusting I/O Timing ···································144 ■...
  • Page 6 Installing/Removing Components ■ ● Setting Access Level By Function ················· 209 (SSV-i series) ······································· 267 ● Using Check Mode ···································· 210 ● Removing the Weigh Conveyor Unit···············267 ● Registering Products Using Another Auto Setting Method ·············································· 211 ● Installing the Weigh Conveyor Unit ················268 ●...

  • Page 7: Safety Symbols

    Safety Symbols To prevent the risk of personal injury or loss related to equipment malfunction, Anritsu Industrial Solutions Co., Ltd. (Anritsu Industrial Solutions) uses the following safety symbols to indicate safety-related information. Insure that you clearly understand the meanings of the symbols BEFORE using the equipment. Some or all of the symbols may not be used on this equipment.

  • Page 8: With Metal Detector

    Checkweighers are a valuable device for any production line for both quality verification and production line optimization. The SSV series checkweigher with metal detector has the following features: A high-speed and high-accuracy weighing system...

  • Page 9: Ssv Series Checkweighers

    Checking the Package Contents Make sure that all of the following items are present. If any item is damaged or missing, please contact us. ● SSV-h/f Series ☑ Main unit □ Spanner (Double-head wrench with bolt widths 10 mm and 7 mm) □...

  • Page 10: Names And Functions

    Names and Functions ● Main unit [1] Indicator Stores the control unit of the checkweigher. [2] Conveyor section Weighs products while carrying them. [3] Stand Supports the indicator and conveyor unit. [4] Foot bolt Adjusts the main unit height with the production line.
  • Page 11 Names and Functions ■ Weigh conveyor section, Infeed conveyor section SSV-h/f Series [Weigh conveyor section] Weigh conveyor section （KWS6XXX, KWS52XX, KWS54XX type） [1], [5] Weigh conveyor unit [2], [7] Motor [3],[6] Belt cover [4] Catch clip [8] Roller cover [9] Conveyor belt [10] Drive roller (KWS55XX type) [11] Drive belt...
  • Page 12 Names and Functions SSV-i Series Weigh conveyor section [Weigh conveyor section] [1] Weigh conveyor unit [2] Motor [3], [4] Catch clip [5] Conveyor belt [6] Knob [7] Driven roller part [8] Drive roller Weigh conveyor unit, Infeed conveyor unit (Common) Infeed conveyor section [Infeed conveyor section] [1] Infeed conveyor section...

  • Page 13: Operation Screen

    Names and Functions ● Operation screen Push-button switches [1] [Start] button [5] [6] [18] [19] Starts the operation of the checkweigher. The green lamp around the button illuminates when the checkweigher is operating. [10] [2] [Stop] button [11] Stops the operation of the checkweigher.
  • Page 14 Names and Functions [13] [Adjusting MD sensitvity] button Displays a screen on which you can adjust the sensitivity. [14] [Menu] button Opens the setting menu. [15] [Display] button Changes the display screen. [16] [MS] area Displays the weight and evaluation result of each product. [17] [Others] button Displays the submenu such as Stats Clear by touching this.

  • Page 15: Description Of Operation Screen

    Description of Operation Screen ● Operation screen The display screen of an SSV series checkweigher with metal detector can be changed according to purpose. Each time the [Display] button in the bottom of the screen is pressed, the screen switches to another screen in the order of: [Basic display] →[General] →...
  • Page 16 Description of Operation Screen Histogram This screen is used to visually check the weight distribution of weighed products. ALL data or Pass. Data only views are available.  P. 90 Histogram X-bar R/s This screen is used to visually check the trend of weight changes in weighed products.
  • Page 17 Description of Operation Screen Custom Disp. This screen is used to display the opted items only. It helps to see data need to be monitored specifically.  P. 92 Custom Disp. Individual Disp. This screen is used to display the evaluation results, each weight value and statistics for the last 31 products checked.
  • Page 18 Description of Operation Screen (The General screen is used as an example in the description below.) ● Mass bar and icons The weighing results are displayed with the mass bars and icons shown below as well as in a numerical display of the weight. Mass bar Icon Weighing results...
  • Page 19 Description of Operation Screen ● Metal detection level bar and evaluation result icons The test result for metal contamination is displayed by the metal detection level bar and icons as shown below.  [For metal contamination checks ( P. 45) ] Metal detection level bar Icon Detection result...
  • Page 20 Disconnected Indicates the connecting status of QUICCA (Quality Management and Control System Software by Anritsu) Appears when a USB memory when an optional USB memory is used. The animation of code reader is displayed while the bar code (Item code etc.) is readable.
  • Page 21 Description of Operation Screen ● Operation and input method ■ Touch screen buttons When a button is pressed, the corresponding function starts.  P. 84 2. Advanced Operations Example 1 [Menu] The first layer of the setting menu is called. When a button is pressed, the detailed setting menu is displayed.
  • Page 22 Description of Operation Screen ■ Settings screen (menu) Inspection conditions for the product and checkweigher operation are set. When an item in the list is pressed, the setting input screen or a setting list of deeper layer is displayed. The cursor moves to the previous page. Keep pressing to let it move continuously.
  • Page 23 Description of Operation Screen ■ Software keypad When a numeric value is to be entered, the keypad is displayed. Enter a number and press the [OK] button to set the value. BS key Deletes the last digit. ▲ key Increases the value by 1. ▼...
  • Page 24 Description of Operation Screen ■ Software Keyboard When characters are to be entered, a software keyboard is displayed. Enter characters and press the [OK] button to set the characters. Character type selection key BS key Switches over [ABC], [NUM], and [Symbol]. Deletes the last character before the cursor.
  • Page 25 Description of Operation Screen Entering letters When [A/a] is pressed, input is switched to lower-case letters. Entering Korean characters When the display language is changed to Korean, the Korean keyboard screen is displayed. Press the [엔터키] (Confirm) button to confirm the composition of the Korean characters.
  • Page 26 Description of Operation Screen Entering symbols Other symbols can be entered.
  • Page 27 Memo...

  • Page 28: Basic Operations

    1 Basic Operations This chapter describes the basic operations. Turning on the System for the First Time Basic Usage Daily Operation Procedure...

  • Page 29: Turning On The System For The First Time

    Turning on the System for the First Time Turning on the System for the First Time Turning on the power.  P. 32 Turning On/Off Power When the system is started for the first time after it has been delivered, the Confirmation at installation screen, which provides cautions for using the system safely, is displayed.
  • Page 30 Turning on the System for the First Time Tap the [Next] button to display the next message. Select the check box on the screen, and then tap [Completed]. Press "Start" and follow the instructions displayed on the screen. When “Smart guide settings” is set to “No”, operation screen is automatically displayed.
  • Page 31 Turning on the System for the First Time Select the access level. Refer to "Changing Access Level".  P. 32 Changing Access Level Set the Date and Time. Refer to "Setting the Date and Time”.  P. 154 Setting the Date and Time Set RJ direction.

  • Page 32: Basic Usage

    The access level can be changed to change the range of operation according to the level of the operator. This machine has 4 access levels. Level 3 is only for Anritsu service engineers and not available for general use. The following 3 levels can be used:...
  • Page 33 Basic Usage Tapping the key icon at the upper right part of the "Main" screen displays the "Access Level Change" screen. Select the Manager Level radio button and click [OK]. The password input screen is displayed. Select Manager Level Password input screen Enter the password "7777"...

  • Page 34: Operating And Stopping

    Basic Usage > Operating and Stopping For stable metal detecting operation, we recommend that you turn on the power 60 minutes prior to the start of production. However, turning on the power 90 minutes before performing automatic settings is recommended if the product to be tested uses evaporated aluminum or is a food with a high salt content.

  • Page 35: Registering A New Product

    Basic Usage > Registering a New Product In this equipment, parameters of up to 200 products can be registered. Registering products allows you to perform production control properly and operate the equipment effectively. When "Register new product" is tapped in the "Menu" screen, the "Product Registration Start"...
  • Page 36 Basic Usage Make sure that the cursor is on "Product Parameter Setting", and tap "Execute". The screen shown on the right is displayed. Tap [Next]. If "Enter Directly" is selected in the "Prod Para Setting Start" screen, input are made swiftly from the parameter table.
  • Page 37 Basic Usage In the Product Dimension screen, enter the Product Length, Width, and Height. When the box area is tapped, the keypad is displayed. Enter a value and tap [Next]. You can measure approximate dimensions Enter Product Length using the ruler displayed on the screen. Enter the longest dimension value for length, width, and height.
  • Page 38 Basic Usage The following "Upper limit" and "Lower limit" are the CW upper and lower limit setting values. Lower limit Upper limit for production for production Reference Lower Upper value limit limit Rejection Rejection accuracy accuracy Rejection accuracy The rejection accuracy of this CW is represented as 3. This means that when the theoretical rejection accuracy is 1 g, the weighing error has a 99.7% probability of being within 1 g.
  • Page 39 Basic Usage Select a check method for the metal detector. Check metal contamination ■ To check for metal contamination. When the product length or main conveyor speed satisfies the specified conditions, the message screen is displayed. In this case, select "Metal Check 3".
  • Page 40 Basic Usage Check if the photocell of the metal detector detects the product. ■ The red lamp of the photocell goes out (the light is blocked), when place the product in front of the photocell of the metal detector. ■ When the red lamp does not go out (the light is not blocked).
  • Page 41 Basic Usage Check the evaluation mode of the metal detector and the size of the control sensitivity test pieces. ▼ Metal 1 (The photocell is blocked and products are fed through at an interval of 280 mm or more.) Evaluate there metal contamination for each product.
  • Page 42 Basic Usage ▼ Checking for missing products Evaluate metal (evaporated) attachment is missing for each product. Tap [Next] to finish setting the product parameters. Tap [Check set items] to view the setting values for each item. Tap [Completed] to execute the Auto-set. Auto-set the metal detector.
  • Page 43 Basic Usage For stable metal detecting operation, we recommend that you turn on the power at least 10 minutes before the start of production. (The same applies when performing "Register new product." and "Auto-setting".) Select New/Readjust Press [Next] if the product number has not been registered.
  • Page 44 Basic Usage Check the back and forth movements of the conveyor. ▪ Yes To automatically move the master product back and forth on the conveyor when performing the auto-set. ▪ No To allow an operator to feed the master product when performing the Auto-Set. However, it is not appropriate to automatically move the following products back and forth under the conditions described below.
  • Page 45 Basic Usage ▼ Checking for metal contamination Feed the master product 15 times. Feed the master product 5 times. When Auto-set finishes, the determined sensitivity mode and the estimated detection sensitivity are displayed. Press [Cancel] if you do not want to have the results of auto-set applied.
  • Page 46 Basic Usage Press [Completed] terminate registration of the product. Press [Cancel] if you do not want to have the results of auto setting applied. When Auto-set Method “Auto (recommended)”, press [Details] display the estimated detection level by sensitivity mode. Auto (recommended) at Auto-set...
  • Page 47 Basic Usage To change the settings, select the new item and tap [Change], [Completed]. Estimated detection by sensitivity mode When sensitivity mode determined by auto-setting is either [A-A] or [B-B], the sensitivity may be improved by changing the mode from [A-A] to[B-B] or [B-B] to [A-A] respectively, depending on products to be inspected.When the sensitivity mode is changed, select the...
  • Page 48 Basic Usage Notes on auto-set (1) Avoid passing the master product to the next part of the line because the contaminants contained in the master product are not detected during auto-set. The RJ direction is not controlled during auto-set. Be especially careful if the rejector is on standby in the OK direction.
  • Page 49 Basic Usage It is recommended to perform fine adjustment to enable stable production. Fine adjustment is used to correct the value displayed while the system is running if there is a discrepancy between the displayed value and the measured weight of the master product.
  • Page 50 Basic Usage The duw-h type metal detector has the following additional functions. HIS setting function ■ this function enhance detection probability after performing auto-setting. Select [HIS Setting] on the right screen and press [Execute].  P. 229 Using HIS Setting Function Auto-limit-setting function ■...

  • Page 51: Checking Operations

    Basic Usage > Checking Operations Operations Check is a function to check if the equipment is operating correctly. By making sure that the equipment is operating normally at the beginning and end of production of a day, or at the beginning and end of a lot, operational reliability can be guaranteed indirectly.
  • Page 52 Basic Usage Select "Common set for Ope. Check" and check the conditions specified. For the settings at the end of an operation check, see the following table. Setting Name Description (Initial Setting:_) Fix Route: Eva/RJ check is performed when the Eva/RJ Check Fix Route operator feeds products according to on-screen...
  • Page 53 Basic Usage ■ Accuracy check Select "Others" → "Accuracy Check", check the product number and product name, and tap [Next]. Check the values of "Master Weight" and "Permissible Accuracy", and tap [Next]. Tap the Start button. Feed the master product.
  • Page 54 Basic Usage Feed the master product for the number of times specified in "Accuracy Check Sample Count" and make sure that "OK" is displayed. Tap [Completed] to return to the Home screen. If "Failed" is displayed, check for any incorrect setting values. Tap the "Details" button to display a list of information during the accuracy check.
  • Page 55 Basic Usage Follow the on-screen instructions to feed an OK product, +NG product, and -NG product to the conveyor in this order. Check that evaluation and rejection are performing correctly by feeding a PASS product, +NG product, and -NG product. 4 Check that "OK"...

  • Page 56: Adjusting Registered Products

    Basic Usage > Adjusting Registered Products This is the procedure for modifying the specified conditions for registered products. Detailed information omitted in the Product Registration Navi can also be entered. Select the “Menu” screen → “Adjust registered products” → “Product settings”. The screen to the right is displayed.
  • Page 57 Basic Usage ■ Ins. condition set (Adjust registered products → Product settings → Ins. condition settings) Setting Name Description (Default: ) Reference Value Weight Range Sets the reference value for the product. +Limit Displays the value set for the product. -Limit Displays the value set for the product.
  • Page 58 Basic Usage Setting Name Description (Default: ) Enables and disables double product evaluation. If Double product you set a missing product check, the default is set to No／Yes／ALL evaluation “Yes”. If you set ALL, both of two Good products are evaluated as Double product.
  • Page 59 Basic Usage ■ Set conveyor speed Set main conveyor speed (Adjust registered products → Product settings → conveyor speed → Set main conveyor speed) Setting Name Description (Default: ) Main Conveyor Sets the CW Conveyor Speed. Speed (5 to 120 m/min) Set this parameter when a two speed conveyor (optional) is used.
  • Page 60 Basic Usage ■ Measurement timing Measurement timing set (Adjust registered products → Product settings → Measurement timing → Measurement timing set) Setting Name Description (Default: ) Timer to acquire the MDNG signal (optional). (0 to 6000) ms (MDNG valid This timer is automatically set (parameter per product). time) Displays the time until the product moves onto the (Measurement...
  • Page 61 Basic Usage ■ RJ timing RJ timing settings (Adjust registered products → Product settings → RJ timing → RJ timing settings) Setting Name Description (Default: ) Sets the rejector delay time (from the end of weighing (Rejection delay (1 to 9999) ms to the start of rejector operation).
  • Page 62 Basic Usage The default of RJ Output Type depends on the type of Rejector. “+NG Product” and “NG product process” is displayed when “operation / by prod.” Is set to “by prod.”. ■ Detection sensitivity Adjust detection sensitivity (Adjust registered products →Product settings →Det. Sens. →Detection sens. settings) Detection sens.
  • Page 63 Basic Usage ■ Statistic product settings (Adjust registered products → Product settings → Statistic product settings) Setting Name Description (Default: ) Batch Cycle Qty. (1 to 999999) Sets the cycle (count) of the production batch. Batch time (1 to 14,440 minutes) Sets the cycle (time) of the production batch. Sets the upper limit of Xbar (mean value) in the "X-R"...
  • Page 64 Basic Usage ■ Conveyor mode (Adjust registered products → Product settings → Conveyor Mode) Setting Name Description (Default: ) Perform weight evaluation. Set when weight evaluation is not to be performed. CW Conveyor Set when weight evaluation, MDNG (metal NG) Mode evaluation, and EXNG (external NG) evaluation are not (Force Motor ON)
  • Page 65 Basic Usage SUS Side setting Setting Name Description (Default: ) Set whether to save the results of tracking the SUS phase by the auto tracking function. Clears the tracking phase when the power is Not Save turned off, the conveyor stops, or the auto setting is performed.
  • Page 66 Basic Usage Setting Name Description (Default: ) Set the number of master products fed through during Default Phase a product check. Increasing the value stabilizes Correction Count (1 to 5) checking. Set the range of the phase shifting of master products 6.0°...
  • Page 67 Basic Usage ■ Tracking conditions (Adjust registered products → Product settings → Tracking conditions) Setting Name Description (Default: ) This parameter sets parameters related to auto tracking from the characteristics during the production. When measuring a product that requires auto-tracking function, the auto-tracking function is automatically Standard enabled according to the auto-setting.
  • Page 68 Basic Usage Auto-tracking function is automatically set based on the results of auto-setting. Setting the auto-tracking function ON/OFF requires special knowledge. Ask Anritsu service engineers to perform the setting. ■ Full detection (Adjust registered products → Product settings → Full Detection)
  • Page 69 Basic Usage ■ RJ operation adjustment (Adjust registered products → RJ operation adjustment → RJ Parameter table) Setting Name Description (Default: ) RJ Conveyor (5 to 120 m/min) Set conveyor speed of rejector. Speed Sets the RJ Speed automatic calculation to Enabled or Auto Disabled.

  • Page 70: Handling Errors And Alarms

    Basic Usage > Handling Errors and Alarms When the equipment detects any abnormality, an error or alarm message is displayed on the screen. The date and time when the error occurred, model name, serial number, and a detailed description of an error appears automatically, and tapping the[Help] button while an alarm message is displayed makes a detailed description appear.
  • Page 71 Basic Usage ■ Checking the error or alarm occurrence status The types and numbers of errors or alarms that have occurred are listed. This function is used for a daily check of the production status of device status during or after production.

  • Page 72: If Ng Frequently Occurs

    Basic Usage > If NG frequently occurs If the metal detector frequently detects metal incorrectly, you can check what might be causing the incorrect detection by following the guidance. Select [?] → [If NG frequently occurs...]. Select the NG type and then tap [Next]. Tap [Next].
  • Page 73 Basic Usage Tap [Next] to check the contents sequentially. Tap [Completed].

  • Page 74: Investigating The Cause Of Incorrect Detections

    Basic Usage > Investigating the cause of incorrect detections If the metal detector frequently detects metal incorrectly, the cause of the incorrect detections can be narrowed down. Select [?] → [If NG frequently occurs...] → [Metal NG occurs], and then tap [Environment Diagnosis].
  • Page 75 Basic Usage Tap [Next]. By saving the data here, you can output the inspection results if requested by your customer support. ☞ P. 287 Outputting support data Tap [Completed].
  • Page 76 ▪ Product flow is not stable. ▪ Operation is unstable due to deterioration or machine failure. If problem persists, Call Anritsu or its distributor for service. SN-02 Sharing same power source between MD and other peripheral devices...
  • Page 77 Roller deformation faulty motor would generate influential noise and cause false detection. Check any abnormality on exterior of conveyor unit. Call Anritsu or its distributor for service. The system can easily be influenced by external noise if the evaluation limit magnification value is too low.

  • Page 78: Daily Operation Procedure

    Daily Operation Procedure Daily Operation Procedure Warning (1) In an emergency, cut the power to the Turn leftwards checkweigher by turning the power switch leftwards Power switch If the optional Emergency Stop Switch is Press to stop CW fitted, press it to stop the checkweigher in an in an emergency emergency.
  • Page 79 Daily Operation Procedure Cautions when Smart Guide is not used Before starting production, check the zero point and sensitivity. (1) Zero point check Press the [Zero Set] button when nothing is on the weigh conveyor and make sure that the weight display is zero. If any tare value is set, the setting value is shown as a negative number.
  • Page 80 Daily Operation Procedure Perform an inspection and check before starting production. Perform the following operations by following the on-screen instructions. Selecting an access level ■ Press "Select an access level" and set it according operation performed.  P. 32 Changing Access Level Selecting the manufacture date and ■...
  • Page 81 Daily Operation Procedure Operation check before production ■ Tap [Next] to perform an operation check before production. Press the Start button and feed an OK product, +NG product, and -NG product in this order. When the operations above are complete, the screen on the right is displayed, and production can be started.
  • Page 82 Daily Operation Procedure Perform a check at production completion. When 1 of "Display" is selected while operation is stopped, the screen on the right is displayed. To finish, tap [Next] to perform an operation check at production completion. Follow the on-screen instructions to perform the operation check that was performed before starting production again.
  • Page 83 Daily Operation Procedure Execute end process. When "Execute end process" is selected in the screen above, the screen on the right is displayed. Tap "Start inspection" and perform inspection by following the on-screen instructions. After the inspection is complete, the following screen is displayed. Tap [Complete current process].

  • Page 84: Advanced Operations

    2 Advanced Operations This chapter describes the operations according to the purpose. Screen Hierarchy Viewing Measurement Data Calibrating/Adjusting Equipment Saving, Inputting, and Outputting Data Other Settings and Adjustments Options and Peripheral Devices Other Useful Functions...

  • Page 85: Screen Hierarchy

    Screen Hierarchy Screen Hierarchy The screen system of this checkweigher is as follows. Adjust RJ timing Register new product Switch the product Sensitivity Adjustment Accuracy check settings Registering a New Product Evaluation & RJ check settings Changing Product settings Adjust registered products Product settings Checking Operations RJ operation adjustment...
  • Page 86 Screen Hierarchy Product information Product settings Inspection condition set Set main conveyor speed Conveyor speed RJ Conveyor Spd. Setting Timing Adjustment Measurement timing Measurement timing setting Adjust RJ timing RJ Timing RJ Timing Setting Detection Sensitivity Sensitivity Adjustment Sensitivity Adjustment 2 Set testpiece ctl.
  • Page 87 Screen Hierarchy Unit/connected device set Weighcell Sensitivity Correction Weighcell check Zero-set Weighcell settings Set main conveyor Conveyor RJ conveyor settings Rejector Common set of RJ RJ direction settings I/O output settings IO timing adjustment Signal tower common settings Signal tower / Buzzer Signal tower settings I/O output settings IO timing adjustment...

  • Page 88: Viewing Measurement Data

    Viewing Measurement Data Viewing Measurement Data > Basic display Daily operation can be made with a single touch of the screen. > General In the General screen, the measured value, reference value, lower limit, upper limit, tare weight (if any), inspection total count and OK/NG product counts of the product are displayed.

  • Page 89: Statistics

    Viewing Measurement Data > Statistics If the target data for statistics is set to [ALL], the total count and OK, NG products, and double product count and percentage (%) are displayed in the left side of the Statis screen. In the right side of the screen, the accumulated total weight, mean value (X-bar), standard deviation (s), randomness (R), maximum value (Max) and minimum...

  • Page 90: Histogram

    Viewing Measurement Data > Histogram The measurement results from the statistics clear to the present are displayed in the histogram by the preset scale. The vertical axis indicates the data count, and the horizontal axis shows the weight value. In the right side of the screen, the mean value (X-bar), standard deviation (s), randomness (R), maximum, and minimum are displayed.

  • Page 91: Enlarged Bar

    Viewing Measurement Data X-bar UCL (Upper Control Limit, X-bar +Limit, yellow line) Mean upper limit value. It is automatically calculated as the reference value plus UCL (X-bar +Limit). It is set in "UCL (X-bar +Limit)" in the "Statistic product settings" screen. CL (Center Line, blue line) Mean weight value for the batch.

  • Page 92: Zoom Weight Disp

    Viewing Measurement Data > Zoom Weight Disp. The graph is excluded from the weight display screen, and the measured value is enlarged in the display. In the lower left part of the screen, the capacity (count/min) during operation is displayed in real-time. It becomes 0 when operation stops.

  • Page 93: Individual Disp

    Viewing Measurement Data > Individual Disp. The evaluation results and each weight value of the last 31 products are displayed in sequence. The weight value surrounded with a yellow frame is the latest one. The statistics appeared at the bottom of the screen are from the data currently displayed on the screen only.

  • Page 94: Calibrating/Adjusting Equipment

    Calibrating/Adjusting Equipment Calibrating/Adjusting Equipment > Sensitivity Correction If the weight value displayed in the screen is different from the known value of the weight or master product, perform sensitivity correction. When operation is stopped, press "Others.", and then in the following display screen, select...
  • Page 95 Calibrating/Adjusting Equipment Perform the operations in Step 1 through Step 3 by following the on-screen instructions. When placing the weight on the weigh conveyor, place it at the center. "Level" below the weight display indicates the percentage in the weight capture range. When sensitivity correction is performed correctly, the following screen will be displayed.

  • Page 96: Fine Adjustment

    Calibrating/Adjusting Equipment > Fine Adjustment When the weight of the master product and the displayed value during operation are different, the displayed value needs to be corrected. This correction is called fine adjustment. Cautions on fine adjustment Master product refers to a typical product with average characteristics (such as size, ■...

  • Page 97: Timing Adjustment

    Calibrating/Adjusting Equipment Feed the master product. When feeding the master product, make sure that the orientation and the position on the belt are fixed. Press [Next] and then press the Start button to start the conveyor. Follow the on-screen instructions and feed the master product through the conveyor 10 times.
  • Page 98 Calibrating/Adjusting Equipment In the "Timing Adjustment" screen, press the "Prod Len" area to display the input screen. Entering product length When the product length is entered, the Flow ■ measurement rejection timing (T1, T2) Product length and filter time are calculated automatically. For product length, enter the maximum length in the direction of the flow of products.

  • Page 99: Adjusting The Rj Timing

    Calibrating/Adjusting Equipment > Adjusting the RJ timing (Adjust registered products. → Product settings → RJ timing → RJ timing adjustment) The RJ timing can be adjusted by feeding through a product and checking the evaluation result. Tap the [Reset timing] button to set T3 and T4 automatically. This feature is available for flipper and dropout rejectors only.
  • Page 100 Calibrating/Adjusting Equipment Select [Make auto setting by using current settings] and then press [Next]. Selecting [Make auto setting newly] allows you to start performing the settings from the initial state in the same way as when registering a new product. ...
  • Page 101 Calibrating/Adjusting Equipment ▼ Metal contamination check Feed through the master product three times. Feed through the master product one time. When the auto setting finishes, the determined sensitivity mode and the estimated detecting sensitivity displayed. Press [Completed] to apply the new settings. Press [Cancel] if you do not want to apply the auto setting results.

  • Page 102: Saving, Inputting, And Outputting Data

    Microsoft Excel (except for information for restoration after a failure). The USB memory recommended by Anritsu Industrial Solutions includes data viewer software (Conversion Tool) that can create statistics data from measured values. The specifications regarding USB memory are as shown below.
  • Page 103 Saving, Inputting, and Outputting Data (1) When using USB memory Do not save any data other than files created by the checkweigher. If files created in a PC are saved to the USB memory, the files may be identified falsely, and data may be destroyed. This may also result in losing the checkweigher’s ability to record data.
  • Page 104 Saving, Inputting, and Outputting Data ■ Removing USB memory This section describes how to remove USB memory. To remove USB memory safely, make sure to perform the "removal" operation in the checkweigher. Select [?]  [Eject USB]. Turn the knob to open the cover of the Cover USB memory unit.
  • Page 105 Saving, Inputting, and Outputting Data ■ File/folder configuration of USB memory Data recorded by the checkweigher is stored in folders sorted by date. As device information, folders can optionally be set with a Level 1 and Level 2 "Line Name" and "Sub-number".
  • Page 106 Saving, Inputting, and Outputting Data ■ USB memory storage settings ("Menu"  "USB memory/printer"  "Set USB Memory store") When data is recorded to USB memory, the Level-1 Folder and Level-2 Folder can optionally be specified to identify the device. To manage recorded data, specify folder names before use.
  • Page 107 Saving, Inputting, and Outputting Data Setting Name Description (Default: ) Select the details of the measured value to be output. Outputs the measured date, option code, Standard Standard USB Memory Meas. rank code and measured value. Out Contents Detail Outputs the product interval and other Detail data in addition to the contents output when Standard is selected.
  • Page 108 Saving, Inputting, and Outputting Data ■ Selecting data to record Select data to record to USB memory and contents to be saved. Setting Name Description (Default: ) Measured values are saved to USB memory for each measurement. The data to save can be selected. Saves no measured value.
  • Page 109 Saving, Inputting, and Outputting Data ■ Folder and file names Measured value data is saved as "INDIV_∆∆.csv" (∆∆ indicates a serial number) under the folder "RECORD". Data items are recorded to USB memory in the CSV format (comma-delimited) in the order of the table below.
  • Page 110 Saving, Inputting, and Outputting Data Item Remarks Weight value Measured Value *Space code is output for D-Prod., +OVERFLOW. Detection sensitivity/evaluation limit factor Metal Eval. Level 1 *For checkweighers with a metal detector only Detection sensitivity/evaluation limit factor Metal Eval. Level 2 *For checkweighers with a metal detector only RJ check result *Only when the RJ check option is used...
  • Page 111 Saving, Inputting, and Outputting Data Item Remarks Zeroset state at weighing Zeroset No zeroset: 0 Zeroset: 1 Zero value at weighing Zero AD Value 0 to 65535 Product Length Product length measured at photocell for weighing. Unit is mm. Product Interval Interval from product fed previously.
  • Page 112 Saving, Inputting, and Outputting Data ■ Saving batch statistics data Setting Name Explanation (Default: _) Sets Batch output cycle (MAX 4 digits: 0 to 9999). USB Memory Batch This specifies the cycle for outputting batch data to a Output Cycle (0 to 9999) USB memory stick.
  • Page 113 Saving, Inputting, and Outputting Data Item Description Standard EEC option Standard EEC option Standard deviation (exceptions: MDNG, EXNG, D-Prod., Not Standard Deviation Statistics Target) Maximum weight (exceptions: MDNG, EXNG, D-Prod., Not Maximum Weight Statistics Target) Minimum weight (exceptions: MDNG, EXNG, D-Prod., Not Minimum Weight Statistics Target) RANGE...
  • Page 114 Saving, Inputting, and Outputting Data (2) Record format Data items are recorded to USB memory in the CSV format (comma-delimited) in the order of the table below. Accuracy Check ■ Item Description ID Code History type "4" History Type Outputs history type. Product No.
  • Page 115 Saving, Inputting, and Outputting Data Eva/RJ Check ■ Item Description ID Code History type "4" History Type Outputs history type. Product No. Product No. Product Name Product name History No. History serial number Date and Time YYYY/MM/DD HH:MM:SS Event Event occurred Result Result User...
  • Page 116 Saving, Inputting, and Outputting Data (1) Folder and file names Total statistics data is saved as "STTS_∆∆.csv" (∆∆ indicates a serial number) under the folder "STATS”. (2) Record format Data items are recorded to USB memory in the CSV format (comma-delimited) in the order of the table below.
  • Page 117 Saving, Inputting, and Outputting Data Item Description Standard EEC option Standard EEC option Upper limit Upper Limit TO1 Limit setting value setting value TO2 Limit setting value Zone B PASS In Zone B, count rejected as PASS because count within permissible range Percentage of Zone B PASS count in PASS Zone B TU1% count...
  • Page 118 Saving, Inputting, and Outputting Data Item Description Channel Output when parameter has a channel Name Parameter name Setting Value Parameter value ■ Saving history data Similarly, select [History] and press [Save]. Type: Operation History / Parameter History / NG History/ Alarm History / Operation Check History Target:...
  • Page 119 Saving, Inputting, and Outputting Data (2) Record format Data items are recorded to USB memory in the CSV format (comma-delimited) in the order of the table below. Operation History, Parameter History, NG History and Alarm History Item Description ID Code History type "4"...
  • Page 120 Saving, Inputting, and Outputting Data Reference: Formatting USB memory on a PC Open [My Computer]. Right-click the USB memory drive, and select [Format].
  • Page 121 When the completion message is displayed, formatting is complete. ■ Saving support data Save data to support recovery in case of equipment failure. When asked by an Anritsu SE, save data in this screen and provide the data.  P. 287 Outputting support data...

  • Page 122: Setting External I/O Signals

    INA1, INA2, INA3, INA4, OUTA4, OUTA5, OUTA6, INA5, INA6, INA7, INA8 Expansion I/O (optional) OUTA7, OUTA8 OUTB1, OUTB2, OUTB3, For Anritsu Expansion INB1, INB2, INB3, INB4, OUTB4, OUTB5, OUTB6, (optional) INB5, INB6, INB7, INB8 OUTB7, OUTB8 Signal tower and buzzer OUTP1, OUTP2, OUTP3 ―...
  • Page 123 Saving, Inputting, and Outputting Data Select the target destination and press [Input]. The input screen is displayed. For descriptions of the items, refer to the table below. Types of input signals Type Explanation No signal input Input for switching Run/Stop. Run and Stop are toggled each time this signal input goes ON for at Motor ON/OFF least 100 ms.
  • Page 124 Saving, Inputting, and Outputting Data Type Explanation Input for rejecting weighed products in EXNG2 direction irrespective of weight rank. The rejector gate operates at the same timing as at weight NG. External NG input 2  (Synchronous) P. 356 T iming chart This signal can be used with the EXNG: S or EXNG: A.
  • Page 125 Saving, Inputting, and Outputting Data Type Explanation Input for switching Run/Stop. The Checkweigher runs while this input is ON same as the “MOT ON: A” input. Motor ON/OFF However, the “ERR” signal is not stopped at conveyor-stop while this (Alternate switch) input is ON, though it is stopped at conveyor-stop while the “MOT ON: A”...
  • Page 126 Saving, Inputting, and Outputting Data Output Type Type Signal Explanation (at standard output type) Setting Pulse These signals go ON at each respective evaluation. MDNG Hold 1 * When the evaluation output is MDNG or external NG or External RJ Sync external NG2, both of the NG and weight evaluation signals (–NG, OK or +NG) go ON at the same time.
  • Page 127 Saving, Inputting, and Outputting Data Output Type Type Signal Explanation (at standard output type) Setting This signal is output when the weighed products are evaluated Pulse as PASS. Hold 1 OK Output * It is not output at MDNG, external NG, external NG2 , Double Reject sync product alarm or Product Length Exceeded alarm, even Hold 2...
  • Page 128 Saving, Inputting, and Outputting Data Output Type Type Signal Explanation (at standard output type) Setting Output OUT1 by reset pulse when the safety relay unit is mounted Type Pulse Safety relay reset Pulse Logic Not Reverse Latency 300 ms This outputs signal while the Checkweigher conveyor is running Checking Standard operation...
  • Page 129 Saving, Inputting, and Outputting Data For connection terminals, refer to Appendix "External I/O Specifications" and "Timing Chart”.  P. 346 External I/O Specifications, P. 356 Timing Chart Usually use “IO input setting”. Use “IO input setting (Details)” when setting the logical combination of the signal.
  • Page 130 Saving, Inputting, and Outputting Data Setting Name Description (Default: ) Delay Time 3 Specifies the delay time of the input signal from the 0 to 9999 (Low) selected terminal. Signal Specifies the logical connection of the signals input None/And/Or Connection 3 from the input terminal No.
  • Page 131 Saving, Inputting, and Outputting Data Setting Name Description (Default: ) Output Signal * Same as Output * Same as Output Signal ID1 Signal ID1 Pulse Hold1 Specifies the format of the signal output from the Output Type 2 RJ Sync. output terminal block.
  • Page 132 (Maint. and Setting → Unit/connected device set. → Serial connection → Serial1 Setting) * The items displayed differ depending on the Serial1:Connection setting. *1 Setting for Anritsu optional equipment. Not use for other equipment. *2 Prod. No. in the message corresponds to 3 digits (up to 200 products). Setting...
  • Page 133 Saving, Inputting, and Outputting Data Setting Name Description (Default: _) Selects the serial input/output type. Outputs no data. Serial1:Output 1 Outputs measured value for each Meas. Value weighing. Outputs batch mean value at the end Mean Value Meas. Value of a batch. Mean Value Outputs batch statistics data at the end Serial1:Output 2...
  • Page 134 Saving, Inputting, and Outputting Data Setting Name Description (Default: _) Selects the type of measured values output during operation check in serial 1 I/O. Does not output measured values. Serial1:Out when ope check Outputs measured values. Expansion Outputs measured values with product Expansion number added.
  • Page 135 Saving, Inputting, and Outputting Data Setting Name Description (Default: _) Specifies whether to read the item code in the product barcode by the barcode reader. The item code cannot be read by the barcode Serial1:Item code reader. Enter the item code using the touch panel.
  • Page 136 (Maint. and Setting → Unit/connected device set. → Serial connection → Serial2(A) settings) The items displayed differ depending on the Serial2(A):Connection setting. Setting for Anritsu optional equipment. Not use for other equipment. Prod. No. in the message corresponds to 3 digits (up to 200 products). Setting...
  • Page 137 Saving, Inputting, and Outputting Data Setting Name Description (Default: _) Selects the serial 2(A) input/output type. Output no data. Outputs measured value for each Meas. Value weighing. Meas. Value Outputs batch mean value at the end of Mean Value Mean Value Serial2(A): a batch.
  • Page 138 Saving, Inputting, and Outputting Data Setting Name Description (Default: _) Selects whether statistics data to output in serial A I/O or not by operating Indicator. Serial2(A):Total Not output. Stats Out Outputs in statistics value format. Selects the type of measured values output during operation check in serial 2(A) I/O.
  • Page 139 Saving, Inputting, and Outputting Data Setting Name Description (Default: _) Serial2(A):User Specifies the start digit of the user code in the barcode of code (start the user. (1 to 10) digit) Specifies the number of digits of the user code in the Serial2(A):User barcode of the user.
  • Page 140 (Maint. and Setting → Unit/connected device set. → Serial connection → Serial3(B) settings) The items displayed differ depending on the Serial3(B):Connection setting. Setting for Anritsu optional equipment. Not use for other equipment. Prod. No. in the message corresponds to 3 digits (up to 200 products). Setting...
  • Page 141 Saving, Inputting, and Outputting Data Setting Name Description (Default: _) Selects the serial 3(B) input/output type. Outputs no data. Outputs measured value each Meas. Value weighing. Meas. Value Outputs batch mean value at the end of Mean Value Mean Value Serial3(B): a batch.
  • Page 142 Saving, Inputting, and Outputting Data Setting Name Description (Default: _) Selects whether statistics data to output in serial B I/O or not by operating Indicator. Serial3(B):Total Not output. Stats Out Outputs in statistics value format. Selects the type of product number link in serial 3(B) I/O. Set this to No.
  • Page 143 Saving, Inputting, and Outputting Data Setting Name Description (Default: _) Serial3(B):User Specifies the start digit of the user code in the barcode of code (start the user. (1 to 10) digit) Specifies the number of digits of the user code in the Serial3(B):User barcode of the user.

  • Page 144: Adjusting I/O Timing

    Saving, Inputting, and Outputting Data > Adjusting I/O Timing This screen monitors input and output signals for external control. Use this screen for input and output signals that require a timing adjustment. In the "Menu" screen, select "Maint. and Setting"  "Unit/connected device set.” From "Gen.

  • Page 145: Connecting Ethernet (Lan)

    Saving, Inputting, and Outputting Data > Connecting Ethernet (LAN) When connecting to the network via Ethernet, select "Maint. and Setting"  "Unit/connected device set.”  "Network connection" in the "Menu" screen, and specify the settings by referring to the table below. Network common settings (Maintenance and Setting ...
  • Page 146 Saving, Inputting, and Outputting Data Comm. content settings (Maintenance and Setting  Unit/connected device set.  Network connection  Comm. content settings) Prod. No. in the message corresponds to 3 digits (up to 200 products). Setting Name Description (Default: ) Network: Sets whether to connect to the network.
  • Page 147 Saving, Inputting, and Outputting Data Setting Name Description (Default: ) Selects the type of product number link output in network I/O. Set this to No. Network: Does not output data. Product link Expansion Outputs data. Expansion Outputs data. * Selects whether to notify the network when an error or alarm occurs.
  • Page 148 Saving, Inputting, and Outputting Data Setting Name Description (Default: ) This is used to set the processing to perform if the connection with QUICCA (optional) or the PC is terminated during operation. Network:Proc. No special operation is performed. upon Outputs a error or alarm when disconnecting disconnect communication.
  • Page 149 Saving, Inputting, and Outputting Data ■ Setting on the PC Start the "Command Prompt" on a PC connected to a common network, enter the ping command with the IP address (e.g. ping 192.168.0.1), and press the [Enter] key. For Windows 2000/XP/Vista/7, select "All Programs"...

  • Page 150: Other Settings And Adjustments

    Other Settings and Adjustments Other Settings and Adjustments > Performing an installation check Installation check (Maintenance and Setting → Installation check)  P. 29 Turning on the System for the First Time > Adjusting Touch Screen If the system does not respond when a screen button or key is pressed, perform readjustment in the following steps.

  • Page 151: Checking Version Info

    Other Settings and Adjustments > Checking Version Info Press Help [?] → [Version Info.] to display the checkweigher model, serial number, version information of the software, and details on options. > Changing and Initializing Password The password can be changed or initialized by following the steps below. In the "Menu"...
  • Page 152 Other Settings and Adjustments ▼ Changing the password Select the access level. After selection, tap [Next]. Selecting the Manager Level Enter "Current password”. When the box is pressed, the keypad will be displayed. Enter the password and press [OK]. Password input screen When [Next] is pressed, the screen shown right is displayed.
  • Page 153 Other Settings and Adjustments ▼ Initializing the password Select "Initialize Password", select the target access level, and press [Yes]. When the initialization is completed successfully, the following screen is displayed. Press [Completed].

  • Page 154: Setting The Date And Time

    Other Settings and Adjustments > Setting the Date and Time When top area of the screen with date and time is pressed, the input screen is displayed. Set Year, Month, and Day in the upper column, and Time in the lower column. When the text box is pressed, the keypad is displayed.

  • Page 155: Setting The Language

    Other Settings and Adjustments > Setting the Language Press "Language" in the "Menu" screen. Or press “?” icon, and select [Language]. The language can also be set by selecting [?] → "Language". Setting to English display Select the language and press [OK]. >...
  • Page 156 Other Settings and Adjustments Select “Standard language” and press [OK]. display language switched depending on the settings of “Standard language” and “Display language”. The following table shows an example when specifying Portuguese as [Disp Type1] and English as [Disp Type2]. Setting of Standard Auto Portuguese...
  • Page 157 Other Settings and Adjustments ■ Switching display language on Product list and User list screens When pressing [Fn] button on the lower right of the screen while the product list is displayed in the language specified in [Product Name], [Product name change] appears on top of the submenu list.

  • Page 158: Setting Conveyor Speed

    Other Settings and Adjustments > Setting Conveyor Speed This is to set the conveyor speed of the main unit and rejector to be connected. It is optional for M5. Set main conveyor (Maintenance and Setting  Unit/connected device set.  Conveyor  Set main conveyor) Setting Name...

  • Page 159: Statistics Control

    Other Settings and Adjustments > Statistics Control This is to make detailed settings for the statistics. Basic Statistics Setting (Stats Control  Basic Statistics Setting) Setting Name Description (Default: ) Selects contents of printed/output statistics Prints statistics data for all products Prints and outputs the statistics for PASS products only (PASS statistics).
  • Page 160 Other Settings and Adjustments Setting Name Description (Default: ) Selects Batch Cycle units Uses count as batch cycle units For example, when the statistics batch is set Count to 10, statistics printing is performed at Count Batch Cycle Unit every 10 weight measurements. Hour Uses time (minutes) as batch cycle units For example, when the statistics batch is set...

  • Page 161: Setting Weighcell

    Other Settings and Adjustments Setting Name Description (Default: ) If "Yes" is set, statistics data is saved to USB when statistics are cleared. USB Stats Save At Statistics data is not saved to USB when statistics are Stats Clear cleared from "Serial", "Ethernet", or "General I/O". It cannot be used with "Smart Guide"...

  • Page 162: Security And Rules

    Other Settings and Adjustments Weighcell settings (Maintenance and Setting  Unit/connected device set.  Weighcell  Set weighcell) Setting Name Explanation (Default: _) Sets whether or not to round the weight to the nearest zero. Zero Rounding When Yes is selected, weights near zero (within ±0.1% of weight range) are displayed as 0 g.
  • Page 163 Other Settings and Adjustments Setting Name Explanation (Default: _) Selects CW conveyor operation at error Does not stop conveyor. Products are rejected in the direction set at the Nonstop “ALARM direction” column on the “RJ Nonstop direction settings” screen. Processing Error Stop Stops conveyor.
  • Page 164 Other Settings and Adjustments Setting Name Explanation (Default: _) The errors/alarms cannot be released at None once by pressing the [Stop] button. None Error/Alarm Batch Release [Stop] button [Stop] The errors/alarms can be released at button once by pressing the [Stop] button. Product reg.
  • Page 165 Other Settings and Adjustments Common/By product (Maintenance and Setting  Security and rules  Common/By product) Setting Name Description (Default: _) Setting related to +NG product processing. Specifies that +NG product processing be performed in the same way by all equipment. Common Sets +NG product processing in the policy Common...

  • Page 166: Specifying The Installation Check Settings

    Other Settings and Adjustments > Specifying the installation check settings Installation check setting (Maintenance and Setting  Installation check  Installation check setting) Setting Name Description (Default: _) Sets whether to display the screen for selecting whether to display the Confirmation at installation At start/inst check screen at system startup.

  • Page 167: Other Functions

    Other Settings and Adjustments > Other Functions ■ Photocell monitoring (Maintenance and Setting  Functions  Photocell monitoring) Setting Name Explanation (Default: _) Sets error detection operation of photocell for measurement. Photocell error occurs when product interrupts photocell for time set at "Photocell Error Time”.
  • Page 168 Other Settings and Adjustments Setting Name Explanation (Default: _) Displays the [Adjust detection sensitivity] button in the “Phase 2” screen when using smart guide. Does not display the [Adjust detection Phase 2: Detect. sensitivity] button. Sense. Adj. Displays the [Adjust detection sensitivity] 1a to 2 button when the access level is equal to or higher than the specified level.
  • Page 169 Other Settings and Adjustments Full Detection Input and Output When boxes are installed at the weighed product classification outlet, products may not be correctly classified or products may overflow if the boxes become full. Full detection I/O avoids this problem. ①...
  • Page 170 Other Settings and Adjustments ■ NG rate (Maintenance and Setting  Functions  NG rate) Setting Name Explanation (Default: _) Set whether NG rate alarm function available or not. The NG rate alarm is output when the NG rate in the NG Rate NG rate batch exceeds the set value.
  • Page 171 Other Settings and Adjustments Timing Chart (When suspended due to an error) タイムチャート （異常時停止の場合） ・測 定 Measurement ■ (T1 to evaluation time) (T1～判定時間) NG Rate Alarm Output ↓不良率 NG と判断 Evaluated as NG ■ ・不良率 NG 出力 Rate Alarm Motor-ON Output ■...

  • Page 172: User Information

    Other Settings and Adjustments ■ Auto-limit setting (Maintenance and Setting  Functions  Auto-limit setting) Setting Name Explanation (Default: _) Auto-limit count Sets the count to feed through products when using the auto-limit setting while the conveyor is running. (5～99) Statistics are counted because this operation is performed while in the normal production state.

  • Page 173: Operation

    Other Settings and Adjustments Key touch operation (Control Panel  Key touch operation) Setting Name Explanation (Default: _) Sets ON/OFF of the touch sound at key/screen Key Touch Sound operation. Specify the keyboard layout. Displays the QWERTY screen. Note Auto that the ABCDEF screen is displayed if Auto screen...

  • Page 174: Options And Peripheral Devices

    Options and Peripheral Devices Options and Peripheral Devices > Setting Signal Tower and Buzzer If the optional signal tower or buzzer is installed, set it in the following steps. Select the "Menu" screen  "Maint. and Setting"  "Unit/connected device set.”  "Signal tower / Buzzer"...
  • Page 175 Options and Peripheral Devices Select the item to set in the "Sig. tower settings" screen and press [Input]. Set the Op method and Op Time by referring to the table below. Event When the "Event" box is pressed, the input screen is displayed. Event Operation timing Pulse...
  • Page 176 Options and Peripheral Devices The settings specified in OUTP1 to OUTP3 of general I/O output can be used as a signal tower event. OUTP1 to OUTP3 can be set in the I/O Output screen Available events are shown in the table below. I/O output signal Upstream Stop Measurable...
  • Page 177 Options and Peripheral Devices Illumination method When the level box of the tower is pressed, the input screen is displayed. Illumination method Operation Turns it off. No change Does not affect the light. Turns it on. Blink 1 Repeats short blinks. Blink 2 Repeats long blinks.
  • Page 178 Options and Peripheral Devices ■ Sequence change Sets the lamp to highlight (give preference) at the upper tier. Press [Seq. chg] to set the lamp to highlight (give preference) in an earlier number. (Example) Selecting the 2nd event When the up arrow button in the right end of the screen is pressed, the selected event moves to the top.

  • Page 179: Setting A Printer

    Commercially manufactured printer General 2 General 1, used. For the model that can be used, General 2 consult Anritsu Industrial Solutions. ■ Selecting printer output target product In the "Menu" screen, select "USB memory/printer"  "Output to printer”, and press "Set”.
  • Page 180 Options and Peripheral Devices ■ Settings for products other than print target products Printer output settings (Menu → Maint. and Setting  Unit/connected device set.  Printer  Printer output settings) Setting Name Explanation (Default: _) Normal Print Direction Sets the print direction. Reverse Sets whether or not to print a histogram.
  • Page 181 Options and Peripheral Devices Setting Name Explanation (Default: _) Sets ON/OFF for the function that automatically prints operation check results at the end of an Print at Operation operation check. Check End Operation Check …(Accuracy Check and Eva/RJ Confirmation) Print stats at Specifys whether to print statistical data at the end of production end production when smart guide is being used.
  • Page 182 Options and Peripheral Devices ■ Print contents and format The checkweigher can print the following data with the optional printer installed. Data Print contents Total Statistics Printing Statistics Data Batch Statistics Printing Individual Print Individual Data Time Print Eva/RJ Confirmation Printing Operation Check Data Accuracy Check Print For print samples, refer to the following.
  • Page 183 Options and Peripheral Devices (All products statistics) Statistics start time (Time when the first product P001=== G.TOTAL ==== ALL was measured after the Start 2011-11-01 15:30 statistics data was cleared.) 2011-11-01 18:30 Statistics end time Product name ---- Confectionery Indicates how many times a Lot No.
  • Page 184 Options and Peripheral Devices Batch Statistics Printing Printing of statistics results at every predetermined number of products or every predetermined time is called batch statistics printing. The printed contents vary by the parameter settings on the Printer output setting screen, which is displayed by selecting “Menu”...
  • Page 185 Options and Peripheral Devices Individual Print Individual Print is used to print individual data of product. In the example below, “46.05” next to “1” at the top left indicates the first data item of the batch, followed by odd numbers (3, 5, 7,…). “46.08” to the right is the second data item, followed by even numbers (4, 6, 8,…).
  • Page 186 Options and Peripheral Devices (MDNG) The time when an MDNG product is measured is Product No. printed when Time Print is 2011-11-17 13:44:44 set to “Yes”. P099 Snacks Serial number 1 MDNG 58.725g Product Fe/SUS 5.70/5.0 Indicates the effect value 0.55/5.0 measured by the metal detector.
  • Page 187 Options and Peripheral Devices (Accuracy Check) Product No. Product ======Accuracy check===== Access level of the No.001 Confectionery user who performed 2011-11-01 11:30:21 the accuracy check Access level Time when the accuracy Result check was performed Allowable accuracy 3.00 g Pass/fail result of the Meas.

  • Page 188: Using Smart Measurement Function (Smf)

    Options and Peripheral Devices > Using Smart Measurement Function (SMF) ■ SMF (optional) If the intervals between fed products are small as in a high-speed line, a product may be put on the weigh conveyor before the previous measurement is completed. In this case, a conventional checkweigher cannot measure the weight of each product correctly, so both products are rejected as products unable to be measured.
  • Page 189 Options and Peripheral Devices ■ SMF Info screen This screen displays the improvements in productivity caused by SMF. The displayed improvement of the yield is based on a comparison with the values when this function is not used. In the "Menu" screen, select "Stats Control"  "SMF info screen" to display this screen. Total Total number of products inspected Invld.

  • Page 190: Setting Rejector

    Options and Peripheral Devices > Setting Rejector This is to make detailed settings for the rejector. Common set of RJ (Maintenance and Setting  Unit/connected device set.  Rejector  Common set of RJ) Setting Name Description (Default: ) 39 m/min RJ Conveyor Speed Sets the conveyor speed of the rejector.
  • Page 191 Options and Peripheral Devices RJ Direction Settings (Maintenance and Setting  Unit/connected device set.  Rejector  RJ Direction Settings) Setting Name Explanation (Default: _) Automatically set by RJ model. This sets the gate standby position during operation to PASS or NG. * This function is enabled when the RJ output type is "Pulse"...
  • Page 192 Options and Peripheral Devices ▪ The initial setting of the rejection direction varies depending on the connected rejector. ▪ When the rejection direction is set to Stop, the product may flow on the conveyor to the downstream without stopping. ▪ D-Prod is the status in which the next product is placed on the weighing conveyor while the weight of the previous product is being measured during rejection by weight.
  • Page 193 Options and Peripheral Devices ■ RJ test mode The operations of the rejector can be checked. ▪ In this mode, evaluation and rejection are not performed when a normal product is fed through. ▪ Be sure to stop the operation before using this feature. Tap the [Start] button on the RJ direction settings screen.
  • Page 194 Options and Peripheral Devices Tap the [Stop] button to exit RJ test mode. ■ Evaluation Priority When several NG statuses occur simultaneously, the priority rank is as follows: 優先順位 Rank 優先度が高い アラーム判定（異常発生時） Priority High 1 At error occurrence (ALARM) 金属 NG 判定 2 MDNG 外部...

  • Page 195: Other Useful Functions

    Other Useful Functions Other Useful Functions > Using Smart Guide Follow the instructions shown on the Smart Guide screen to prevent incorrect operation or omission of steps. For equipment with the standard specifications, Smart Guide is set by default. To enable Smart Guide after disabling it, follow the instructions below.
  • Page 196 Other Useful Functions ■ Displaying a daily report Information about production performed by using the Smart Guide can be displayed on the Smart Guide in the form of a daily report. The screen can be switched to the daily report screen by tapping the [Display Daily Report] button at the bottom of the screen.
  • Page 197 Other Useful Functions ■ Selecting the daily report to display The daily report to display on the daily report screen can be selected by tapping the [Select Daily Report] button at the bottom of the daily report screen. Changing the daily report to display on the daily report selection screen does not change the manufacture date or manufacture unit selected on the "Phase 1"...
  • Page 198 Other Useful Functions Item Remarks Pre-production The name of the user who performed the pre-production operation Operation Check User check (only available when the optional user management feature is Name used) Post-production Results of three most recent post-production operation checks Operation Check The numbers have the same meaning as the pre-production operation Results...

  • Page 199: Displaying Product List

    Other Useful Functions ▪ The forcible termination can be performed by the authorized users assigned in the “Set Access Authority” setting. ▪ The forcible termination can be performed any time during smart guide operation. However, when the conveyor is running, the display screen does not change and only the message is displayed to indicate that the forcible termination is executed once the conveyor stops.

  • Page 200: Copying And Deleting Registered Product

    Other Useful Functions To change the product for production, select the product to change and press [Prod. ■ Chg.]. The "Show product list" is also displayed when the "Product" area is pressed in the ■ "General" screen. > Copying and Deleting Registered Product ■...

  • Page 201: Setting All Products

    Other Useful Functions When [Yes] is pressed, only the statistics related to the currently selected product are cleared. This example is in the "General" screen, but the statistics data is cleared in other screens such "Histogram" "Enlarge bar" simultaneously. To clear the statistics of all the recorded products, select "Clear all product Stats." and press [Yes].

  • Page 202: Customizing The Items Displayed In Submenu

    Other Useful Functions Press [//] (End) button on the top of the screen. Select [Yes] when the confirmation dialog box appears to notify the completion of all product setting. The processing to apply the changed parameter to all the products starts. This processing takes a while.
  • Page 203 Other Useful Functions Select “Menu”, “Control Panel”, and then “Home display settings”, and then select the screen or menu to be customized. Example: When customizing “Home screen disp. sel.” Select the item to be hidden, press [Delete] and then [Yes]. Example: When hiding “Statis”...
  • Page 204 Other Useful Functions ■ Showing the hidden items To show the hidden submenu items, select the blank field and then press [Enter]. When the menu selection screen is displayed, select items to be shown, and then press [OK]. Example: When showing “Clear Stats.” hidden from the “Pro Cntl”...

  • Page 205: Using Conveyor Mode

    Other Useful Functions > Using Conveyor Mode If you do not perform weight measurement by product, set “CW Conveyor mode” to “Yes”. If you do not perform metal detection by product, set “MD Conveyor mode” to “Yes”. When the conveyor mode is set to [Yes], the status of the equipment is as follows: In CW conveyor mode (only the metal detector is used): The Start button blinks during operation.

  • Page 206: Viewing History

    Other Useful Functions Do not feed a product that has a weight exceeding the upper limit of the weighing range if you ■ set the CW conveyor mode. The weighing unit might be broken due to overload. The conveyor belt speed does not change when the conveyor mode is changed from Yes to ■...
  • Page 207 Other Useful Functions ■ Ope. history The operation history is displayed chronologically. The events shown in the operation history include power-on, access level change, alarm occurrence and clearance, product change, and other items. Select one of the events and tap [Info] to display a narrowed down history.
  • Page 208 Other Useful Functions ■ Saving history To save data, press [Save], select the data (Operation History / Parameter History / NG History / Operation Check History/ Alarm History), products (all or one product) to save, and output range (all data or past 24 hours), and press "Save”.

  • Page 209: Setting Access Level By Function

    Other Useful Functions > Setting Access Level By Function Unexpected parameter changes can be prevented by setting an access level for each function. In the "Menu" screen, select "Maint. and Setting"  "Security and rules"  "Set Access Authority" to open the following screen.

  • Page 210: Using Check Mode

    Other Useful Functions Item Description Forcible Limits the operation to stop the operation according to the smart termination guide halfway through. Limits the operation for lot number change. It is enabled only on the following screens. Lot No. Change • "Parameter adjustment screen" that can be selected from the General screen •...

  • Page 211: Method

    Other Useful Functions > Registering Products Using Another Auto Setting Method Use this when measuring a product to which auto settings have been applied (the properties are already known) or when changing a sensitivity mode determined by the full automatic method. ■...
  • Page 212 Other Useful Functions ■ Specify Sens. Mode A sensitivity mode can be automatically set by selecting “Specify Sens. Mode”. Use this only when you have automatically set the same product with another product number or another device that is the same model, and you know the sensitivity mode. Select “Specify Sens.
  • Page 213 Perform the normal auto setting in [Full-auto (recommended)]. Contact an Anritsu service engineer if you need to manually specify the sensitivity mode to adjust the detection sensitivity, and do not perform the specification by yourself.
  • Page 214 Other Useful Functions ■ Specify prod. Type The product properties can be automatically set by selecting [Specify prod. Type] if the product properties are those shown in the following table. However, this method cannot be used to check missing products. Property Example products Rice crackers, rice, flour, frozen foods, etc.
  • Page 215 Other Useful Functions Perform auto setting.  P. 44 Registering a New Product - step 18 Master products are fed 5 times when the “Specify product property.” is selected (15 times for full automatic mode) The value of the estimated detection sensitivity is a rough indication of the test piece that can be detected and is not a guaranteed value.

  • Page 216: Change (Product Check Function)

    Other Useful Functions > Correcting the Phase based on Characteristic Change (product check function) The product check function corrects the phase of the metal detector immediately before starting operation. This function is used only if the type of product is frozen or wet. If the phase of the metal detector deviates from the optimum setting value due to a reason such as changes in the product or device temperature, the metal detection signal fluctuates greatly and may lead to metal NG evaluation even if the product contains no...
  • Page 217 Other Useful Functions ■ How to use a product check If a product matches the product check conditions, press the [Start] button to display the data collection screen shown to the right. Feed master products the required number of times. The screen then shows the weight of the master product.

  • Page 218: Changing The Metal Detection Sensitivity

    Other Useful Functions If "Bulk" is specified and the processing does not advance from the Data collection screen even after a product is fed through several times, specify a smaller value for the settings below. The effective value of a product that is fed through for a product check might be smaller than the value specified by auto-setting.
  • Page 219 Other Useful Functions ■ How to call the Sensitivity Adjustment screen Touch the metal detection level bar on the Basic display or press [Set/Adj] button and select [MD sensitivity adjustment]. You can restrict the access level. The access level is set to 1b or higher at factory shipment. ...
  • Page 220 Other Useful Functions ■ Sensitivity Adjustment screen (for a metal contamination check) You can adjust the detection limit by checking the metal effect value on the bar graph. At the same time, you can check the estimated detection sensitivity after changing the setting.
  • Page 221 Other Useful Functions ■ Changing the detection sensitivity (for a metal contamination check) ▪ To decrease the detection sensitivity Increase the evaluation limit magnification if the effect of a product that has no metal contaminant exceeds the evaluation limit due to a wide variety of effect of the product or changes in the components of the product.
  • Page 222 Other Useful Functions ■ Changing the detection sensitivity (for a missing product check) Although the setting screen differs, the procedure to adjust the detection sensitivity of a missing product check is the same as that of an adjustment for a metal contamination check.
  • Page 223 Other Useful Functions ■ Sensitivity Adjustment 2 screen (for a metal contamination check) Latest/Latest 10 tab Estimated detection ˄ button Latest: Displays the latest item only. sensitivity Increases the evaluation limit Latest 10: Displays latest 10 items. magnification value (the detection sensitivity decreases).
  • Page 224 Other Useful Functions ■ Sensitivity Adjustment 2 screen (for a missing product check) ˄ button Latest/Latest 10 tab Stabilization index R Increases the evaluation limit Latest: Displays the latest item only. (fixed value) magnification value (the detection Latest 10: Displays latest 10 items. sensitivity increases).

  • Page 225: Chronologically Viewing The Effect Value Of The

    Other Useful Functions > Chronologically Viewing the Effect Value of the Product (Product effect monitor) The value of effect from products and metal contaminants can be checked by viewing the effect value history of the last 100 weighed products on the Product effect monitor screen. The detection sensitivity can also be changed from this screen.
  • Page 226 Other Useful Functions Ext (Effect value display bar intended contaminants other than Fe and SUS) may be displayed. Ext is detected by either the circuit of Fe or SUS. ■ Description of the Product effect monitor screen (for a missing product check) ^ button v button Increase the evaluation limit magnification...

  • Page 227: Checking The Effects Such As External Noise

    Other Useful Functions > Checking the Effects such as External Noise (Noise monitor) You can view metal detecting signals in real-time on the Noise monitor screen to check whether disturbance noise is present and the value of effect from products and metal contaminants.
  • Page 228 Other Useful Functions ■ Description of the Noise monitor screen Although the figure below shows a screen for a metal contamination check, the screen display for a missing product check is the same except that a common bar graph to adjust (Fe and SUS) is displayed.

  • Page 229: Using His Setting Function

    Other Useful Functions > Using HIS Setting Function The HIS setting function increases the detection probability by registering the properties of OK products and NG products into the metal detector and automatically specifying the settings suited for the test pieces to be detected. The target metal can be detected with higher probability by performing the HIS setting function after auto-setting.
  • Page 230 Use the metal contaminant to be used as the metal-control criteria (the material Test piece provided by Anritsu is included). Indicates average characteristics (dimension, weight, component, and package state) of the products to be fed through on the normal line. If the characteristics OK product differ, prepare the multiple number of products.
  • Page 231 Other Useful Functions Select [Specify new HIS settings] and press [Next]. [Restore the default algorithm] and [Restore default settings] become available when setting the next time. Selecting [Restore the default algorithm], restores the algorithm to the default value. Selecting [Restore default settings] restore the HIS settings to the default settings (those before HIS setting...
  • Page 232 Other Useful Functions Do not feed a product while ‘Wait for a while.’ is displayed. The screen shown to the right appears after the product is fed 5 times. Press [Next]. Feed the NG product 6 times. ▼ When the message “The effect from the NG product is too small”...
  • Page 233 Other Useful Functions The “End of HIS setting” screen appears after the setting is correctly completed. Press [Completed]. The value enclosed in brackets ([ ]) on the screen indicates the estimated improvement rate detection sensitivity compared with that obtained at auto-setting.

  • Page 234: Using Auto-Limit-Setting Function

    ■ Items to be prepared for auto-limit-setting function Use the metal contaminant to be used as the metal-control criteria (the Test piece material provided by Anritsu is included). Indicates average characteristics (dimension, weight, component, and OK product package state) of the products to be fed through to the normal line. If the characteristics differ, prepare the multiple number of products.
  • Page 235 Other Useful Functions The method to feed OK products only can be set during operation.  In the “General” screen, select [Set/Adj] → [Auto Limit Setting], and specify the setting according to the instructions on the screen.  If a product is evaluated as NG during setting, the data of the product is not reflected on the setting, and the product is rejected as an NG product.
  • Page 236 Other Useful Functions Prepare OK or NG product according to the instructions on the screen. If the product feeding orientation is unstable during production, feed the product appropriately to the possible situation to obtain the correct settings. Press the [Start] button. Feed OK or NG product according to the instructions on the screen and settings.
  • Page 237 Memo...

  • Page 238: Installation And Connection

    Installation and Connection This chapter describes the installation method of the checkweigher and the connection method with external equipment. Selecting Installation Location and Transportation Installation Connecting External Equipment Connecting Power Supply and Grounding, Turning On the Power...

  • Page 239: Transportation

    Selecting Installation Location and Transportation Selecting Installation Location and Transportation ■ Installation location Install the Checkweigher in a location meeting the following conditions. • Where the temperature range is within 0 to 40°C • Where the relative humidity is within 30% to 85% with no condensation. •...

  • Page 240: Installation

    Installation Installation If excessive force is applied, the equipment may tip over and cause Warning personal injury. Use the optional anchors to secure the equipment to the floor. Before installation, make sure that all four rubber feet protectors have been removed. Releasing the lock on the weighcell ▼...
  • Page 241 Installation ▼ KWS5XXX type Replace the screw on the bottom of the weighcell. (1) Remove the screw in the LOCK part. Loosen the lock nut with the spanner, LOCK part ← part and remove the screw with a Phillips screwdriver. Lock nut (2) Remove the screw in the ←...
  • Page 242 Installation (1) Loosen the lock nut of the foot bolts with Foot bolt adjustment Lock nut a spanner. Raise bolt Lower belt surface surface Foot bolts (4 locations) (2) Adjust the foot bolts to align the conveyor belt heights with the production line. •...

  • Page 243: Connecting External Equipment

    For applicable cables and I/O specifications, refer to “External I/O Specifications”.  P. 346 External I/O Specifications To connect the Anritsu rejector, refer to the operation manual of the rejector. Do not connect the power plug to the socket until the connection is Warning complete.

  • Page 244: Ssv-I Series

    Connecting External Equipment Attach the back panel. Attach the back panel of the indicator, and tighten the 6 screws with a spanner. > SSV-i Series Caution Be careful of burrs after punching out the knockout parts. Remove the back panel of the indicator. Loosen the 6 screws with a spanner, and remove the back panel.
  • Page 245 Connecting External Equipment (4) Route the cable as shown in the figure. (5) Tighten (A) fully. Pull the cable lightly to make sure it will not come off. Install the back panel. Install the back panel of the indicator, and tighten the 6 screws with a spanner.

  • Page 246: Connecting Power Supply And Grounding, Turning On The Power

    Connecting Power Supply and Grounding, Turning On the Power Connecting Power Supply and Grounding, Turning On the Power Class D grounding must be performed. Turning on the power ■ without grounding may cause an electric shock that leads to an injury or death.
  • Page 247 Memo...

  • Page 248: Maintenance

    4 Maintenance This chapter describes the maintenance of the checkweigher and troubleshooting. Daily Maintenance Cleaning Installing/Removing Components (SSV-h/f series) Installing/Removing Components (SSV-i series) Check Items for Failure Error Messages and Solutions Adjusting Photocell...

  • Page 249: Daily Maintenance

    Daily Maintenance Daily Maintenance When inspecting the conveyor while operating, be careful not to touch Caution the roller belt. When operating the conveyor with a separately installed indicator (optional), make sure no one is around the conveyor. Do not operate the conveyor if the conveyor belt is misaligned. If the Caution conveyor belt is misaligned, correct the alignment before starting operation.

  • Page 250: Weekly Maintenance

    Daily Maintenance If products cannot properly be rejected by the rejector, check the following points. After the check and the adjustment, operate the rejector to check if products are properly rejected. – Checkweigher and rejector – Conveyor ▪ The transfer timing for products is not deviated due the transfer error. ▪...

  • Page 251: Cleaning

    Cleaning Cleaning DO NOT apply a strong force or mechanical shock to the weigh Caution conveyor section, otherwise the weighcell may be damaged. > SSV-h/f Series Do not wash the checkweigher with water. Make sure to turn off the Warning power switch before cleaning.
  • Page 252 Cleaning (2) Conveyor belt After operation, remove the conveyor belt and wash it thoroughly. Mold Caution might grow if you continue using the conveyor belt with remnants from previous operations left on the conveyor. In addition, the metal detector may detect the remnant. Clean the conveyor belt thoroughly and dry it.

  • Page 253: Maintenance Of Stainless Steel

    Cleaning Before cleaning with water, check that the indicator cover, cover of optional printer etc., ■ are completely closed. Use a soft plastic brush or cloth to clean. Use a cloth to clean the surface of the ■ conveyor belt. If you use a soft plastic brush, you may accelerate the wear of the belt surface.

  • Page 254: Installing/Removing Components (Ssv-H/F Series)

    Installing/Removing Components (SSV-h/f series) Installing/Removing Components (SSV-h/f series) > Removing the Weigh Conveyor Unit Before following these procedures, make sure that the power switch Warning is turned to the OFF position. When removing the catch clip, be careful so that your finger does not Caution get caught.
  • Page 255 Installing/Removing Components (SSV-h/f series) ■ KWS55XX type Remove the product guide or optional cross plate in advance if they are being used. Remove the roller cover and belt cover. (1) Loosen the two screws with a Phillips screwdriver and remove the two roller covers.

  • Page 256: Installing The Weigh Conveyor Unit

    Warning is turned to the OFF position. For your safety, make sure to install the belt cover and roller cover before operation. Contact Anritsu if any of these components are broken. Make sure that all catch clips are firmly locked before starting Warning operation.
  • Page 257 Installing/Removing Components (SSV-h/f series) ■ KWS55XX type Install the weight conveyor to the weigh Weigh conveyor unit conveyor section. Lower (1) Mount the weigh conveyor unit and install the drive belt. Drive belt (2) Lower the weigh conveyor unit slowly to fit it onto the weigh conveyor section.

  • Page 258: Removing The Infeed Conveyor Unit

    Installing/Removing Components (SSV-h/f series) > Removing the Infeed Conveyor Unit Before following these procedures, make sure that the power switch Warning is in the OFF position. Caution Be careful of your fingers when removing the catch clip. Remove the product guide and optional cross plate in advance if they are used. Remove the catch clip and the belt cover.
  • Page 259 Installing/Removing Components (SSV-h/f series) Remove the infeed conveyor unit from the weigh infeed section. (1) Lift the infeed conveyor unit to remove the drive belt. (2) Remove the infeed conveyor unit. Infeed conveyor unit Lift Drive belt Pull toward you to remove...

  • Page 260: Installing The Infeed Conveyor Unit

    Warning is in the OFF position. For your safety, make sure to install the belt cover before starting operation. Contact Anritsu if any of these components are broken. Before starting operation, make sure that all the catch clips are fixed Warning securely.
  • Page 261 Installing/Removing Components (SSV-h/f series) Install the belt cover and lock the catch clip. ▼ For a belt width of 160 mm or 250 mm (1) Install the belt cover and tighten the knurled screw with flat-blade screwdriver. (2) Lock the two catch clips (one on each side).

  • Page 262: Removing The Conveyor Belt/Roller

    Installing/Removing Components (SSV-h/f series) > Removing the Conveyor Belt/Roller The removal procedure is the same for both the weigh conveyor and the infeed conveyor. For your safety, remove the conveyor belt on a workbench with Caution sufficient space. Be careful not to drop the rollers. ■...

  • Page 263: Installing The Conveyor Belt/Roller

    Installing/Removing Components (SSV-h/f series) > Installing the Conveyor Belt/Roller For your safety, remove the conveyor belt on a workbench with Caution sufficient space. Be careful not to drop the roller. ■ Weigh conveyor unit Carrying belt Install the conveyor belt and rollers. Drive (1) Put the drive belt on the drive roller.
  • Page 264 Installing/Removing Components (SSV-h/f series) ■ Infeed conveyor unit Install the conveyor belt and rollers. Carrying belt (1) Put the drive belt on the drive roller. Drive roller (2) Install the drive roller and driven roller onto the conveyor surface. (3) Install the conveyor belt. Driven roller Frame The flow of products should match the...

  • Page 265: Adjusting Belt Alignment

    Installing/Removing Components (SSV-h/f series) > Adjusting Belt Alignment Check the conveyor belt for belt misalignment after the conveyor belt is removed from the conveyor unit and installed again or is replaced with a new belt. The procedure for adjusting belt misalignment is the same for both the weigh conveyor and the infeed conveyor.
  • Page 266 Installing/Removing Components (SSV-h/f series) ■ Infeed conveyor section Operate the conveyor and check the belt misalignment state of the conveyor belt. If the belt is misaligned, adjust the tension of the conveyor belt with the two adjusters. Adjust them so that gaps on the roller ends are equal. Misalignment state Adjustment (conveyor viewed from above)

  • Page 267: (Ssv-I Series)

    Installing/Removing Components (SSV-i series) Installing/Removing Components (SSV-i series) > Removing the Weigh Conveyor Unit Before following these procedures, make sure that the power switch Warning is turned to the OFF position When removing the optional product guide or pulling out the motor, be Caution careful that your finger does not get caught by the catch clip.

  • Page 268: Installing The Weigh Conveyor Unit

    Installing/Removing Components (SSV-i series) > Installing the Weigh Conveyor Unit Before following these procedures, make sure that the power switch Warning is in the OFF position. Before starting operation, make sure that all the catch clips are fixed Warning securely. Caution Be careful of your fingers when locking the catch clip.
  • Page 269 Installing/Removing Components (SSV-i series) When installing the motor, make sure there is no No gap gap, as shown in the figure. If any gap exists, install it again. A motor that is not installed correctly may cause the coupling to wear quickly or poor weighing accuracy.

  • Page 270: Removing The Infeed Conveyor Unit

    Installing/Removing Components (SSV-i series) > Removing the Infeed Conveyor Unit Before following these procedures, make sure that the power switch Warning is turned to the OFF position When removing the optional product guide or pulling out the motor, be Caution careful that your finger does not get caught by the catch clip.

  • Page 271: Installing The Infeed Conveyor Unit

    Installing/Removing Components (SSV-i series) > Installing the Infeed Conveyor Unit Before following these procedures, make sure that the power switch Warning is in the OFF position. Before starting operation, make sure that all the catch clips are fixed Warning securely. Caution Be careful of your fingers when locking the catch clip.
  • Page 272 Installing/Removing Components (SSV-i series) Install the motor. Motor Catch clip (1) Insert the coupling into the drive roller. Insert If it is hard to insert, push and rotate the conveyor belt while inserting it. (2) Lock the two catch clips on the motor by Drive roller holding the motor by hand.

  • Page 273: Removing The Conveyor Belt

    Installing/Removing Components (SSV-i series) > Removing the Conveyor Belt The removal procedure is the same for both the weigh conveyor section and the infeed conveyor section. Remove the weigh/infeed conveyor from the weigh/infeed conveyor section.  P. 267 Removing the Weigh Conveyor Unit ...

  • Page 274: Installing The Conveyor Belt

    Installing/Removing Components (SSV-i series) > Installing the Conveyor Belt The installation procedure is the same for both the weigh conveyor section and the infeed conveyor section. Align the protruding profile inside the belt Carrying belt to the groove of the roller, and install the conveyor belt.

  • Page 275: Adjusting Belt Alignment

    Installing/Removing Components (SSV-i series) > Adjusting Belt Alignment Check the conveyor belt for belt misalignment after the conveyor belt is removed from the conveyor unit and installed again or is replaced with a new belt. The procedure for adjusting belt misalignment is the same for both the weigh conveyor section and the infeed conveyor section.

  • Page 276: Check Items For Failure

    This section describes how to resolve troubles. If the problem is not resolved after taking the appropriate actions, or if the problem occurs again, contact Anritsu Industrial Solutions. At this time, Anritsu might ask you to submit support data. ...
  • Page 277 Check Items for Failure ■ The Screen Becomes Blank Tap the touch screen. Does the The blank screen was caused by a screen return to the original state? function that turns off the back light when no operation is performed for a period of time.
  • Page 278 Check Items for Failure ■ NG Products Not Rejected Compressed air is supplied Check the air source. (pneumatic rejector). Clean the rejector and make sure it There is a stain or foreign object on moves smoothly. the rejector. Adjust the conveyor system to obtain Operation timing of the rejector is in a stable conveyor state, or adjust the sync with the passing of products.
  • Page 279 Check Items for Failure ■ Product Length Exceeded (A039)/Dbl. Product Alarm (A001)/CW Capacity Exceeded (A012) Occurs Photocell Error (E011) Occurs Product length is set correctly. Set the product length correctly in the product registration. Products slip or jump while being Adjust the conveyor speed to obtain carried.
  • Page 280 Check Items for Failure ■ Manual Zero-set Error (E008) / External Zero-set Error (E009) Occurs Zero-setting Error (E040) / W. cell contact detection (E049) / -OVF occurrence (E116) Occurs Weighcell lock is released. Release weighcell lock. Adjust the installation location so that The checkweigher is in contact with the the checkweigher does not come into upstream/downstream equipment.
  • Page 281 Check Items for Failure ■ Operation Check Fails Pass products and NG products are Perform an operation check in the being fed in the correct order. correct order by following the on-screen instructions. The weight of the sample product Perform an operation check in the for the operation check is correct.
  • Page 282 The metal detector is susceptible to electromagnetic waves and vibrations from the surrounding area and metal. Install the equipment in a place that is subject to as little of these external influences as possible. Contact Anritsu for a consultation on specific measures.
  • Page 283 Check Items for Failure The detection performance becomes Use a different power system from stable if an upstream, downstream, that for the peripheral devices, or or peripheral device is stopped (or install the equipment away from the turned off). peripheral devices. The metal bar graph reaches red at certain interval...
  • Page 284 Check Items for Failure ■ The bar graph reaches red, but the product is not evaluated as MDNG. The product consistently blocks the Make sure that the position and photocell on the metal detector. detecting status of the photocell on the metal detector are correct.
  • Page 285 Check Items for Failure ■ One of the following metal detector errors has occurred: Dbl. product (A501), Capacity exceeded (A504), Length exceeded (A505), or Photocell error (E511). The set product length is correct. Set the correct product length at product registration. Adjust the conveyor speed so as to The product slips or bounces while make...
  • Page 286 Check Items for Failure ■ Other Unexpected Problems Occur Change the direction of the air conditioner. Is there any wind or vibration Install the checkweigher away from the affecting the checkweigher? machine generating vibrations. Install a static eliminator. The products are electrically charged. Turn off the power and turn it on again.

  • Page 287: Outputting Support Data

    If a problem occurs in the system, support data for recovery can be output. If an Anritsu sales engineer requests you to submit support data, output it to a USB memory and send the USB memory to the sales engineer at Anritsu.
  • Page 288 Check Items for Failure Select the [Check the weighcell state] check box, and then tap [Yes]. On the Save to USB memory screen, select "Support data" and then tap [Save]. The following file is output to the USB memory. SUPPORT_Model_SN_Software version_YYYYMMDDHHMMSS.pwy (Example: SUPPORT_KWS6001AF04_4600000001_V01010001_20121108122346.pwy Compress the output file for submission.

  • Page 289: Forced Operation

    Check Items for Failure > Forced Operation The forced operation must be performed by a person in charge of Caution equipment maintenance only. The forced operation must be performed in an unavoidable case only, Caution such as a failure of the operation unit, as an emergency measures until completion of repair.
  • Page 290 Check Items for Failure Set the dip switches S3-1 and S3-2 of the MPU2010 unit to ON. Dip switch S3 Printer S3-1 1:MANU 2:SELF S3-2 MPU2010A UNIT Install the rear cover.  P. 243 Connecting External Equipment ■ Forced operation/stop of conveyor (1) Operation Make sure that there is no person around the conveyor.
  • Page 291 Check Items for Failure ■ Releasing forced operation Turn off the power switch. Remove the rear cover of the indicator.  P. 243 Connecting External Equipment Set the dip switches S3-1 and S3-2 of the MPU2010 unit to OFF. Dip switch S3 Printer S3-1 1:MANU...

  • Page 292: Error Messages And Solutions

    Turn the main power on again. If this error occurs again, E001 ROM Error the parts must be replaced. Call Anritsu or its distributor for service Backup Battery Error Turn the main power supply on again. If this error occurs Detected again, the parts must be replaced.
  • Page 293 Is the green LED on the photocell lit? If it is not lit, the photocell might be faulty or a cable might be disconnected. Call Anritsu or its distributor for service and request repair. * If using a custom-made photocell, check the documentation for that product before making adjustments.
  • Page 294 Error Messages and Solutions Error or Displayed message Details alarm code A mass was detected A product might have been fed through on the weigh without the photocell conveyor without interrupting the photocell. Adjust the being interrupted. photocell so that the following is observed. * If using a custom-made photocell, check the documentation for that product before making adjustments.
  • Page 295 E017 manufactured by Anritsu, check that the device is being used at the rated voltage. After checking this, restore the circuit protector. If this error occurs again, contact your dealer's customer support. RJ Motor Overcurrent Check that the conveyor is not overloaded.
  • Page 296 The weigh conveyor might be touching the cables due to bumping. If the problem is not resolved even after checking the above, call Anritsu or its distributor for service. Fine Adjust. Error Check that the measurement timing is correct, the...
  • Page 297 Check connectors and cables between weighcell and indicator. After checking, turn the main power on again. E101 If this error occurs again, call Anritsu or its distributor for service Zero Calibration Error Check the weighcell for the following and perform sensitivity correction again.
  • Page 298 Check that the weight of the master weight matches the specified weight, and retry sensitivity correction. E103 If this error occurs again, call Anritsu or its distributor for service Auto-sensitivity Turn the main power on again. If this error occurs again,...
  • Page 299 Adjust or replace the moving parts (such as rollers or motors). After checking, turn the main power on again. If this error occurs again, call Anritsu or its distributor for service Carrying UNIT Error Carrying unit error. Remove all products from the carrying unit, and check if there is a problem.
  • Page 300 Error Messages and Solutions Error or Displayed message Details alarm code Photocell Error Is there anything (a product or other object) between the photocell and reflection plate? If there is, remove it. Are the photocell and reflection plate clean? If they are dirty, clean them. Is the green LED on the photocell on? If it is not on, the photocell may be faulty or a cable may be disconnected.
  • Page 301 Check the product does not contain any metal. After E549 checking, perform auto setting with a normal product. If this error occurs again, call Anritsu or its distributor for service No Connection with The connection with the detector head is incorrect. The MD Head connection cable and connector may not be connected.
  • Page 302 Error Messages and Solutions Error or Displayed message Details alarm code No Communication The connection with the detector head is incorrect. The with MD Head connection cable and connector may not be connected. E552 Turn the main power supply on again. If this error occurs again, contact your dealer's customer support.
  • Page 303 Error Messages and Solutions Error or Displayed message Details alarm code No Communication Turn the main power supply on again. If this error occurs E580 with MD Head again, contact your dealer's customer support. No Sync. with MD Turn the main power supply on again. If this error occurs Head again, contact your dealer's customer support.
  • Page 304 Watchdog Alarm Turn the main power on again. If this alarm occurs A016 again, the parts must be replaced. Call Anritsu or its distributor for service Ope. Check Operation cannot be started since an operation check...
  • Page 305 Error Messages and Solutions Error or Displayed message Details alarm code No Eval. Prod. NG products may have been fed in the OK direction. Passed Stop the conveyor, and take measures to recheck the product. To prevent recurrence, check whether the rejector timing A033 and rejector operation are correct.
  • Page 306 Error Messages and Solutions Error or Displayed message Details alarm code The product length is A product that is longer than "Product Length x exceeded. P.Len.Detection Multi.(+Lim)" has been detected. The products might have been conveyed too close together. Keep sufficient gaps between products when conveying them.
  • Page 307 NGBox is unlocked. Lock it. A101 Comm. Alarm Check connectors and cables between weighcell and indicator. After checking, turn the main power on again. A102 If this alarm occurs again, call Anritsu or its distributor A103 for service A104 A105 CW Capacity Turn the main power on again.
  • Page 308 Anritsu or its distributor for service A111 Weighcell Alarm Check connectors and cables between weighcell and indicator. After checking, turn the main power on again. A112 If this alarm occurs again, call Anritsu or its distributor A113 for service A114 A115 - Overflow Alarm...
  • Page 309 Check that no paper jam occurred and paper is in place. Out) After checking, turn the main power on again. If this A156 alarm occurs again, call Anritsu or its distributor for service Printer Connection Check that the printer is connected. After checking this,...
  • Page 310 Error Messages and Solutions Error or Displayed message Details alarm code Serial 2 (A) Comm. Check that the serial 2 (A) connection cables and Alarm connectors are connected correctly. After checking this, turn the main power supply on again. If this alarm occurs A311 again, contact your dealer's customer support.
  • Page 311 Error Messages and Solutions Error or Displayed message Details alarm code Serial Comm. Send The data cannot be sent due to a send buffer overflow. Error Check that all serial cables and connectors connecting the KWU2507 and external devices are connected A333 correctly.
  • Page 312 Check USB Memory is not faulty, and make output A380 buffer full occurs setting again. If this alarm occurs again, call Anritsu or its distributor for service USB Memory Full Transfer data while there is still free space in the USB A381 memory.
  • Page 313 Error Messages and Solutions Error or Displayed message Details alarm code Ethernet Comm. Check that all cables and connectors are connected Alarm correctly. After checking this, turn the main power supply on again. If this alarm occurs again, contact your dealer's customer support.
  • Page 314 Error Messages and Solutions Error or Displayed message Details alarm code MD Dbl. Product Feed products so that the interval is 280 mm or more. Alarm The alarm is released automatically when the product interval is adjusted to the correct value. A501 * This alarm occurs if the next product is fed through before evaluation is performed when performing a...
  • Page 315 Error Messages and Solutions Error or Displayed message Details alarm code Prod Jam or Length The products may have been conveyed too close NG Error together. If this alarm occurs frequently, expand the interval between products. The products may have become misaligned while being conveyed.
  • Page 316 Error Messages and Solutions ■ Handling of the E008, E009, E040, E049, E116 If the weight value displayed on the screen is not "0" even after the [Zero-set] button is tapped with nothing on the weighcell, perform a weighcell self-check. A weighcell self-check can also be performed from the error message screens E008, E009, E040, E049, and E116.
  • Page 317 Error Messages and Solutions ■ Using the E017 RJ Output Overcurrent Error (When RJ-I/F unit option is used) When overcurrent flows at the RJ Output Contact, the circuit protector is actuated and E017 error is display. Restore status the circuit protector by the following steps. Before following these procedures, make sure that the power switch Warning is turned to the OFF position.
  • Page 318 A graphite fluoride lithium battery is used as a memory backup battery. For replacement, ■ contact Anritsu Industrial Solutions. The memory backup battery is a recyclable resource. After use, please return to Anritsu ■ representative. Warning Before removing the battery, make sure to turn the power off.

  • Page 319: Adjusting Photocell

    If both the stability indicator lamp (green) and operation indicator lamp (orange) are off while ■ there are no product on the conveyor, the photocell may be defective, or the photocell cable connector may be disconnected. Contact Anritsu Industrial Solutions.
  • Page 320 Adjusting Photocell ■ Adjustments When the Photocell Does Not Operate Initialize the photocell. Press the operation button, and hold it until the stability indicator lamp (green) starts to blink. Operation button Green ⇒ The settings have been initialized. lamp Orange blinks lamp blinks...
  • Page 321 If the operation indicator lamp (orange) is blinking after the adjustment, perform the adjustment again as the detection is still unstable. If the situation cannot be improved by the adjustment, use of an area sensor or transparent body sensor (optional) is recommended. Contact Anritsu Industrial Solutions.

  • Page 322: Appendix

    5 Appendix Consumables Spare Parts Connecting the Terminal Block Connector and Push-Type Terminal Block External I/O Specifications RJ Output Specification RJ-I/F Unit (Optional) RJ I/O Specifications Ethernet Connection Timing Chart Specifications Copyright, etc. CE Conformity Marking...

  • Page 323: Consumables

    Consumables Consumables Use the Product number to place an order Product number. ■ SSV-h series Model Product name Product number Remarks Conveyor belt 84G176741A KWS6003BF3D/5D/6D, (infeed conveyor section) KWS6003BP3D/5D/6D, Conveyor belt 84G176739B KWS6203BF3D/5D/6D, (weigh conveyor section) KWS6203BP3D/5D/6D KWS6003BF2R/3R/4R/5R/6R, Drive belt 84G123704F KWS6003BP2R/3R/4R/5R/6R, (infeed conveyor section)
  • Page 324 Consumables Model Product name Product number Remarks Conveyor belt 84G176741A (infeed conveyor section) KWS6412BF3D/5D/6D, Conveyor belt 84G176740G KWS6412BP3D/5D/6D, (weigh conveyor section) KWS6412BF2E/3E/5E, KWS6412BP2E/3E/5E, Drive belt 84G123704F KWS6412BF2R/3R/4R/5R/6R, (infeed conveyor section) KWS6412BP2R/3R/4R/5R/6R Drive belt 84G123704W (weigh conveyor section) Conveyor belt 84G176741A (infeed conveyor section) KWS6414BF3D/5D/6D, Conveyor belt...
  • Page 325 Consumables Model Product name Product number Remarks Conveyor belt 84G176741H (infeed conveyor section) Conveyor belt 84G176739D KWS6005BF2E/3E/4E, (weigh conveyor section) KWS6005BP2E/3E/4E, KWS6205BF2E/3E/4E, Drive belt 84G123704F KWS6205BP2E/3E/4E (infeed conveyor section) Drive belt 84G880590A (weigh conveyor section) Conveyor belt 84G176741H (infeed conveyor section) Conveyor belt 84G176739E KWS6006BF2E/3E/4E,...
  • Page 326 Consumables ■ SSV-i series Model Product name Product number Remarks Conveyor belt KWS5265BW3D/5D/6D, 84G901061R (infeed conveyor section) KWS6265BW3D/5D/6D, KWS5265BW2R/3R/4R/5R/6R, Conveyor belt 84G901127A KWS6265BW2R/3R/4R/5R/6R (weigh conveyor section) KWS5366BW3D/5D/6D, Conveyor belt 84G901061R KWS6366BW3D/5D/6D, (infeed conveyor section) KWS5366BW2E/3E/5E, KWS6366BW2E/3E/5E, Conveyor belt 84G901127J KWS5366BW2R/3R/4R/5R/6R, (weigh conveyor section) KWS6366BW2R/3R/4R/5R/6R KWS5472BW3D/5D/6D,...
  • Page 327 Consumables ■ SSV-f series Model Product name Product number Remarks Conveyor belt 84G176741A (infeed conveyor section) Conveyor belt KWS5203BF3D/5D/6D, 84G176739B (weigh conveyor section) KWS5203BP3D/5D/6D, KWS5203BF2R/3R/4R/5R/6R, Drive belt 84G123704F KWS5203BP2R/3R/4R/5R/6R (infeed conveyor section) Drive belt 84G880590A (weigh conveyor section) Conveyor belt 84G176741A (infeed conveyor section) Conveyor belt...
  • Page 328 Consumables Model Product name Product number Remarks Conveyor belt 84G176741A (infeed conveyor section) KWS5414BF3D/5D/6D, Conveyor belt KWS5414BP3D/5D/6D, 84G176740H (weigh conveyor section) KWS5414BF2E/3E/5E, KWS5414BP2E/3E/5E, Drive belt 84G123704F KWS5414BF2R/3R/4R/5R/6R, (infeed conveyor section) KWS5414BP2R/3R/4R/5R/6R Drive belt 84G123704W (weigh conveyor section) Conveyor belt 84G141349AN (infeed conveyor section) KWS5416BF4D/5D/6D, Conveyor belt...
  • Page 329 (infeed conveyor section) Conveyor belt 84G176739E (weigh conveyor section) KWS5206BF2E/3E/4E, KWS5206BP2E/3E/4E Drive belt 84G123704F (infeed conveyor section) Drive belt 84G880590A (weigh conveyor section) ■ Common to SSV series Product name Product number Remarks Printer paper 84G134077A Optional Backup lithium battery BR-2/3AC2P 84Z166631A...
  • Page 330 Consumables ■ SSV-h series Model Product name Product number Remarks Drive roller 839H176806A (infeed conveyor section) Drive roller 839H176780A (weigh conveyor section) Driven roller 839H176807A (infeed conveyor section) KWS6003BF3D/5D/6D, KWS6003BP3D/5D/6D, Driven roller 839H176785A KWS6203BF3D/5D/6D, (weigh conveyor section) KWS6203BP3D/5D/6D Motor 839H176755C (infeed conveyor section) Motor 839H176750A...
  • Page 331 Consumables Model Product name Product number Remarks Drive roller 839H176806A (infeed conveyor section) Drive roller 839H176790A (weigh conveyor section) Driven roller 839H176807A KWS6411BF3D/5D/6D, (infeed conveyor section) KWS6411BP3D/5D/6D, KWS6412BF3D/5D/6D, Driven roller 839H176795A KWS6412BP3D/5D/6D, (weigh conveyor section) KWS6414BF3D/5D/6D, Motor 839H176755C KWS6414BP3D/5D/6D (infeed conveyor section) Motor 839H176755A (weigh conveyor section)
  • Page 332 Consumables Model Product name Product number Remarks Drive roller 839H228310A (infeed conveyor section) Drive roller 839H176780A (weigh conveyor section) Driven roller 839H228311A (infeed conveyor section) KWS6003BF2E/3E/4E, KWS6003BP2E/3E/4E, Driven roller 839H176785A KWS6203BF2E/3E/4E, (weigh conveyor section) KWS6203BP2E/3E/4E Motor 839H176755D (infeed conveyor section) Motor 839H176750A (weigh conveyor section)
  • Page 333 Consumables Model Product name Product number Remarks Drive roller 839H176806A (infeed conveyor section) KWS6411BF2E/3E/5E, Drive roller 839H176790A KWS6411BP2E/3E/5E, (weigh conveyor section) KWS6412BF2E/3E/5E, Driven roller 839H176807A KWS6412BP2E/3E/5E, (infeed conveyor section) KWS6414BF2E/3E/5E, KWS6414BP2E/3E/5E, Driven roller 839H176795A KWS6411BF2R/3R/4R/5R/6R, (weigh conveyor section) KWS6411BP2R/3R/4R/5R/6R, Motor 839H176755D KWS6412BF2R/3R/4R/5R/6R, (infeed conveyor section)
  • Page 334 Consumables Model Product name Product number Remarks Drive roller 839H176806A (infeed conveyor section) Drive roller 839H176780C (weigh conveyor section) KWS6005BF2R/3R/4R/5R/6R, Driven roller 839H176807A KWS6005BP2R/3R/4R/5R/6R, (infeed conveyor section) KWS6006BF2R/3R/4R/5R/6R, KWS6006BP2R/3R/4R/5R/6R, Driven roller 839H176785C KWS6205BF2R/3R/4R/5R/6R, (weigh conveyor section) KWS6205BP2R/3R/4R/5R/6R, Motor 839H176755D KWS6206BF2R/3R/4R/5R/6R, (infeed conveyor section) KWS6206BP2R/3R/4R/5R/6R Motor...
  • Page 335 Consumables Model Product name Product number Remarks Drive roller 839H185550D (infeed conveyor section) Drive roller 84Y185932C (weigh conveyor section) Driven roller 839H185555D (infeed conveyor section) Driven roller 839H185545C KWS5366BW3D/5D/6D, (weigh conveyor section) KWS6366BW3D/5D/6D Motor 839H185610B (infeed conveyor section) Motor 839H185610A (weigh conveyor section) Tension roller 839H167675C...
  • Page 336 Consumables Model Product name Product number Remarks Drive roller 839H185550F (infeed conveyor section) Drive roller 839H185550E (weigh conveyor section) Driven roller 839H185555F (infeed conveyor section) Driven roller 839H185555E KWS5476BW4D/5D/6D (weigh conveyor section) Motor 839H185610C (infeed/weigh conveyor section) Tension roller 839H167675B (infeed conveyor section) Disk 84Y170100B...
  • Page 337 Consumables Model Product name Product number Remarks Drive roller 839H185833G (infeed conveyor section) Drive roller 84Y185932A (weigh conveyor section) Driven roller 839H185837G (infeed conveyor section) Driven roller 839H168530A KWS5265BW2E/3E/4E, (weigh conveyor section) KWS6265BW2E/3E/4E Motor 839H185610B (infeed conveyor section) Motor 839H185610A (weigh conveyor section) Tension roller 839H167675E...
  • Page 338 Consumables Model Product name Product number Remarks Drive roller 839H185833F (infeed conveyor section) Drive roller 839H185550C (weigh conveyor section) Driven roller 839H185837J (infeed conveyor section) KWS5472BW2E/3E/5E, KWS6472BW2E/3E/5E, Driven roller 839H185555C KWS5472BW2R/3R/4R/5R/6R, (weigh conveyor section) KWS6472BW2R/3R/4R/5R/6R Motor 839H185610C (infeed/weigh conveyor section) Tension roller 839H167675C (infeed conveyor section)
  • Page 339 Consumables Model Product name Product number Remarks Drive roller 839H185833E (infeed conveyor section) Drive roller 839H185550E (weigh conveyor section) Driven roller 839H185837H (infeed conveyor section) KWS5577BW2E/4E/5E, Driven roller 839H185555E KWS5577BW2R/3R/4R/5R/6R (weigh conveyor section) Motor 839H185610D (infeed/weigh conveyor section) Tension roller 839H167675B (infeed conveyor section) Disk...
  • Page 340 Consumables ■ SSV-f series Model Product name Product number Remarks Drive roller 839H176806A (infeed conveyor section) Drive roller 839H176780B (weigh conveyor section) Driven roller 839H176807A (infeed conveyor section) KWS5203BF3D/5D/6D, Driven roller 839H176785B KWS5203BP3D/5D/6D (weigh conveyor section) Motor 839H176755C (infeed conveyor section) Motor 839H176750B (weigh conveyor section)
  • Page 341 Consumables Model Product name Product number Remarks Drive roller 839H176806A (infeed conveyor section) Drive roller 839H176790B (weigh conveyor section) Driven roller 839H176807A KWS5411BF3D/5D/6D, (infeed conveyor section) KWS5411BP3D/5D/6D, KWS5412BF3D/5D/6D, Driven roller 839H176795B KWS5412BP3D/5D/6D, (weigh conveyor section) KWS5414BF3D/5D/6D, Motor 839H176755C KWS5414BP3D/5D/6D (infeed conveyor section) Motor 839H176755B (weigh conveyor section)
  • Page 342 Consumables Model Product name Product number Remarks Drive roller 839H149527F (infeed conveyor section) Drive roller 839H185880A (weigh conveyor section) KWS5522BF4D/5D/6D, Driven roller 839H149530F KWS5522BP4D/5D/6D, (infeed conveyor section) KWS5524BF4D/5D/6D, Driven roller 839H185885A KWS5524BP4D/5D/6D, (weigh conveyor section) KWS5522BF2E/4E/5E, KWS5522BP2E/4E/5E, Motor 83G901478A KWS5524BF2E/4E/5E, (infeed conveyor section) KWS5524BP2E/4E/5E, Motor...
  • Page 343 Consumables Model Product name Product number Remarks Drive roller 839H228310A (infeed conveyor section) Drive roller 839H176780D (weigh conveyor section) Driven roller 839H228311A (infeed conveyor section) KWS5205BF2E/3E/4E, KWS5205BP2E/3E/4E, Driven roller 839H176785D KWS5206BF2E/3E/4E, (weigh conveyor section) KWS5206BP2E/3E/4E Motor 839H176755D (infeed conveyor section) Motor 839H176750B (weigh conveyor section)
  • Page 344 Driven roller 839H176785D KWS5206BF2R/3R/4R/5R/6R, (weigh conveyor section) KWS5206BP2R/3R/4R/5R/6R Motor 839H176755D (infeed conveyor section) Motor 839H176750B (weigh conveyor section) Tension roller 833H151805A (infeed conveyor section) ■ Common to SSV series Product name Product number Remarks USB memory 84Y204604C Optional Sensor 84G901906A...

  • Page 345: Connecting The Terminal Block Connector And Push-Type Terminal Block

    Connecting the Terminal Block Connector and Push-Type Terminal Block Connecting the Terminal Block Connector and Push-Type Terminal Block When connecting the checkweigher to an external device or rejector, connect the cables to the terminal block connector and push-type terminal block as described below. ■...

  • Page 346: External I/O Specifications

    Output terminal OUT1 Relay contact ratings 250 Vac, 1A max. 30 Vdc, 1A max. OUT2 Power supply for Anritsu (for Warning lamp only) +24 V +24 V Input terminal Use a contact with rated voltage of 30 Vdc and IN 2 a rated load of 5 mA or more.
  • Page 347 External I/O Specifications ■ Output (OUT1/OUT2) Diode When used in a DC circuit Reference circuit Load Usage range Voltage: V1  DC 5 to 30 V Current: I1  0.01 to 1 A Precautions Wiring must be 30 m or less For a coil load, put a surge suppressor diode in parallel with the load.
  • Page 348 External I/O Specifications NPN transistor connection (sink type) 4.7 K +24V 5 mA 6 or 7 NPN transistor G (S) MPU2010 UNIT NPN transistor output photocell (three-wire) connection +24 V Photocell 4.7 K 6 or 7 Control output MPU2010 UNIT G (S) PNP transistor connection (source type) The input contact of the optional external I/O unit KCU2504A supports sink input...
  • Page 349 30 VDC or more, and rated load of 0.1 A or more. Cannot be used when an emergency stop switch is installed. G(S) +24 V Only for Anritsu Industrial Solutions rejector DO NOT use for other use. Checkweigher MPU2010 unit Example of emergency stop switch connection +24 V EMEG.SW...

  • Page 350: Rj Output Specification

    RJ Output Specification RJ Output Specification It is used to connect to an Anritsu rejector with a 24VDC interface. ■ Output Specifications Hirose Electric DF1B-20DS-2.5RC Applicable connector (not provided with this checkweigher) MPU2010 UNIT RJ output FET contact rating 30 VDC,1 A or less For Anritsu rejectors.

  • Page 351: Rj I/O Specifications

    RJ-I/F Unit (Optional) RJ I/O Specifications RJ-I/F Unit (Optional) RJ I/O Specifications It is used to connect to an Anritsu rejector with a 100 VAC interface or a rejector of another manufacturer. ■ Output Specifications WIELAND 25.640.1853.0 (terminal block connector)

  • Page 352: Rj-I/F Unit (Optional)

    RJ-I/F Unit (Optional) RJ I/O Specifications 1. RJ-I/F Unit Position When the back cover is opened RJ-I/F unit REJECTOR 2. 100 VAC Output Specifications ■ Rejector output (RJ1 to RJ5) Reference circuit Usage range Photo MOS Relay Voltage: V1  AC110 V Current: I1 ...
  • Page 353 RJ-I/F Unit (Optional) RJ I/O Specifications 3. 24 VDC Output Specifications ■ Rejector output (RJ1 to RJ5) Reference circuit Photo MOS Relay Load Usage range Voltage: V1  DC30 V Current: I1  0.7 A (peak 1 A) Checkweigher Precautions Install the diode for surge absorber.

  • Page 354: Ethernet Connection

    Ethernet Connection Ethernet Connection The standard specifications for this checkweigher include an Ethernet (LAN) connection to external equipment. ■ Communication Specifications Item Description 10BASE-T (IEEE 802.3) Applicable standard 100BASE-TX (IEEE 802.3u) 10 Mbps/100 Mbps auto switching Bit rate (100 Mbps preferred) Communication method Half duplex Manchester code (10BASE-T)
  • Page 355 Ethernet Connection ■ Text Specifications See below for the text specifications. If you need printed documents, please contact Anritsu.  Text Specifications...

  • Page 356: Timing Chart

    Timing Chart Timing Chart Weight signal Detection signal (Photocell) 30～6500ms (Measurement delay) 10ms Photocell-off delay T2 (Scale balance) 40～6500ms 10～12500ms (Dbl. Prod Timer) Evaluation time 20ms 1～9999ms (Rejectingdelay) 45～9999ms (Rejecting operation) Auto zero-setting operation (Auto zero-setting 0～60000ms prohibition) MIN 50ms MIN 50ms External NG input (EXNG/EXNG2)

  • Page 357: Specifications

    Specifications Specifications ■ SSV-h series KWS6003BF3D, KWS6003BF5D, KWS6003BF2E, KWS6003BF3E, Model KWS6003BF6D, KWS6003BP3D, KWS6003BF4E, KWS6003BP2E, KWS6003BP5D, KWS6003BP6D KWS6003BP3E, KWS6003BP4E Weighing range 0.4 to 100 g Scale interval 0.001 g Maximum speed * 310 products/min Maximum accuracy (3σ) * ±0.01 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons)
  • Page 358 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 359 Specifications KWS6003BF2R, KWS6003BF3R, KWS6003BF4R, KWS6003BF5R, KWS6003BF6R Model KWS6003BP2R, KWS6003BP3R, KWS6003BP4R, KWS6003BP5R, KWS6003BP6R Weighing range 0.4 to 100 g Scale interval 0.001 g Maximum speed * 310 products/min Maximum accuracy (3σ) * ±0.01 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 100.45 g...
  • Page 360 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 361 Specifications KWS6005BF3D, KWS6005BF5D, KWS6005BF2E, KWS6005BF3E, Model KWS6005BF6D, KWS6005BP3D, KWS6005BF4E, KWS6005BP2E, KWS6005BP5D, KWS6005BP6D KWS6005BP3E, KWS6005BP4E Weighing range 0.4 to 100 g Scale interval 0.001 g Maximum speed * 310 products/min Maximum accuracy (3σ) * ±0.01 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 362 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 363 Specifications KWS6005BF2R, KWS6005BF3R, KWS6005BF4R, KWS6005BF5R, KWS6005BF6R Model KWS6005BP2R, KWS6005BP3R, KWS6005BP4R, KWS6005BP5R, KWS6005BP6R Weighing range 0.4 to 100 g Scale interval 0.001 g Maximum speed * 310 products/min Maximum accuracy (3σ) * ±0.01 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 100.45 g...
  • Page 364 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 365 Specifications KWS6006BF3D, KWS6006BF5D, KWS6006BF2E, KWS6006BF3E, Model KWS6006BF6D, KWS6006BP3D, KWS6006BF4E, KWS6006BP2E, KWS6006BP5D, KWS6006BP6D KWS6006BP3E, KWS6006BP4E Weighing range 0.4 to 100 g Scale interval 0.001 g Maximum speed * 320 products/min Maximum accuracy (3σ) * ±0.01 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 366 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 367 Specifications KWS6006BF2R, KWS6006BF3R, KWS6006BF4R, KWS6006BF5R, KWS6006BF6R Model KWS6006BP2R, KWS6006BP3R, KWS6006BP4R, KWS6006BP5R, KWS6006BP6R Weighing range 0.4 to 100 g Scale interval 0.001 g Maximum speed * 320 products/min Maximum accuracy (3σ) * ±0.01 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 100.45 g...
  • Page 368 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 369 Specifications KWS6203BF3D, KWS6203BF5D, KWS6203BF2E, KWS6203BF3E, Model KWS6203BF6D, KWS6203BP3D, KWS6203BF4E, KWS6203BP2E, KWS6203BP5D, KWS6203BP6D KWS6203BP3E, KWS6203BP4E Weighing range 1.2 to 600 g Scale interval 0.01 g Maximum speed * 400 products/min Maximum accuracy (3σ) * ±0.015 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 370 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 371 Specifications KWS6203BF2R, KWS6203BF3R, KWS6203BF4R, KWS6203BF5R, KWS6203BF6R Model KWS6203BP2R, KWS6203BP3R, KWS6203BP4R, KWS6203BP5R, KWS6203BP6R Weighing range 1.2 to 600 g Scale interval 0.01 g Maximum speed * 400 products/min Maximum accuracy (3σ) * ±0.015 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 600.9 g...
  • Page 372 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 373 Specifications KWS6205BF3D, KWS6205BF5D, KWS6205BF2E, KWS6205BF3E, Model KWS6205BF6D, KWS6205BP3D, KWS6205BF4E, KWS6205BP2E, KWS6205BP5D, KWS6205BP6D KWS6205BP3E, KWS6205BP4E Weighing range 1.2 to 600 g Scale interval 0.01 g Maximum speed * 400 products/min Maximum accuracy (3σ) * ±0.015 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 374 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 375 Specifications KWS6205BF2R, KWS6205BF3R, KWS6205BF4R, KWS6205BF5R, KWS6205BF6R Model KWS6205BP2R, KWS6205BP3R, KWS6205BP4R, KWS6205BP5R, KWS6205BP6R Weighing range 1.2 to 600 g Scale interval 0.01 g Maximum speed * 400 products/min Maximum accuracy (3σ) * ±0.015 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 600.9 g...
  • Page 376 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 377 Specifications KWS6206BF3D, KWS6206BF5D, KWS6206BF2E, KWS6206BF3E, Model KWS6206BF6D, KWS6206BP3D, KWS6206BF4E, KWS6206BP2E, KWS6206BP5D, KWS6206BP6D KWS6206BP3E, KWS6206BP4E Weighing range 1.2 to 600 g Scale interval 0.01 g Maximum speed * 320 products/min Maximum accuracy (3σ) * ±0.015 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 378 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 379 Specifications KWS6206BF2R, KWS6206BF3R, KWS6206BF4R, KWS6206BF5R, KWS6206BF6R Model KWS6206BP2R, KWS6206BP3R, KWS6206BP4R, KWS6206BP5R, KWS6206BP6R Weighing range 1.2 to 600 g Scale interval 0.01 g Maximum speed * 320 products/min Maximum accuracy (3σ) * ±0.015 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 600.9 g...
  • Page 380 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 381 Specifications KWS6411BF3D, KWS6411BF5D, KWS6411BF2E, KWS6411BF3E, Model KWS6411BF6D, KWS6411BP3D, KWS6411BF5E, KWS6411BP2E, KWS6411BP5D, KWS6411BP6D KWS6411BP3E, KWS6411BP5E Weighing range 6 to 3000 g Scale interval 0.05 g Maximum speed * 400 products/min Maximum accuracy (3σ) * ±0.1 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 382 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 383 Specifications KWS6411BF2R, KWS6411BF3R, KWS6411BF4R, KWS6411BF5R, KWS6411BF6R Model KWS6411BP2R, KWS6411BP3R, KWS6411BP4R, KWS6411BP5R, KWS6411BP6R Weighing range 6 to 3000 g Scale interval 0.05 g Maximum speed * 400 products/min Maximum accuracy (3σ) * ±0.1 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 3004.5 g...
  • Page 384 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 385 Specifications KWS6412BF3D, KWS6412BF5D, KWS6412BF2E, KWS6412BF3E, Model KWS6412BF6D, KWS6412BP3D, KWS6412BF5E, KWS6412BP2E, KWS6412BP5D, KWS6412BP6D KWS6412BP3E, KWS6412BP5E Weighing range 6 to 3000 g Scale interval 0.05 g Maximum speed * 320 products/min Maximum accuracy (3σ) * ±0.1 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 386 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 387 Specifications KWS6412BF2R, KWS6412BF3R, KWS6412BF4R, KWS6412BF5R, KWS6411BF6R Model KWS6412BP2R, KWS6412BP3R, KWS6412BP4R, KWS6412BP5R, KWS6412BP6R Weighing range 6 to 3000 g Scale interval 0.05 g Maximum speed * 320 products/min Maximum accuracy (3σ) * ±0.1 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 3004.5 g...
  • Page 388 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 389 Specifications KWS6414BF3D, KWS6414BF5D, KWS6414BF2E, KWS6414BF3E, Model KWS6414BF6D, KWS6414BP3D, KWS6414BF5E, KWS6414BP2E, KWS6414BP5D, KWS6414BP6D KWS6414BP3E, KWS6414BP5E Weighing range 6 to 3000 g Scale interval 0.05 g Maximum speed * 220 products/min Maximum accuracy (3σ) * ±0.1 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 390 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 391 Specifications KWS6414BF2R, KWS6414BF3R, KWS6414BF4R, KWS6414BF5R, KWS6414BF6R Model KWS6414BP2R, KWS6414BP3R, KWS6414BP4R, KWS6414BP5R, KWS6414BP6R Weighing range 6 to 3000 g Scale interval 0.05 g Maximum speed * 220 products/min Maximum accuracy (3σ) * ±0.1 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 3004.5 g...
  • Page 392 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 393 Specifications KWS6416BF4D, KWS6416BF5D, KWS6416BF2E, KWS6416BF4E, Model KWS6416BF6D, KWS6416BP4D, KWS6416BF5E, KWS6416BP2E, KWS6416BP5D, KWS6416BP6D KWS6416BP4E, KWS6416BP5E Weighing range 6 to 3000 g Scale interval 0.05 g Maximum speed * 210 products/min Maximum accuracy (3σ) * ±0.1 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 394 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 395 Specifications KWS6416BF2R, KWS6416BF3R, KWS6416BF4R, KWS6416BF5R, KWS6416BF6R Model KWS6416BP2R, KWS6416BP3R, KWS6416BP4R, KWS6416BP5R, KWS6416BP6R Weighing range 6 to 3000 g Scale interval 0.05 g Maximum speed * 210 products/min Maximum accuracy (3σ) * ±0.1 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 3004.5 g...
  • Page 396 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 397 Specifications KWS6417BF4D, KWS6417BF5D, KWS6417BF2E, KWS6417BF4E, Model KWS6417BF6D, KWS6417BP4D, KWS6417BF5E, KWS6417BP2E, KWS6417BP5D, KWS6417BP6D KWS6417BP4E, KWS6417BP5E Weighing range 6 to 3000 g Scale interval 0.05 g Maximum speed * 170 products/min Maximum accuracy (3σ) * ±0.1 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 398 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 399 Specifications KWS6417BF2R, KWS6417BF3R, KWS6417BF4R, KWS6417BF5R, KWS6417BF6R Model KWS6417BP2R, KWS6417BP3R, KWS6417BP4R, KWS6417BP5R, KWS6417BP6R Weighing range 6 to 3000 g Scale interval 0.05 g Maximum speed * 170 products/min Maximum accuracy (3σ) * ±0.1 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 3004.5 g...
  • Page 400 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 401 Specifications ■ SSV-i series KWS6265BW3D, KWS6265BW5D, KWS6265BW2E, KWS6265BW3E, Model KWS6265BW6D KWS6265BW4E Weighing range 6 to 600 g Scale interval 0.01 g Maximum speed * 280 products/min Maximum accuracy (3σ) * ±0.1 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 601.8 g Preset memory...
  • Page 402 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 403 Specifications KWS6265BW2R,KWS6265BW3R,KWS6265BW4R,KWS6265BW5R,KWS626 Model 5BW6R Weighing range 6 to 600 g Scale interval 0.01 g Maximum speed * 280 products/min Maximum accuracy (3σ) * ±0.1 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 601.8 g Preset memory...
  • Page 404 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 405 Specifications KWS6366BW3D, KWS6366BW5D, KWS6366BW2E, KWS6366BW3E, Model KWS6366BW6D KWS6366BW5E Weighing range 12 to 1200 g Scale interval 0.02 g Maximum speed * 220 products/min Maximum accuracy (3σ) * ±0.1 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 1201.8 g Preset memory...
  • Page 406 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 407 Specifications KWS6366BW2R, KWS6366BW3R, KWS6366BW4R,KWS6366BW5R, Model KWS6366BW6R Weighing range 12 to 1200 g Scale interval 0.02 g Maximum speed * 220 products/min Maximum accuracy (3σ) * ±0.1 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 1201.8 g Preset memory...
  • Page 408 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 409 Specifications KWS6472BW3D, KWS6472BW5D, KWS6472BW2E, KWS6472BW3E, Model KWS6472BW6D KWS6472BW5E Weighing range 30 to 3000 g [30 to 1200 g] * Scale interval 0.05 g [0.02 g] * Maximum speed * 160 [220] products/min * Maximum accuracy (3σ) * ±0.1 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons)
  • Page 410 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 411 Specifications KWS6472BW2R, KWS6472BW3R, KWS6472BW4R, KWS6472BW5R, Model KWS6472BW6R Weighing range 30 to 3000 g [30 to 1200 g] * Scale interval 0.05 g [0.02 g] * Maximum speed * 160 [220] products/min * Maximum accuracy (3σ) * ±0.1 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 412 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 413 Specifications KWS5265BW3D, KWS5265BW5D, KWS5265BW2E, KWS5265BW3E, Model KWS5265BW6D KWS5265BW4E Weighing range 6 to 600 g Scale interval 0.05 g Maximum speed * 280 products/min Maximum accuracy (3σ) * ±0.2 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 604.5 g Preset memory...
  • Page 414 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 415 Specifications KWS5265BW2R, KWS5265BW3R, KWS5265BW4R, KWS5265BW5R, Model KWS5265BW6R Weighing range 6 to 600 g Scale interval 0.05 g Maximum speed * 280 products/min Maximum accuracy (3σ) * ±0.2 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 604.5 g Preset memory...
  • Page 416 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 417 Specifications KWS5366BW3D, KWS5366BW5D, KWS5366BW2E, KWS5366BW3E, Model KWS5366BW6D KWS5366BW5E Weighing range 12 to 1200 g Scale interval 0.05 g Maximum speed * 220 products/min Maximum accuracy (3σ) * ±0.2 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 1204.5 g Preset memory...
  • Page 418 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 419 Specifications KWS5366BW2R, KWS5366BW3R, KWS5366BW4R, KWS5366BW5R, Model KWS5366BW6R Weighing range 12 to 1200 g Scale interval 0.05 g Maximum speed * 220 products/min Maximum accuracy (3σ) * ±0.2 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 1204.5 g Preset memory...
  • Page 420 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 421 Specifications KWS5472BW3D, KWS5472BW5D, KWS5472BW2E, KWS5472BW3E, Model KWS5472BW6D KWS5472BW5E Weighing range 30 to 3000 g [30 to 1200 g] * Scale interval 0.1 g [0.05 g] * Maximum speed * 160 [220] products/min * Maximum accuracy (3σ) * ±0.5 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons)
  • Page 422 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 423 Specifications KWS5472BW2R, KWS5472BW3R, KWS5472BW4R, KWS5472BW5R, Model KWS5472BW6R Weighing range 30 to 3000 g [30 to 1200 g] * Scale interval 0.1 g [0.05 g] * Maximum speed * 160 [220] products/min * Maximum accuracy (3σ) * ±0.5 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 424 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 425 Specifications KWS5476BW4D, KWS5476BW5D, KWS5476BW2E, KWS5476BW4E, Model KWS5476BW6D KWS5476BW5E Weighing range 30 to 3000 g [30 to 1200 g] * Scale interval 0.1 g [0.05 g] * Maximum speed * 120 [155] products/min * Maximum accuracy (3σ) * ±0.5 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons)
  • Page 426 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 427 Specifications KWS5476BW2R, KWS5476BW3R, KWS5476BW4R, KWS5476BW5R, Model KWS5476BW6R Weighing range 30 to 3000 g [30 to 1200 g] * Scale interval 0.1 g [0.05 g] * Maximum speed * 120 [155] products/min * Maximum accuracy (3σ) * ±0.5 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 428 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 429 Specifications KWS5577BW4D, KWS5577BW5D, KWS5577BW2E, KWS5577BW4E, Model KWS5577BW6D KWS5577BW5E Weighing range 60 to 6000 g Scale interval 0.5 g Maximum speed * 70 products/min Maximum accuracy (3σ) * ±1.5 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 6018 g Preset memory...
  • Page 430 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 431 Specifications KWS5577BW2R, KWS5577BW3R, KWS5577BW4R, KWS5577BW5R, Model KWS5577BW6R Weighing range 60 to 6000 g Scale interval 0.5 g Maximum speed * 70 products/min Maximum accuracy (3σ) * ±1.5 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 6018 g Preset memory...
  • Page 432 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 433 Specifications ■ SSV-f series KWS5203BF3D, KWS5203BF5D, KWS5203BF2E, KWS5203BF3E, Model KWS5203BF6D, KWS5203BP3D, KWS5203BF4E, KWS5203BP2E, KWS5203BP5D, KWS5203BP6D KWS5203BP3E, KWS5203BP4E Weighing range 6 to 600 g Scale interval 0.05 g Maximum speed * 350 products/min Maximum accuracy (3σ) * ±0.2 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 434 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 435 Specifications KWS5203BF2R, KWS5203BF3R, KWS5203BF4R, KWS5203BF5R, KWS5203BF6R Model KWS5203BP2R, KWS5203BP3R, KWS5203BP4R, KWS5203BP5R, KWS5203BP6R Weighing range 6 to 600 g Scale interval 0.05 g Maximum speed * 350 products/min Maximum accuracy (3σ) * ±0.2 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 604.5 g...
  • Page 436 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 437 Specifications KWS5205BF3D, KWS5205BF5D, KWS5205BF2E, KWS5205BF3E, Model KWS5205BF6D, KWS5205BP3D, KWS5205BF4E, KWS5205BP2E, KWS5205BP5D, KWS5205BP6D KWS5205BP3E, KWS5205BP4E Weighing range 6 to 600 g Scale interval 0.05 g Maximum speed * 350 products/min Maximum accuracy (3σ) * ±0.2 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 438 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 439 Specifications KWS5205BF2R, KWS5205BF3R, KWS5205BF4R, KWS5205BF5R, KWS5205BF6R Model KWS5205BP2R, KWS5205BP3R, KWS5205BP4R, KWS5205BP5R, KWS5205BP6R Weighing range 6 to 600 g Scale interval 0.05 g Maximum speed * 350 products/min Maximum accuracy (3σ) * ±0.2 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 604.5 g...
  • Page 440 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 441 Specifications KWS5206BF3D, KWS5206BF5D, KWS5206BF2E, KWS5206BF3E, Model KWS5206BF6D, KWS5206BP3D, KWS5206BF4E, KWS5206BP2E, KWS5206BP5D, KWS5206BP6D KWS5206BP3E, KWS5206BP4E Weighing range 6 to 600 g Scale interval 0.05 g Maximum speed * 320 products/min Maximum accuracy (3σ) * ±0.2 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 442 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 443 Specifications KWS5206BF2R, KWS5206BF3R, KWS5206BF4R, KWS5206BF5R, KWS5206BF6R Model KWS5206BP2R, KWS5206BP3R, KWS5206BP4R, KWS5206BP5R, KWS5206BP6R Weighing range 6 to 600 g Scale interval 0.05 g Maximum speed * 320 products/min Maximum accuracy (3σ) * ±0.2 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 604.5 g...
  • Page 444 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 445 Specifications KWS5411BF3D, KWS5411BF5D, KWS5411BF2E, KWS5411BF3E, Model KWS5411BF6D, KWS5411BP3D, KWS5411BF5E, KWS5411BP2E, KWS5411BP5D, KWS5411BP6D KWS5411BP3E, KWS5411BP5E Weighing range 12 to 3000 g Scale interval 0.1 g Maximum speed * 320 products/min Maximum accuracy (3σ) * ±0.2 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 446 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 447 Specifications KWS5411BF2R, KWS5411BF3R, KWS5411BF4R, KWS5411BF5R, KWS5411BF6R Model KWS5411BP2R, KWS5411BP3R, KWS5411BP4R, KWS5411BP5R, KWS5411BP6R Weighing range 12 to 3000 g Scale interval 0.1 g Maximum speed * 320 products/min Maximum accuracy (3σ) * ±0.2 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 3009 g...
  • Page 448 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 449 Specifications KWS5412BF3D, KWS5412BF5D, KWS5412BF2E, KWS5412BF3E, Model KWS5412BF6D, KWS5412BP3D, KWS5412BF5E, KWS5412BP2E, KWS5412BP5D, KWS5412BP6D KWS5412BP3E, KWS5412BP5E Weighing range 12 to 3000 g Scale interval 0.1 g Maximum speed * 320 products/min Maximum accuracy (3σ) * ±0.2 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 450 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 451 Specifications KWS5412BF2R, KWS5412BF3R, KWS5412BF4R, KWS5412BF5R, KWS5412BF6R Model KWS5412BP2R, KWS5412BP3R, KWS5412BP4R, KWS5412BP5R, KWS5412BP6R Weighing range 12 to 3000 g Scale interval 0.1 g Maximum speed * 320 products/min Maximum accuracy (3σ) * ±0.2 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 3009 g...
  • Page 452 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 453 Specifications KWS5414BF3D, KWS5414BF5D, KWS5414BF2E, KWS5414BF3E, Model KWS5414BF6D, KWS5414BP3D, KWS5414BF5E, KWS5414BP2E, KWS5414BP5D, KWS5414BP6D KWS5414BP3E, KWS5414BP5E Weighing range 12 to 3000 g Scale interval 0.1 g Maximum speed * 220 products/min Maximum accuracy (3σ) * ±0.2 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 454 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 455 Specifications KWS5414BF2R, KWS5414BF3R, KWS5414BF4R, KWS5414BF5R, KWS5414BF6R Model KWS5414BP2R, KWS5414BP3R, KWS5414BP4R, KWS5414BP5R, KWS5414BP6R Weighing range 12 to 3000 g Scale interval 0.1 g Maximum speed * 220 products/min Maximum accuracy (3σ) * ±0.2 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 3009 g...
  • Page 456 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 457 Specifications KWS5416BF4D, KWS5416BF5D, KWS5416BF2E, KWS5416BF4E, Model KWS5416BF6D, KWS5416BP4D, KWS5416BF5E, KWS5416BP2E, KWS5416BP5D, KWS5416BP6D KWS5416BP4E, KWS5416BP5E Weighing range 12 to 3000 g Scale interval 0.1 g Maximum speed * 210 products/min Maximum accuracy (3σ) * ±0.5 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 458 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 459 Specifications KWS5416BF□R KWS5416BP□R KWS5416B △  2R KWS5416B △  3R KWS5416B △  4R KWS5416B △  5R KWS5416B △  6R 1205 Tower Light (Option) Printer (Option) Indicator Metal Detector Flow direction Weigh conveyor 30 dia. Roller 25 dia. Roller Leg spacing 60 dia. Leg spacing Units: mm KWS5416BF2R, KWS5416BF3R, KWS5416BF4R, KWS5416BF5R,...
  • Page 460 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 461 Specifications KWS5417BF4D, KWS5417BF5D, KWS5417BF2E, KWS5417BF4E, Model KWS5417BF6D, KWS5417BP4D, KWS5417BF5E, KWS5417BP2E, KWS5417BP5D, KWS5417BP6D KWS5417BP4E, KWS5417BP5E Weighing range 12 to 3000 g Scale interval 0.1 g Maximum speed * 170 products/min Maximum accuracy (3σ) * ±0.5 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 462 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 463 Specifications KWS5417BF2R, KWS5417BF3R, KWS5417BF4R, KWS5417BF5R, KWS5417BF6R Model KWS5417BP2R, KWS5417BP3R, KWS5417BP4R, KWS5417BP5R, KWS5417BP6R Weighing range 12 to 3000 g Scale interval 0.1 g Maximum speed * 170 products/min Maximum accuracy (3σ) * ±0.5 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 3009 g...
  • Page 464 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 465 Specifications KWS5522BF4D, KWS5522BF5D, KWS5522BF2E, KWS5522BF4E, Model KWS5522BF6D, KWS5522BP4D, KWS5522BF5E, KWS5522BP2E, KWS5522BP5D, KWS5522BP6D KWS5522BP4E, KWS5522BP5E Weighing range 60 to 6000 g Scale interval 0.5 g Maximum speed * 130 products/min Maximum accuracy (3σ) * ±1.5 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 466 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 467 Specifications KWS5522BF2R, KWS5522BF3R, KWS5522BF4R, KWS5522BF5R, KWS5522BF6R Model KWS5522BP2R, KWS5522BP3R, KWS5522BP4R, KWS5522BP5R, KWS5522BP6R Weighing range 60 to 6000 g Scale interval 0.5 g Maximum speed * 130 products/min Maximum accuracy (3σ) * ±1.5 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 6018 g...
  • Page 468 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 469 Specifications KWS5524BF4D, KWS5524BF5D, KWS5524BF2E, KWS5524BF4E, Model KWS5524BF6D, KWS5524BP4D, KWS5524BF5E, KWS5524BP2E, KWS5524BP5D, KWS5524BP6D KWS5524BP4E, KWS5524BP5E Weighing range 60 to 6000 g Scale interval 0.5 g Maximum speed * 110 products/min Maximum accuracy (3σ) * ±1.5 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range...
  • Page 470 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.
  • Page 471 Specifications KWS5524BF2R, KWS5524BF3R, KWS5524BF4R, KWS5524BF5R, KWS5524BF6R Model KWS5524BP2R, KWS5524BP3R, KWS5524BP4R, KWS5524BP5R, KWS5524BP6R Weighing range 60 to 6000 g Scale interval 0.5 g Maximum speed * 110 products/min Maximum accuracy (3σ) * ±1.5 g Display 8.5-inch color TFT LCD Operation method Touch panel (Start, Stop, and Home are direct push buttons) Indication range 6018 g...
  • Page 472 Specifications *1 The speed and accuracy vary according to the products to be weighed and the rejector. *2 The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products. *3 The detection sensitivity when the metal detector is actually used will vary according to the type of contaminant, the characteristics of the inspected product (temperature, contents, shape, etc.), and the usage environment.

  • Page 473: Copyright, Etc

    Copyright, etc. Copyright, etc. iWnn @ OMRON SOFTWARE Co., Ltd. 2008-2011 All Right Reserved.

  • Page 474: Ce Conformity Marking

    CE Conformity Marking CE Conformity Marking CE Conformity Marking The CE conformity marking is affixed to Anritsu Industrial Solutions products to indicate that they conform to the MD, LVD, and EMC directives of the European Union (EU). CE marking Check the following to see whether your equipment meets the Council Directive or not.
  • Page 475 Memo...
  • Page 476 ANRITSU INDUSTRIAL SOLUTIONS CO., LTD Document No.: 84W246053-05 July 2015 6th Edition Original instructions...
