Sunny Health & Fitness SMART OBSIDIAN SURGE 500 User Manual

Water rowing machine
Hide thumbs Also See for SMART OBSIDIAN SURGE 500:

Advertisement

Table of Contents

SMART OBSIDIAN SURGE 500 METER
WATER ROWING MACHINE
SF-RW5713 SMART
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMART OBSIDIAN SURGE 500 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunny Health & Fitness SMART OBSIDIAN SURGE 500

Summary of Contents for Sunny Health & Fitness SMART OBSIDIAN SURGE 500

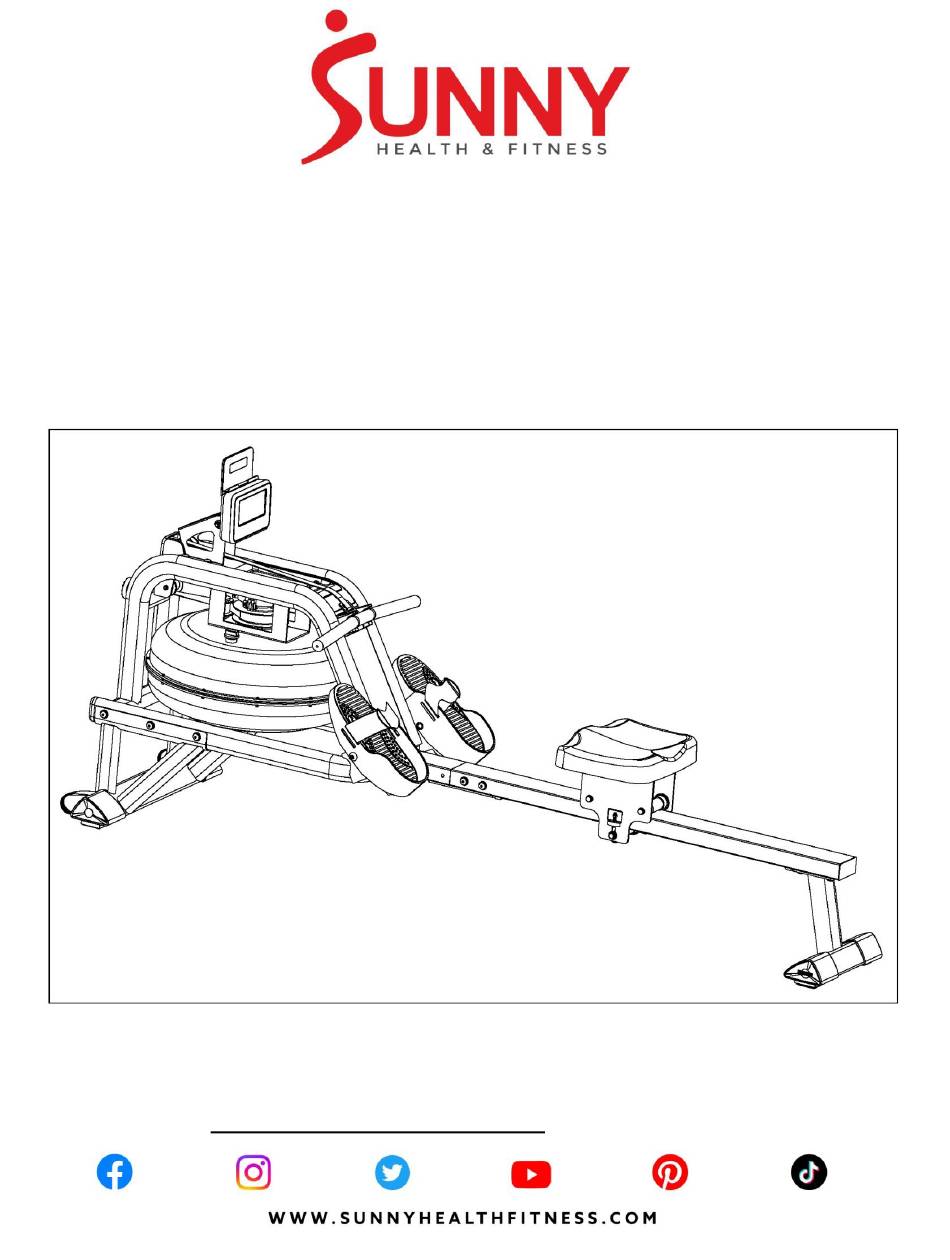

  • Page 1 SMART OBSIDIAN SURGE 500 METER WATER ROWING MACHINE SF-RW5713 SMART USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.

  • Page 3: Pre-Assembly Check List

    PRE-ASSEMBLY CHECK LIST...
  • Page 4 Description Spec. Qty. Description Spec. Qty. Main Frame Meter Front Stabilizer Pumping Siphon Slide Rail Funnel Tablet Holder Rear Stabilizer Manual Sensor Stand Support Plate Thank You Card Hardware Package Left End Cap Right End Cap Battery Seat PU, Black Ordering Replacement Parts (U.S.

  • Page 5: Hardware Package

    HARDWARE PACKAGE...
  • Page 6 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 1: NOTE: We recommend having 2 people to assemble the product. Turn over the Slide Rail (No. 3) and Seat (No. 36).
  • Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 4: NOTE: Move the Seat (No. 36) to the front of the Slide Rail (No. 3) before assembly to prevent it from gliding down during assembly.
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 6: Remove 4 Screws (No. 64) from the Meter (No. 46) using Spanner (No. 75). Pull the Meter Wire A (No.

  • Page 9: How To Fill And Empty The Tank

    HOW TO FILL AND EMPTY THE TANK 1. Remove the Fill Plug (No. 33) from the Upper Tank Cover (No. 12). 2. To fill the tank with water, refer to Fig. A. Insert the Funnel (No. 77) into the tank, then use a cup or the Pumping Siphon (No.

  • Page 10: Battery Installation And Replacement

    BATTERY INSTALLATION & REPLACEMENT Battery Battery Cover BATTERY INSTALLATION: 1. Take out 2 AA batteries from the meter box. 2. Press the buckle of battery cover on the back of the Meter (No. 46), then remove battery cover. 3. Install 2 AA batteries into the battery case on the back of the Meter (No. 46). Pay attention to the battery + and –...
  • Page 11 ADJUSTMENTS GUIDE MOVING THE ROWER ADJUSTING THE BALANCE To move the rower, lift up the Rear Stabilizer (No. 4) until the Adjust the Ajustable End Caps (No. 27L/R) on the Rear transportation wheels on the Front Stabilizer (No. 2) touch the Stabilizer (No.

  • Page 12: Operation

    EXERCISE METER Our computerized exercise meter on the Sunny Obsidian Surge 500 Meter Water Rowing Machine allows the user to tailor a personalized workout by monitoring their progress. During a workout, the exercise meter will alternately and repeatedly display the TIME, TIME/500M, SPM, DISTANCE, STROKES, TOTAL STROKES, CALORIES, and PULSE (all the above).
  • Page 13 2. When you enter the SPORT screen, MANUAL & RACE will flash. Press UP or DOWN buttons to select MANUAL or RACE. Press ENTER button to confirm your selection. (1) MANUAL(Fig. 3): A. Enter into the MANUAL mode, press UP button to set the flickering figure of the TIME. Press ENTER button to confirm it.

  • Page 14: Sleep Mode

    (4) H.R.C: A. Enter into the MANUAL mode and press “ENTER” button until the value of PULSE is blinking. B. Press “UP” and “DOWN” buttons to set exercise pulse. The setting values of 30-240 BPM. C. The meter alarm and the value of the PULSE is blinking when heart rate is above the SET value. SLEEP MODE If no signal is received for 4 minutes and the button is not pressed, the meter will automatically turn off and enter into sleep mode.

  • Page 15: Exploded Diagram

    EXPLODED DIAGRAM 1...
  • Page 16 EXPLODED DIAGRAM 2...

  • Page 17: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Sensor Holder Nylon, Black Front Stabilizer Magnet Ø10*5 Casing Pipe for Slide Rail Ø10*Ø6.2*40 Mesh Belt Wheel Rear Stabilizer Nylon Lock Nut M6*H6*S10 Sensor Stand Wave Washer D10*Ø15*0.3 Support Plate Raw Cotton Ø96.9*Ø60*20 Axle for Volute...
