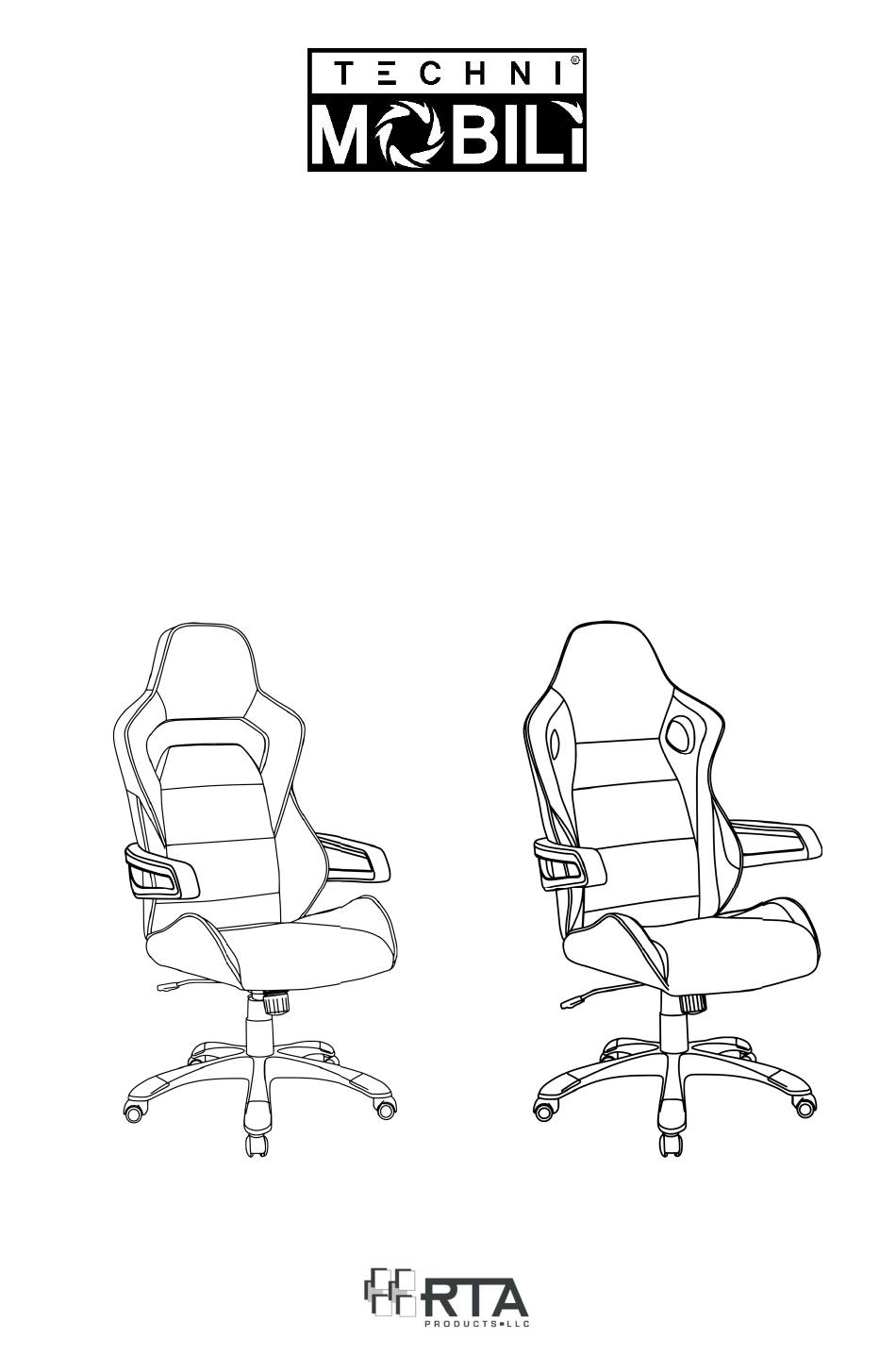

- Page 1 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. MODELS: RTA-2017 RTA-2021 RTA-2022 REV.BZ-1121-1...
-
Page 2: Hardware List
RTA-2017, RTA-2021, RTA-2022 MAIN PARTS LIST Backrest Seat 5-Leg star Mechanism base Pneumatic lift Casters Left Right Covers for cylinder armrest armrest cylinder Sitting on the chair, not looking at it HARDWARE LIST PART ITEM USE IN M6x20 Mechanism Backrest to seat,... - Page 3 RTA-2017, RTA-2021, RTA-2022 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❶ ❻ Do a quick inventory to Make sure you make sure the package understand which hardware contains all the parts and will be used on each step.
- Page 4 RTA-2017, RTA-2021, RTA-2022 ASSEMBLY STEPS STEP 1 Insert the casters F into the legs of the base C using pressure, then place the pneumatic lift E in the middle of the base and cover it with H. STEP 2 Turn over the seat B and place the mechanism D with its tension knob facing towards the front, and assemble it with screws I.
- Page 5 RTA-2017, RTA-2021, RTA-2022 STEP 3 Assemble the metal plate from the backrest A to the seat B with screws J. Please note that two screws will go through holes on Hardware the mechanism D and into the holes on the seat B.
-
Page 6: Care And Maintenance
RTA-2017, RTA-2021, RTA-2022 CHAIR’S FUNCTIONS • To raise or lower the chair’s height, pull UP the lever that is under the seat. The chair goes down while sitting on it, or up if you lift your body. • To make the chair tilt freely, pull the same lever OUT horizontally to unlock this function. When the chair is in the normal upright position, push the lever IN to lock again. - Page 7 TASK/KID'S CHAIR: 1-YEAR WARRANTY EXECUTIVE/MANAGER CHAIR: 2-YEAR WARRANTY 1.RTA Products, LLC has warranted the Techni Mobili office chairs to the original purchaser who acquired a new product from RTA Products or its authorized resellers of the product against defects in material or workmanship.
- Page 8 RTA-2017, RTA-2021, RTA-2022 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
