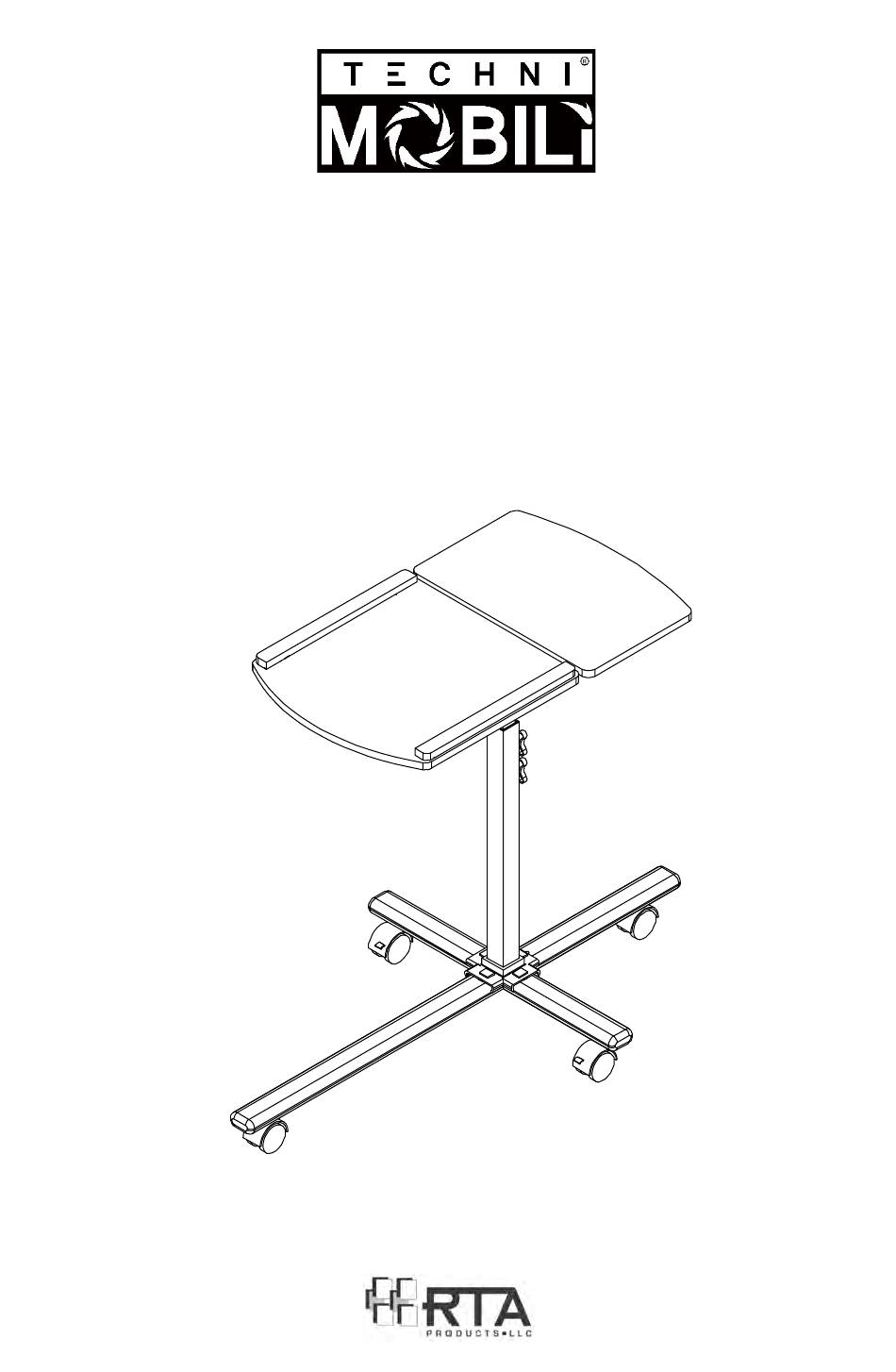

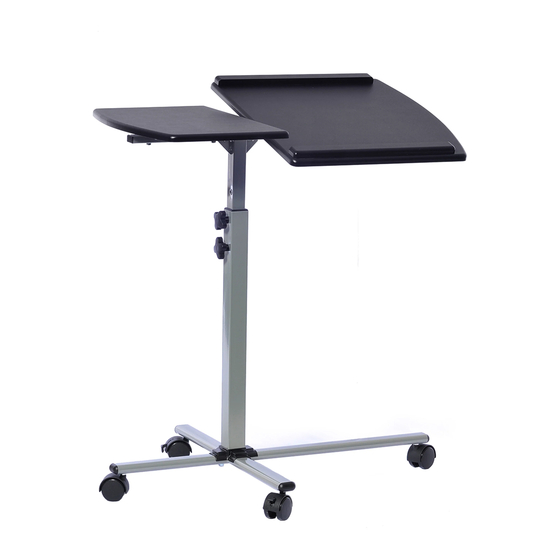

MODEL RTA-B003
ASSEMBLY INSTRUCTIONS
Thank you for purchasing our product.
REV-032021-2

Advertisement

loading
Need help?

Need help?

Do you have a question about the RTA-B003 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Techni Mobili RTA-B003

Summary of Contents for Techni Mobili RTA-B003

  • Page 1 MODEL RTA-B003 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV-032021-2...
  • Page 2 RTA-B003 • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.

  • Page 3: Main Parts List

    RTA-B003 MAIN PARTS LIST Main Panel Small Panel Top Frame Bottom Frame Middle Frame Tilt Plate Main Panel Support Small Panel Support MAIN PARTS LAYOUT LIST OF HARDWARE (FOR REFERENCE): PART ITEM Locking ❷ Caster Non-locking ❶ Caster Height Adjustment Knob...
  • Page 4 RTA-B003 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the leave the screws loose package contains all and tighten them until all the parts and hardware...

  • Page 5: Assembly Steps

    RTA-B003 ASSEMBLY STEPS STEP 1 I nsert casters A and B into bottom frame 4. Please note location of the locking casters A. Hardware/Tools: LOCKING CASTER LOCKING CASTER STEP 2 Assemble the middle frame 5 to the bottom frame 4 with screws G from...
  • Page 6 RTA-B003 STEP 3 Attach the tilt plate 6 to the round tube on the top frame 3 with E. Hardware/Tools: STEP 4 Assemble the supports 8 to the square tube on frame 3 with screws F from above and nuts J from below.
  • Page 7 RTA-B003 STEP 5 With the main panel 1 upside-down, place the completed top frame on it, making the holes on the tilt plate coincide with the set of holes in Hardware/Tools: the center of the panel, then secure the tilt plate 6 and the support 7 with screws I as shown.
  • Page 8 RTA-B003 ASSEMBLY STEPS STEP 7 Insert the top frame into the middle frame, and after selecting a desired height, insert the height adjusting knobs C into the holes and tighten them. Hardware/Tools: To adjust the tilt angle of the main panel, pull the round head knob located behind the tilt plate, and release it when the desired angle is reached.
  • Page 9 RTA-B003 AFTER THE ASSEMBLY IS DONE, PLEASE READ CAREFULLY THE FOLLOWING CARE AND MAINTENANCE WARNINGS: WEIGHT LIMITS 30 Lbs. (13.6 Kg) 45 Lbs. (20.4 Kg) • Do not exceed the indicated weight limits. • Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
  • Page 10 RTA-B003 TECHNI MOBILI WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY TV Stand/Entertainment Center: 2 YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
  • Page 11 P.10 RTA-B003 P.10 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
