9. Mounting the Opener

9.1 Raising the Door:
a. When in position, remove the U-bolt (or bolts) and saddle from
the door bracket.
b. Lift the door up and away from the wall until clear of the door
bracket, before lowering the door to rest on the door stand or
prop.
NOTE: If there is limited ceiling space to lift the door, the door
bracket may have to be removed. If this is required, when refitting
the door bracket , use the reference marks on the wall for correct
position and ensure that it is secure to the wall and will support
the door.

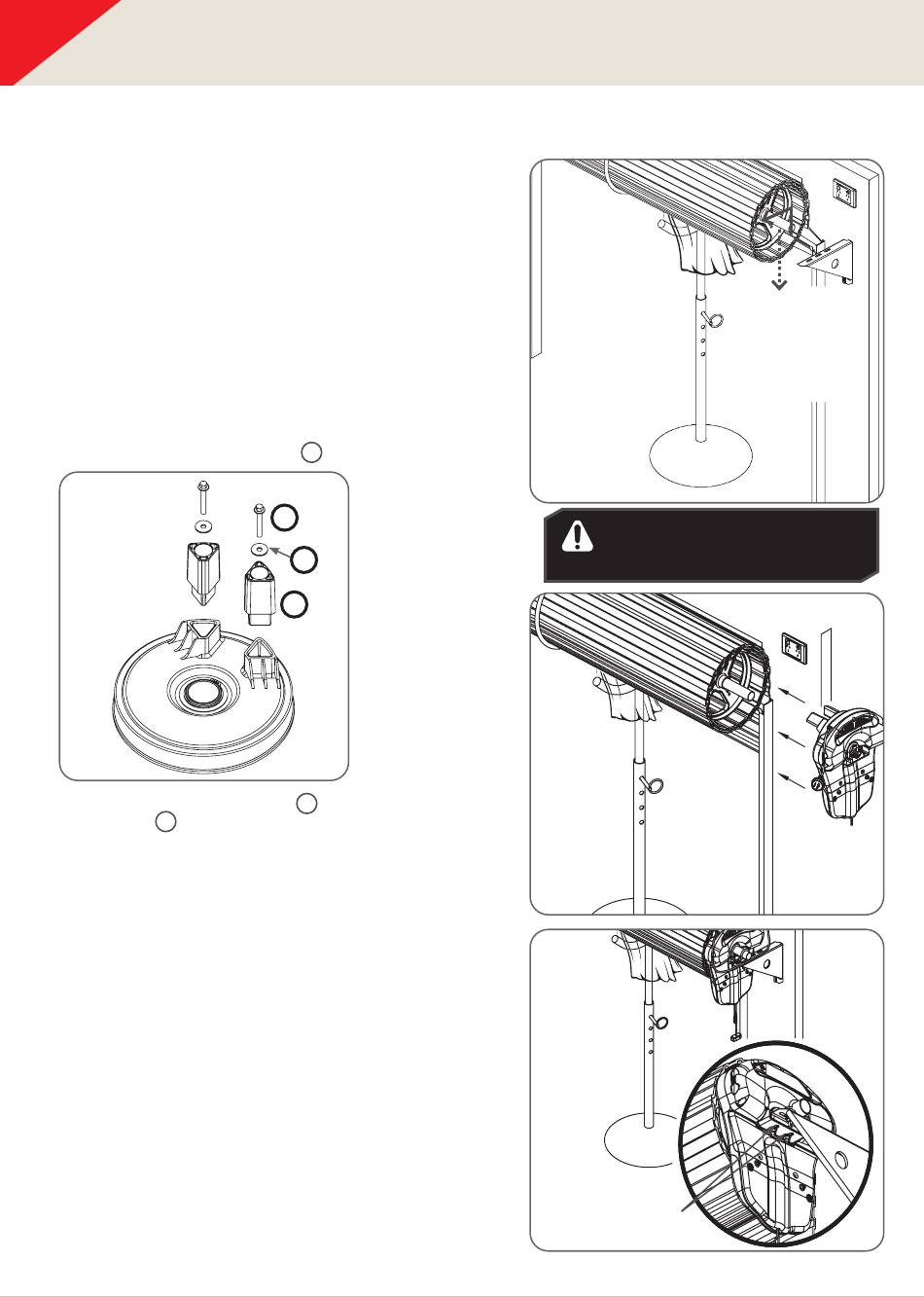

9.2 Mounting the Opener:
a. Remove the opener from the box.
b. Insert the two (2) Extension forks
c. Secure with two (2) Flat washers
head screws .
13
d. Check the drive gear rotates freely, by pulling the string handle
down (there will be a click) to disengage opener. Then move
the forks from side to side by hand.
e. Slide the opener over the door axle and into the drum of the
door as shown.
f. Push the opener in as far as possible (without interfering
with the curtain) so one of the door drum's wheel spokes is
between the opener's drive forks.
g. Raise the door off the door stand or suitable prop.
h. Lift up and over the door bracket and use your reference
marks on the door bracket to position the door.
i. Refit the U-bolt and nuts and tighten.
j. Remove the safety rope and door stand or prop.
k. Connect the power cort to a suitable powerpoint, but DO NOT
switch on.
l. Secure the power cord away from any moving object (e.g the
door) with the cable clip supplied.
m. With the opener still disengaged, pull the door up and down
to make sure it runs freely.
®
installation instructions
into the ring gear.
11
13
12
11
and two (2) Hex serration
12
WARNING! For
installations the door may have to
be taken down.
Slide
opener
over door
axle
Tighten U-bolts
9
Lift door
up, away
from
wall and
down
onto prop
tight sideroom
Pull string
down to
disengage
opener
