4 Data Management Managing Defibrillator Data ..................4-2 Overview of Data Storage..................4-2 Data Stored by the LIFEPAK 1000 Defibrillator............ 4-2 Overview of Connections for Transmitting Reports ..........4-3 5 Caring for the LIFEPAK 1000 Defibrillator Maintenance and Testing Schedule ................5-2 Self-Test Performance ....................
Defibrillation is a recognized means of terminating certain potentially fatal arrhythmias. A direct current defibrillator applies a brief, high-energy pulse of electricity to the heart muscle. The LIFEPAK 1000 defibrillator is an automated external defibrillator (AED) that delivers this energy through disposable defibrillation electrodes applied to the patient's chest.

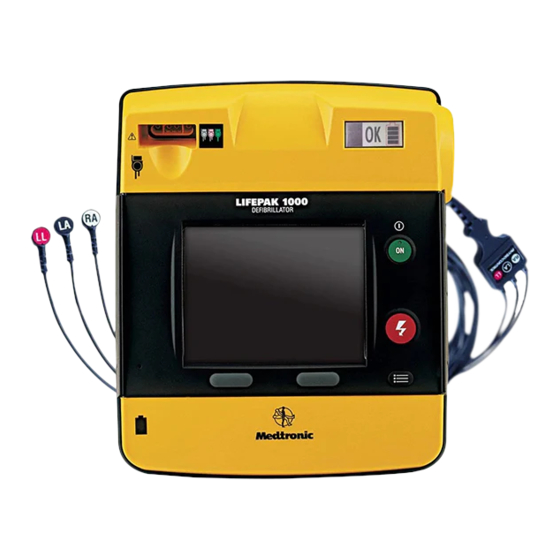

ABOUT THE LIFEPAK 1000 DEFIBRILLATOR The LIFEPAK 1000 defibrillator is a semiautomatic model that can be operated in either of three modes: AED mode, Manual mode, and ECG mode. The defibrillator uses the Physio-Control patented Shock Advisory System to analyze the patient's electrocardiographic (ECG) rhythm and prompts you when it detects a shockable rhythm and when it does not detect a shockable rhythm.
Readiness Display The LIFEPAK 1000 defibrillator includes a readiness display. The OK symbol appears in the display if the daily self-test is completed successfully. A battery symbol that approximates the remaining state of charge is also visible.
Safety TERMS The following terms are used either in this manual or on the LIFEPAK 1000 defibrillator. Danger: Immediate hazards that will result in serious personal injury or death. Warning: Hazards or unsafe practices that could result in serious personal injury or death.
If the device has been abused, remove it from use and contact authorized service personnel. SYMBOLS The following symbols may be found in this manual or on various configurations of the LIFEPAK 1000 defibrillator and its accessories. Defibrillation-proof type BF applied part Operating instructions Caution Warning.
Page 12
Canadian Standards Association certification mark for Canada and the United States Underwriters Laboratories recognized component mark for Canada and the United States Not made with natural rubber latex Cable Connector !USA For USA audiences only Manufacturer Date of manufacture shown: YYYY-MM-DD LIFEPAK 1000 Defibrillator Operating Instructions...
Page 14
Non-rechargeable battery. Do not charge. Lithium manganese dioxide battery Li MnO Rechargeable battery Battery for use with the LIFEPAK 1000 defibrillator 1000 Battery charger for use with Lithium-ion battery AC to DC power adapter Do not dispose of this product in the unsorted municipal waste stream.
Page 16
Controls and Indicators CONTROLS AND INDICATORS This section introduces you to the controls and indicators on the LIFEPAK 1000 defibrillator. (Left side) (Left side) Controls and Indicator Figure 2-1 Controls and Indicators Table 2-1 Feature Description Readiness display The readiness display alerts you to the defibrillator’s readiness status.
Page 18
Lead II ECG cable. The presence of an ECG does not ensure that the patient has a pulse. Softkey labels. These labels define the function that can be activated by pressing the softkey. ANALYZE and DISARM are function examples. LIFEPAK 1000 Defibrillator Operating Instructions...
Controls and Indicators BATTERY INDICATORS The LIFEPAK 1000 defibrillator can be powered by two types of batteries: • A nonrechargeable Lithium manganese dioxide battery • A rechargeable Lithium-ion battery Battery Charge Level Indicators Both battery types have a fuel gauge that indicates the approximate charge level of the battery when it is not installed in a defibrillator.
BATTERY CHARGER INDICATORS The LIFEPAK 1000 Defibrillator Battery Charger is intended for use with LIFEPAK 1000 defibrillator Lithium-ion (Li-ion) rechargeable batteries. No other batteries are compatible with this charger. For complete battery charger information, refer to the LIFEPAK 1000 Defibrillator Battery Charger Instructions for Use provided with the charger.
How to Use the LIFEPAK 1000 Defibrillator MODES OF OPERATION You can use the LIFEPAK 1000 defibrillator for: • Automated external defibrillation (AED mode) • Manual defibrillation therapy (Manual mode) (Requires ECG display option) • ECG monitoring (ECG mode) (Requires ECG display option)
The LIFEPAK 1000 defibrillator uses the Physio-Control patented Shock Advisory System to evaluate the patient’s heart rhythm. The LIFEPAK 1000 defibrillator has an optional feature that displays the ECG waveform and Heart Rate Indicator in AED mode. The operation in AED mode remains the same whether or not the defibrillator displays the ECG waveform.
How to Use the LIFEPAK 1000 Defibrillator 6 Connect the electrodes to the defibrillator (if they are not already connected). 7 Follow the screen messages and voice prompts provided by the defibrillator. Voice Prompts and Messages in AED Mode The following descriptions of voice prompts and messages are based on the default settings for AED mode.
How to Use the LIFEPAK 1000 Defibrillator Special Situations for Electrode Placement When placing electrodes on the patient, be aware of special situations: Obese Patients or Patients with Large Breasts Apply the electrodes to a flat area on the chest, if possible. If skin folds or breast tissue prevent good adhesion, spread skin folds apart to create a flat surface.
How to Use the LIFEPAK 1000 Defibrillator DEFIBRILLATION IN MANUAL MODE The LIFEPAK 1000 defibrillator provides a Manual mode to override the AED features of the defibrillator. Manual mode provides operator-initiated analysis, charge, shock, and disarm functions. This mode is useful in a tiered response system when a provider trained in manual defibrillation and authorized to place the defibrillator in Manual mode takes over the scene from a BLS-AED trained provider.
How to Use the LIFEPAK 1000 Defibrillator TROUBLESHOOTING TIPS FOR DEFIBRILLATION This section explains problem conditions that you may encounter while using the defibrillator. Troubleshooting Tips for Defibrillation Table 3-1 Observation Possible Cause What To Do Screen blank and ON Screen not functioning •...
Page 28
How to Use the LIFEPAK 1000 Defibrillator Troubleshooting Tips for Defibrillation (Continued) Table 3-1 Observation Possible Cause What To Do MOTION DETECTED Patient movement because of • Move patient to stable location, if and STOP MOTION location. possible. voice prompts are Patient movement because •...
Do not attempt to connect a 3-wire ECG cable to a QUIK-COMBO therapy cable or any other AED. The ECG cable is functional only with the LIFEPAK 1000 defibrillator. The LIFEPAK 1000 defibrillator provides nondiagnostic ECG display of the patient’s heart rhythm when the ECG cable is connected and the electrodes are applied.
How to Use the LIFEPAK 1000 Defibrillator Troubleshooting Tips for ECG Monitoring Mode If problems occur while monitoring the ECG, check this list of observations for troubleshooting assistance. Troubleshooting Tips for ECG Monitoring Mode Table 3-2 Observation Possible Cause What to Do...
Page 31
How to Use the LIFEPAK 1000 Defibrillator Troubleshooting Tips for ECG Monitoring Mode (Continued) Table 3-2 Observation Possible Cause What to Do Poor ECG signal quality. Poor electrode-to-skin • Reposition cable and/or lead contact. wires to prevent electrodes from pulling away from patient.
The LIFEPAK 1000 defibrillator does not delete patient data after you transfer the data to a PC. The defibrillator deletes previous patient data only when it is connected to a new patient or a simulator.
Data Management Test and Service Data The LIFEPAK 1000 defibrillator stores a test log consisting of the most recent auto-tests, power cycles, and battery replacements. The test log lists the test results and any errors detected. The test log data is available only to authorized service personnel or to responders who are using the appropriate LIFENET system product.
Page 36
This includes initiating data download, selecting reports to be transmitted, and monitoring transmission progress. More information about configuring your LIFENET system product and instructions for transmitting device data are provided in the users guide and reference cards that accompany the LIFENET system product. LIFEPAK 1000 Defibrillator Operating Instructions...
CARING FOR THE LIFEPAK 1000 DEFIBRILLATOR This section explains how to help keep your LIFEPAK 1000 defibrillator in good working condition. Cared for properly, the defibrillator is built to give you many years of service. Maintenance and Testing Schedule page 5-2...
SELF-TEST PERFORMANCE Whenever the LIFEPAK 1000 defibrillator is turned on after it has been off for at least 60 seconds, it takes approximately 5 seconds to complete a self-test and to indicate a low or replace battery condition.
Caring for the LIFEPAK 1000 Defibrillator Auto Tests The defibrillator performs automatic self-tests daily and monthly at 0300 (3:00 a.m.) if not in use. During the automatic self-test, the defibrillator turns itself on (ON/OFF LED illuminates) briefly and completes the following tasks: •...
• Peroxide (peracetic acid) solutions BATTERY MAINTENANCE The LIFEPAK 1000 defibrillator can be powered by either of two types of batteries: • A nonrechargeable Lithium manganese dioxide battery • A rechargeable Lithium-ion battery Follow the guidelines described in this section to help maximize battery life and performance.
The Lithium-ion (Li-ion) rechargeable battery is the appropriate battery option when the LIFEPAK 1000 defibrillator is used on a frequent basis, or is used with a simulator for training. When optimally maintained, a new fully-charged battery can provide approximately ten hours of “ON”...
Page 42
• Recharge when the battery fuel gauge shows that the battery charge level is low. • Use only the Physio-Control battery charger designed for use with the LIFEPAK 1000 defibrillator. Do not use any other charger. Refer to the LIFEPAK 1000 Defibrillator Battery Charger Instructions for Use.
Do not disassemble the defibrillator. It contains no responder-serviceable components and dangerous high voltages may be present. Contact authorized service personnel. If the LIFEPAK 1000 defibrillator requires service as indicated by testing, troubleshooting, or the service symbol, contact authorized service personnel. In the USA, call 1 800 STRYKER Outside the USA, contact your local Physio-Control representative.
SUPPLIES, ACCESSORIES, AND TRAINING TOOLS Table 5-4 lists supplies, accessories, and training tools for the LIFEPAK 1000 defibrillator. To order in the USA, call 1 800 STRYKER. Outside the USA, contact your local Physio-Control representative. Supplies, Accessories, and Training Tools...
Caring for the LIFEPAK 1000 Defibrillator Supplies, Accessories, and Training Tools (Continued) Table 5-4 Item Description Carrying Case LIFEPAK Replacement Bag Strap 3-Wire Monitoring Cable 3-Wire Monitoring Cable (IEC) Quick Reference Card IrDA Adapter (attachment for a PC) CODE-STAT Data Review Software...
Page 54
Service required when displayed Environmental Note: All performance specifications defined assume that the device has been stored (two hours minimum) at the operating temperature prior to operation. Operating 0° to 50°C (32° to 122°F) Temperature LIFEPAK 1000 Defibrillator Operating Instructions...
Page 56
0.45 kg (1.0 lb), maximum Standby Life A new fully-charged battery provides device power for 6 months. Low Battery At least 30 200-joule shocks or 75 minutes of operating time Indicator remain when low battery is first indicated. LIFEPAK 1000 Defibrillator Operating Instructions...
Page 59
'shock' or 'no shock.' The main ECG database used to verify the performance of the LIFEPAK 1000 defibrillator for SAS is named the Physio-Control Test Set. In addition, the ECG database named SAS Test Set was used to provide samples of shockable rapid ventricular tachycardia from pulseless patients for verification purposes.
• Other organized rhythms including 30 or more of each of the following rhythms: atrial fibrillation, atrial flutter, 2nd degree atrioventricular block, 3rd degree atrioventricular block, idioventricular rhythms, sinus bradycardia, supraventricular tachycardia, and rhythms with premature ventricular complexes LIFEPAK 1000 Defibrillator Operating Instructions...
Page 61
C. Summary Shock Advisory System Performance Report The results of tests with the SAS and Physio-Control test sets in the LIFEPAK 1000 defibrillator are shown below in the context of requirements from IEC 60601-2-4 and the recommendations from the American Heart Association.
Page 62
The system also disarms if the patient impedance decreases suddenly or the patient impedance goes outside the acceptable range for analysis. If none of these occur, the shockable rhythm decision is not revised during charging or prior to shock. LIFEPAK 1000 Defibrillator Operating Instructions...
Page 63
The Shock Advisory System detects patient motion independent of ECG analysis. MOTION DETECTION can be set up to be ON or OFF. For more information, see “Changing Setup Options” in the LIFEPAK 1000 Defibrillator Operating Instructions. A number of activities can create motion, including CPR, rescuer movement, patient movement, and vehicle movement.
Page 68
Choices for the STACKED SHOCKS option are ON or OFF . The default setting is OFF . When this option is set to ON , the defibrillator follows the previously traditional stacked shock protocol and delivers up to three consecutive shocks, as necessary, without interposed CPR. LIFEPAK 1000 Defibrillator Operating Instructions...
Page 74
Set up AED mode defaults. MANUAL MODE Set up Manual mode defaults. SET PASSCODE Set passcode to enter Setup mode. SERVICE MODE View service options. To choose an option, highlight your choice on the screen and press SELECT . LIFEPAK 1000 Defibrillator Operating Instructions...
Page 78
Start defibrillator calibration. PIXEL TEST Test display pixels. SERVICE LOG Show service log. SERVICE DATA Show device data. DEVICE LOG Display device log. SET PASSCODE Set Service mode access passcode. SETUP MODE Go back to Setup mode. LIFEPAK 1000 Defibrillator Operating Instructions...
LIFEPAK ® 1000 DEFIBRILLATOR USER’S CHECKLIST Unit Serial Number __________________________ Department/Location ________________________ Date Recommended Initials Instruction Corrective Action Check readiness display for: symbol Contact authorized service personnel. symbol None. Battery level Replace if one bar or less on battery status indicator. Check Use By date on Replace electrode packet if date electrode packet.
Page 88
200 J monophasic shocks, 200 J biphasic shocks will in some cases enable earlier termination of VF. Therefore, we conclude that biphasic shocks for VF delivered at conventional energy levels have the potential to improve outcome in resuscitation of patients with cardiac arrest. LIFEPAK 1000 Defibrillator Operating Instructions...
The identical ECG analysis Shock Advisory System and BTE (ADAPTIV biphasic Note: waveform) used in the LIFEPAK 500 AED is also used in the LIFEPAK 1000 defibrillator. Methods First responders were equipped with either a Physio-Control LIFEPAK 500 MDS or BTE (ADAPTIV biphasic waveform) AED in a random fashion.
Page 93
ELECTROMAGNETIC EMISSIONS The LIFEPAK 1000 defibrillator is intended for use in the electromagnetic environment specified below. The customer or the user of the LIFEPAK 1000 defibrillator should ensure that the device is used in such an environment. Guidance and Manufacturer’s Declaration - Electromagnetic Emissions...
Page 94
Tables 2 through 4. The LIFEPAK 1000 defibrillator is intended for use in the electromagnetic environment specified below. The customer or the user of the LIFEPAK 1000 defibrillator should ensure that the device is used in such an environment.
Page 95
Electromagnetic Compatibility Guidance The LIFEPAK 1000 defibrillator is intended for use in the electromagnetic environment specified below. The customer or the user of the LIFEPAK 1000 defibrillator should ensure that the device is used in such an electromagnetic environment. Guidance and Manufacturer’s Declaration - Electromagnetic Immunity...
Page 96
Electromagnetic Compatibility Guidance SEPARATION DISTANCES The LIFEPAK 1000 defibrillator is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the LIFEPAK 1000 defibrillator can help prevent electromagnetic interference by maintaining a minimum distance...
