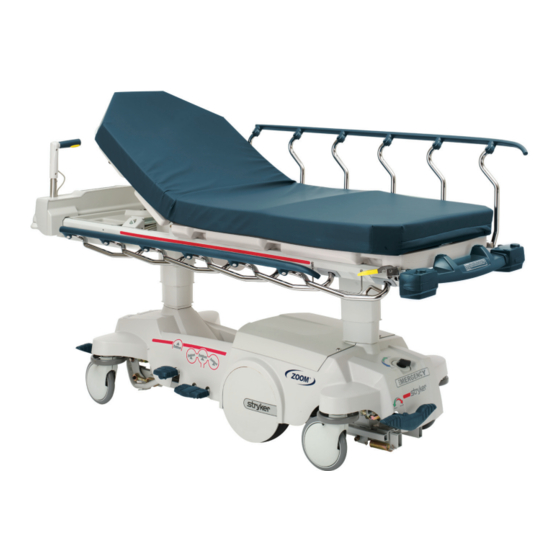

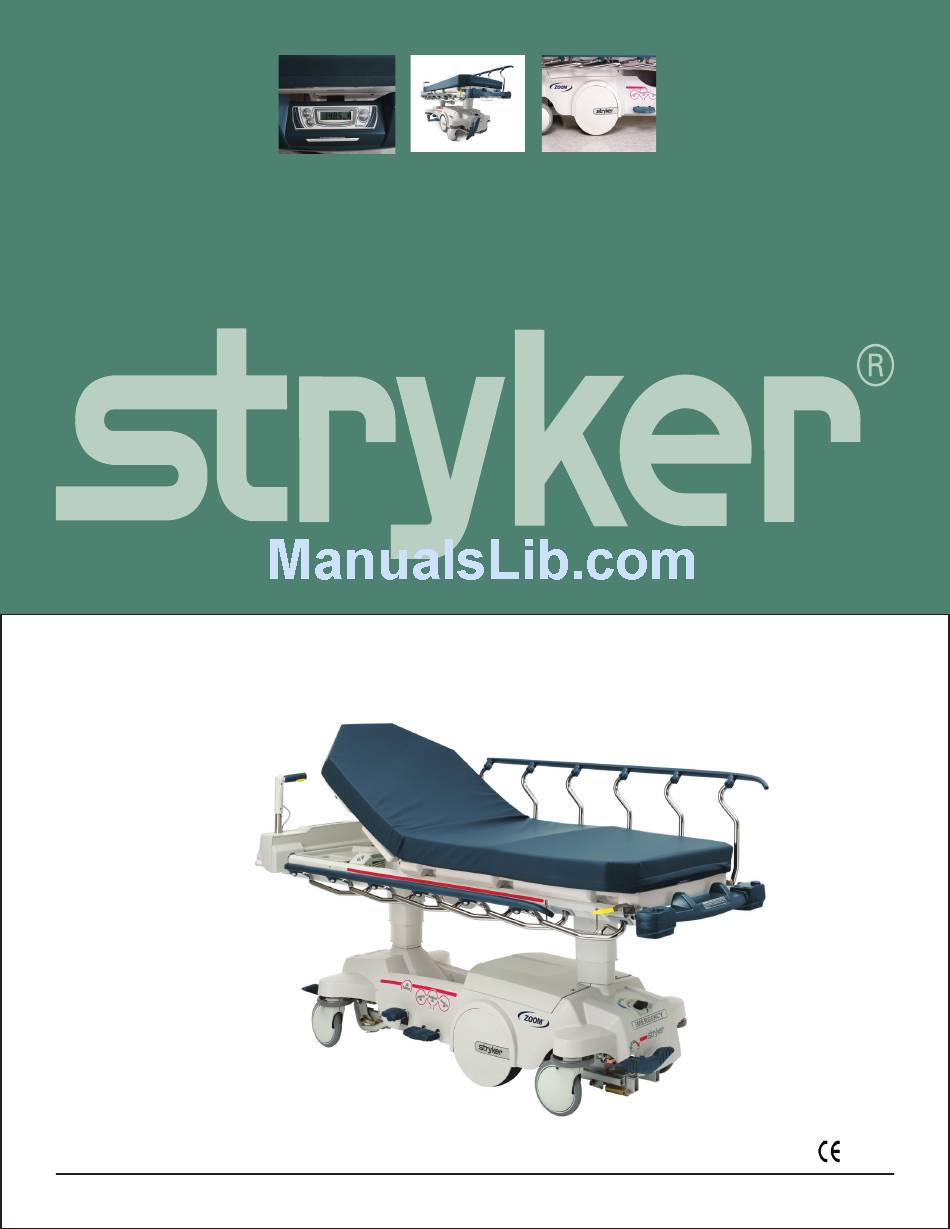

- Page 1 M-Series Stretcher Model 1025 (SM304) Operations Manual For Parts or Technical Assistance: USA: 1-800-327-0770 (option 2) 2009/01 1025-009-001 REV E www.stryker.com...
-
Page 3: Table Of Contents
Recycling Passport ............... . 32 www.stryker.com 1025-009-001 REV E... -
Page 4: Introduction
Introduction InTended USe This manual is designed to assist you with the maintenance of Stryker Model 1025 M-Series Stretcher with ZOOM ® Carefully read this manual thoroughly before using the equipment or beginning maintenance on it. To ensure safe operation of this equipment, it is recommended that methods and procedures be established for educating and training staff on the safe operation of this stretcher. - Page 5 Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide. Stryker reserves the right to change specifications without notice. Specifications listed are approximate and may vary slightly from unit to unit or by power supply fluctuations.
-
Page 6: Specifications (Optional Scale System)
* Scale does not meet accuracy claims at Trend angles outside the specified range. Internally Powered Mode of Operation: Continuous IPX5 Electromagnetic Compatibility: Product conforms to EN 60601-1-2:1993 - Class B Type: 4 x AA Battery (4 x 1.5VDC) Voltage: 6.0VDC Return To Table of Contents 1025-009-001 REV E www.stryker.com... -
Page 7: Warning / Caution / Note Definition
This provides special information to make maintenance easier or important instructions clearer. Return To Table of Contents www.stryker.com 1025-009-001 REV E... -
Page 8: Symbols
Medical Equipment Classified by Underwriters Laboratories Inc. with Respect to Electric Shock, Fire, Mechanical and Other Specified Hazards Only in Accordance with UL 60601-1 First Edition (2003) and CAN/CSA C22.2 No. 601.1. UL60601-1 CAN/CSA C22.2 NO. 601.1 Return To Table of Contents 1025-009-001 REV E www.stryker.com... -
Page 9: Summary Of Safety Precautions
Possible fire hazard when oxygen administering equipment of other than the nasal mask or 1/2 bed length tent type is used. Oxygen tent should not extend below mattress support level. • Possible fire and/or explosion hazard when used with oxygen tents, hyperbaric chambers, anesthesia, or other combustible gases. Return To Table of Contents www.stryker.com 1025-009-001 REV E... - Page 10 • The Model 1025 Stretcher is equipped with a hospital grade plug for protection against electric shock hazard. It must be plugged directly into a properly grounded three-prong receptacle. Grounding reliability can be achieved only when a hospital grade receptacle is used. Be sure to move any equipment that may be in the way before raising or lowering the litter height.
-
Page 11: Setup Procedures
Setup Procedures It is important that the Model 1025 Stretcher is working properly before it is put into service. The following list will help ensure that each part of the unit is checked. • Plug the power cord into a properly grounded, hospital grade wall receptacle. The 12 volt batteries that provide power to the drive wheel and backup power to the unit functions will charge whenever the power cord is plugged into the power source. -
Page 12: Stretcher Operation
Depress the side of pedal (B) closest to the head end of the stretcher to lower the head end. Pedal (C) - Brake and Steer functions (foot end). Pedal (D) - Brake and Steer functions (head end). Return To Table of Contents 1025-009-001 REV E www.stryker.com... -
Page 13: Raising And Lowering The Litter Height
The higher the litter is before pedal (B) is activated, the greater the Trendelenburg or reverse Trendelenburg angle will be. (Maximum Trendelenburg angle is +15°. Maximum reverse Trendelenburg angle is -15°). Return To Table of Contents www.stryker.com 1025-009-001 REV E... -
Page 14: Battery Charging And Operation
Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. Properly dispose of batteries when required. Return To Table of Contents 1025-009-001 REV E www.stryker.com... -
Page 15: Transporting The Stretcher Using The Drive Wheel
On/drive - Off/Manual Switch label If unanticipated motion occurs, unplug the power source and rotate the “On/drive - Off/Manual” switch to the Off position. Return To Table of Contents www.stryker.com 1025-009-001 REV E... - Page 16 On position. The unit will be difficult to push and injury could result. CaUTIOn Always unplug the power cord and rotate the “On/drive - Off/Manual” switch to the Off position before service or cleaning. Return To Table of Contents 1025-009-001 REV E www.stryker.com...
-
Page 17: Operating The Glideaway™ Siderails
It is the responsibility of the attending medical personnel to determine the degree of restraint necessary to ensure a patient will remain in place. Failure to utilize the siderails properly could result in patient injury. Return To Table of Contents www.stryker.com 1025-009-001 REV E... -
Page 18: Operating The Pneumatic Fowler
7 - Pneumatic fowler WarnIng Keep hands/fingers clear of the area around the fowler release handles and the fowler frame when lowering. Injury could result if care is not taken when lowering the fowler. Return To Table of Contents 1025-009-001 REV E www.stryker.com... -
Page 19: Operating The Optional Knee Gatch
To release the prop, lift up on the end of the gatch, swing the prop rod toward the head end of the bed to disengage the bracket and lower the foot end. (See Figure 9) Return To Table of Contents www.stryker.com 1025-009-001 REV E... -
Page 20: Operating The Optional 2-Stage Permanently Attached I.v. Pole
Rotate the I.V. hangers (B) to desired position and hang the I.V. bags. To lower the I.V. pole, turn the latch (C) until section (A) lowers. CaUTIOn To avoid damage, the weight of the I.V. bags should not exceed 40 pounds. Return To Table of Contents 1025-009-001 REV E www.stryker.com... -
Page 21: Operating The Optional 3-Stage Permanently Attached I.v. Pole
To lower the I.V. pole, push up on the red portion of grip (D) while holding onto section (B) until it lowers. Turn latch (E) until section (A) lowers. CaUTIOn To avoid damage, the weight of the I.V. bags should not exceed 40 pounds. Return To Table of Contents www.stryker.com 1025-009-001 REV E... -
Page 22: Operating The Optional Foot Extension/Defibrillator Tray
If the stretcher is equipped with the optional foot end push handles, use caution while the foot extension/defibrillator tray is installed to avoid pinching your fingers. figure 15 - Optional foot extension/ defibrillator Tray - foot end Return To Table of Contents 1025-009-001 REV E www.stryker.com... -
Page 23: Operating The Optional Serving Tray
To store the serving tray in the optional serving tray holder/foot board, push in both ends of the serving tray and slide it into the holder as shown in Figure 17. CaUTIOn To avoid damage, do not put items weighing more than 30 pounds on the serving tray. Return To Table of Contents www.stryker.com 1025-009-001 REV E... -
Page 24: Operating The Optional Scale System
“Good” will display and the scale system is ready to use. If the malfunction is still present, the display shows “Err” again. Call Stryker technical support at 800-327-0770. For the most accurate results, weigh the patient with the litter at zero degrees of Trend. -
Page 25: Using The Optional Scale System Batteries
Reinstall the screws and the cover. If the display is flashing “Lo Batt”, the batteries are drained and the scale system is disabled. Replace the batteries with four new AA batteries as described above. Return To Table of Contents www.stryker.com 1025-009-001 REV E... -
Page 26: Cleaning
Quaternary Cleaners: identified by ingredients containing the phrase “…yl ammonium chloride” Quat/Isopropyl Cleaners: identified by a quaternary ingredient above plus isopropyl alcohol Phenolic Cleaners: identified by ingredients containing the suffix “-phenol” Chlorine Bleach: known generically as “Sodium hypochlorite” Return To Table of Contents 1025-009-001 REV E www.stryker.com... -
Page 27: Special Instructions
Rinse surfaces which have been exposed to the solution with clear water before returning mattress to service. nOTe Failure to follow the above directions when using these types of cleaners may void this product’s warranty. Return To Table of Contents www.stryker.com 1025-009-001 REV E... -
Page 28: Preventative Maintenance
Preventative maintenance should be performed at a minimum of annually. A preventative maintenance program should be established for all Stryker Medical equipment. Preventative maintenance may need to be performed more frequently based on the usage level of the product. - Page 29 Return To Table of Contents www.stryker.com 1025-009-001 REV E...
-
Page 30: Warranty
Stryker’s obligation under this warranty is expressly limited to supplying replacement parts and labor for, or replacing, at its option, any product which is, in the sole discretion of Stryker, found to be defective. If requested by Stryker, products or parts for which a warranty claim is made shall be returned prepaid to the factory. Any improper use or any alteration or repair by others in such manner as in Stryker’s judgment affects the product materially and adversely... -
Page 31: Service Contract Programs
* Replacement parts and labor for products under PM contract will be discounted. ** Does not include any disposable items, I.V. poles (except for Stryker HD permanent poles), mattresses, or damage resulting from abuse. Stryker Medical also offers personalized service contracts. -
Page 32: Recycling Passport
Passport aSSeMBly ParT nUMBer: 1040-010-101 (reference Only) 1040−060−060 Standard Power Cord Item recycling/Material Code Important Information Power Cord (1040-060-060, 1040-060-050) Return To Table of Contents 1025-009-001 REV E www.stryker.com... - Page 33 Passport aSSeMBly ParT nUMBer: 1040-010-101 (reference Only) Item recycling/Material Code Important Information Coil Cable Plug (1040-010-801) Return To Table of Contents www.stryker.com 1025-009-001 REV E...
- Page 34 Passport aSSeMBly ParT nUMBer: 1040-006-301 (reference Only) Item recycling/Material Code Important Information Cam Position Cable (1040-010-807) Return To Table of Contents 1025-009-001 REV E www.stryker.com...
- Page 35 Passport aSSeMBly ParT nUMBer: 1040-020-101 (reference Only) Item recycling/Material Code Important Information Manual Override Switch (1040-010-830) Return To Table of Contents www.stryker.com 1025-009-001 REV E...
- Page 36 Passport aSSeMBly ParT nUMBer: 1040-007-210 (reference Only) Item recycling/Material Code Important Information Switch Cable (1040-050-805) Return To Table of Contents 1025-009-001 REV E www.stryker.com...
- Page 37 Passport aSSeMBly ParT nUMBer: 1040-020-101 (reference Only) Item recycling/Material Code Important Information Motor Drive Unit (1040-010-820) Return To Table of Contents www.stryker.com 1025-009-001 REV E...
- Page 38 Passport aSSeMBly ParT nUMBer: 1040-020-101 (reference Only) Item recycling/Material Code Important Information Circuit Board (1040-210-859) Return To Table of Contents 1025-009-001 REV E www.stryker.com...
- Page 39 Passport aSSeMBly ParT nUMBer: 1040-007-200, 1040-007-300 (reference Only) Item recycling/Material Code Important Information Circuit Board (1040-050-125) Load Cell (3002-307-057) Return To Table of Contents www.stryker.com 1025-009-001 REV E...
- Page 40 Passport aSSeMBly ParT nUMBer: 1040-020-101 (reference Only) Item recycling/Material Code Important Information Batteries (1040-010-870) Return To Table of Contents 1025-009-001 REV E www.stryker.com...
