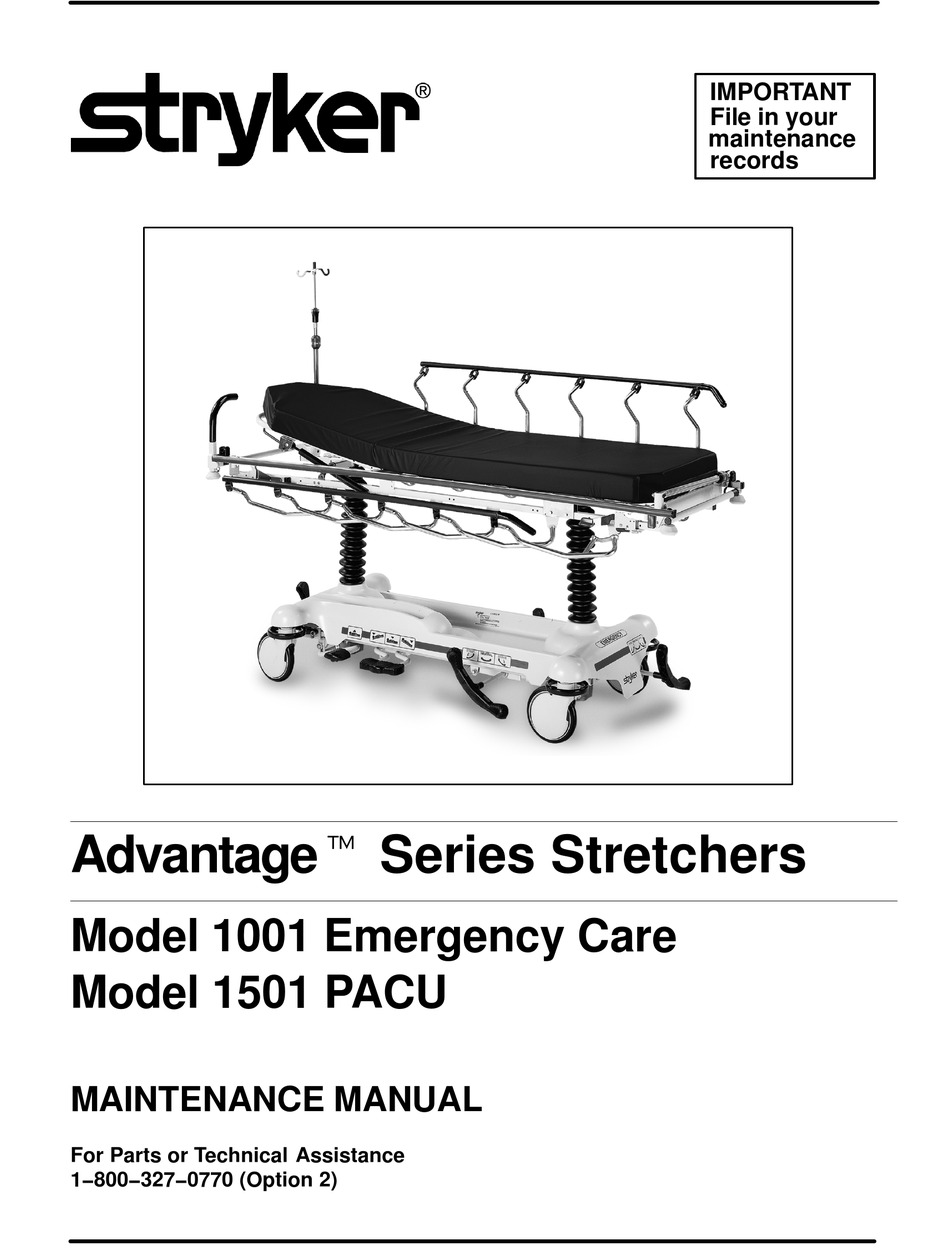

Advantaget Series Stretchers
Model 1001 Emergency Care
Model 1501 PACU
MAINTENANCE MANUAL
For Parts or Technical Assistance
1−800−327−0770 (Option 2)
IMPORTANT
File in your
maintenance
records

Advertisement

Table of Contents
loading

Related Manuals for Stryker Advantage 1001

Summary of Contents for Stryker Advantage 1001

  • Page 1 IMPORTANT File in your maintenance records Advantaget Series Stretchers Model 1001 Emergency Care Model 1501 PACU MAINTENANCE MANUAL For Parts or Technical Assistance 1−800−327−0770 (Option 2)

  • Page 2: Table Of Contents

    Table of Contents Introduction Specifications ................Warning / Caution / Note Definition .
  • Page 3 Table of Contents Assembly Drawings and Parts Lists (Continued) Brake Rod Assembly ..............Drive Link Assembly .

  • Page 4: Assembly Drawings And Parts Lists (Continued)

    Table of Contents Assembly Drawings and Parts Lists (Continued) Litter Assembly ..............69−78 Dual Siderail Latch Assembly .

  • Page 5: Introduction

    +18 / −18 ° +18 / −18 ° Trendelenburg / Reverse Trendelenburg Stryker reserves the right to change specifications without notice. WARNING / CAUTION / NOTE DEFINITION The words WARNING, CAUTION and NOTE carry special meanings and should be carefully reviewed.

  • Page 6: Preventative Maintenance

    Preventative maintenance should be performed at a minimum of annually. A preventative maintenance pro- gram should be established for all Stryker Medical equipment. Preventative maintenance may need to be performed more frequently based on the usage level of the product.

  • Page 7: Cleaning

    If these types of products are used to clean Stryker patient handling equipment, measures must be taken to insure the stretchers are rinsed with clean water and thoroughly dried following cleaning. Failure to properly rinse and dry the stretchers will leave a cor- rosive residue on the surface of the stretcher, possibly causing premature corrosion of critical components.

  • Page 8: Service Information

    Service Information CASTER COVER INSTALLATION AND REMOVAL Double Prongs Looking through the larger of the two side cut−outs, align the cover with the axle nut or bolt head, as shown. Single Prong Push down on the opposite side of the cover until the single prong engages the caster horn.

  • Page 9: Release Pedal Adjustment

    Service Information RELEASE PEDAL ADJUSTMENT 1. Manually disengage the release pedal swivel (item K on page 33) from the release pedal assembly. 2. To increase the release rod engagement with the release valve, turn the release pedal swivel clockwise on the threaded release rod. 3.

  • Page 10: Side Control Brake Rod Removal

    Service Information SIDE CONTROL BRAKE ROD REMOVAL Required Tools: Hammer 7/32” Punch Needle Nose Pliers String or Bungee Cords Fifth Wheel Base 1. Pump the litter up to full height. 2. Lift the base hood and support it from the litter using string or bungee cords. 3.

  • Page 11: Brake Ring Removal

    Service Information BRAKE RING REMOVAL Required Tools: 9/16” Socket w/Extension 3/8” Drive Ratchet Needle−Nose Pliers String or Bungee Cord 1. Pump the litter up to full height. 2. Lift the base hood and support it from the litter using string or bungee cords. 3.

  • Page 12: Big Wheel Removal

    Service Information BIG WHEEL REMOVAL Required Tools: Large Standard Screwdriver Small Standard Screwdriver String or Bungee Cords 1. Lift the base hood and separate the Velcro holding it to the base frame. Support the hood from the litter using bungee cords so it is out of the way. 2.

  • Page 13: Big Wheel Carriage Removal

    Service Information BIG WHEEL CARRIAGE ASSEMBLY REMOVAL Required Tools: 1/2” Socket 3/8” Drive Ratchet Needle−Nose Pliers 1. Remove the litter top from the stretcher (see page 16). 2. Lift the base hood off the base frame. 3. With the brake/steer pedal in the steer position, remove the clevis pin and rue ring cotter connecting the brake rod to the brake rod drive link at each end of the stretcher.

  • Page 14: Big Wheel Cam Gas Spring Dampener Removal

    Service Information BIG WHEEL CAM GAS SPRING DAMPENER REMOVAL Required Tools: 1/2” Socket 3/8” Drive Ratchet Needle−Nose Pliers 1. Remove the litter top from the stretcher (see page 16). 2. Lift the base hood off the base frame. 3. Remove the two clevis pins and rue ring cotters connecting the brake rods to the drive arm at the center of the base near the cam bracket assembly.

  • Page 15: Head End Hydraulic Jack Removal

    Service Information HEAD END HYDRAULIC JACK REMOVAL Required Tools: 1/2” Socket w/Extension 3/8” Drive Ratchet 1. Remove the litter top from the stretcher (see page 16). 2. Using a 1/2” socket with extension and a 3/8” drive ratchet, remove the two hex head screws holding the jack base to the stretcher base frame.

  • Page 16: Foot End Hydraulic Jack Removal

    Service Information FOOT END HYDRAULIC JACK REMOVAL (BASE WITH DUAL CONTROLS) Required Tools: 1/2” Socket 3/8” Drive Ratchet Pliers 1. Remove the litter top from the stretcher (see page 16). 2. Lift the base hood off the base frame. 3. Remove the two hex washer head screws and washers connecting the pump pedal link to the foot end pump pedal assembly and pump connecting rod.

  • Page 17: Litter Top Removal

    Service Information FOOT END HYDRAULIC JACK REMOVAL (BIG WHEEL BASE WITH 3−SIDED CONTROLS) Required Tools: 1/2” Socket 3/8” Drive Ratchet Pliers 1. Remove the litter top from the stretcher (see below). 2. Lift the base hood off the base frame. 3.

  • Page 18: Pneumatic Fowler Adjustment

    Service Information PNEUMATIC FOWLER ADJUSTMENT (OUTSIDE MOUNTED CYLINDERS) Required Tools: 5/32” Hex Allen Wrench 1/2” Open End Wrench Adjustment Procedure: 1. Refer to drawings 1210−31−120 or 1710−31−120 (Pneumatic Fowler Assembly, page 81 page 83) for parts reference. 2. For easier access, move Fowler to 75 degrees or higher. 3.

  • Page 19: Replacement Parts And Kits

    Replacement Parts PART NAME PART NUMBER Hydraulic Jack, Constant Descent ..........0753−002−001 Hydraulic Jack, Variable Descent .

  • Page 20: Fifth Wheel Base Assembly

    0753−006−110 Retractable Fifth Wheel Base Assembly Item Part No. Part Name Qty. 0023−288−000 Hex Washer Hd. Screw (page Fifth Wheel Assembly 0753−006−148 Cam Bearing 0023−305−000 Hex Hd. Cap Screw...

  • Page 21: Fifth Wheel Assembly

    0753−006−130 Fifth Wheel Assembly...
  • Page 22 0753−006−130 Fifth Wheel Assembly Item Part No. Part Name Qty. 0003−083−000 Hex Hd. Cap Screw 0016−035−000 Nylock Hex Nut 0023−288−000 Hex Washer Hd. Screw 0025−050−000 Rivet 0753−006−074 Torsion Spring 0753−006−075 Torsion Spring 0753−006−097 Drive Shaft Bearing 0753−006−106 Dampener 0753−006−108 Thrust Washer 0753−006−115 Bearing 0753−006−120...

  • Page 23: Base Assembly With Standard Brakes (Fifth Wheel Base)

    Base Assembly w/Standard Brakes (Fifth Wheel Base) Assembly part number 0753−003−005 (reference only)
  • Page 24 Base Assembly w/Standard Brakes (Fifth Wheel Base) Item Part No. Part Name Qty. 0005−039−000 Step Bolt 0011−262−000 Washer 0016−035−000 Nylock Hex Nut 0016−049−000 Nylock Hex Nut 0023−288−000 Hex Washer Hd. Screw 0027−012−000 Hitch Pin 0028−037−000 External Retaining Ring 0038−439−000 Extension Spring 0081−272−000 Roller Bearing 0753−001−001...

  • Page 25: Brake Rod Assembly

    Brake Rod Assembly Assembly part number 0753−003−001 (reference only) Item Part No. Part Name Qty. 0026−067−000 Slotted Spring Pin 0753−003−004 Brake Rod Support (page Drive Link Assembly 0753−003−014 Brake Rod 0753−003−015 Nyliner 0753−003−099 Butterfly “V” Pedal (page Drive Link Assembly 1210−201−335 Red Brake Label 1210−201−336...

  • Page 26: Drive Link Assembly

    0753−003−010 Drive Link Assembly Item Part No. Part Name Qty. 0753−003−011 Brake Rod Drive Link 0753−003−061 Brake Cam Drive Link 0753−003−098 Flat Hd. Semi−Tubular Rivet 0753−003−102 Brake Cam...
  • Page 27 0753−006−135 Drive Link Assembly Item Part No. Part Name Qty. 0753−003−011 Brake Rod Drive Link 0753−003−098 Semi−Tubular Rivet 0753−006−122 5th Wheel Cam Drive Link 0753−006−147 Fifth Wheel Drive Link...

  • Page 28: Caster Assembly

    0753−010−020 8” Caster Assembly Item Part No. Part Name Qty. 0715−002−025 Wheel 0003−099−000 Hex Hd. Cap Screw 0753−010−021 Caster Horn w/Bearing 0016−060−000 Centerlock Nut...

  • Page 29: Base Assembly With Four−Sided Brakes

    Base Assembly with 4−Sided Brakes Assembly part number 0753−003−120 (reference only)
  • Page 30 Base Assembly with 4−Sided Brakes HEAD END FOOT END Item Part No. Part Name Qty. Item Part No. Part Name Qty. 0005−039−000 Step Bolt 0753−003−066 Clevis Pin 0011−262−000 Washer 0753−003−079 Brake Pin Guide 0016−035−000 Nylock Hex Nut (page Side Brake Rod Ass’y 0016−049−000 Nylock Hex Nut 0753−003−121...

  • Page 31: Side Control Brake Rod Assembly

    0753−003−110 Side Control Brake Rod Assembly Item Part No. Part Name Qty. 0026−067−000 Slotted Spring Pin 0026−340−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0753−003−099 Butterfly “V” Pedal 0753−003−112 Side Control Link 0753−003−114 Support Weldment 0753−003−117 Rod End Link 0753−003−119 Side Control Brake Rod 0753−005−044 Pedal Bushing 1210−201−335...

  • Page 32: Brake Rod Assembly

    Brake Rod Assembly Assembly part number 0753−003−125 (reference only) Item Part No. Part Name Qty. 0026−067−000 Slotted Spring Pin 0753−003−004 Brake Rod Support (page Drive Link Assembly 0753−003−014 Brake Rod 0753−003−015 Brake Rod Nyliner 0753−003−099 Butterfly “V” Pedal 0753−003−112 Side Control Link (page Drive Link Assembly 1210−201−335...
  • Page 33 Base with Dual Side Hydraulics (Fifth Wheel Base) Assembly part number 0753−005−100 (reference only) 0023−288−000 Insert pump ram into keyhole slot on both ends. Lower pump connecting rod weldment onto 0753−003−004 pump ram as shown Insert spring hook thru HEAD END slots in pump pedal Attach other end onto jack tower as shown...
  • Page 34 Base with Dual Side Hydraulics (Fifth Wheel Base) See Detail A Insert item ”T” into keyhole in item ”V” and push down to assemble DETAIL A Insert spring hook thru hole in pump connecting rod. Attach other hook to return spring as shown Insert spring hook onto hook on release pedal.

  • Page 35: Release Pedal Assembly

    Base with Dual Side Hydraulics (Fifth Wheel Base) See Detail C Insert head end release rod into release valve assembly as shown DETAIL B Insert foot end release rod into release valve assembly as shown DETAIL C See Detail B Item Part No.
  • Page 36 0753−004−001 Release Pedal Assembly Item Part No. Part Name Qty. 0753−004−029 Release Pedal Standoff 1061−201−127 Short Uni−Pedal 0753−004−004 Release Pedal Weldment 0753−004−121 Release Pedal Mtg. Plate 0025−079−000 Dome Head Rivet 0753−004−036 Bushing 0753−004−035 Release Pedal Bumper Strip...

  • Page 37: Pump Pedal Assembly

    0753−005−185 Head End Pump Pedal Assembly Item Part No. Part Name Qty. 0026−343−000 Groove Pin 0715−001−140 Vinyl Tube 0753−005−044 Pump Pedal Bushing 0753−005−180 Head End Pump Pedal Weldment 0753−201−126 Pump Pedal...
  • Page 38 Base with 3−Side Hydraulics (Fifth Wheel Base) Asssembly part number 0753−005−110 (reference only) FOOT END Insert spring hook thru slots in pump pedal Attach other end onto jack tower as shown...
  • Page 39 Base with 3−Side Hydraulics (Fifth Wheel Base) Run cable from right pedal on the outside of the jack mounting plate. Run cable from left pedal through the hole in the jack mounting plate. FIFTH WHEEL BASES Pull cables toward the foot end of the base to remove slack.
  • Page 40 Base with 3−Side Hydraulics (Fifth Wheel Base) Item Part No. Part Name Qty. 0011−023−000 Washer 0014−071−000 Washer 0023−288−000 Hex Washer Hd. Screw 0025−079−000 Rivet 0027−031−000 Cotter Pin (page Foot End Release Pedal Ass’y 0753−004−127 Cable Mounting Plate 0753−004−030 Foot End Release Cable 0753−005−044 Pump Pedal Bushing 0753−005−063...
  • Page 41 Foot End Release Pedal Assembly Assembly part number 0753−004−123 (reference only) Item Part No. Part Name Qty. 0026−132−000 Clevis Pin 0753−004−024 Release Pedal, Foot End, Left 0753−004−025 Release Pedal, Foot End, Right 0753−004−028 Release Pedal Return Spring 0753−004−322 Release Pedal Mtg. Plate 0027−022−000 Rue Ring Cotter...
  • Page 42 0753−005−173 Foot End Pump Pedal Assembly Item Part No. Part Name Qty. 0026−343−000 Groove Pin 0715−001−140 Clear Vinyl Tubing 0753−005−044 Pump Pedal Bushing 0753−005−171 Foot End Pedal Weldment 0715−201−126 Plastic Pump Pedal...

  • Page 43: Base Labeling Assembly

    Base Labeling Assembly Assembly part number 0753−010−062 (reference only) Department Label page 44 Specification Label FOOT END HEAD END Item Part No. Part Name Qty. 0753−010−040 Base Hood 1040−010−134 Bellows 0946−201−060 Stryker Logo Label...
  • Page 44 Base Labeling Assembly, 4−Sided Brakes Assembly part number 0753−010−063 (reference only) Department Label page 44 Specification Label FOOT END HEAD END Item Part No. Part Name Qty. 0753−010−040 Base Hood 1040−010−134 Bellows 0946−201−060 Stryker Logo Label 0753−010−018 Brake/Steer Label, Right 0753−010−019 Brake/Steer Label, Left...
  • Page 45 Base Labeling Assembly Color Item D Brake/ Item E Item F Brake/ Item G Litter Set P/N Steer, Foot End Lift/Lower, Left Steer, Head End Lift/Lower, Right Bumper Strip 0753−010−051 0753−010−055 0753−010−017 0753−010−054 1010−700−015 0753−010−120 PURPLE 0753−010−151 0753−010−155 0753−010−170 0753−010−154 1010−700−025 0753−010−121 GREEN...
  • Page 46 Big Wheel End Control Base Assembly Assembly part number 1040−015−105 (reference only) HEAD END...
  • Page 47 Big Wheel End Control Base Assembly DETAIL A HEAD END See Detail A...
  • Page 48 Big Wheel End Control Base Assembly Item Part No. Part Name Qty. 0021−166−000 Set Screw 0023−150−000 Hex Washer Hd. Screw 0023−288−000 Hex Washer Hd. Screw 0026−273−000 Clevis Pin 0025−330−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0029−007−000 Dual Lock 0029−009−000 Dual Lock 0042−020−000 Collar 0081−330−000...
  • Page 49 Base Assembly w/Standard Brakes (Big Wheel Base) Assembly part number 1040−003−205 (reference only)

  • Page 50: Drive Link Assembly

    Base Assembly w/Standard Brakes (Big Wheel Base) Item Part No. Part Name Qty. 0005−039−000 Step Bolt 0011−262−000 Washer 0016−035−000 Nylock Hex Nut 0016−049−000 Nylock Hex Nut 0023−025−000 Hex Washer Hd. Screw 0027−012−000 Hitch Pin 0027−019−000 Rue Ring Cotter Pin 0028−037−000 External Retaining Ring 0038−439−000 Extension Spring...
  • Page 51 1040−003−185 Drive Link Assembly Item Part No. Part Name Qty. 0753−003−098 Semi−Tubular Rivet 0753−003−102 Brake Cam 1040−003−174 Brake Rod Drive Link 1040−003−076 Cam Drive Link...
  • Page 52 1040−003−191 Brake Rod Assembly (Big Wheel Base) Item Part No. Part Name Qty. 0026−067−000 Slotted Spring Pin 1040−003−113 Brake Rod 0753−003−099 Butterfly “V” Pedal...
  • Page 53 Base with Dual Side Hydraulics (Big Wheel Base) Assembly part number 1040−005−200 (reference only) Insert pump ram into keyhole slot on both ends. Lower pump connecting rod weldment onto pump ram as shown. Insert item W to retain pump connecting rod. 0753−002−025 Constant Descent Jacks 0753−002−080 Variable Descent Jacks...

  • Page 54: Release Pedal Assembly

    Base with Dual Side Hydraulics (Big Wheel Base) See Detail A Insert item ”S” into keyhole in item ”V” and push down DETAIL A Insert spring hook thru hole in pump connecting rod weldment Attach other hook to return spring hook as shown. Insert spring hook into hook on release pedal assembly.
  • Page 55 Base with Dual Side Hydraulics (Big Wheel Base) Insert head end release rod into release valve assembly as shown DETAIL B SEE DETAIL C Insert foot end release rod into release valve assembly as shown DETAIL C SEE DETAIL B Item Part No.
  • Page 56 0753−004−001 Release Pedal Assembly Item Part No. Part Name Qty. 0715−001−333 Release Rod Stop Sleeve 1061−201−127 Short Uni Pedal 0753−004−004 Release Pedal Weldment 0753−004−121 Release Pedal Mtg. Plate 0025−171−000 Blind Rivet 0753−004−036 Bushing 0753−004−035 Rel. Pedal Bumper Strip...

  • Page 57: Cam Bracket Assembly

    Cam Bracket Assembly Assembly part number 1040−006−201 (reference only)
  • Page 58 Cam Bracket Assembly Item Part No. Part Name Qty. 0014−004−000 Washer 0014−063−000 Washer 0023−262−000 Clevis Pin 0026−330−000 Clevis Pin 0026−341−000 Clevis Pin 0026−349−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0027−025−000 Rue Ring Cotter 0081−400−000 Needle Bearing 0081−634−000 Needle Bearing 1040−006−109 Dampener 1040−006−141 Cam Pivot...

  • Page 59: Big Wheel Carriage Assembly

    Big Wheel Carriage Assembly Assembly part number 1040−015−101 (reference only) Item Part No. Part Name Qty. 0014−004−000 Washer 0026−341−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0028−330−000 Spiral Retaining Ring 0081−011−000 Needle Bearing 1040−015−006 Carriage Return Spring 1040−015−030 Cover w/Counterweight 1040−015−038 Washer 1040−015−053 Carriage Spring Retainer...
  • Page 60 Big Wheel 4−Sided Control Base Assembly part number 1040−025−105 (reference only) HEAD END...
  • Page 61 Big Wheel 4−Sided Control Base DETAIL A HEAD END See Detail A...
  • Page 62 Big Wheel 4−Sided Control Base Item Part No. Part Name Qty. 0021−166−000 Set Screw 0023−150−000 Hex Washer Hd. Screw 0023−288−000 Hex Washer Hd. Screw 0026−273−000 Clevis Pin 0026−330−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0029−007−000 Dual Lock 0029−009−000 Dual Lock 0042−020−000 Collar 0081−330−000...
  • Page 63 Side Control Big Wheel Carriage Assembly Assembly part number 1040−025−101 (reference only)
  • Page 64 Side Control Big Wheel Carriage Assembly Item Part No. Part Name Qty. 0011−148−000 Washer 0011−525−000 Washer 0014−004−000 Washer 0026−341−000 Clevis Pin 0026−342−000 Groove Pin 0027−020−000 Rue Ring Cotter 0028−166−000 External Retaining Ring 0028−330−000 External Retaining Ring 0081−011−000 Needle Bearing 0081−175−000 Thrust Bearing 0753−003−099 Butterfly “V”...
  • Page 65 1040−025−010 Side Control Big Wheel Linkage Ass’y Item Part No. Part Name Qty. 0753−003−098 Flat Hd. Semi−Tubular Rivet 0753−003−117 Rod End Link 1040−025−011 Main Link 1040−025−013 Toggle Pivot Plate 1040−025−016 Main Link Cover 1040−025−020 Yoke Weldment 1040−025−018 Toggle Pivot Spacer 1040−025−027 Link Spacer...
  • Page 66 Base Labeling Assembly − Big Wheel Base Assembly part number 1040−015−400 (reference only) Department Label page 66 Specification Label FOOT END HEAD END Item Part No. Part Name Qty. 1040−010−134 Bellows 1040−015−404 Base Hood 0946−201−060 Stryker Logo Label...
  • Page 67 Base Labeling Assembly Color Item D Brake/ Item E Item F Brake/ Item G Litter Set P/N Steer, Foot End Lift/Lower, Left Steer, Head End Lift/Lower, Right Bumper Strip 0753−010−051 0753−010−055 0753−010−017 0753−010−054 1010−700−015 0753−010−120 PURPLE 0753−010−151 0753−010−155 0753−010−170 0753−010−154 1010−700−025 0753−010−121 GREEN...
  • Page 68 0753−002−080 Variable Descent Hydraulic Jack Option 0753−001−001 Base Frame Weldment Item Part No. Part Name Qty. 0023−288−000 Hex Washer Hd. Screw 0753−002−070 Variable Descent Jack Assembly 0753−010−007 Reservoir Clamp...
  • Page 69 0753−002−025 Constant Descent Hydraulic Jack Option 0753−001−001 Base Frame Weldment Item Part No. Part Name Qty. 0023−288−000 Hex Washer Hd. Screw 0753−002−001 Constant Descent Jack Ass’y 0753−010−007 Reservoir Clamp...
  • Page 70 1001 Litter Assembly, Fold−to−Head Siderails Assembly part number 1001−230−010 (reference only) Litter Frame 1001−001−120 Item Part No. Part Name Qty. Item Part No. Part Name Qty. 0003−359−000 Hex Hd. Cap Screw 0938−001−401 Collar 0004−181−000 But. Hd. Cap Screw 1001−001−036 Hole Plug 0014−021−000 Washer 1001−001−037...
  • Page 71 1501 Litter Assembly, Fold−to−Head Siderails Assembly part number 1501−230−010 (reference only) Litter Frame 1501−001−120 Item Part No. Part Name Qty. Item Part No. Part Name Qty. 0003−359−000 Hex Hd. Cap Screw 0938−001−401 Collar 0004−181−000 But. Hd. Cap Screw 1001−001−036 Hole Plug 0014−021−000 Washer 1001−001−037...
  • Page 72 Siderail to Litter Assembly, Fold−to−Head...
  • Page 73 Siderail to Litter Assembly, Fold−to−Head FOOT END...
  • Page 74 Siderail to Litter Assembly, Fold−to−Head Item Part No. Part Name Qty. 1001−226−116 Pivot Bearing 1001−226−016 Pivot Bearing 1001−226−015 Pivot Sleeve 1001−226−017 Siderail Spring 1001−326−027 Right Spindle 1001−326−031 Lock Spindle Weldment, Rt. 1001−326−028 Left Spindle 1001−326−033 Lock Spindle Weldment, Lt. 1001−226−020 Siderail Spring Spacer 0025−172−000 Rivet...
  • Page 75 1001 Litter Assembly, Fold−to−Foot Siderails Assembly part number 1001−330−010 (reference only) Detail of Litter Bumper Litter Frame 1211−130−025 Item Part No. Part Name Qty. Item Part No. Part Name Qty. 0011−360−000 Plastic Spacer 1001−001−036 End Plug 0003−355−000 Hex Hd. Cap Screw 1001−030−028 Thread Sleeve 0004−330−000...
  • Page 76 1501 Litter Assembly, Fold−to−Foot Siderails Assembly part number 1501−330−010 (reference only) Detail of Litter Bumper Litter Frame 1711−130−025 Item Part No. Part Name Qty. Item Part No. Part Name Qty. 0011−360−000 Plastic Spacer 1001−001−036 End Plug 0003−355−000 Hex Hd. Cap Screw 1001−030−028 Thread Sleeve 0004−330−000...
  • Page 77 Siderail to Litter Assembly, Fold−to−Foot...
  • Page 78 Siderail to Litter Assembly, Fold−to−Foot HEAD END...
  • Page 79 Siderail to Litter Assembly, Fold−to−Foot Item Part No. Part Name Qty. 1001−226−116 Pivot Bearing 1001−226−016 Pivot Bearing 1001−226−015 Pivot Sleeve 1001−226−017 Siderail Spring 1001−326−027 Right Spindle 1001−326−031 Lock Spindle Weldment, Rt. 1001−326−028 Left Spindle 1001−326−033 Lock Spindle Weldment, Lt. 1001−226−020 Siderail Spring Spacer 0025−172−000 Semi−Tubular Rivet...
  • Page 80 1211−127−000 Optional Dual Siderail Latch Assembly FOOT END Item Part No. Part Name Qty. Item Part No. Part Name Qty. 0003−359−000 Hex Hd. Cap Screw 1001−226−045 Latch Spacer 0007−070−000 Truss Hd. Mach. Screw 1001−226−161 Dual Latch Cable Ass’y 0016−118−000 Nylock Nut 1001−226−142 Latch Pin 1001−226−147 Dual Latch Pivot 0038−222−000 Extension Spring...
  • Page 81 1001 Pneumatic Fowler Assembly Litters with Fold−to−Head Siderails Assembly part number 1210−031−010 (reference only) HEAD END Item Part No. Part Name Qty. 0004−182−000 But. Hd. Cap Screw 0004−104−000 But. Hd. Cap Screw 0011−179−000 Nylon Washer 0014−021−000 Nylon Washer 0016−116−000 Nylock Hex Nut 0016−117−000 Nylock Hex Nut 0023−256−000...
  • Page 82 1001 Pneumatic Fowler Assembly Litters with Fold−to−Head Siderails Assembly part number 1210−031−120 (reference only) Item Part No. Part Name Qty. 0004−161−000 Hex Soc. But. Hd. Cap Screw 0007−020−000 Truss Hd. Mach. Screw 0025−124−000 Pop Rivet 0015−037−000 Jam Nut 0015−050−000 Hex Nut 0016−028−000 Nylock Nut 0021−125−000...
  • Page 83 1501 Pneumatic Fowler Assembly Litters with Fold−to−Head Siderails Assembly part number 1710−031−010 (reference only) HEAD END Item Part No. Part Name Qty. 0004−182−000 But. Hd. Cap Screw 0004−104−000 But. Hd. Cap Screw 0011−179−000 Nylon Washer 0014−021−000 Nylon Washer 0016−116−000 Nylock Hex Nut 0016−117−000 Nylock Hex Nut 0023−256−000...
  • Page 84 1501 Pneumatic Fowler Assembly Litters with Fold−to−Head Siderails Assembly part number 1710−031−120 (reference only) Item Part No. Part Name Qty. 0004−161−000 But. Hd. Cap Screw 0007−020−000 Truss Hd. Mach. Screw 0025−124−000 Pop Rivet 0015−037−000 Jam Nut 0015−050−000 Hex Nut 0016−028−000 Fiberlock Nut 0021−125−000 Set Screw...
  • Page 85 Pneumatic Fowler Outer Housing Assembly Assembly part number 1210−031−106 (Right) Item Part No. Part Name Qty. 0025−144−000 Semi−Tubular Rivet 1210−031−103 Pivot Tab 1210−031−104 Outer Housing, Right Assembly part number 1210−031−107 (Left) Item Part No. Part Name Qty. 0025−144−000 Semi−Tubular Rivet 1210−031−103 Pivot Tab 1210−031−105...
  • Page 86 1001 Pneumatic Fowler Assembly Litters with Fold−to−Foot Siderails Assembly part number 1211−031−010 (reference only) HEAD END Item Part No. Part Name Qty. 1010−031−078 Gas Cylinder (page Pneumatic Fowler Ass’y 0011−179−000 Washer 0016−116−000 Stover Locknut 0016−119−000 Stover Locknut 0003−360−000 Hex Hd. Cap Screw 0004−103−000 Torx But.
  • Page 87 1001 Pneumatic Fowler Assembly Litters with Fold−to−Foot Siderails Assembly part number 1211−131−020 (reference only) Item Part No. Part Name Qty. Item Part No. Part Name Qty. 1001−001−036 Hole Plug 0016−118−000 Hex Nut 1001−031−013 Fowler Tube 0004−455−000 But. Hd. Cap Screw 1010−231−012 Fowler Skin 0037−064−000 Grommet Bumper 1211−131−014 Pneu.
  • Page 88 1501 Pneumatic Fowler Assembly Litters with Fold−to−Foot Siderails Assembly part number 1711−031−010 (reference only) HEAD END Item Part No. Part Name Qty. 1010−031−078 Gas Cylinder (page Pneumatic Fowler Ass’y 0011−179−000 Washer 0016−116−000 Stover Locknut 0016−119−000 Stover Locknut 0003−360−000 Hex Hd. Cap Screw 0004−103−000 Torx But.
  • Page 89 1501 Pneumatic Fowler Assembly Litters with Fold−to−Foot Siderails Assembly part number 1711−131−020 (reference only) Item Part No. Part Name Qty. Item Part No. Part Name Qty. 1001−001−036 Hole Plug 0016−118−000 Hex Nut 1211−231−025 Trip Bar Pivot 0004−455−000 But. Hd. Cap Screw 1501−031−013 Fowler Tube 0037−064−000 Grommet Bumper 1510−231−012 Fowler Skin (Fiberresin)
  • Page 90 1001 Crank Fowler Assembly Assembly part number 1210−033−010 (reference only) Item Part No. Part Name Qty. Item Part No. Part Name Qty. 0004−097−000 Hex But. Hd. Cap Screw 0025−133−000 Pop Rivet 0004−104−000 But. Hd. Cap Screw 0946−001−064 Fowler Operation Label 0007−070−000 Truss Hd.
  • Page 91 1501 Crank Fowler Assembly Assembly part number 1710−033−010 (reference only) Item Part No. Part Name Qty. Item Part No. Part Name Qty. 0004−097−000 Hex But. Hd. Cap Screw 0025−133−000 Pop Rivet 0004−104−000 But. Hd. Cap Screw 0946−001−064 Fowler Operation Label 0007−070−000 Truss Hd.
  • Page 92 1001−033−025 Fowler Crankscrew Assembly 1501−033−025 Fowler Crankscrew Assembly Item Part No. Part Name Qty. 1001−033−026 Drive Bar Assembly 1501−033−026 Drive Bar Assembly 1550−001−016 Crank Assembly 0946−033−018 Crank Disc 0938−001−177 Knob 0016−102−000 Kep Nut 0378−124−029 Shoulder Bolt 0946−033−035 Fowler Screw 0026−014−000 Roll Pin 0081−174−000 Thrust Washer...
  • Page 93 Steel Stationary Foot Section Assembly Assembly part numbers (reference only): 1010−432−020 − 26” Wide 1510−432−020 − 29” Wide Item Part No. Part Name Qty. 1010−432−021 26” Steel Foot Section Skin 1510−432−021 29” Steel Foot Section Skin 7900−001−102 Velcro Pile 24 1/2” 0025−171−000 Rivet...
  • Page 94 Fiberresin Stationary Foot Section Assembly Assembly part number (reference only): 1231−019−001 − 26” Wide Item Part No. Part Name Qty. 0025−171−000 Rivet 0753−010−031 26” Fiberresin Foot Section Skin 7900−001−102 Velcro Pile 24 1/2”...
  • Page 95 Fiberresin Stationary Foot Section Assembly Assembly part number (reference only): 1731−019−001 − 29” Wide Item Part No. Part Name Qty. 0025−171−000 Rivet 0753−010−032 29” Fiberresin Foot Section Skin 7900−001−102 Velcro Pile 24 1/2”...
  • Page 96 1001 Knee Gatch Assembly Litters with Fold−to−Head Siderails Assembly part number 1010−634−010 (reference only) 1010−201−020 Litter Frame Item Part No. Part Name Qty. Item Part No. Part Name Qty. 0003−358−000 Hex Hd. Cap Screw 1001−034−131 Slider Support 0004−327−000 Soc. Hd. Cap Screw 1010−234−015 Mounting Bracket 0005−034−000...
  • Page 97 1501 Knee Gatch − Litters with Fold−to−Head Siderails Assembly part number 1510−634−010 (reference only) 1510−201−020 Litter Frame Item Part No. Part Name Qty. Item Part No. Part Name Qty. 0003−358−000 Hex Hd. Cap Screw (page Gatch Crankscrew Ass’y 1 0004−327−000 Soc.
  • Page 98 1001 Knee Gatch Assembly Litters with Fold−to−Foot Siderails Assembly part number 1211−334−010 (reference only) Item Part No. Part Name Qty. Item Part No. Part Name Qty. 0003−358−000 Hex Hd. Cap Screw 1001−034−131 Slider Support 0004−327−000 Soc. Hd. Cap Screw 1010−234−015 Mounting Bracket 0005−034−000 Rd.
  • Page 99 1501 Knee Gatch Assembly Litters with Fold−to−Foot Siderails Assembly part number 1711−334−010 (reference only) HEAD END Item Part No. Part Name Qty. Item Part No. Part Name Qty. 0003−358−000 Hex Hd. Cap Screw 1001−034−131 Slider Support 0004−327−000 Soc. Hd. Cap Screw 1010−234−015 Mounting Bracket 0005−034−000...
  • Page 100 1001−134−019 Knee Gatch Crankscrew Assembly Item Part No. Part Name Qty. 0378−124−029 Shoulder Bolt 0938−001−175 Bearing Assembly 0938−001−177 Knob 0946−033−018 Crank Disk 1001−134−047 Knee Gatch Screw 1510−034−055 Gatch Drive Tube Assembly 1510−034−084 Screw Cover Assembly 1550−001−014 Magnet 1550−001−016 Crank Assembly 0016−118−000 Nylock Nut 0026−014−000...

  • Page 101: Push Handle Assembly

    1001−151−000 Head End Push Handles Litters with Fold−to−Head Siderails HEAD END Item Part No. Part Name Qty. 0016−035−000 Hex Nut 0004−182−000 Soc. But. Hd. Cap Screw 0004−198−000 Soc. But. Hd. Cap Screw 0926−400−142 Bumper 1001−151−013 Spacer Post 1001−151−023 Bolt−On Push Handle Socket, Lt. 1001−151−024 Bolt−On Push Handle Socket, Rt.
  • Page 102 1001−152−000 Head End Push Handles Litters with Fold−to−Foot Siderails HEAD END Item Part No. Part Name Qty. 0003−355−000 Hex Hd. Cap Screw 0003−356−000 Hex Hd. Cap Screw 0003−357−000 Hex Hd. Cap Screw 0016−118−000 Hex Nut 0026−011−000 Spring Pin 1211−151−004 Receptacle, Left 1211−151−006 Receptacle, Right (page...
  • Page 103 1211−351−010 Push Handle Assembly Item Part No. Part Name Qty. 1010−354−024 Stop Link 1211−151−018 Sleeve Assembly 0026−118−000 Roll Pin...
  • Page 104 0390−025−000 Standard, Removable I.V. Pole Assembly Item Part No. Part Name Qty. 0024−023−000 Plastic Knob 0390−003−053 Double I.V. Ass’y 0393−003−043 Tube Assembly 0004−496−000 Soc. Hd. Cap Screw...

  • Page 105: Tethered I.v. Pole Assembly

    1001−117−000 & 1501−117−000 Optional Tethered I.V. Item Part No. Part Name Qty. 0004−107−000 Soc. Hd. Cap Screw 0011−062−000 Washer 0016−003−000 Fiberlock Nut 0025−179−000 Closed End Rivet 0034−022−000 Cord Clamp 0052−015−000 Spacer 1001−001−056 Round Hook Protector 1001−001−057 Hook Protector, Left 1001−001−058 Hook Protector, Right 1001−059−012 I.V.
  • Page 106 1211−117−010 Tethered I.V. Pole Assembly Item Part No. Part Name Qty. 0052−017−000 Spacer 1211−117−020 Cable Assembly 0926−400−062 Stop Sleeve 1010−059−016 I.V. Hook 1211−117−011 Extension Rod 1211−117−012 Base Tube Weldment 0004−495−000 Low Hd. Soc. Hd. Cap Screw 1211−117−016 Knob 0014−020−000 Nylon Washer 0004−232−000 Button Hd.
  • Page 107 1001 Optional 2−Stage I.V. Pole Mounting Assembly Litters with Fold−to−Foot Siderails Assembly part numbers 1001−110−000 (Head End, Left) 1001−112−000 (Foot End, Right) FOOT END HEAD END Item Part No. Part Name Qty. 0003−356−000 Hex Hd. Cap Screw 0004−452−000 But. Hd. Cap Screw 0004−169−000 But.
  • Page 108 1501 Optional 2−Stage I.V. Pole Mounting Assembly Litters with Fold−to−Foot Siderails Assembly part numbers 1501−110−000 (Head End, Left) 1501−112−000 (Foot End, Right) FOOT END HEAD END Item Part No. Part Name Qty. 0003−356−000 Hex Hd. Cap Screw 0004−452−000 But. Hd. Cap Screw 0004−169−000 But.
  • Page 109 1001 Optional 2−Stage I.V. Pole Mounting Assembly Litters with Fold−to−Head Siderails Assembly part numbers 1001−080−000 (Foot End, Left) 1001−083−000 (Head End, Right) FOOT END, LEFT HEAD END, RIGHT Item Part No. Part Name Qty. Item Part No. Part Name Qty. (page 112) I.V.
  • Page 110 1001 Optional 2−Stage I.V. Pole Mounting Assembly Litters with Fold−to−Head Siderails Assembly part numbers 1001−081−000 (Head End, Left) 1001−082−000 (Foot End, Right) FOOT END, RIGHT HEAD END, LEFT Item Part No. Part Name Qty. Item Part No. Part Name Qty. (page 112) I.V.
  • Page 111 1501 Optional 2−Stage I.V. Pole Mounting Assembly Litters with Fold−to−Head Siderails Assembly part numbers 1501−080−000 (Foot End, Left) 1501−083−000 (Head End, Right) FOOT END, LEFT HEAD END, RIGHT Item Part No. Part Name Qty. Item Part No. Part Name Qty. (page 112) I.V.
  • Page 112 1501 2−Stage I.V. Pole Mounting Assembly Litters with Fold−to−Head Siderails Assembly part numbers 1501−081−000 (Head End, Left) 1501−082−000 (Foot End, Right) FOOT END, RIGHT HEAD END, LEFT Item Part No. Part Name Qty. Item Part No. Part Name Qty. (page 112) I.V.
  • Page 113 1211−210−010 Optional 2−Stage I.V. Pole Assembly Item Part No. Part Name Qty. 0008−031−000 Soc. Hd. Cap Screw 0052−017−000 Washer 0926−400−162 Spacer 1211−210−029 2nd Stage Assembly 1001−359−013 Dampener 1001−159−028 Base Tube 1010−059−016 I.V. Hook (page 113) I.V. Pole Latch 1001−359−112 Pivot...
  • Page 114 1211−210−026 I.V. Pole Latch Assembly Item Part No. Part Name Qty. 0028−167−000 Retaining Ring 0031−004−000 Steel Ball 0038−392−000 Crest−to−Crest Spring 1211−091−034 Release Label 1211−110−018 I.V. Latch Seal 1211−110−020 Washer 1211−110−021 I.V. Latch Locking Pin 1211−110−022 I.V. Latch Guide 1211−110−024 I.V. Latch O.D. Housing 1211−110−035 Washer 1211−110−036...
  • Page 115 1001 Optional 3−Stage I.V. Pole Mounting Assembly Litters with Fold−to−Head Siderails Assembly part numbers 1001−061−000 (Head End, Left) 1001−062−000 (Foot End, Right) HEAD END, LEFT FOOT END, RIGHT Item Part No. Part Name Qty. Item Part No. Part Name Qty. (page 118) I.V.
  • Page 116 1501 Optional 3−Stage I.V. Pole Mounting Assembly Litters with Fold−to−Head Siderails Assembly part numbers 1501−061−000 (Head End, Left) 1501−062−000 (Foot End, Right) HEAD END, LEFT FOOT END, RIGHT Item Part No. Part Name Qty. (page 118) I.V. Pole Assembly 1001−059−012 I.V.
  • Page 117 1001 Optional 3−Stage I.V. Pole Mounting Assembly Litters with Fold−to−Foot Siderails Assembly part numbers 1001−111−000 (Head End, Left) 1001−113−000 (Foot End, Right) FOOT END, RIGHT HEAD END, LEFT Item Part No. Part Name Qty. 0003−356−000 Hex Hd. Cap Screw 0004−452−000 But.
  • Page 118 1501 Optional 3−Stage I.V. Pole Mounting Assembly Litters with Fold−to−Foot Siderails Assembly part numbers 1501−111−000 (Head End, Left) 1501−113−000 (Foot End, Right) FOOT END, RIGHT HEAD END, LEFT Item Part No. Part Name Qty. 0003−356−000 Hex Hd. Cap Screw 0004−452−000 But.
  • Page 119 1211−211−010 Optional 3−Stage I.V. Pole Assembly Item Part No. Part Name Qty. 0007−004−000 Truss Hd. Machine Screw 0026−076−000 Roll Pin 0052−017−000 Spacer 1211−210−031 2nd Stage Assembly 0926−400−162 Spacer (page 119) 3rd Stage Assembly 1001−161−023 Base Tube 1010−059−016 I.V. Hook 1010−061−014 Collar (page 113)
  • Page 120 3−Stage I.V. Pole 3rd Stage Assembly Assembly part number 1211−110−032 (reference only) NOTE Item F, part number 1010−061−018 is left hand thread. When removing it, turn clockwise to loosen it. Item Part No. Part Name Qty. 0031−021−000 Ball 0038−303−000 Compression Spring 1010−061−013 Ball Retainer 1010−061−016...
  • Page 121 1001−023−000 Fowler X−Ray Cassette Mounting Ass’y Litters with Fold−to−Head Siderails Item Part No. Part Name Qty. (page 121) X−Ray Cassette Ass’y 0016−121−000 Self−Locking Nut 0004−456−000 Button Hd. Cap Screw 1001−023−013 Tray Latch 1020−023−013 Tray Hinge, Right 1020−023−012 Tray Hinge, Left 0025−086−000 Pop Rivet...
  • Page 122 1001−023−010 Fowler X−Ray Cassette Assembly, Litters with Fold−to−Head Siderails Item Part No. Part Name Qty. 1001−023−012 Tray 1020−023−016 Post Housing 1001−023−014 Actuating Rod 0926−023−064 Post 1010−023−037 Rod Guide 1020−023−021 Knob 1010−023−028 Tray Angle 0926−023−070 Block Assembly 0926−023−069 Washer 0014−003−000 Washer 0038−122−000 Compression Spring 1020−023−026...

  • Page 123: Fowler X−Ray Cassette Assembly

    Fowler X−Ray Cassette Mounting Assembly, Litters with Fold−to−Foot Siderails Assembly part numbers 1211−243−010 (1001) & 1711−243−010 (1501) Item Part No. Part Name Qty. (page 123) X−Ray Cassette Assembly 0025−121−000 Rivet...
  • Page 124 Fowler X−Ray Cassette Assembly, Litters with Fold−to−Foot Siderails Assembly part numbers 1211−243−020 (1001) 1711−243−020 (1501) (reference only) Item Part No. Part Name Qty. 0926−023−069 Washer 0926−023−070 Block Assembly 0926−023−071 Bushing 1010−023−028 Tray Angle 1020−023−021 Knob Assembly 0001−030−000 Flat Hd. Mach. Screw 0014−003−000 Thrust Washer 1211−243−012...

  • Page 125: Foot Board

    0926−040−100 Foot Board/Chartholder Assembly Assembly part number 0926−040−010 (reference only) Item Part No. Part Name Qty. 0946−028−011 Chart Holder 0946−029−006 Foot Board 1020−030−000 Upright Oxygen Bottle Holder Ass’y Item Part No. Part Name Qty. 1020−030−011 Upright Bottle Holder 0027−012−000 Cotter Pin 1020−030−017 Specification Label...
  • Page 126 1010−050−100 Foot Extension/Defibrillator Tray Ass’y Assembly part number 1010−050−210 (reference only) Label Detail Label Detail Item Part No. Part Name Qty. Item Part No. Part Name Qty. 0008−049−000 Soc. Hd. Shoulder Bolt 1010−050−050 Knob 0014−020−000 Nylon Washer 1010−050−057 “Max. Weight” Label 0014−021−000 Nylon Washer 1010−050−205 Cushion Assembly...
  • Page 127 0926−039−000 Optional Defibrillator Tray Assembly Assembly part number 0926−039−010 (reference only) Umbrella Nut/Crosstube Detail Strap Securing Detail Item Part No. Part Name Qty. Item Part No. Part Name Qty. 0946−039−004 Tray 0946−039−003 Support Tube 0926−039−016 Crosstube 0926−001−082 Label 0025−055−000 Rivet 1010−050−021 Long Strap 0926−039−009...
  • Page 128 1001−055−000 Heel Stirrup and Support Assembly Assembly part number 1001−055−010 (reference only) FOOT END Item Part No. Part Name Qty. 0003−359−000* Hex Hd. Cap Screw 0011−159−000 Flat Washer 0016−118−000 Nylock Hex Nut (page 128) Stirrup Support Ass’y, Rt. (page 129) Stirrup Support Ass’y, Lt.
  • Page 129 1001−055−015 Right Stirrup Support Assembly Item Part No. Part Name Qty. 0650−002−032 Lock Screw Assembly 0966−051−019 Wedge Lock, Modified 1001−055−011 Mounting Bracket 1010−055−016 Right Support Tube Wldmt. 0004−494−000 Soc. Hd. Cap Screw 0011−410−000 Washer 1211−117−016 Knob 0026−007−000 Roll Pin 0038−171−000 Compression Spring...
  • Page 130 1001−055−016 Left Stirrup Support Assembly Item Part No. Part Name Qty. 0650−002−032 Lock Screw Assembly 0966−051−019 Wedge Lock, Modified 1001−055−011 Mounting Bracket 1010−055−026 Left Support Tube Ass’y 0004−494−000 Soc. Hd. Cap Screw 0011−410−000 Washer 1211−117−016 Knob 0026−007−000 Roll Pin 0038−171−000 Compression Spring...
  • Page 131 1010−055−029 Heel Stirrup Assembly Item Part No. Part Name Qty. 0390−020−013 Stirrup 0390−020−009 Stirrup Holder Assembly 1010−055−030 Extension Tube Assembly 0024−011−000 Knob 0026−043−000 Roll Pin 0022−008−000 Drive Screw...
  • Page 132 1001−070−000 C−Spine Cassette Holder Assembly Item Part No. Part Name Qty. 1010−070−025 I.V. Adaptor 1010−070−018 Specification Label 0011−447−000 Flat Washer 0004−054−000 But. Hd. Cap Screw (page 132) Support Pole Assembly (page 133) Storage Bracket Ass’y 0016−118−000 Nylock Nut 0003−356−000 Hex Hd. Cap Screw 1001−070−011 Attachment Bracket 0003−355−000...
  • Page 133 1010−070−010 C−Spine Support Pole Assembly View A−A Item Part No. Part Name Qty. 1010−070−033 Support Tube Cap 0026−006−000 Roll Pin 1010−070−034 Support Arm Weldment 1010−070−042 Cassette Holder Weldment 1010−070−050 Adjustment Tube Weldment 1010−070−030 Base Tube Weldment 1010−070−045 Knob 0025−055−000 Pop Rivet 1010−070−044 Pivot Pin 0026−005−000...
  • Page 134 1010−070−019 C−Spine Storage Bracket Assembly 6.5” (Ref.) 2” (Ref.) Item Part No. Part Name Qty. 1010−070−020 Storage Bracket Weldment 1010−070−045 Knob 1010−070−023 Storage Label...
  • Page 135 1040−010−090 Optional O@ Bottle Retainer Assembly Base Hood Item Part No. Part Name Qty. 1040−010−091 Bottle Retainer 1040−010−092 Scrulok Fastener...
  • Page 136 Mattresses and Siderail Pads Mattress, 2” Thick x 26” Wide, Standard ......part # 1059−226−140 Mattress, 3”...

  • Page 137: Mattresses And Siderail Pads

    Mattresses and Siderail Pads Mattress, 26” Wide ..........part # 1059−426−010 Mattress, 29”...

  • Page 138: Warranty

    If requested by Stryker, products or parts for which a warranty claim is made shall be returned prepaid to Stryker’s factory. Any improper use or any alteration or repair by others in such manner as in Stryker’s judgement affects the product materially and adversely shall...

  • Page 139: Return Authorization

    Stryker will perform all service during regular business hours (9−5) * Replacement parts and labor for products under PM contract will be discounted. ** Does not include any disposable items, I.V. poles (except for Stryker HD permanent poles), mattresses, or damage re- sulting from abuse.
  • Page 140 European Representative Stryker EMEA RA/QA Director Stryker France ZAC Satolas Green Pusignan Av. De Satolas Green 69881 MEYZIEU Cedex France 6300 S. Sprinkle Road, Kalamazoo, MI 49001−9799 (800) 327−0770 www.strykermedical.com DH 1/04 1001−109−002 REV A...

This manual is also suitable for:

Advantage 1501

Table of Contents
