Multitech MTASR3-200 Quick Start Manual page 31

dialog box, The IP addresses for all three WAN ports have
to be identical and the remote WAN port addresses have
to be within the same network and identical.
If you did not enable the MLPPP option, the WAN port
addresses have to be on a different network from the LAN
port address and have to be different from each other.
7. Click each of the WAN tabs and change the Port Address
group and Remote Address group to conform with the
settings for WAN 1.

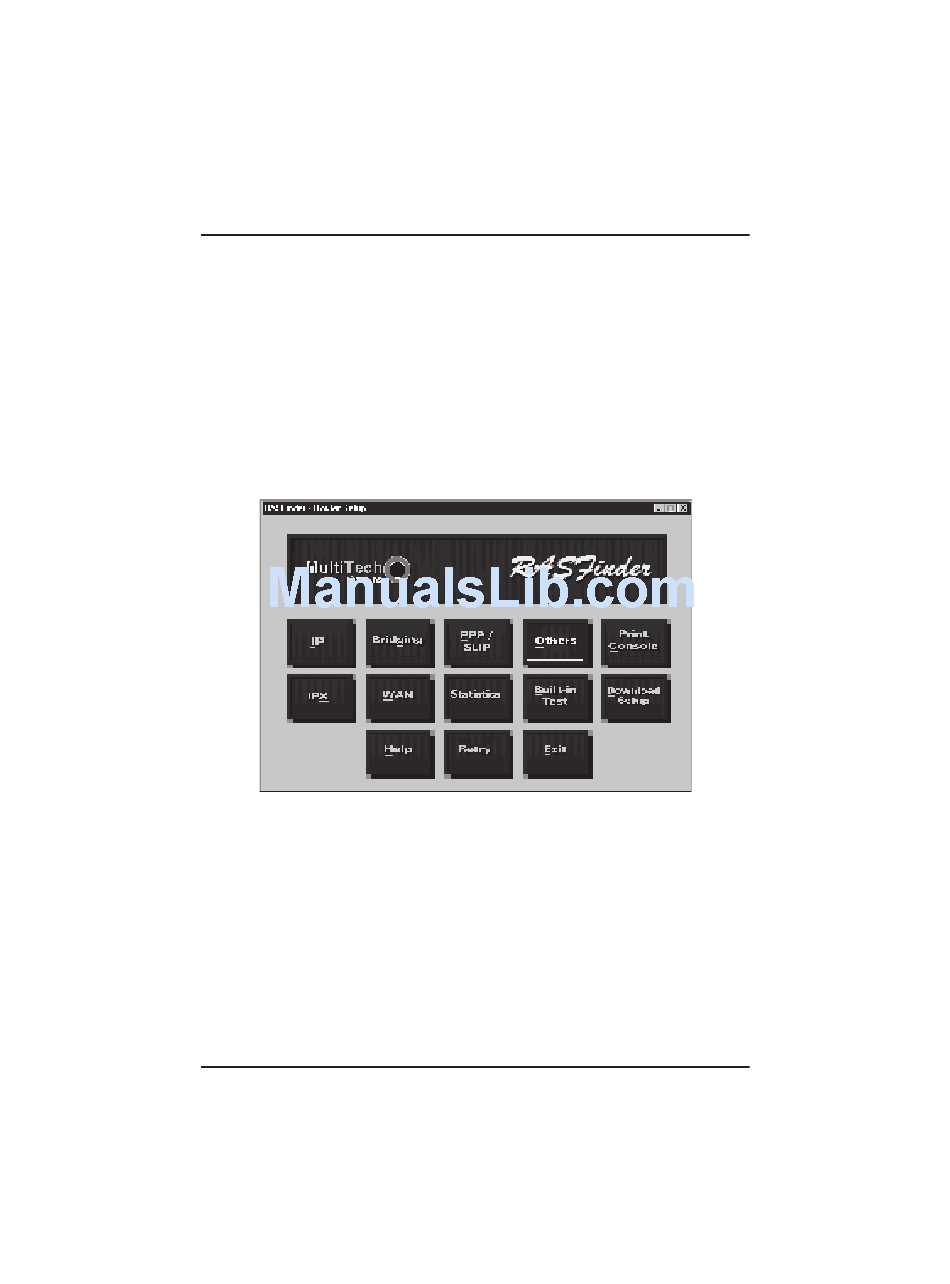

8. Click OK to return to the Main menu.
9. From the Main menu, click the Download Setup button to
write your configuration to the RASFinder. After your
configuration is written to the RASFinder, you are returned
to the Main menu. Your RASFinder is now configured for
LAN-to-LAN routing.
Routing Setup
31
