Multitech MTASR3-200 Quick Start Manual page 15

the next three sequential addresses (192.168.2.113,114, and
115) to WAN1, WAN2, and WAN3, respectively.]
15. The Checking Router dialog box is displayed with the message
Ready to Download Wizard Setup displayed. Click OK to
proceed

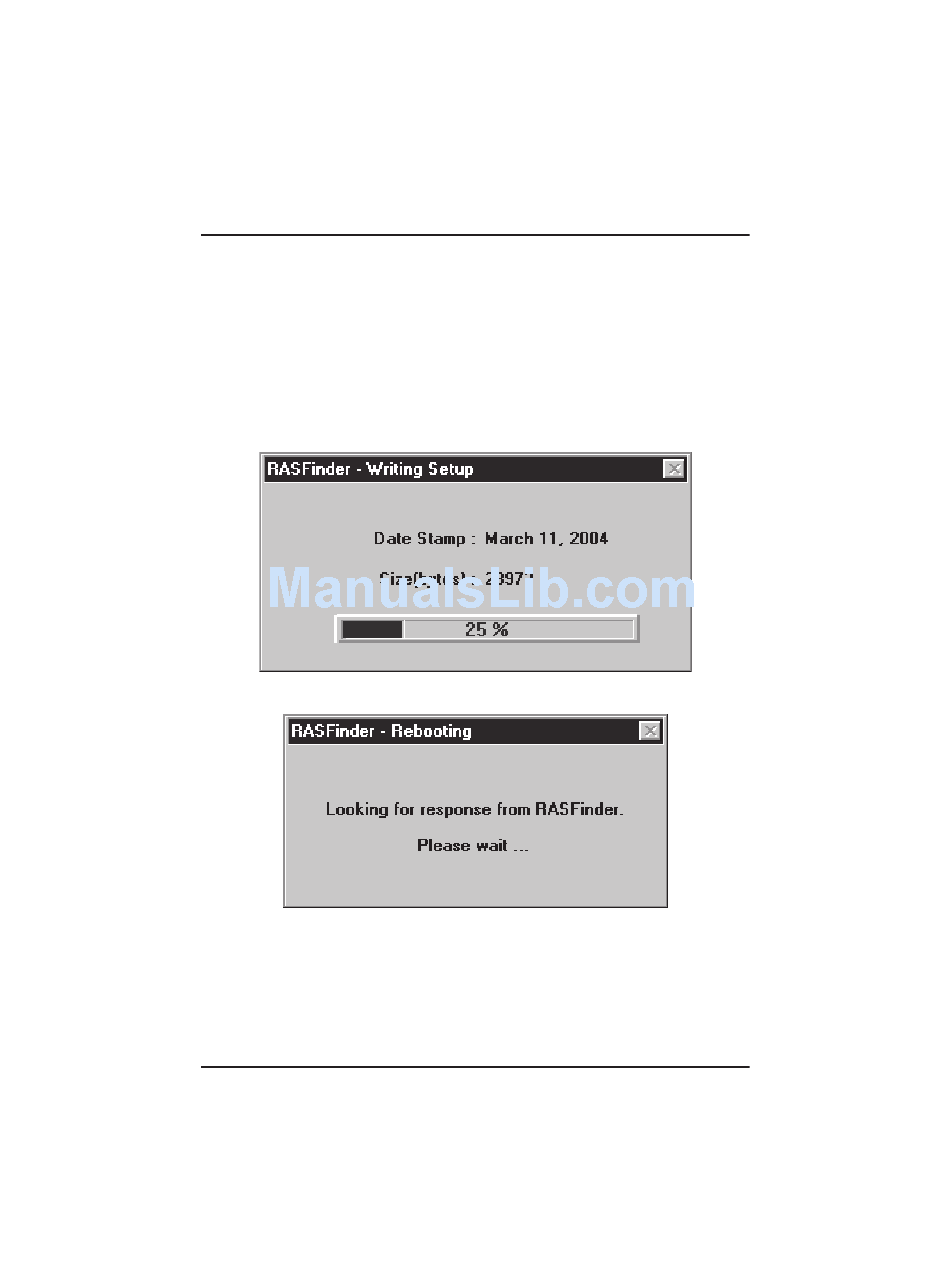

16. The Writing Setup dialog box (with the current date and the
file size in bytes) is displayed as the setup configuration is
written to the RASFinder.
17. Next, the Rebooting dialog box is displayed.
18. Check to ensure that the Fail LED on the RASFinder goes Off
after the download is complete and the RASFinder is rebooted
(the Rebooting dialog box goes away). This may take several
minutes as the RASFinder reboots.
Software
15
