you will see a window with shortcut icons for the various utility

programs in the software.)

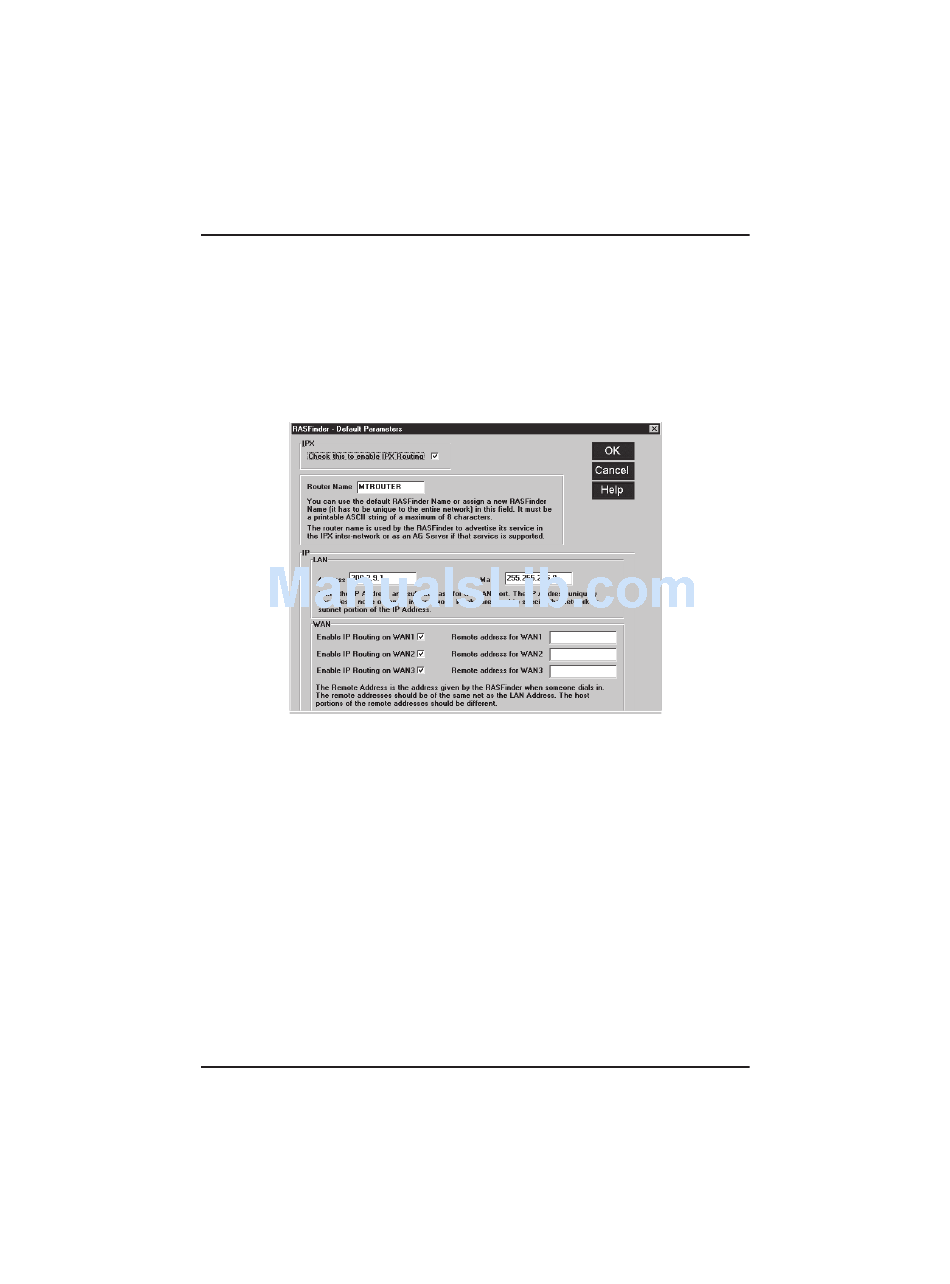

11. The Default Parameters dialog box appears. This dialog box

allows you to enable or disable IPX routing, assign the router

name (required for IPX routing), establish the IP address and

mask for the LAN port, set up the remote addresses for the

WAN ports, and disable any WAN ports not used.

12. If your network protocol is IPX, continue with the following step.

However, if your network protocol is IP, click the IPX Routing

Enable check box to disable IPX, then proceed to step 14.

IPX Routing Setup

13. Router Name: If this is the only RASFinder on your network,

you can use the default Router Name (MTROUTER); other-

wise, you must assign a new Router Name in this field. The

Router Name can be any printable ASCII string of up to 8

characters (can be mixed uppercase and lowercase). The

RASFinder will use this name to advertise its service in the

IPX internetwork or as an AG Server, if that service is support-

ed. Proceed to step 15.
