Multitech MTASR3-200 Quick Start Manual page 26

RASFinder MTASR3-200 Quick Start Guide

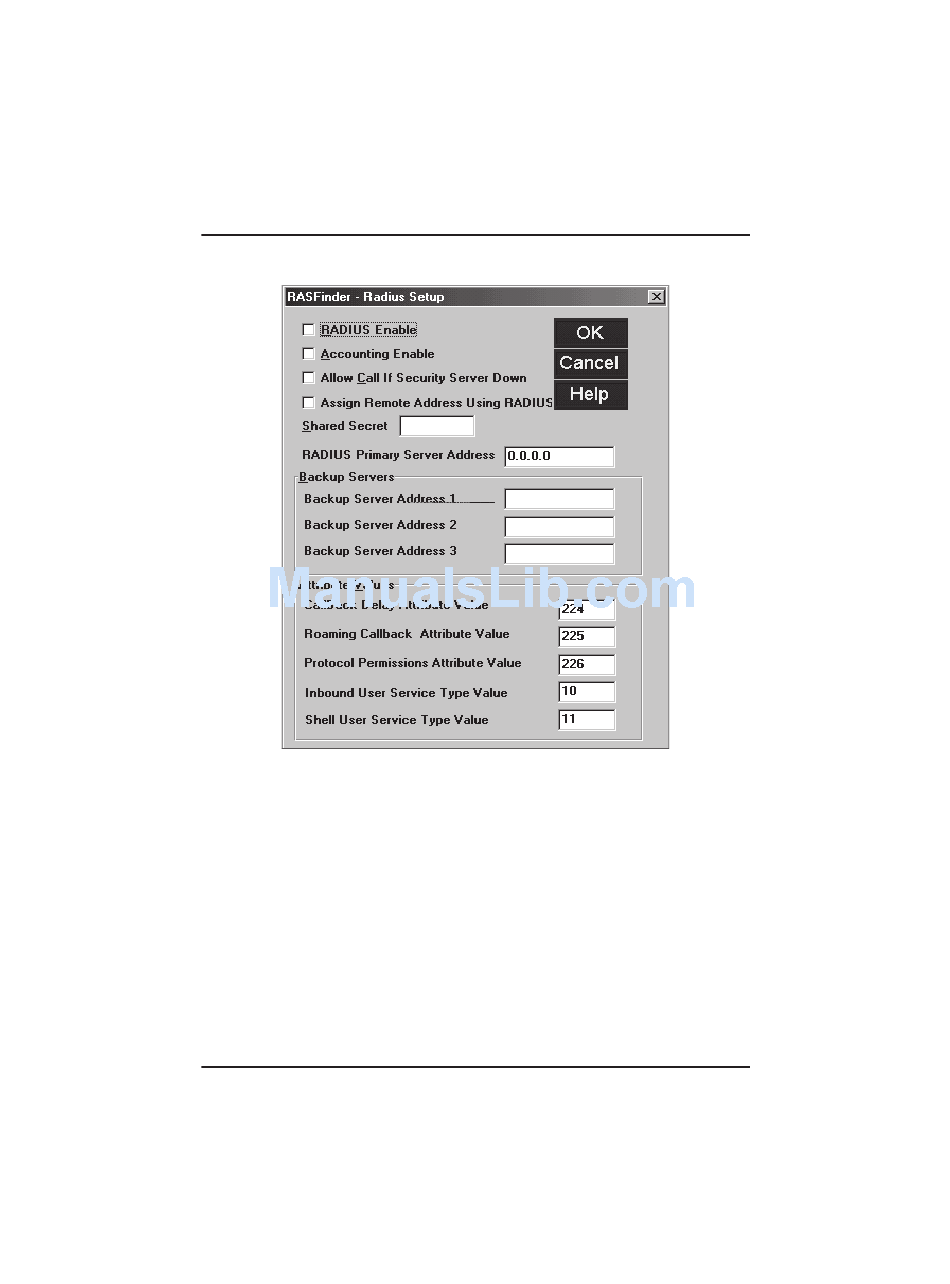

4. The Radius Setup dialog box is displayed.
5. Click RADIUS Enable to enable Radius security services
for all ports on this RASFinder.
6. Click Accounting Enable if you want Radius to track
accounting information such as login and logout times,
bytes sent and received, etc.
7. Leave Allow Call if Security Server Down unchecked
(disabled) to prevent users from logging in if the security
servers are down.
8. Click Assign Remote Address Using RADIUS to enable
the Radius server to automatically assign the IP Address
of the RASFinder WAN port that the user will dial into.
9. Obtain the Shared Secret from the Radius network
26
