SocketWireless
Wi-Fi
MT800SWM
&
®
MultiConnect
WF
MTS2WFA
AT Commands
Reference Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SocketWireless MT800SWM and is the answer not in the manual?

Questions and answers

Related Manuals for Multitech SocketWireless MT800SWM

Summary of Contents for Multitech SocketWireless MT800SWM

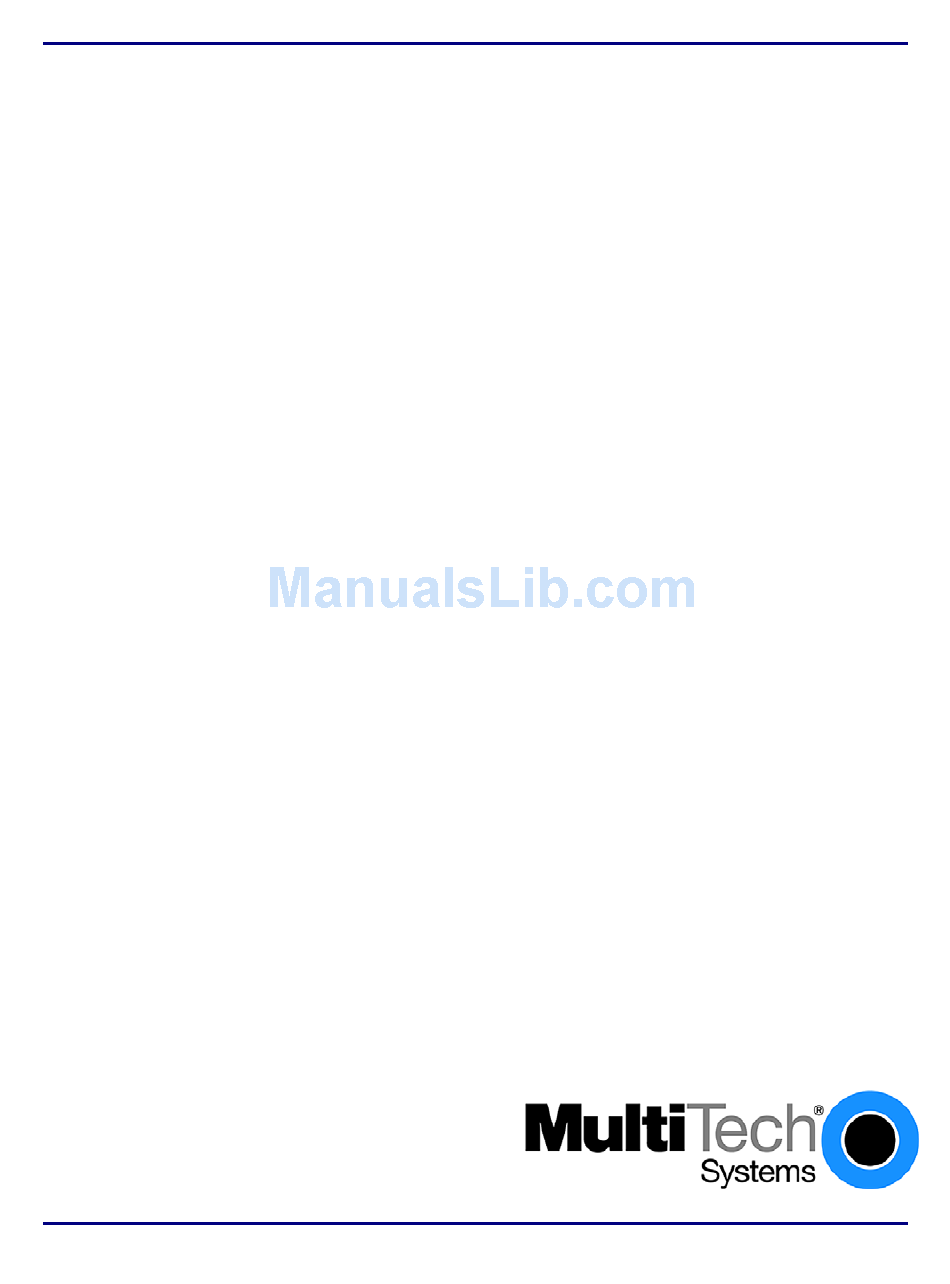

  • Page 1 ® ® SocketWireless Wi-Fi MT800SWM & ® MultiConnect MTS2WFA AT Commands Reference Guide...
  • Page 2 Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Multi-Tech Systems, Inc. to notify any person or organization of such revisions or changes. Revisions...

  • Page 3: Table Of Contents

    #WLANDOZE – Move Module into Power Save ...13 #WLANACTIVATE – Move Module out Power Save ...13 #WLANROAM – Enable/Disable Roaming...13 #WLANASSOCINFO – Display Association Information...14 Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Contents Table of Contents...
  • Page 4 #POP3SERV – Address of the POP3 Server...25 #POP3UN – User Name of the POP3 Account...26 #POP3RECVMAILLIST – List of Emails in Inbox...26 #POP3RECVMAILHEAD – Header Information of the Mail ...26 Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Table of Contents...
  • Page 5 E – Turn Echo ON/OFF ...35 S2 – Escape Sequence ...35 #WATCHDOG – Enable/Disable Watchdog...35 #WATCHDOGTIMER – Watchdog Timer ...35 #BOOTMSG – Enable/Disable Boot Message...35 Index...36 Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Table of Contents...

  • Page 6: Chapter 1 - Ip Commands

    IP address must be specified for use by the TCP/IP stack software. Syntax: Set Value: AT#IPDNSSERV1=<value> View Value: AT#IPDNSSERV1? Values: 32-bit number in dotted-decimal notation (i.e., xxx.xxx.xxx.xxx) Default Value: 202.56.215.6 Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 1 – IP Commands...

  • Page 7: Ipdnsserv2 - Dns Server 2

    Domain Name System (DNS) protocol. The DNS Server IP address must be specified for use by the TCP/IP stack software. This secondary DNS server is used in the case where the primary DNS server does not respond to a request. Syntax: Set Value: AT#IPDNSSERV2=<value>...

  • Page 8: Ipresolv - To Observe Whether There Is A Connection With Dns Or Not

    Host name in alpha-numeric string format. Default Value: None #IPDNSTABLE – Display DNS Table Description: This command displays the DNS table. Syntax: AT#IPDNSTABLE Values: None Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 1 – IP Commands...

  • Page 9: Chapter 2 - Ping Commands

    PINGNUM PINGREMOTE Default Value: None #PING? – PING Module Description: Displays PING module related information. Syntax: AT#PING? Values: PINGNUM PINGREMOTE Default Value: None Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 2 – PING Commands command.

  • Page 10: Chapter 3 - Wlan Commands

    Sets Wireless LAN Network mode. Syntax: Set Value: AT#WLANNETWORKMODE =<value> View Value: AT#WLANNETWORKMODE? Values: 0: Infrastructure mode 1: Ad – Hoc mode Default Value: 0: Infrastructure mode Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 3 – WLAN Commands...

  • Page 11: Wlancountrycode - Country Code

    Sets the WLAN transmission data rate. Syntax: Set Value: AT#WLANDATARATE=<value> View Value: AT#WLANDATARATE? Values: 1, 2, 5.5, 11 (in Mbps) Default Value: 11 (in Mbps) Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 3 – WLAN Commands...

  • Page 12: Wlanibsschannel - Channel For Ad-Hoc Mode

    Set Value: AT#WLANENABLE=<value> View Value: AT#WLANENABLE? Values: 0: Manual connection to the AP 1: Automatic connection to the AP Default Value: Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) SSID IBSSCHANNEL DATARATE WLANENABLE MACADDR Chapter 3 – WLAN Commands...

  • Page 13: Wlangetrssi - Received Signal Strength

    This command enables/disables automatic roaming of the module when the wireless connection is lost by the Access Point. Syntax: Set Value: AT#WLANROAM Values: Disable Auto Roam Enable Auto Roam Default: Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 3 – WLAN Commands...

  • Page 14: Wlanassocinfo - Display Association Information

    #WLANASSOCINFO – Display Association Information Description: This command displays the channel and BSSID if the current association. Syntax: Set Value: AT#WLANASSOCINFO Values: Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 3 – WLAN Commands...

  • Page 15: Chapter 4 - Smtp Commands

    Set Value: AT#SMTPDOMAIN=<value> View Value: AT#SMTPDOMAIN? Values: Alphanumeric ASCII text string up to 120 characters. It will take a blank space also. Default Value: None Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 4 – SMTP Commands...

  • Page 16: Smtpreciadd - Address Of The Recipient

    Syntax: Set Value: AT#SMTPPORT=<value> View Value: AT#SMTPPORT? Values: A number between 0 and 65535. A value of zero is not allowed. Default Value: 25 Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 4 – SMTP Commands...

  • Page 17: Smtppw - Smtp Account Password

    Syntax: Set Value: AT#SMTPSENDMAIL Values: Sending address Receiving address CC address BCC address Local Host name Subject Username Password Server address Default Value: None Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 4 – SMTP Commands...

  • Page 18: Smtpsendmaili - Send Mail Without Interactive Mode

    ‘N’ to send mail. Then the email with its attachment is sent to the to-addresses and cc-addresses configured. Syntax: Set Value: AT#SMTPPUTMAIL -B Values: None Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Interactive Mode Chapter 4 – SMTP Commands...

  • Page 19: Smtpverbose - Verbose Mode

    View Values: AT#SMTP? Values: DOMAIN SENDERADDR SENDERNAME CCADDRESS1 CCADDRESS2 CCADDRESS3 RECADDRES1 RECADDRESS2 RECADDRESS3 SUBJ1TXT SUBJ2TXT SUBJ3TXT MESSAGEBODY1TEXT MESSAGEBODY2TEXT MESSAGEBODY3TEXT SMTPPORT SMTPPW SMTPSERV SMTPUN Default Value: None Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 4 – SMTP Commands...

  • Page 20: Chapter 5 - Tcp Commands

    Syntax: Set Value: AT#TCPTXDELAY=<value> View Value: AT#TCPTXDELAY? Values: Integer multiple of 20 between 0 and 32760 inclusive. Default Value: 0 Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 5 – TCP Commands...

  • Page 21: Tcplisten - Open A Listening Tcp Connection

    This command directs the TCP/IP stack to display all the AT# parameters related to the TCP socket configuration.figuration Syntax: View Values: AT#TCP? Values: DLEMODE TCPTXDELAY TCPPORT TCPAUTOCONNECT TCPSERV Default Value: None Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 5 – TCP Commands...

  • Page 22: Tcpautoconnect - Auto Connect To Tcp Server

    UDP local port UDPPORT (depending on the UDPSERV parameter content). Syntax: Set Value: AT#UDPSTART Values: UDPPORT UDPTXDELAY Default Value: None Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 5 – TCP Commands...

  • Page 23: Udpstop - Close The Udp Listening Mode

    2: No termination from the local host Default Value: 0 #TCPLISTENLIST – List the Listening TCP Ports Description: This command lists the number of TCP listening ports. Syntax: AT#TCPLISTENLIST Values: Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 5 – TCP Commands...

  • Page 24: Tcpautolisten - Enable/Disable Auto Listen

    Description: This command is used to enable/disable auto listen on boot up. Syntax: Set Value: AT#TCPAUTOLISTEN=<value> View: AT#TCPAUTOLISTEN? Values: 0: Disable 1: Enable Default: Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 5 – TCP Commands...

  • Page 25: Chapter 6 - Pop3 Commands

    To retrieve email messages, the TCP/IP stack software must know the address of the POP3 server that is to be used. The POP3 server must be the one where the specified email account is hosted (which is not necessarily maintained by the local ISP).

  • Page 26: Pop3Un - User Name Of The Pop3 Account

    Delete mail from server. If index is given with command, then it deletes the email having that index. Syntax: Set Value: AT#POP3DELMAIL <index> Values: None Default Value: None Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 6 – POP3 Commands...

  • Page 27: Pop3? - Pop3 Module

    Description: This command enables or disables server responses. Syntax: Set Value: AT#POP3VERBOSE=<Value> View Value: AT#POP3VERBOSE? Values: 0: Disable 1: Enable Default: 1: Enable Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Message Chapter 6 – POP3 Commands...

  • Page 28: Chapter 7 - Ftp Commands

    32-bit number in dotted-decimal notation (i.e., xxx.xxx.xxx.xxx) or alphanumeric ASCII text string up to 120 characters if DNS is available. It will take a blank space also. Default Value: None Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 7 – FTP Commands...

  • Page 29: Ftpun - User Name Of The Ftp Server

    Value: None #FTPPUTFILENAME – Name of the Uploadable File to the Description: In order for the TCP/IP stack software to upload a file to the FTP server, the TCP/IP stack software must know the name of the relevant file. Syntax: Set Value: AT#FTPPUTFILENAME=<value>...

  • Page 30: Ftpfilesize - Size Of The File To Upload To The Ftp Server

    Once the operation is completed, the TCP/IP stack closes the FTP connection. Once an IP link is established, the attached host can send a file to a FTP server at any time (except when the TCP/IP stack software is already in a process using TCP resources).

  • Page 31: Ftpcstart - Ftp Interactive Mode

    This command directs the TCP/IP stack to display all AT# parameters for the FTP client configuration. Syntax: View Value: AT#FTP? Values: FTPSERV FTPPORT FTPUN FTPPW FTPGETFILENAME FTPFILESIZE FTPPUTFILENAME FTPDIR FTPTYPE FTPMODE Default Value: None Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 7 – FTP Commands...

  • Page 32: Chapter 8 - Uart Commands

    Sets the flow control type. Syntax: Set Value: AT#UARTFLOWCONTROL=<value> View Value: AT#UARTFLOWCONTROL? Values: 0 = None 1 = Hardware (RTS/CTS) Default Value: 0 = None Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 8 – UART Commands...

  • Page 33: Uart? - Uart Configurations

    #UART? – UART Configurations Description: This command displays the UART Configurations. Syntax: AT#UART? Values: BAUDRATE DATABITS PARITY STOPBITS FLOWCONTROL Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 8 – UART Commands...

  • Page 34: Chapter 9 - Miscellaneous Commands

    No parameter values. Default Value: None A/ – Previous Command Description: This command executes the previous command. Syntax: Values: No parameter values. Default Value: None Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Commands Chapter 9 – Miscellaneous Commands...

  • Page 35: Reset - Restart The Module

    Value: 1000ms #BOOTMSG – Enable/Disable Boot Message Description: Enables/disables the boot message. Syntax: Set Value: AT#BOOTMSG View Value: AT#BOOTMSG? Values: Disable Enable Default: Enable Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 9 – Miscellaneous Commands...

  • Page 36: Index

    #POP3UNIQUEIDLIST – Receive Unique Email ID of the Message ...27 #POP3VERBOSE – Verbose Mode ...27 #SMTP? – SMTP Module ...19 Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) Chapter 9 – Miscellaneous Commands Index #SMTPBODYi – Mail Body ...16 #SMTPCCRECi –...
  • Page 37 Enable/Disable Boot Message – #BOOTMSG...35 Enable/Disable Roaming – #WLANROAM...13 Enable/Disable Watchdog – #WATCHDOG...35 Escape Sequence – S2...35 Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) FTP Interactive Mode – #FTPCSTART...31 FTP Mode – #FTPMODE...28 FTP Module – #FTP?...31 FTP Server Address –...
  • Page 38 SMTP Account Password – #SMTPPW...17 SMTP Module – #SMTP? ...19 SMTP Server Address – #SMTPSERV...17 Multi-Tech Systems, Inc. AT Commands for the MT800SWM & MTS2WFA (S000425D) SMTP User Name – #SMTPUN ...17 Software Version – #VVERSION ...34 SSID of WLAN – #WLANSSID...11 Static IP Address –...
