ISDN ProxyServer
Model MTPSR1-202ST
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProxyServer MTPSR1-202ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Multitech ProxyServer MTPSR1-202ST

Summary of Contents for Multitech ProxyServer MTPSR1-202ST

  • Page 1 ISDN ProxyServer Model MTPSR1-202ST User Guide...
  • Page 2 User Guide S0000005 Revision A ProxyServer 200-Series (Model MTPSR1-202ST) This publication may not be reproduced, in whole or in part, without prior expressed written permission from Multi-Tech Systems, Inc. All rights reserved. Copyright © 1999, by Multi-Tech Systems, Inc. Multi-Tech Systems, Inc. makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose.

  • Page 3: Table Of Contents

    Contents Chapter 1 - Introduction and Description Introduction ..............................6 Preview of this Guide ..........................6 Front Panel ..............................8 Back Panel ..............................9 ISDN Connector ........................... 9 Phone Connector ..........................9 Ethernet 10Base-T Connector ......................9 Command Port Connector ........................9 Power Connector ..........................
  • Page 4 Chapter 5 - Client Setup Introduction .............................. 50 Before you Begin ............................50 Configuring in Windows 98/95 ........................51 Installing TCP/IP (Win98/95) ........................58 Configuring in Windows NT ........................59 Installing TCP/IP (WinNT) ........................65 Chapter 6 - RAS Dial-Out Redirector Introduction ..............................

  • Page 5: Chapter 1 - Introduction And Description

    Chapter 1 - Introduction and Description...

  • Page 6: Introduction

    TCP/IP proxy server that resides on the outer edge of your firewall and provides Basic Rate ISDN Service using its internal 2B+D terminal adapter. The MTPSR1-202ST supports dial in Remote Access Server (RAS), RAS Dial-Out Redirector, and can act as an asynchronous Gateway.
  • Page 7 Chapter 6 - RAS Dial-Out Redirector This chapter describes how Multi-Tech’s Remote Access Server for Microsoft network users enables users to dial out and fax out through the MTPSR1-202ST. It provides information on installing and configuring the WINMCSI modem-sharing software.

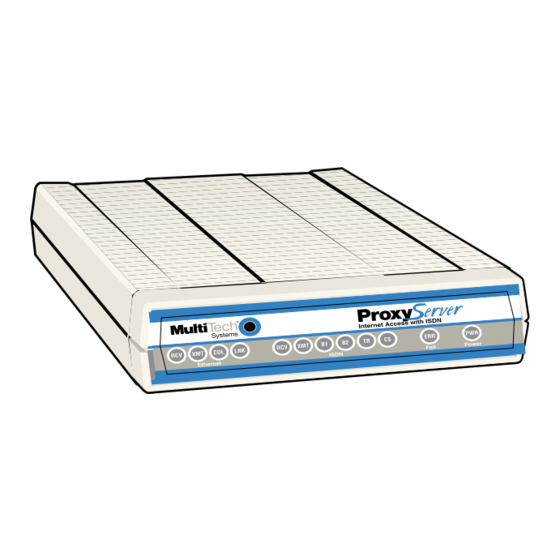

  • Page 8: Front Panel

    The Clear to Send (CS) indicator lights during any communication with the Central Office over the ISDN Line. General Fail Fail indicator lights when a self test fails to complete as expected and during boot-up. Power The power indicator lights when the ON/OFF Switch is in the ON position. MTPSR1-202ST...

  • Page 9: Back Panel

    The POWER connector (a 6-pin circular DIN connector) is used to connect the external power supply to the ProxyServer. A separate power cord is used to connect the power supply to a live AC grounded outlet. On/Off Switch The power switch applies DC power to the ProxyServer. MTPSR1-202ST...

  • Page 10: Specifications

    5.63 cm high x 22.34 cm wide x 33.51 cm deep • Weight - 2 pounds (.92 kg) Requirement • PC with Windows 3.1x or Windows 98/95 and Windows NT, and one serial COM port to connect to the Command Port of the ProxyServer MTPSR1-202ST...

  • Page 11: Chapter 2 - Installation

    Chapter 2 - Installation...

  • Page 12: Introduction

    Multi-Tech’s Technical Support for advice (refer to Chapter 9). If no damage is observed, place the ProxyServer in its final location and perform the cabling procedure. Save the shipping box in case reshipment is necessary. M AD U.S .A MA DE IN E IN U .S .A Figure 2-1. Unpacking MTPSR1-202ST...

  • Page 13: Cabling

    5. Turn on power to the ProxyServer by setting the ON/OFF switch on the back panel to the ON position. Wait for the Fail LED on the ProxyServer to go OFF before proceeding. This may take up to two minutes. At this time the ProxyServer is completely cabled. Proceed to Chapter 3 to load your software. MTPSR1-202ST...

  • Page 14: Adding Ram

    7. Align the base with the mating guides on the inside of the cabinet, then slide the base all the way into the cabinet until it stops. 8. Turn the ProxyServer upside down and replace the cabinet mounting screw that was removed in step 2. 9. Turn the ProxyServer right side up and connect the cables. MTPSR1-202ST...

  • Page 15: Chapter 3 - Software Loading And Configuration

    Chapter 3 - Software Loading and Configuration...

  • Page 16: Introduction

    The voice Directory Number (DN) is a telephone number that is assigned to the ProxyServer at subscription time by the ISDN service provider. The DN is a string of up to 24 characters; valid characters are 0-9, the * character, and the # character. MTPSR1-202ST...

  • Page 17: Call Control Parameters

    “language” that is spoken over each 64 Kbps channel between two ISDN devices. The devices on both ends of the ISDN link must use identical data protocols. MLPPP Protocol (Not supported on the MTPSR1-202ST) The MLPPP (Multi-Link PPP) protocol provides rates up to 64 Kbps per channel. This protocol uses both B channels at once, providing an aggregate data transmission speed of 128 Kbps.

  • Page 18: Loading Your Software

    If the Multi-Tech Installation CD Screen does not appear automatically, click My Computer, then right-click the CD-ROM drive icon and click Autorun. 3. When the Multi-Tech Installation CD Screen appears, click the Install Software icon. 4. The ProxyServer Setup Welcome screen is displayed. Press Enter or click Next> to continue. MTPSR1-202ST...
  • Page 19 If you are configuring the ProxyServer over your network, click OK to continue. If you need to configure your ProxyServer through the Command port, follow the instructions in the dialog box for selecting the COM Port, then click OK to continue. MTPSR1-202ST...
  • Page 20 IP address of any other device currently on your network. If an address conflict exists, change the contents of this field to assign a unique address to your ProxyServer. Click OK when you are ready to continue. MTPSR1-202ST...

  • Page 21: Ip Wizard Setup

    Follow the on-screen instructions to configure the WAN port. If you want the WAN port configured for Remote Access, click the Remote Access to be enabled? check box and then enter the remote IP address in the Remote Address field. Click OK when you are satisifed with the IP Wizard Setup. MTPSR1-202ST...
  • Page 22 If the US Parameters group is active, enter the Data SPID supplied by your local phone company which you recorded in Before You Start Loading Your Software. 21. Click the OK button to continue loading your software. MTPSR1-202ST...
  • Page 23 25. You are returned to the Multi-Tech Installation CD screen where you now have the option to install (on your PC’s hard drive) Acrobat Reader (by clicking the Acrobat icon) and/or the User Guide (by clicking the Install Manuals icon, selecting MTPSR1-202ST, and clicking OK). The files will install at C:\Program Files\Multi-Tech Systems, Inc.\PSR1-202\Documentation unless you browse and select an alternate directory for installation.

  • Page 24: Setting Up Your Remote User Database

    The User Name can have as many as 39 characters. All printable characters are permitted with the restriction that a blank cannot appear in the user name. The user name is treated as a case insensitive string in dial-in and dial-out applications. MTPSR1-202ST...
  • Page 25 Click the Add button to continue adding users to your database. 6. When you have added all your users to the data base, from the Users List dialog box, click the Download button to load the database into the ProxyServer. MTPSR1-202ST...
  • Page 26 ProxyServer User Guide MTPSR1-202ST...

  • Page 27: Chapter 4 - Proxyserver Software

    Chapter 4 - ProxyServer Software...

  • Page 28: Introduction

    Windows by clicking Start | Programs | ProxyServer 2.10 | (utility), or by double-clicking the utility icon in the program group in My Computer. The program group is shown here: MTPSR1-202ST...

  • Page 29: Proxy Setup

    Note: Pressing the Built-In Test button displays the Diagnostics dialog box which allows you to perform certain hardware tests on the LAN and WAN links. The Print Console option brings up the console terminal that displays any print message received from the ProxyServer. MTPSR1-202ST...

  • Page 30: Changing Ip Parameters

    WAN port. To enable DHCP, you must check the Client box and enter the IP address of the external DHCP Server (e.g., Microsoft’s DHCP feature) in the Server Address field. The Server Address is assigned by your systems administrator. MTPSR1-202ST...
  • Page 31 PC to access the remote Internet through the MTPSR1-202ST must have IP Address 200.1.1.0 and Gateway Address 192.168.2.1 (entered as the Static Route configuration). This determines the return path the data packet will take back to the client PC.
  • Page 32 (Gateway Address 192.168.2.1) on the next hop toward the target host and the port (i.e., LAN) with which it is associated. Metric is the hop count (1) to the target host. Once you have completed entering all the appropriate information, click OK. The static route is entered in the Static Routes table. MTPSR1-202ST...

  • Page 33: Changing Wan Port Parameters

    Dial Out/In option enabled. If enabled, you must enable Remote Access and enter the WAN port IP address in the IP Setup dialog box. This ensures that the selected WAN port and the Remote Address assigned to it are in the same LAN segment. The remote IP address is assigned to the remote user. MTPSR1-202ST...
  • Page 34 Voice TEI box. However, if the central office switch assigns a TEI each time your ProxyServer connects to the network, then leave it set to “Auto TEI.” Again, if you have multiple ProxyServers attached to a network terminator bus, you may want to set the Voice TEI to “Disabled.” MTPSR1-202ST...
  • Page 35 Voice Sub Address - The Voice Sub Address is a telephone number the ISDN service provider assigns, if required, to the ProxyServer at subscription time; this can be a string of up to 24 characters. Valid characters are 0-9, the * character, and the # character. MTPSR1-202ST...
  • Page 36 Dialing Method - The default is “Enbloc,” which is used for most ISDN dialing; however, if your ProxyServer is on a private network you can switch to the “Overlap” dialing method for establishing a data call on the ISDN line. MTPSR1-202ST...

  • Page 37: Internet Setup

    If the WAN port is not being used for Internet access, then the User Name and Password fields will be blank. You can change your User Name and Password in these fields for the WAN port. Clicking the Advanced tab brings up the parameters that affect the WAN link. MTPSR1-202ST...
  • Page 38 5 to 65535 with a default of 5 seconds); and, Backoff Interval defining the interval that the LCP will insert once the unanswered Maximum Number of Configuration requests has been reached (valid range is 5 to 65535 with a default of 5 seconds). MTPSR1-202ST...

  • Page 39: Enabling The Dhcp Server

    (hours) would be appropriate; however, if students at a university have their computers turned off for a long period of time (and you want them to keep their IP addresses), then a longer lease (weeks) would be appropriate. MTPSR1-202ST...

  • Page 40: Adding Proxyserver Applications

    Once the necessary information has been determined, you can add the application(s) to the supported list. Without this information, the Proxy will not allow packets through to the Internet from the unknown software. MTPSR1-202ST...
  • Page 41 FTP server what the new numbers are. By default, the FTP server’s Control Port Number is 21 and the Data Port Number is 20. MTPSR1-202ST...

  • Page 42: Enabling The Virtual Server

    ProxyServer’s WAN ports and then map your servers to that WAN port address the same way you would map a static IP address from your ISP. The predefined Global Dynamic WAN port addressing scheme is 0.0.0.1 for the WAN port. MTPSR1-202ST...
  • Page 43 Chapter 4 - ProxyServer Software Internet WAN Port Static IP Address 204.111.2.99 MTPSR1-202ST COMMAND ISDN PHONE 10BASE T POWER Secure IP Address 192.168.11.10 Voice / Fax over IP Networks MultiVOIP 192.168.11.50 Q931 RTCP (5005,7) RTP (5004,6) FTP Server (UDP Only) 192.168.11.20...
  • Page 44 Address field of the Mapping Details [Local] group with its protocol and port information. Then the mail server, and if a MultiVOIP is used in the local network - its mapping information, can be added to the local mapping group. The Virtual Server Setup dialog displays all the local mapping information. MTPSR1-202ST...

  • Page 45: Enabling Remote Servers

    By scrolling down the browser scroll bar, you are presented with a link to log in to the ProxyServer configuration menu (“Click Here to Login”), as well as links to Multi-Tech’s WWW site, FTP site, and Tech Support site. MTPSR1-202ST...
  • Page 46 Note: The first user to access the ProxyServer will have read/write rights over the unit. All subsequent users will have read only rights, and therefore, some of the options within the Web interface will be inactive (i.e., will not be linked). MTPSR1-202ST...

  • Page 47: Statistics

    Clicking on the Log button on the Port Statistics screen displays a Log View screen that lists all the calls made on the ISDN line. While waiting to connect, the modem checks for a carrier every 16 seconds and attempts to dial out 5 seconds later whether a carrier signal is present or not. MTPSR1-202ST...

  • Page 48: Running Diagnostics

    Windows NT) or from the ProxyServer 2.10 program group (Windows 3.1x). The ProxyServer Print Console screen is displayed. Before you begin entering AT commands, you must first disable the Link Control (Dial-on-demand) option on the WAN Port Setup dialog box. For information regarding AT commands, refer to Appendix D. MTPSR1-202ST...

  • Page 49: Chapter 5 - Client Setup

    Chapter 5 - Client Setup...

  • Page 50: Introduction

    A checklist has been provided towards the end of each procedure (Step 16). This checklist is included in the setup so that you can record all the pertinent information required for the connection between your PC and the ProxyServer. Keep this as a reference for future upgrades. MTPSR1-202ST...

  • Page 51: Configuring In Windows 98/95

    The Network dialog box Configuration tab is displayed, which shows all the components (i.e., clients, adapters, protocols, and any services) installed on your PC. 2. If TCP/IP is listed, proceed to step 3; otherwise, refer to Installing TCP/IP (Win98/95), at the end of this section. MTPSR1-202ST...
  • Page 52 (checked). When you are finished, click OK to return to the Network dialog box. Note: There may be other protocols listed and enabled under your Ethernet adapter. This does not affect the TCP/IP protocol. Rather, it simply means your computer will accept messages using those protocols as well as TCP/IP. MTPSR1-202ST...
  • Page 53 7. If DHCP Services are active on the ProxyServer (default), verify that the Obtain an IP address automatically option is selected. You are done; go to step 17 to reboot your PC and attempt to open an Internet session. MTPSR1-202ST...
  • Page 54 “dots.” If a group has fewer than 3 digits, type the necessary digits and press the space bar to move to the next group. When you are finished, verify that the IP address is identical to the IP address you were given for your PC. MTPSR1-202ST...
  • Page 55 Chapter 5 - Client Setup 10. Click the Gateway tab. 11. In the New gateway field, enter the IP address of the ProxyServer’s Ethernet port and click Add. The new gateway address is displayed in the list of Installed gateways. MTPSR1-202ST...
  • Page 56 14. In the Domain field, enter your company’s domain name (usually the company name followed by one of the following extensions: .com, .edu, .gov, .org, .mil, or .net. For example, multitech.com). 15. In the DNS Server Search Order group, place the cursor in the first group of the address field and type the IP address of your LAN’s DNS server (provided by your network administrator).
  • Page 57 IP applications (i.e., browser, Telnet, or FTP). Set up each application as “No Proxy” or equivalent; or, connect to the Internet over the LAN. 19. To further validate your connection to the ProxyServer, “Ping” the IP address of the ProxyServer. MTPSR1-202ST...

  • Page 58: Installing Tcp/Ip (Win98/95)

    6. Reboot your PC for changes to take effect. 7. Click Start | Settings | Control Panel and double-click the Network icon to return to the Network dialog. Return to step 3 of the Configuring in Windows 98/95 and continue with the client setup procedure. MTPSR1-202ST...

  • Page 59: Configuring In Windows Nt

    A list of protocols currently present on your PC is displayed. Check the installed protocols. If you find TCP/IP Protocol listed, proceed to step 4. If TCP/IP is not listed, you must install it prior to proceeding. Refer to Installing TCP/IP (WinNT) at the end of this section. Click the Bindings tab. MTPSR1-202ST...
  • Page 60 Note: There may be other protocols in the list under your Ethernet adapter. This does not affect the TCP/IP protocol. Rather, it simply means your computer will accept messages using those protocols as well as TCP/IP. 6. Click the Protocols tab. MTPSR1-202ST...
  • Page 61 9. If DHCP Services are active on the ProxyServer (the default), verify that the Obtain an IP address from a DHCP server option is enabled (checked). At this point, you are done. Go to step 20 and attempt to open an Internet session. MTPSR1-202ST...
  • Page 62 12. In the Subnet Mask field, type the subnetwork mask assigned by your administrator. When you are finished, verify the new mask. 13. In the Default Gateway field, type the IP address of the gateway assigned to your LAN. When you are finished, verify the new gateway. MTPSR1-202ST...
  • Page 63 16. In the Domain field, enter your company’s domain name (usually the company name followed by one of the following extensions: .com, .edu, .gov, .org, .mil, or .net. For example, multitech.com). 17. In the DNS Server Search Order group, click Add. The TCP/IP DNS Server dialog box is displayed.
  • Page 64 IP applications (i.e., browser, Telnet, or FTP). Set up each application as “No Proxy” or equivalent; or, connect to the Internet over the LAN. 22. To further validate your connection to the ProxyServer, “Ping” the IP address of the ProxyServer. MTPSR1-202ST...

  • Page 65: Installing Tcp/Ip (Winnt)

    3. You are returned to the Network dialog. 4. Reboot your PC for changes to take effect. 5. Open the Control Panel and double-click the Network icon to return to the Network Configuration window, then go to step 4 of the Configuring Windows NT procedure. MTPSR1-202ST...
  • Page 66 ProxyServer User Guide MTPSR1-202ST...

  • Page 67: Chapter 6 - Ras Dial-Out Redirector

    Chapter 6 - RAS Dial-Out Redirector...

  • Page 68: Introduction

    Introduction Multi-Tech’s Remote Access Server for Microsoft network users enables users to dial-out and fax-out through your MTPSR1-202ST. Remote Access Solution software uses Multi-Tech’s Communications Services Interface (MCSI - pronounced “Mik-see”). MCSI is a software redirector which complies with MCSI/NCSI/NASI defacto standards for software redirection.
  • Page 69 WINMCSI, or you can accept the default: C:\COMMCSI. 7. In the Network Type dialog box, click the appropriate network type (IP). Because the default is IPX, you will need to select IP. Click Continue to proceed with the WINMCSI installation. MTPSR1-202ST...
  • Page 70 Modify INI files now. A screen is displayed telling you that your installation is complete and where your WIN.INI and SYSTEM.INI files are backed up. 10. The following message is displayed: Click Yes or No, as appropriate. MTPSR1-202ST...
  • Page 71 14. A message is displayed telling you where your old SYSTEM.INI and WIN.INI files have been backed-up. The message also tells you to restart Windows. Click Restart Windows to complete the installation. At this time Your WINMCSI software installation is complete. Proceed to the next section, “Running the WINMCSI Workstation Software.” MTPSR1-202ST...
  • Page 72 Click Next to accept the Destination Folder, or click Browse to select a different destination. 17. The Select Program Folder screen is displayed. Click Next to accept the new folder designation, or choose an existing folder from the list provided. MTPSR1-202ST...
  • Page 73 “Running the WINMCSI Workstation Software.” Note: Once MCSI has been installed and configured, make certain that the appropriate ISDN TA drivers are installed on your PC. The ISDN TA drivers can be found in the “Drivers” directory on the ProxyServer CD. MTPSR1-202ST...

  • Page 74: Running The Winmcsi Workstation Software

    ComMap for Windows window is displayed. Go to step 2. Windows 98/95 (32-bit) and Windows NT users: To start WINMCSI, click Start | Programs | MultiTech MCSI | ComMap. 2. The ComMap for Windows window is displayed. The buttons from left to right are: Login, Logout, Map, Unmap, and Exit.: 3.
  • Page 75 This window shows the name of the server to which you are logged in and the name with which you logged in. Click Close when you are finished. 6. At the ComMap for Windows main window (to map a COM port through MCSI) click Map | Map. The COM Port to MCSI Mapping window is displayed. MTPSR1-202ST...
  • Page 76 9. To logout from the network, click File | Logout, or click the Logout button. 10. To exit from WINMCSI, click File | Exit, or click the Exit button. Otherwise you may minimize the screen to minimize WINMCSI to an icon. MTPSR1-202ST...
  • Page 77 Chapter 7 - Remote Configuration...

  • Page 78: Chapter 7 - Remote Configuration Introduction

    In the ProxyServer IP Address field, enter the IP Address of the remote ProxyServer. 4. Click OK when you are satisfied with your selections. The windows Program Manager menu is displayed. 5. Double-click the ProxyServer Configuration icon. The Reading Configuration dialog box is displayed. MTPSR1-202ST...
  • Page 79 The remote ProxyServer will be brought down, the new configuration written to the unit, and the unit will reboot. 8. Click the Exit button when the downloading is complete. 9. Click the ProxyServer Configuration icon in the Program Manager screen to verify that the ProxyServer is running. MTPSR1-202ST...
  • Page 80 ProxyServer User Guide MTPSR1-202ST...

  • Page 81: Chapter 8 - Proxyserver Management

    Chapter 8 - ProxyServer Management...

  • Page 82: Telnet Proxyserver Configuration

    ProxyServer and the ProxyServer Management Menu is displayed. The ProxyServer management menu provides several basic options, including Dial-out, ProxyServer Management, ProxyServer Configuration, and WAN Device Configuration. (The Remote User DataBase is not used in the ProxyServer application.) MTPSR1-202ST...
  • Page 83 Applications (Others) Selecting Option 4 on the ProxyServer Configuration menu displays the Others menu which allows you to enable or disable various remote servers or set up password protection for the ProxyServer. MTPSR1-202ST...
  • Page 84 ProxyServer, press the Esc key to to back out through the previous menus until you reach the ProxyServer Management Menu, where you can close the Telnet Session and save any changes to the remote ProxyServer. MTPSR1-202ST...

  • Page 85: Web Management

    Type supervisor in the User Name field and click OK to continue; no password is required.The next screen displayed is the “Frame View” of the ProxyServer Configuration screen, with two basic selections: Stacks & Drivers, and Other setup. MTPSR1-202ST...
  • Page 86 ProxyServer. When you are finished viewing or changing the configuration of the remote ProxyServer, return to the Standard View or Framed View of the ProxyServer Configuration screen and double-click ‘Write the setup and Reboot.’ MTPSR1-202ST...

  • Page 87: Chapter 9 - Service, Warranty And Tech Support

    Chapter 9 - Service, Warranty and Tech Support...

  • Page 88: Introduction

    MTS WILL NOT BE LIABLE FOR CONSEQUENTIAL DAMAGES AND UNDER NO CIRCUMSTANCES WILL ITS LIABILITY EXCEED THE PURCHASE PRICE FOR DEFECTIVE PRODUCTS. On-line Warranty Registration If you would like to register your ProxyServer electronically, you can do so at the following address: http://www.multitech.com/register/ MTPSR1-202ST...

  • Page 89: Tech Support

    Also, note the status of your ProxyServer including LED indicators, screen messages, diagnostic test results, problems with a specific application, etc. Use the space below to note the ProxyServer status: ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ______________________________________________________________________________________________________________ ______________________________________________________________________________________________________ ______________________________________________________________________________________________________________ ______________________________________________________________________________________________________ MTPSR1-202ST...

  • Page 90: Service

    Send your ProxyServer to this address: MULTI-TECH SYSTEMS, INC. 2205 WOODALE DRIVE MOUNDS VIEW, MINNESOTA 55112 ATTN: SERVICE OR REPAIRS You should also check with the supplier of your ProxyServer on the availability of local service and/or loaner units in your area. MTPSR1-202ST...

  • Page 91: About The Multi-Tech Bbs

    4. Mark one or more files for download by entering M, the list numbers of the files, and a RETURN. 5. Enter D. You will see a list of the files you have marked. Enter E if you would like to edit the list; otherwise enter D again to start the download process. MTPSR1-202ST...

  • Page 92: Reading A Message

    Multi-Tech’s presence includes a Web site at: http://www.multitech.com and an ftp site at: ftp://ftp.multitech.com The ftp server mirrors the Multi-Tech BBS. pport and engineering index. Just enter the applicable FB Doc. # from the left column of the catalog. MTPSR1-202ST...

  • Page 93: Ordering Accessories

    2. To order, type in quantity, and click 3. Click to change your order After you have selected all of your items click to finalize the order. The SupplyNet site uses Verisign’s Secure Socket Layer (SSL) technology to ensure your complete shopping security. MTPSR1-202ST...
  • Page 94 ProxyServer User Guide MTPSR1-202ST...

  • Page 95: Appendixes

    Appendixes...

  • Page 96: Appendix A - Cabling Diagrams

    1 2 3 4 5 6 7 8 Signal Circuit Signal Name Line 2 TD+ Data Transmit Positive Line 1 TD- Data Transmit Negative Line 1 RD+ Data Receive Positive Line 2 RD- Data Receive Negative Remote Configuration Cable MTPSR1-202ST...

  • Page 97: Appendix B - Script Commands

    (listed here according to their functions). This is similar to what you will find in the Help file in your ProxyServer software. Following the list of commands is an example script. Commands (by Function) Dial, Connection and Remote Mathematical functions Miscellaneous Program constructs String operations MTPSR1-202ST...
  • Page 98 (“^M”); if (waitfor (password_prompt,timeout)) then transmit (password); transmit (“^M”); if (waitfor (shell_menu,timeout)) then transmit (shell_menu_response); transmit (“^M”); else transmit (“Shell Menu Not Received^M”); endif else transmit (“Password Prompt Not Received^M”); endif else transmit (“Login Prompt Not Received^M”); endif Endproc MTPSR1-202ST...

  • Page 99: Appendix C - Regulatory Compliance Information

    Industry Canada This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numerique de la classe B respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada. MTPSR1-202ST...

  • Page 100: Fcc Regulations For Telephone Line Interconnection

    9. If so required, this equipment is hearing-aid compatible. Manufacturer: Multi-Tech Systems, Inc. Trade name: ProxyServer 200-Series Model Numbers: MTPSR1-202ST FCC Registration Number: AU7USA-24994-M5-E Ringer Equivalence: 0.6B Modular Jack (USOC): RJ-11 Service Center in U.S.A.:...

  • Page 101: Canadian Limitations Notice

    Council Directive 73/23/EEC of 19 February 1973 on the harmonization of the laws of Member States relating to electrical equipment designed for use within certain voltage limits: each amended by Council Directive 93/68/EEC of 22 July 1993 on the harmonization of CE marking requirements. MTPSR1-202ST...

  • Page 102: Appendix D - At Commands

    ENTER. As you type a command string, it appears on your monitor screen, letting you verify your input as you type it. The following lists the AT commands recognized by the ProxyServer. MTPSR1-202ST...
  • Page 103 $SBn Serial port speed &Kn Data Compression Escape sequence options Serial port mode @P3= Parity @P4= Data bits @P6= Stop bits Data Call Commands Answer Dial &Jn Channel Bundling Hang up Display product information Return online @Config Start ConfigMenu MTPSR1-202ST...
  • Page 104 Use the %A97= command to select between the two methods. %A97=0 En bloc sending during call SETUP %A97=1 Overlap sending during call SETUP Command: !C0=n Function: Network Switch Type Values: n = 0, 1, 2, 3, 4, 5, or 6 Default: !C0=2 (Net3) MTPSR1-202ST...
  • Page 105 Use the *!D3= command to set the ProxyServer’s terminal endpoint identifier (TEI) for the voice channel. See the !D3= command description. *!D3=0–63 Sets the TEI to a fixed value from 0 through 63 *!D3=240 Sets the voice channel for dynamic TEI negotiation (factory default) *!D3=241 Disables TEI MTPSR1-202ST...
  • Page 106 AUX port. AT!RXG0 selects the lowest level, AT!RXG10 selects the highest level, and intermediate numbers select intermediate levels. !RXG0 Lowest speaker volume through !RXG10 Highest speaker volume Command: !TXGn Function: Transmit Gain Values: n = 0–4 Default: !TXG0 (No amplification) MTPSR1-202ST...
  • Page 107 The Q command controls whether the ProxyServer sends result codes to the computer. (Use the V command to select the format of the result codes.) Enable result codes. Disable result codes (quiet mode) for applications such as computer- controlled auto dialing. MTPSR1-202ST...
  • Page 108 Note that whereas the &F0 reset command always restores the factory default profile, the Z reset command restores either the factory default or the stored profile, depending on how the &W command is set. Command: &Cn Function: DCD Control Values: n = 0, 1, or 2 Default: &C1 (DCD normal) MTPSR1-202ST...
  • Page 109 XON character is detected. The drawback to this method is that some files may contain these characters, causing the file transfer to be suspended indefinitely. &E6 When XON/XOFF pacing is active, the ProxyServer responds to and discards the XON/XOFF characters from the computer. MTPSR1-202ST...
  • Page 110 &R1 CTS is forced high, but still provides online flow control. &R2 CTS is forced high, but it drops on disconnect for the period of time set by S10. CTS still provides flow control when the ProxyServer is online. MTPSR1-202ST...
  • Page 111 Default: Description: To dial a stored telephone number, type &DS=n in terminal mode, where n is the location of the number you wish to dial. For example, type ATDS=3 <CR> dials a telephone stored in memory register 3 location. MTPSR1-202ST...
  • Page 112 460.8K. A break sent at any speed slower than 460.8K will be interpreted as a break at 460.8K, as will some characters sent at slower speeds.) Automatic speed mode (300-230,400 bps) 460800 bps mode Command: &Kn Function: Data Compression Mode Values: n = 0 or 1 Default: &K0 MTPSR1-202ST...
  • Page 113 Once the ProxyServer receives an AT command from the computer, it automatically adjusts to the number of data bits the computer is using. @P4=7 7 data bits @P4=8 8 data bits Command: @P6=n Function: Stop Bits Values: n = 1 or 2 Default: @P6=1 (1 stop bit) MTPSR1-202ST...
  • Page 114 When it detects an escape sequence, the ProxyServer enters online command mode, in which it can accept AT commands while retaining the online connection. To return the ProxyServer to online mode from the online command mode, enter the command ATO and press ENTER. MTPSR1-202ST...
  • Page 115 S1 for eight seconds after the last ring is counted, after which time the value reverts to zero. MTPSR1-202ST...
  • Page 116 Range: 0, 1–255 Default: Description: S25 sets the time that DTR must remain low before the ProxyServer disconnects. The S25 unit value for 0 is 50 ms. For values from 1 through 255, the unit value is 100 ms. MTPSR1-202ST...
  • Page 117 SoftBond operation is enabled or disabled. This is applicable for an ISDN data call; and once determined by the ProxyServer the protocol used by means of the information conveyed by the SETUP message, then the indicated protocol is activated. The default setting is 0, which disables the Auto-Protocol Detection function. MTPSR1-202ST...
  • Page 118 (modem or fax), it will not accept a speech call originated on that line. However, most switches permit the 3.1 kHz Audio Information Transfer Capability on data (modem or fax) lines. MTPSR1-202ST...

  • Page 119: Result Codes

    CARRIER 64000 ProxyServer has detected a 64000 bps carrier. SOFTBONDING ProxyServer is using the SoftBonding protocol. PROTOCOL PPPC PROTOCOL ProxyServer is using the Point-to-Point protocol. CHANNEL B1 Channel B1 is in use. CHANNEL B2 Channel B2 is in use. MTPSR1-202ST...

  • Page 120: Modes Of Operation

    (e.g., ATD7853500&7853502<CR>). The command AT&J0&W0<CR>, disables automatic call bundling. Note other valid characters joining two telephone numbers include a Plus Sign (+), and an Exclamation Mark (!). MTPSR1-202ST...

  • Page 121: Answering A Call

    TA rejects incoming calls until DTR is high while the calls comes in. Hanging Up To hang up a call, first escape to online command mode (+++AT<CR>), then enter the H command (ATH<CR>). The escape sequence and hang up command can be combined into one command string: +++ATH<CR>. MTPSR1-202ST...

  • Page 122: Appendix E - Tcp/Ip

    First, choose a domain name for your company. A domain name is the unique Internet name, usually the name of your business, that identifies your company. For example, Multi-Tech’s domain name is multitech.com (where .com indicates this is a commercial organization; .edu denotes educational organizations, .gov denotes government organizations). Next, determine how many IP addresses you’ll need.
  • Page 123 Ping uses ICMP Echo messages. • Whois/NICNAME: Utilities that search databases for information about Internet domain and domain contact information, per RFC 954 ( ftp://ds.internic.net/rfc/rfc954.txt). • Traceroute: a tool that displays the route that packets will take when traveling to a remote host. MTPSR1-202ST...
  • Page 124 You first choose a domain name for your company. A domain name is the unique Internet name, usually the name of your business, that identifies your company. For example, Multi-Tech’s domain name is multitech.com (where .com indicates this is a commercial organization; .edu denotes educational organizations, .gov denotes government organizations, etc.). Next, you determine how many IP addresses you’ll need.

  • Page 125: Glossary Of Terms

    Glossary of Terms...
  • Page 126 Backward Explicit Congestion Notification (BECN): A bit that tells you that a certain frame on a particular logical connection has encountered heavy traffic. The bit provides notification that congestion-avoidance procedures should be initiated in the opposite direction of the received frame. See also FECN (Forward Explicit Congestion Notification). MTPSR1-202ST...
  • Page 127 PABX or any residential telephone connects to the PSTN at a central office. Centrex: A multi-line service offered by operating telcos which provides, from the telco CO, functions and features comparable to those of a PBX for large business users. See also “Private Branch Exchange”, “Exchange”. MTPSR1-202ST...
  • Page 128 Data Communications Equipment (DCE): Any device which serves as the portal of entry from the user equipment to a telecommunications facility. A modem is a DCE for the telephone network (PSTN) that is commonly on site at the user’s premises. Packet Switched Networks have another level of DCE which is most often located at a central office. MTPSR1-202ST...
  • Page 129 DTE (Data Terminating Equipment): A term used to include any device in a network which generates, stores or displays user information. DTE is a telecommunications term which usually refers to PCs, terminals, printers, etc. DTMF (Dual-Tone MultiFrequency): A generic push-button concept made popular by AT&T TouchTone. MTPSR1-202ST...
  • Page 130 Frequency is inversely proportional to the wavelength or pulse width of the signal (i.e., long wavelength signals have low frequencies and short wavelength signals yield high frequencies). Foreign Exchange (FX): A CO trunk with access to a distant CO, allowing ease of access and flat-rate calls anywhere in the foreign exchange area. MTPSR1-202ST...
  • Page 131 Internet: Refers to the computer network of many millions of university, government and private users around the world. Each user has a unique Internet Address. Internet Address (IP Address): A unique 32-bit address for a specific TCP/IP host on a network. Normally printed in dotted decimal format (e.g., 129.128.44.227). MTPSR1-202ST...
  • Page 132 Local Access and Transport Area (LATA): A post-divestiture geographical area generally equivalent to a Standard Metropolitan Statistical Area. At divestiture, the territory served by the Bell system was divided into approximately 161 LATAs. The Bell Operating Companies (BOCs) provide Intra-LATA services. MTPSR1-202ST...
  • Page 133 Network: A group of computers connected by cables or other means and using software that enables them to share equipment, such as printers and disk drives to exchange information. Node: Any point within a network which has been assigned an address. MTPSR1-202ST...
  • Page 134 Port: A location for input or output data exchange. Computers, muxes, etc. have ports for various purposes. Primary Rate Interface (PRI): Used on ISDN. In North America, and Japan, PRI is one 64 Kbps D channel and 23 B channels. Elsewhere, it is one D channel and 30 B channels. MTPSR1-202ST...
  • Page 135 D4 channel banks to convey signaling information. The eighth (least significant) bit of each of the 24 8-bit time slots is “robbed” every sixth frame to convey voice-related signaling information, e.g., on-hook, off-hook, etc., for each channel. MTPSR1-202ST...
  • Page 136 Synchronous Transmission: The transmission of data which involves sending a group of characters in a packet. This is a common method of transmission between computers on a network or between modems. One or more synchronous characters are transmitted to confirm clocking before each packet of data is transmitted. Compare to Asynchronous Transmission. MTPSR1-202ST...
  • Page 137 Transmission Control Protocol (TCP): A communications protocol used in Internet and in any network that follows the US Department of Defense standards for internetwork protocol. TCP provides a reliable host-to-host protocol between hosts in packet-switched communications networks and in interconnected systems of such networks. It assumes that the Internet protocol is the underlying protocol. MTPSR1-202ST...
  • Page 138 Contrast “Red Alarm” and “Blue Alarm”. Zero Byte Time Slot Interchange (ZBTSI): A method for allowing 64 Kbps unrestricted user data (allowing all 0s in the user data). An alternative to (but not as popular as) B8ZS. MTPSR1-202ST...

  • Page 139: Index
