Shipping Bracket - Spectra Stack Installation And Removal Manual

Install the Shipping Bracket
 Wear a static protection wristband or grounding footstrap whenever
I S
NSTALL THE
Use the instructions in this section to install the robotics shipping bracket
in the Spectra Stack tape library prior to shipping.
1. Remove the top cover.
December 2022
you handle components that have been removed from their 
anti‐static bags. Connect the wristband to the static protection mat or to
other suitable ESD grounding.
Note: Keep all electronic components in anti‐static bags when not in
use.
B
HIPPING RACKET
a. Using a small screwdriver, press down on the release latch on the
top of the chassis at the front.

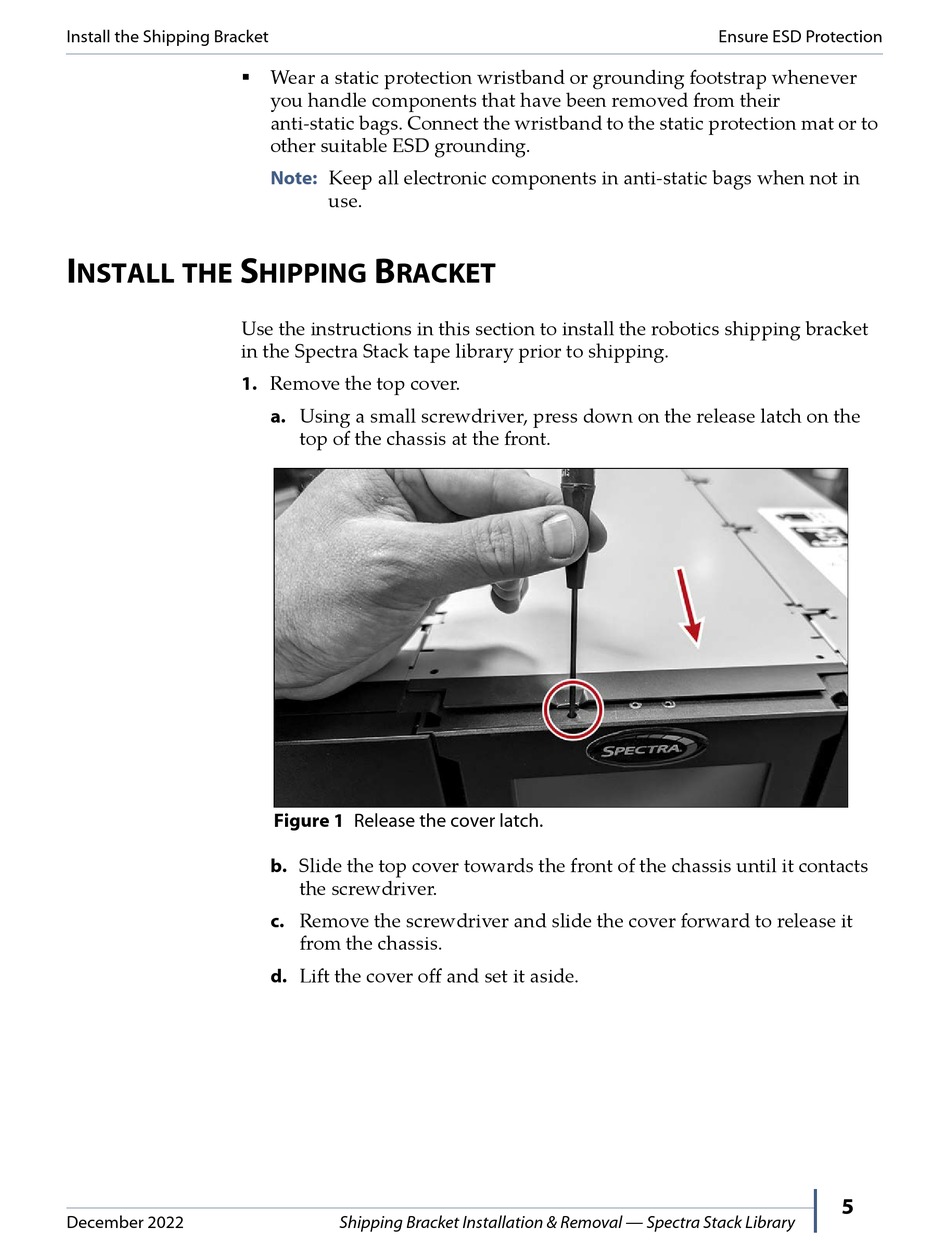

Figure 1 Release the cover latch.
b. Slide the top cover towards the front of the chassis until it contacts
the screwdriver.
c. Remove the screwdriver and slide the cover forward to release it
from the chassis.
d. Lift the cover off and set it aside.
Shipping Bracket Installation & Removal — Spectra Stack Library
Ensure ESD Protection
5
