Spectra Stack Installation And Removal Manual page 13

Remove the Shipping Bracket
4. Using a #1 Phillips screwdriver, remove the two screws that secure the
5.
6. Release the elevator and allow it to slowly descend to the bottom of the
7. Store the bracket and screws for use if you need to move the library
8. Using a #1 Phillips screwdriver, remove the two screws that secure the
9. Move the drive bay cover to the slot 5 position in the library.
10. Using a #1 Phillips screwdriver, install the two screws you removed in
December 2022
shipping bracket to the chassis (2) and install the screws under the
handle of the robotic shipping bracket (1).

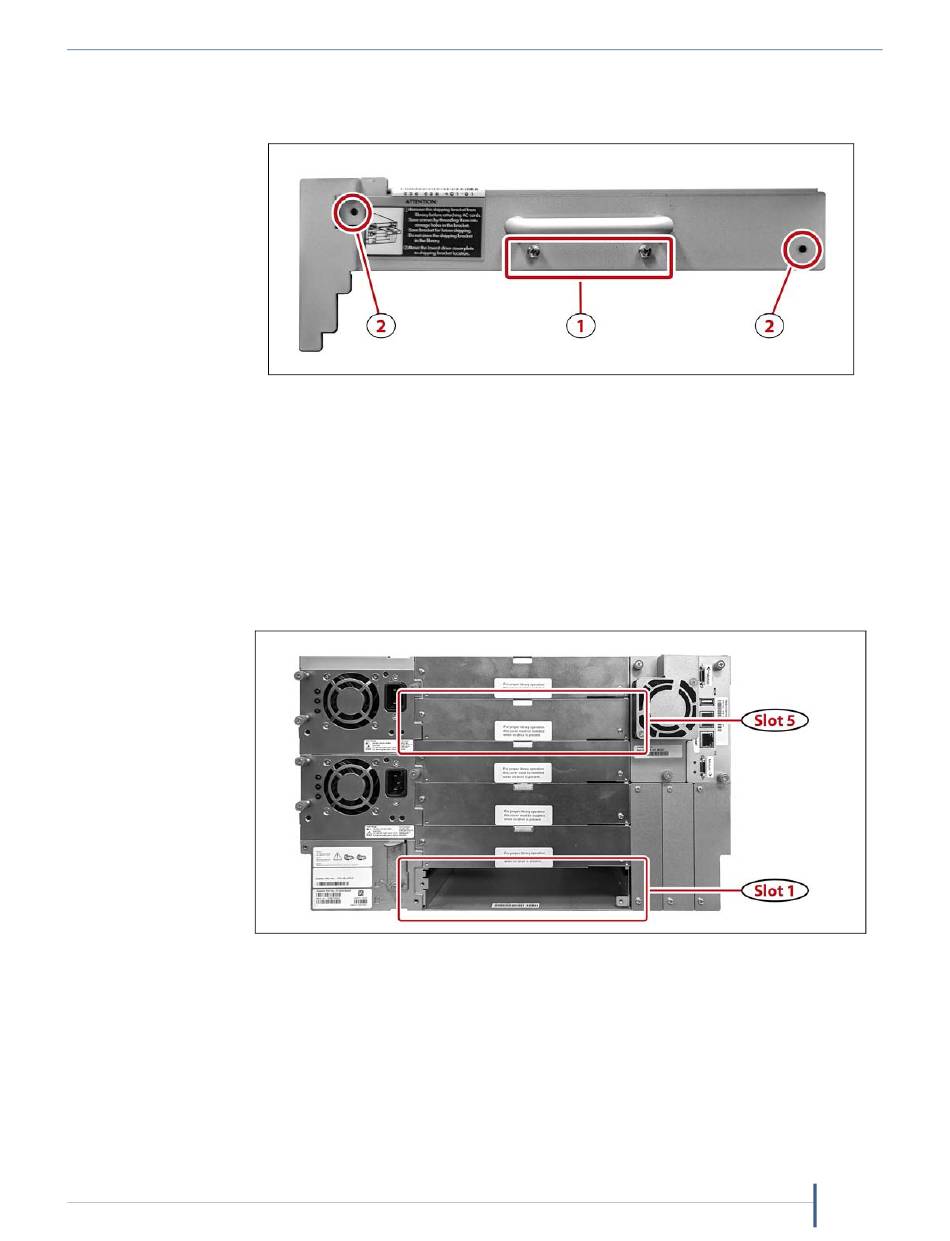

Figure 14 The robotics shipping bracket rear panel.
Using your finger, hold the robotic elevator in place (see Figure 6 on
page 8) while you pull the shipping bracket out of the chassis.
chassis.
after installation.
slot 1 drive bay cover.
Figure 15 The rear of the Spectra Stack chassis.
Step 8 to secure the cover to the chassis.
Shipping Bracket Installation & Removal — Spectra Stack Library
Ensure ESD Protection
13
