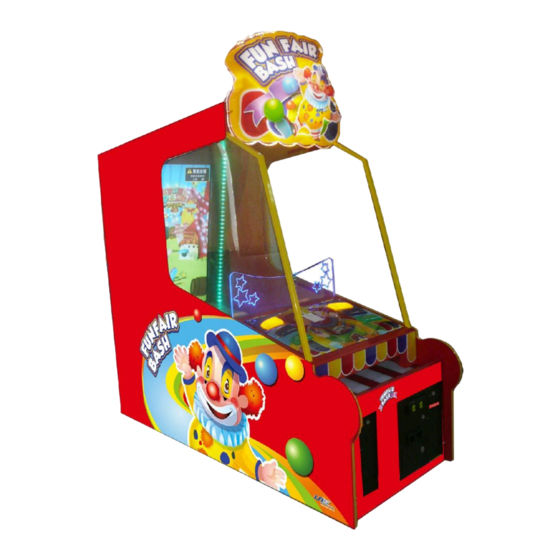

Summary of Contents for Universal Space FUNFAIR BASH

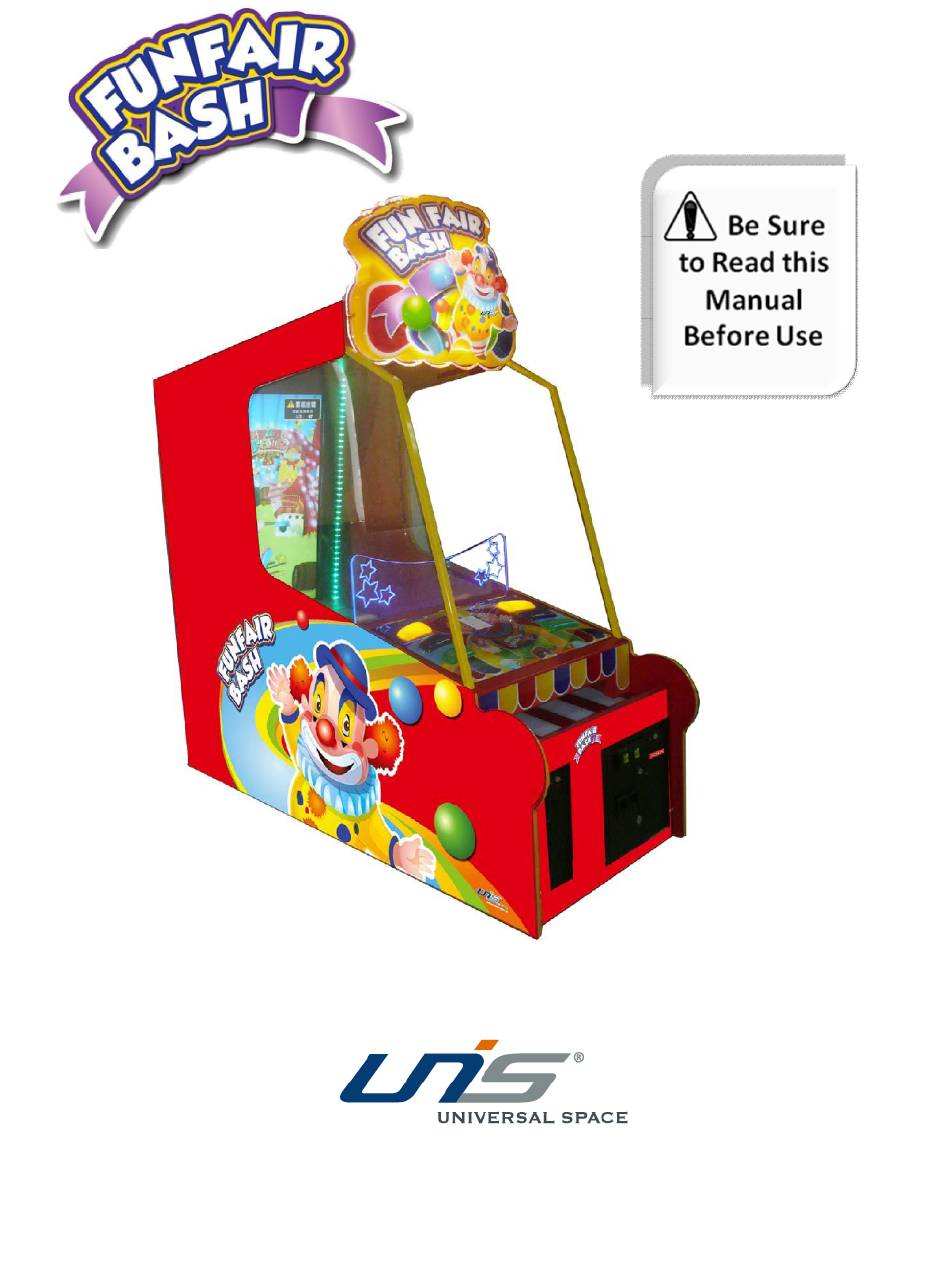

  • Page 1 Operation Manual www.universal-space.com...

  • Page 2: Table Of Contents

    Rev1.0 CONTENT IMPORTANT SAFETY INSTRUCTIONS .............. 2 1. SPECIFICATIONS ..................4 2. PACKAGE CONTENTS .................. 5 3. PART NAME ....................6 4. SET UP & INSTALLATION ................7 5. HOW TO PLAY .................... 10 6. GAME OPTIONS ..................12 7. ERROR MESSAGE AND RECOVERY ............14 8.

  • Page 3: Important Safety Instructions

    Rev. 1.0 Thank you for purchasing Fun Fair Bash. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 Rev1.0 This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning:  Places subject to rain/moisture, or places subject to high humidity.  Places subject to direct sunlight, or places subject to extremely hot or cold temperatures to ensure that it is used within the specified operating range.

  • Page 5: Specifications

    Rev. 1.0 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz Min. Power consumption: 400W Max. Power consumption：450W Dimensions： W803×D2102×H2518 (mm) Weight： Approximately 250.5kg NOTICE: After turning off the game, please wait at least 1 minute before restarting again. 2518 2102 Note: Game parameters are subject to change without notice.

  • Page 6: Package Contents

    Rev1.0 2. PACKAGE CONTENTS Open the package and make sure all the items are included:  1 x Body Assembly  Following accessories Part No. Code Name Spec. Picture F126-428-000 23301000001 Power cord 10A/250V 1.8m T5A/250V F126-434-000 21901000013 Fuse Φ5-20mm 中文...

  • Page 7: Part Name

    Rev. 1.0 3. PART NAME Marquee assy. 灯箱组件 Monitor assy. Side window Gate assy. Control panel assy. Wooden box assy. Ticket dispenser Coin mech.

  • Page 8: Set Up & Installation

    Rev1.0 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid  Place the unit on a dry level surface  Ventilation openings in the back of the unit must not be obstructed by objects or by wall. 4.1 Play Zone This machine requires space for playing and for maintenance as shown below.
  • Page 9 Rev. 1.0 4.2 Level Adjustment Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game If the game is installed on an unsuitable floor, it could cause game malfunction. To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off the ground by 5mm.
  • Page 10 Rev1.0 4.4 Connecting Power WARNING: Check the voltage rating before you connect the equipment to an electrical outlet to ensure that the required voltage and frequency match the available power source. Please refer the label of the machine.  Do not plug the equipment power cables into an electrical outlet if the power cable is damaged.

  • Page 11: How To Play

    Rev. 1.0 5. HOW TO PLAY 5.1 Game Interface A: Display game remaining time D: Game time B: Game rules E: Target F: How many targets have hit C1:Balls C2::Hit target 5.2 How to play Stage 1: Stage 2: Knock’Em over Clown Tumbler Knock off all the milk bottles from the table.
  • Page 12 Rev1.0 Stage 3: Stage 4: Rolling barrels Clown pins Break all the barrels! Knock out all the BOWLING PINS!! Tip: Aim at the target signs! Stage 5: Clown Wheel Hit all four targets behind the clown! Tip: Do not hit the clown!

  • Page 13: Game Options

    Rev. 1.0 6. GAME OPTIONS 6.1 Button Distribution: You can see setting button after you open the coin door under orange fishing mechanism. Press test button, and enter to setting menu. 6.2 Main Menu Options Main Menu Item settings (default) Free Play OFF/ON (ON) Ticket Out...
  • Page 14 Rev1.0 Rest Game Setting Rest to default Clear all records Delete All Record Reset Game Setting Clear Tickets clear owed ticket amount Back Play in English English language 简体中文(Chinese) Play In Chinese Current year Year Current month Month Current day Current hour Hour(24) Date/Time Setting...

  • Page 15: Error Message And Recovery

    Rev. 1.0 7. ERROR MESSAGE AND RECOVERY 7.1 Error Message Symptom: Screen displays message “Communication ERROR” (there is communication problem with the game) Possible Causes & Fixes: Communication data wire is damaged  Replace the data wire.   Ask your technician to check and repair ...

  • Page 16: Maintenance, Inspection

    Rev1.0 8. MAINTENANCE, INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.

  • Page 17: Overall Construction

    Rev. 1.0 9. OVERALL CONSTRUCTION 9.1 Mechanical Part 9.1.1 Castor, T-molding, coin door assy. Part No. Code No. Name Material/Spec. F126-124-000 20211211022 Cabinet front T-molding t1.2 powder red M16X100 F126-171-000 26000008000 2.5” leveler (zinc plating) F126-125-000 20211211023 Cabinet side T-molding t1.2 powder red F126-172-000 26000010000 2.5”...
  • Page 18 Rev1.0 9.1.2 Electric Assy. Part No. K3 code Name Spec. F126-517-000 20311211016 Electrical base plate F126-127-000 20211211025 Plate down glide slot t2 powder black F126-126-000 20211211024 Terminal port board t1.5 F126-128-000 20211211026 Plate up glide slot t1.5 powder black F126-167-000 20221004026 Power platen SW power supply support F126-168-000 26000001000...
  • Page 19 Rev. 1.0 9.1.3 Monitor Assy. Part No. K3 code Name Spec. F126-129-000 20211211027 Monitor down fixed plate t2 powder black F126-131-000 20611211004 Long sticker t3 single with tape F126-132-000 20611211005 Short sticker t3 single with tape F126-133-000 20611211020 Monitor glass F126-134-000 20611211021 Touch screen long sticker...
  • Page 20 Rev1.0 9.1.4 Marquee Assy. Part No. K3 code Name Spec. F126-517-000 20311211017 Marquee bottom board F126-139-000 20211211031 Vacuum foam fixed plate t1.5 Marquee R transparent F126-142-000 20611211008 plate Marquee vacuum foam 830*730 silk-screen F126-701-000 20511211001 decal printing Marquee down transparent F126-138-000 20611211006 plate Marquee L transparent...
  • Page 21 Rev. 1.0 9.1.5 PC Assy. Part No. K3 code Name Spec. F126-143-000 20211211033 PC fixed plate F126-144-000 20611211009 PC sticker t3 single with tape V260R-526(without F126-439-000 21101000012A Dell PC video card) F126-439-000 20311211018 PC base board F126-501-000 35201001080 Batten 20×20×80 F126-173-000 26000013000 Shockproof screw B...
  • Page 22 Rev1.0 9.1.6 Sensor receiver assy. Part No. K3 code Name Spec. F126-146-000 20211211040 Sensor base plate t2 powder black F126-147-000 20211211041 Filtering side board t1 powder black F126-427-000 29711211005 Sensor receiver PCB F126-145-000 20211211034 Shading plate F126-148-000 20611211010 Shading plate t2 powder black F126-106-000 20211211005...
  • Page 23 Rev. 1.0 9.1.7 Control panel assy. Part No. K3 code Name Spec. F126-156-000 20211211048 Control panel fixed plate t2 powder red F126-159-000 20611211013 Yellow R light cover Yellow plexi. F126-161-000 20611211015 Blue R light cover Blue plesi. F126-163-000 20611211017 Green R light cover Green plexi.
  • Page 24 Rev1.0 9.1.8 Gate Assy.
  • Page 25 Rev. 1.0 Part No. K3 code Name Spec. F126-521-000 20311211020 Fairway cover board F126-155-000 20211211047 Gate handle t1.5 powder black F126-154-000 20211211046 Set square t1.5 powder black F126-520-000 20311211019 Gate base plate F126-153-000 20211211045 SW frame t1.5 powder black F126-450-000 25105000006 Guide 27×160...
  • Page 26 Rev1.0 9.1.9 Sensor emission assy. Part No. K3 code Name Spec. F126-146-000 20211211040 Sensor base plate t2 powder black F126-147-000 20211211041 Filtering side board t1 powder black BFJNH-HW02.PCB F126-430-000 29711211007 Sensor transmit PCB (V1.3) F126-148-000 20611211010 Shading plate Cross recessed countersunk F126-192-000 20101010017 M4×12 black...
  • Page 27 Rev. 1.0 9.1.10 Side window assy. Part No. K3 code Name Spec. F126-105-000 20211211004 Side window short platen t1 powder red F126-104-000 20211211003 Side window long platen t1 powder red F126-103-000 20211211002 Side window F126-109-000 20211211008 R side barrier bar Powder yellow F126-121-000 20211211019...
  • Page 28 Rev1.0 9.1.11 DBV door assy. and Gas spring assy. Part No. K3 code Name Spec. F126-116-000 29911211001 DBV door assy. Assy. F126-118-000 20211211015 DBV seal plate t1.2 powder black F126-220-000 20102020030 Hexagon nut with flange M5 color zinc F126-186-000 20104010036 Cup head square neck bolts M5×25 black F126-209-000...
  • Page 29 Rev. 1.0 9.1.12 Ticket box, panel T-molding, side door assy. Part No. K3 code Name Spec. F126-119-000 20611211002 Ticket box SW bracket t1 powder white F126-170-000 26000006000 Ticket box 243 δ1 powder white F126-108-000 20211211007 Panel T-molding t1 powder red F126-513-000 20311211011 Side door...
  • Page 30 Rev1.0 9.1.13 Exhaust fan, wiring box assy. Part No. K3 code Name Spec. F126-169-000 26000005000 Wiring box bracket δ1.5 powder black F126-429-000 22702000020 Exhaust fan 4” 110V F126-423-000 22702000010 Exhaust fan net 4” Cross recessed pan head F126-208-000 20101010036 M4×16 black set screw Cross recessed pan head F126-226-000...
  • Page 31 Rev. 1.0 9.1.14 Top connector assy. Part No. K3 code Name Spec. F126-112-000 20211211010 Top connector plate t1.2 F126-113-000 20211211011 Top wire cover plate Cross recessed pan head F126-183-000 20101020036 M4×16 color zinc set screw Cross recessed pan head F126-201-000 20103100002 ST4.2×16 tapping screws...
  • Page 32 Rev1.0 9.1.15 Back door assy. Part No. K3 code Name Spec. F126-123-000 20211211021 Back door fixed plate t1.5 F126-516-000 20311211015 Back middle board F126-515-000 20311211013 Back door board F126-447-000 25300171001 Lock Cross recessed pan head F126-183-000 20101020036 M4×16 color zinc set screw...
  • Page 33 Rev. 1.0 9.1.16 Side light assy. Part No. K3 code Name Spec. F126-120-000 20211211016 Side light platen t1 powder black F126-426-000 22002000040 LED strip light (R-G-B)-12V-1200 1.2M Cross recessed pan head F126-213-000 20103000027 ST2.9×8 tapping screws...
  • Page 34 Rev1.0 9.1.17 Front block board and top reinforce assy. Part No. K3 code Name Spec. F126-111-000 20611211001 Front block decal t10 grave F126-115-000 20211211013 Top board reinforce t1.5 powder red Cross recessed countersunk head F126-211-000 20101100010 M5×20 screw Cross recessed pan head set F126-210-000 20101010035 M4×12 black...
  • Page 35 Rev. 1.0 9.2 Electrical Part 9.2.1 Meter and wiring box assy. Coin counter Ticket counter Volume Test Service Part No. Code Name Spec. F126-417-000 23000000006 Meter C-012 DC12V 22403000001 F126-465-000 POT knob Black POT connection 21709000002 F126-466-000 VR.PCB board F126-420-000 22402030002 Test button DS-316 (Green)
  • Page 36 Rev1.0 9.2.2 Electrical parts：...
  • Page 37 Rev. 1.0 Part No. K3 code Name F126-403-000 22002013007 Marquee LED flexibility light strip F126-419-000 22006000056 Marquee T5-13W fluorescent light F126-421-000 22006000054 Marquee T5-8W fluorescent light F126-426-000 22002000040 Monitor LED flexibility light strip F126-404-000 29721106001 Control panel LED light strip F126-402-000 29741003001 Control panel LED light PCB...

  • Page 38: Decal

    Rev1.0 10. DECAL Front: Part No. K3 code Name 20511211001 F126-701-000 Marquee vacuum form decal F126-703-000 20511211007 Big ball bottom decal F126-705-000 20511211009 R-side decal F126-704-000 20511211008 L-side decal F126-702-000 20511211002 Control panel decal F126-709-000 20511211013 Small ball bottom decal F126-706-000 20511211010 Ball out door decal...
  • Page 39 Rev. 1.0 9.3.2 Back: Part No. K3 code Name 25600000001 F126-713-000 Coin counter F126-714-000 25600000002 Ticket counter 25600000003 F126-715-000 Volume label 25600000005 F126-716-000 Test label F126-718-000 25600000009 Service button F126-717-000 25600000006 Reset label F126-722-000 25600000037 High voltage warning(large) F126-721-000 25600000036 High voltage warning(small) F126-725-000 25600000077...
  • Page 40 Rev1.0...
  • Page 41 Rev. 1.0 Have Questions? Contact us! www.universal-space.com International Support Center USA Support Center Tel: +1-905-477-2823 Tel: 972-241-4263 Fax: +1-905-477-2660 Fax: 214-919-4918 Email: service@universal-space.com Email:tsnelling@unisusasupportcenter.com (Contact: Clement Yau) (Contact: Tim Snelling)
