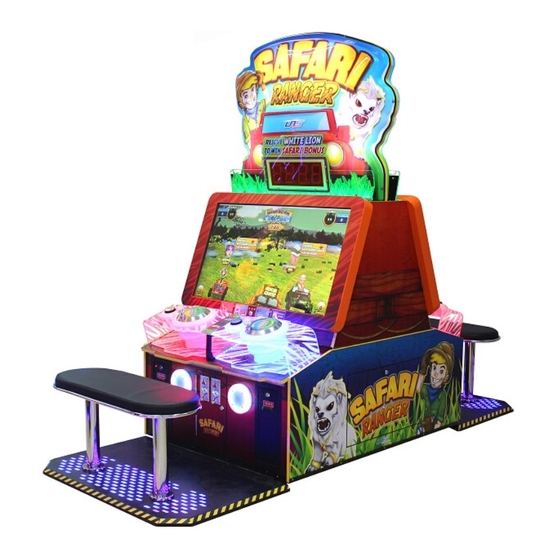

Universal Space SAFARI RANGER Operation Manual

4 player
Hide thumbs
Table of Contents

Advertisement

Quick Links

(4 PLAYER)
Operation Manual

www.universal-space.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAFARI RANGER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Universal Space SAFARI RANGER

Summary of Contents for Universal Space SAFARI RANGER

  • Page 1 (4 PLAYER) Operation Manual    www.universal-space.com...

  • Page 2: Table Of Contents

    Safari Ranger Manual CONTENT Important Safety Instructions...................2 1. SPECIFICATIONS ..................... 4  2. PACKAGE CONTENTS ..................... 5  3. PART NAME ......................6  4. SET UP & INSTALLATION ..................7  5. HOW TO PLAY ......................10  6. GAME OPTIONS ..................... 11  7. ERROR MESSAGE AND TROUBLE SHOOTING ........... 16 ...

  • Page 3: Important Safety Instructions

    Safari Ranger Manual Thank you for purchasing SAFARI RANGER from Universal Space. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 Safari Ranger Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 5: Specifications

    Safari Ranger Manual 1. SPECIFICATIONS Rated power supply: AC220-240V, AC110V 50/60Hz Min. Power consumption: 450W Max. Power consumption：580W Dimensions： W1090×D2840×H2148 (mm) Weight： Approximately 280kg NOTICE: After turning off the game, please wait at least 1 minute before restarting again. Note: Game parameters are subject to change without notice.

  • Page 6: Package Contents

    Safari Ranger Manual 2. PACKAGE CONTENTS Open the package and make sure all the items are included:  1 x Body Assembly  Following accessories Part No. Code No. Name SPEC. Illustration Qty. S124-460-000 25300172002 171B S124-459-000 25300171002 S124-402-000 23301010041 Power cord 10A/250V-1.8M...

  • Page 7: Part Name

    Safari Ranger Manual 3. PART NAME Marquee Bonus Display 42” Monitor Control panel Stool Coin mech Ticket dispenser Speaker...

  • Page 8: Set Up & Installation

    Safari Ranger Manual 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid  Place the unit on a dry level surface ...
  • Page 9 Safari Ranger Manual 4.3 Transporting the Game If you need to move the game, adjust the levelers back to an “up” position so the casters touch the ground. Leveler Caster Move NOTICE  Be careful not to damage the machine during transport.
  • Page 10 Safari Ranger Manual   WARNING Ensure no heavy objects rest on the power cord. Check to make sure the game cabinet does not sit on the power cord as this could damage the cord and become hazardous. To disconnect the game, grip the plug and pull it from the wall outlet. Never pull by the cord.

  • Page 11: How To Play

    Safari Ranger Manual 5. HOW TO PLAY 5.1 Game Operation Play time Current tickets Main play zone Current coins Player 1 Player 2 5.2 How To Play...

  • Page 12: Game Options

    Safari Ranger Manual 6. GAME OPTIONS 6.1 Main Menu Operation 1. Press TEST button and go into the Main Menu for the settings. 2. Press Service button for credits. 6.2 Main Menu Options: Main Menu Basic Setting Customized Setting Input Test...
  • Page 13 Safari Ranger Manual 6.2.2 Customized Setting Items Description Fixed Ticket OFF Set to pay out fixed ticket every time. Divided by 2 OFF Set to pay out half of the won tickets. Point Mode/Ticket Mode Ticket Set the animal indicate point or ticket.
  • Page 14 Safari Ranger Manual 6.2.3 Input Test Items Description Coin Mech 1 OFF Test the coin mech 1 input signal. Coin Mech 2 OFF Test the coin mech 2 input signal. Coin Mech 3 OFF Test the coin mech 3 input signal.
  • Page 15 Safari Ranger Manual 6.2.5 Game Reset Items Description Factory Restore Restore all settings to factory setting. Reset Basic Settings Reset settings to factory setting in Basic Setting. Reset Customized Setting Reset settings to factory setting in Customized Setting. Clear All data records.
  • Page 16 Safari Ranger Manual 6.2.9 About This Game Inter(R) Core(TM) i3 CPU 530 @ 2.93 GHz Mother Board Colorful….. ST320 16248 MB Monitor i5 24 10M/2G…. Screen 1618*910/1920*1080 Version Safari Ranger V1.0 Press Setting Button to Back...

  • Page 17: Error Message And Trouble Shooting

    Safari Ranger Manual 7. ERROR MESSAGE AND RECOVERY 7.1 Error Message Symptom: Screen displays message “Communication ERROR” (there is communication problem with the game) Possible Causes & Fixes:  Communication data wire is damaged  Replace the data wire.  SCM is not working ...

  • Page 18: Maintenance & Inspection

    Safari Ranger Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.

  • Page 19: Overall Construction

    Safari Ranger Manual 9. OVERALL CONSTRUCTION 9.1 Marquee Part Part No. Code No. Name Material Qty. S124-510-000 20311406A005 Top vacuum foam fixed board Black MDF 2 S124-508-000 20311406A003 Light R obverse board Black MDF 3 S124-506-000 20311406A001 Light L obverse board...
  • Page 20 Safari Ranger Manual 9.2 Digital Part Part No. Code No. Name Material Qty. 1 S124-128-000 20211406A018 Digital base Stainless steel 202 2 S124-126-000 20211406A016 Digital cover Q235 3 S124-127-000 20211406A017 Digital back plate Q235 9.3 Power SW Part Part No.
  • Page 21 Safari Ranger Manual 9.4 Monitor Part Part No. Code No. Name Material Qty. 1 S124-129-000 20211406A019 Monitor hinge Stainless steel 202 2 S124-130-000 20211406A020 Monitor shell Q235 S124-131-000 20611406A001 Monitor L&R tape Black foam 4 S124-132-000 20611406A002 Monitor top& bottom tape...
  • Page 22 Safari Ranger Manual 9.5 PC Part Part No. Code No. Name Material Qty. 1 S124-530-000 20311406A023 PC base board Black MDF 2 S124-142-000 20211406A028 PC platen Metal 3 S124-143-000 20211406A005 PC paten tape Black foam 4 S124-408-000 21101000023 DELL...
  • Page 23 Safari Ranger Manual 9.6 Reel Part Part No. Draw No. Name Material S124-455-000 22404010013 Joy stick ball Φ45 S124-109-000 20211403035 Joy stick shaft Stainless steel S124-110-000 20211403036 Joy stick shaft base Stainless steel S124-108-000 20211403034 Joy stick cover Chroming S124-107-000...
  • Page 24 Safari Ranger Manual 9.7 Stool Assembly Part No. Code Name S124-150-000 20611301037 Stool surface S124-532-000 20311301044 Stool surface board S124-151-000 20211301087 Stool ring S124-533-000 20311301043 Stool surface mounted board S124-172-000 20241122S052 Stool rod S124-174-000 20241122S057 Stool pedal S124-154-000 20611301039 Stool sides plexi.
  • Page 25 Safari Ranger Manual 9.8 Electrical Parts Part No. Code Name Material S124-408-000 21101000023 Dell S124-421-000 22803000047 Power amplifier 2.0-A S124-420-000 21602000001 Power supply BTX-3039(110V220V) S124-426-000 20711406003 Main board S124-427-000 29741122S002 Expansion PCB XHD2-CH.PCB(V1.1) S124-428-000 29760819001 Light control PCB L-CTRL.PCB S124-407-000...
  • Page 26 Safari Ranger Manual Part No. Code Name Material S124-443-000 22601010003 Door SW SB175 S124-415-000 23305000003 Audio cable 1.8M S124-414-000 23303020001 Serial cable DB9F-DB9F(2M) S124-413-000 23307020001 DVI-DVI video cable DVI-DVI(3m) S124-417-000 20711406004 Dongle Dongle S124-409-000 21107030041 Video card GTX750 2G S124-411-000...
  • Page 27 Safari Ranger Manual 11 12 Part No. Code Name Material S124-168-000 26000057001 Speaker net light cover S124-423-000 29751301003 Speaker light PCB LED-SP.PCB(V1.0) S124-438-000 22301000001 Coin mech. S124-439-000 23100000005 Ticket dispenser CL-022Q-270 S124-113-000 20211406A003 Ticket box S124-169-000 26000057002 Speaker net light bracket...
  • Page 28 Safari Ranger Manual Part No. Code Name Material S124-430-000 29711406001 Control panel light PCB FZXLR-KTLED.PCB(V1.0) S124-449-000 21501000040 Sensor K1669 S124-466-000 23404000210 Vibration motor JFF-180 5V 0.05A W5630-LC55cm-60z/m-DC S124-445-000 22003080005 Marquee top light W5630-LC30cm-60z/m-DC S124-444-000 22003080003 Marquee side light Digital LED green light...
  • Page 29 Safari Ranger Manual 9.9 Decal Parts Part No. Code Name Material S124-701-000 20511406A001 Monitor decal 0.3 PVC S124-702-000 20511406A002 Side board top L&R decal 0.3 PVC S124-703-000 20511406A003 Side board L&R decal 0.3 PVC S124-704-000 20511406A004 Monitor bottom decal 0.3 PVC...
  • Page 30 Safari Ranger Manual Part No. Code Name Material English non-certification 110V S124-718-000 20511406A018 1mmPVC nameplate English non-certification 220V S124-719-000 20511406A019 1mmPVC nameplate English CE certification 220V S124-720-000 20511406A020 1mmPVC nameplate English TUV certification 110V S124-721-000 20511406A021 1mmPVC nameplate S124-723-000 25600000034...
  • Page 31 Safari Ranger Manual Wiring Diagram...
  • Page 32 Safari Ranger Manual...
  • Page 33 Have Questions? Contact us! www.universal-space.com International Support Center USA Support Center Tel: +1-905-477-2823 Tel: 972-241-4263 Fax: +1-905-477-2660 Fax: 214-919-4918 Email: service@universal-space.com Email:tsnelling@unisusasupportcenter.com (Contact: Clement Yau) (Contact: Tim Snelling)
