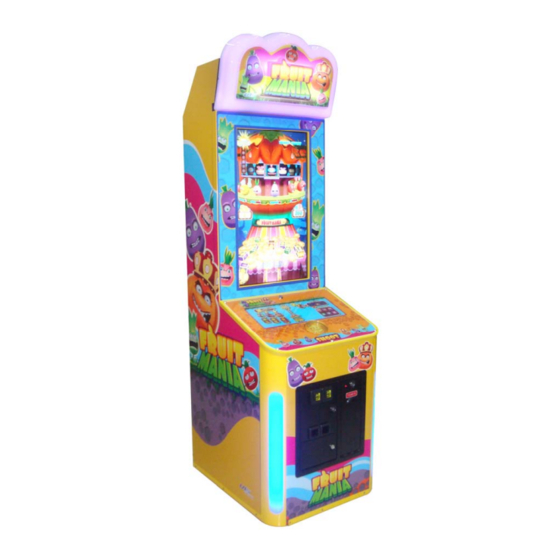

Summary of Contents for Universal Space FRUIT MANIA STD

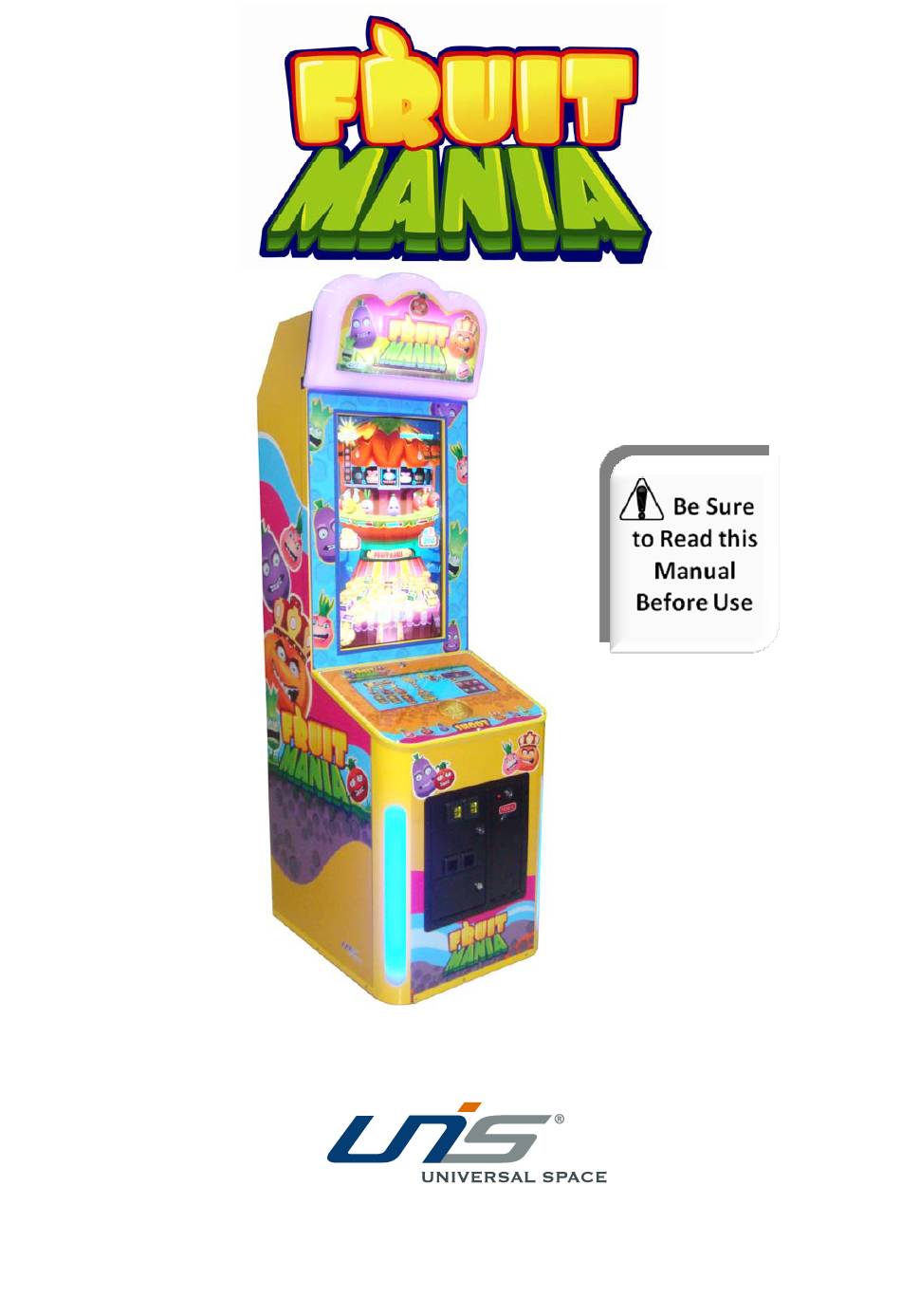

  • Page 1 Operation Manual  www.universal-space.com...

  • Page 2: Table Of Contents

    Fruit Mania Operation Manual CONTENT Important Safety Instructions ................. 2 1. SPECIFICATIONS ...................... 4 2. PACKAGE CONTENTS ....................5 3. PART NAMES ......................6 4. SET UP & INSTALLATION ..................7 5. HOW TO PLAY ......................10 6. GAME OPTIONS ..................... 12 7.

  • Page 3: Important Safety Instructions

    Fruit Mania Operation Manual Thank you for purchasing FRUIT MANIA from Universal Space. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 Fruit Mania Operation Manual This part may be hot or can cause electric shock. Do not touch. Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine.

  • Page 5: Specifications

    Fruit Mania Operation Manual 1. SPECIFICATIONS 1) Rated power supply：AC110V 50/60Hz 2) Min. Power consumption：200W 3) Max. Power consumption：250W 4) Dimensions： ：W1600xD730xH2137 (mm) 5) Weight：About 180kg NOTICE: After turning off the game, please wait at least 1 minute before restarting again. 31.41 Note: Game parameters are subject to change without notice.

  • Page 6: Package Contents

    Fruit Mania Operation Manual 2. PACKAGE CONTENTS Open the package and make sure all the items are included: • 1 x Body Assembly • Following accessories Part No. Code Name Spec. N102-430-000 23301000001 Cord 10A/250V-1.8M N102-724-000 41441202B001 Manual Chinese 2.53.00171001 N102-442-000 2.53.00000108 N102-406-000...

  • Page 7: Part Names

    Fruit Mania Operation Manual 3. PART NAME Marquee 32” Display Button Coin mech Ticket payout Cabinet...

  • Page 8: Set Up & Installation

    Fruit Mania Operation Manual 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors. Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid Place the unit on a dry level surface Ventilation openings in the back of the unit must not be obstructed by objects or by wall.
  • Page 9 Fruit Mania Operation Manual Leveler Caster About 5mm Move NOTICE Make sure the machine is level with the ground and all the adjustable legs should stick to the floor closely. 4.3 Transporting the Game If you need to move the game, adjust the levelers back to an “up” position so the casters touch the ground.
  • Page 10 Fruit Mania Operation Manual 4.4 Connecting Power WARNING: Check the voltage rating before you connect the equipment to an electrical outlet to ensure that the required voltage and frequency match the available power source. Please refer the label of the machine.

  • Page 11: How To Play

    Fruit Mania Operation Manual 5.HOW TO PLAY 5.1 User Interface A: The UI, display the current corresponding tickets of each box and gold coins. B: Lottery draw runner，it’ll start to run when be active, there’s abundant rewards for players. C: Target and target power: Shoot down the target can get different boxes with different tickets.
  • Page 12 Fruit Mania Operation Manual 5.2 Game Scene Three scenes are set for chosen Scene 0 Scene1 Scene 2 5.3 Game Play Explanation 1) Player gain gold coins after inserting coins. 2) Player shoots monsters by launching gold coins. If hit, monster’s blood could be reduced.
  • Page 13 Fruit Mania Operation Manual Explanation Pic. Green treasure box：1-30 tickets (adjustable). Purple treasure box: 1-30 tickets (adjustable) Orange treasure box：1-30 tickets (adjustable) When the result is shown above, the rewards number of 1, 2, 3, 5, 10 dropping out the pusher. When runner get to the pictures above, players can get such reward directly, rewards were numbers of 1,3,5,10,20,30,50,100,200 tickets.

  • Page 14: Game Options

    Fruit Mania Operation Manual 6. GAME OPTIONS 6.1 Main Menu Game Mode Input Test Output Test Game Reset Language Date/Time Setting Bookkeeping Daily Record Exit& Without Save Exit& Save 6.1.1 Game Mode Game Mode Free Play Tickets Out Demo Music Save Coin Volume Coins Per Round...
  • Page 15 Fruit Mania Operation Manual 6.1.2 Input Test 6.1.3 Output Test Coin Mech. 1 Manual option button Shooting light Shooting button Back Input Test. Press Esc to exit Test the hardware, if the hardware Test the shooting light; make can use normally, (Off) change to sure it can work normally.

  • Page 16: System Recovery

    Fruit Mania Operation Manual 7. ERROR MESSAGE AND RECOVERY 7.1 Error Message Symptom: Screen displays message “Communication ERROR” (there is communication problem with the game) Possible Causes & Fixes: • Communication data wire is damaged Replace the data wire. • SCM is not working Ask your technician to check and repair •...

  • Page 17: Maintenance, Inspection

    Fruit Mania Operation Manual 8. MAINTENANCE, INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.

  • Page 18: Overall Construction

    Fruit Mania Operation Manual 9. OVERALL CONSTRUCTION 9.1 Wooden Box...
  • Page 19 Fruit Mania Operation Manual Part No. Code Name N102-501-000 20341202A001 R-side board N102-502-000 20341202A002 L-side board N102-503-000 20241202A003 Bottom board N102-504-000 20341202A003 Monitor stand board N102-505-000 20341202A004 Control panel N102-506-000 20341202A005 Back side board 1 N102-507-000 20341202A006 Back door board 1 N102-508-000 20341202A007 Back door board 2...
  • Page 20 Fruit Mania Operation Manual 9.2 Main assembly...
  • Page 21 Fruit Mania Operation Manual Part No. Draw No. Name N102-202-000 20241202A005 Light bar install board N102-601-000 20241202A006 PC sponge washer N102-203-000 20241202A007 PC back block N102-204-000 20241202A008 PC front block N102-205-000 20241202A009 PC fix base N102-405-000 20241202A030 Triangle coin door N102-206-000 20241202A010 Ticket box...
  • Page 22 Fruit Mania Operation Manual 9.3 Button assembly Part No. Code Name N102-609-000 20641202A006 Bumper block N102-219-000 20241202A023 Button fix base N102-220-000 20241202A024 Micro fix board N102-221-000 20241202A025 Back-moving spring N102-610-000 20641202A007 Gold coin button 9.4 Marquee assembly Part No. Code Name N102-222-000 20241202A026...
  • Page 23 Fruit Mania Operation Manual 9.5 Electric parts Part No. Draw No. Name N102-408-000 21101000010 Dell PC N102-409-000 21602000004 SW power box N102-410-000 21107020036 Dongle N102-411-000 21107030019 PC video card Three-dimensional audio N102-412-000 23305000003 cable N102-413-000 23307000015 DVI-DVI video cable N102-414-000 23303000001 Serial cable N102-415-000...
  • Page 24 Fruit Mania Operation Manual Part No. Code Name N102-804-000 20740930001 PCB board N102-418-000 22801000005 Speaker N102-419-000 22301000007 Coin mech N102-420-000 23100000005 Ticket dispenser N102-421-000 22003000018 LED bulb N102-422-000 22003000075 Red light Part No. Code Name N102-423-000 23000000006 Meter N102-424-000 22402010002 Button N102-425-000 22402030002...
  • Page 25 Fruit Mania Operation Manual Part No. Code Name N102-435-000 21201032007 32” LCD N102-436-000 22702000010 Exhaust fan net N102-437-000 22702000020 Exhaust fan N102-438-000 21704000222 With glue tank light board N102-439-000 22002013004 LED light bar...
  • Page 26 Fruit Mania Operation Manual 10. DECALS Part No. Code Name N102-701-000 20541202A001 Control panel decal N102-702-000 20541202A002 Button decal N102-703-000 20541202A003 Marquee decal N102-704-000 20541202A004 Monitor decal N102-705-000 20541202A005 R-side decal N102-706-000 20541202A006 L-side decal N102-707-000 20541202A007 Coin door decal...
  • Page 27 Fruit Mania Operation Manual Part No. Code Name Without certification 110V N102-708-000 20541202A008 nameplate N102-709-000 25601000036 High voltage(small) N102-710-000 25601000018 Power switch B N102-711-000 25601000003 Volume label N102-712-000 25600000040 Label 110V N102-713-000 25601000014 Fuse T10A N102-714-000 25601000001 Coins meter label N102-715-000 25601000002 Ticket meter label...
  • Page 28 Fruit Mania Operation Manual NGDBY-PX-03 AMP POWER...
  • Page 29 Fruit Mania Operation Manual Have Questions? Contact us! www.zs-shiyu.com www.universal-space.com Canada Office Parts & Service +1-905-477-2823 Email: service@universal-space.com...
