IMPORTANT
www.universal-space.com
NOTE: Some portions of assembly may require additional assistance.
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COCONUT BASH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Universal Space COCONUT BASH

Summary of Contents for Universal Space COCONUT BASH

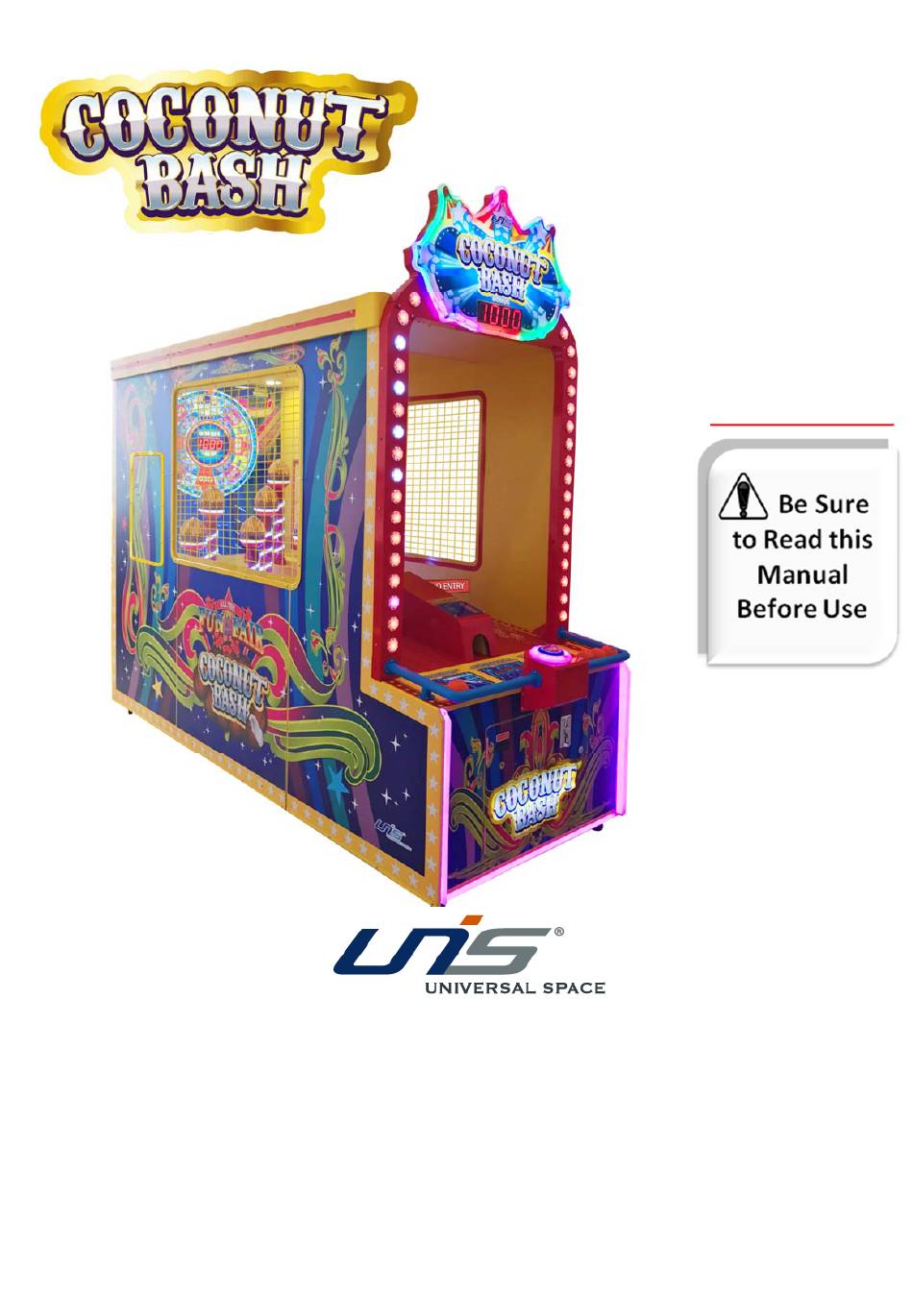

  • Page 1 IMPORTANT www.universal-space.com NOTE: Some portions of assembly may require additional assistance. Operation Manual...
  • Page 2 Coconut Bash WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Fax: 214-919-4918 Email:service@unisusasupportcenter.com 09/21/2018...

  • Page 3: Table Of Contents

    Coconut Bash CONTENT IMPORTANT SAFETY INSTRUCTIONS..............2 1. SPECIFICATIONS ..................... 5 2. CONTENTS OF THE ACCESSORY KIT ..............8 3. PART NAME ......................12 4. SET UP & INSTALLATION ..................13 5. HOW TO PLAY ......................31 6. IO SETTING ......................32 7.
  • Page 4 Coconut Bash Coconut Bash. Thank you for purchasing We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Coconut Bash Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Coconut Bash 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz Min. Power consumption: 200W Max. Power consumption: 320W Single ver. dimension: W44.5×D122.2×H105.2(in) W1132×D3105×H2672 (mm) Twin ver. dimension: W89.1×D122.2×H112.3(in) W2264×D3105×H2854 (mm) Single ver. weight：Approximately 970 lb Part No: C146 Model No: A-414...
  • Page 7 Coconut Bash Twin ver. dimension: Note: Game specifications are subject to change without notice. 09/21/2018...
  • Page 8 Coconut Bash This machine will be divided into two parts during transportation. Front part: W43.6×D55×H84.5 (in) W1107×D1399×H2146 (mm) Back part: W43.4×D38.7×H84.4 (in) W1102×D983×H2145(mm) Note: Game specifications are subject to change without notice. 09/21/2018...

  • Page 9: Contents Of The Accessory Kit

    Coconut Bash CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included： 1. Following accessories: Part No. Code Name Picture Note C146-244-000 20611702022 Ball C146-245-000 25300171002 C146-246-000 25300172002 C146-243-000 41440000251A Manual C146-409-000 21901000013 Fuse...
  • Page 10 Coconut Bash Part No. Code Name Picture Note Cross To install L&R 10 C146-250-000 20101000116 recessed pan windows head screw Hexagon socket To install the 11 C146-251-000 20101040011 button head ball track screws Cross To install 12 C146-252-000 20101100020 recessed pan...
  • Page 11 Coconut Bash 2. Component & hardware for installation： Part No. Code Name Picture Middle bottom part Send ball assy. C146-174-000 20211702033 L baffle 2 C146-176-000 20211702035 R baffle 2 4 C146-109-001 20311702044 Middle top cover plate Middle L part Ball track assy.
  • Page 12 Coconut Bash Part No. Code Name Picture Middle R part R side bar L side bar L&R window assy. Front marquee assy. Large marquee assy. 14 C146-241-000 20211702123 Back bottom plate NOTE: Part models are subject to change without notice.

  • Page 13: Part Name

    Coconut Bash 3. PART NAME Key Components Front marquee assy. Coconut rebound assy. Wheel assy. Ball out assy. Wheel stop button Coin mech assy. Ticket windows dispenser assy. Ball exit 09/21/2018...

  • Page 14: Set Up & Installation

    Coconut Bash 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid ...
  • Page 15 Coconut Bash 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 11.8 in Service area Play area NOTICE Your unit must be leveled to operate properly.
  • Page 16 Coconut Bash 4.4 Machine Installation Before processing with assembly assure you have the following tools. Name Picture Use for Phillips screwdriver For Marquee Installation&Connect Wrench Lane Assembly Connect Lane Assembly Allen hexagon wrenches & Display Assembly 09/21/2018...
  • Page 17 Coconut Bash 4.4.1 Part No. Code Name Picture 1 C146-255-000 20104020004 Cross recessed hexagon screw kit Middle bottom part SPEC. M6X25 Qty. Middle bottom part 09/21/2018...
  • Page 18 Coconut Bash 4.4.2 Part No. Code Name Picture Cross recessed hexagon 1 C146-254-000 20104020002 screw kit Send ball assy. Send ball assy. SPEC. M6X16 Qty. 09/21/2018...
  • Page 19 Coconut Bash 4.4.3 Part No. Code Name Picture 1 C146-257-000 20102020030 Hexagon flange nut 2 C146-174-000 20211702033 L baffle 2 3 C146-176-000 20211702035 R baffle 2 L/R baffle 2 SPEC. Qty. 09/21/2018...
  • Page 20 Coconut Bash 4.4.4 Part No. Code Name Picture Cross recessed pan head screw 1 C146-249-000 20101020041 2 C146-109-001 20311702044 Middle top cover plate SPEC. M5X12 Qty. Middle top cover plate 09/21/2018...
  • Page 21 Coconut Bash 4.4.5 Part No. Code Name Picture Cross recessed pan head 1 C146-252-000 20101100020 screw Middle L part Middle L part SPEC. M5X25 Qty. 09/21/2018...
  • Page 22 Coconut Bash 4.4.6 Part No. Code Name Picture 2 C146-251-000 20101040011 Hexagon socket button head screws Ball track assy SPEC. M5X25 Qty. Ball track assy. 09/21/2018...
  • Page 23 Coconut Bash 4.4.7 Part No. Code Name Picture Hexagon socket button head C146-247-000 20101040066 screws C146-232-000 20211702074 Ball track back cover SPEC. M4X10 Qty. Ball track back cover 09/21/2018...
  • Page 24 Coconut Bash 4.4.8 Part No. Code Name Picture 1 C146-252-000 20101100020 Cross recessed pan head screw Middle R part SPEC. M5X25 Qty. Middle R part 09/21/2018...
  • Page 25 Coconut Bash 4.4.9 Part No. Code Name Picture Cross recessed pan head 1 C146-253-000 20101000117 screw R side bar R side bar SPEC. M5X30 Qty. 09/21/2018...
  • Page 26 Coconut Bash 4.4.10 Part No. Code Name Picture Cross recessed pan head 1 C146-253-000 20101000117 screw L side bar L side bar SPEC. M5X30 Qty. 09/21/2018...
  • Page 27 Coconut Bash 4.4.11 Part No. Code Name Picture 1 C146-250-000 20101000116 Cross recessed pan head screw L/R window assy. 09/21/2018...
  • Page 28 Coconut Bash 4.4.12 Part No. Code Name Picture 1 C146-256-000 20101108005 Hexagon socket button head screws 2 C146-248-000 20101040171 Hexagon socket button head screws Front marquee assy. SPEC. M5X10 SPEC. M6X25 Qty. Qty. Front marquee assy. 09/21/2018...
  • Page 29 Coconut Bash 4.4.13 Part No. Code Name Picture Cross recessed hexagon screw 1 C146-255-000 20104020004 Large marquee assy. Large marquee assy. SPEC. M6X25 Qty. 09/21/2018...
  • Page 30 Coconut Bash 4.4.14 Part No. Code Name Picture Cross recessed hexagon screw 1 C146-254-000 20104020002 2 C146-241-000 20211702123 Back bottom plate SPEC. M6X16 Qty. Back bottom plate 09/21/2018...
  • Page 31 Coconut Bash Part No. Code Name Picture Linking cable 09/21/2018...

  • Page 32: How To Play

    Coconut Bash 5. HOW TO PLAY 09/21/2018...

  • Page 33: Io Setting

    Coconut Bash 6. IO SETTING INPUT: INPUT Content INPUT Content INPUT Content IN1 1 Pole score sensor IN9 5 Pole score sensor IN17 Start btn 1 Pole reset sensor IN10 5 Pole reset sensor IN18 Anti-cheating sensor 18 IN3 2 Pole score sensor IN11 6 Pole score sensor...
  • Page 34 Coconut Bash OUTPUT Content OUT25 J25-T2_OUT J25-T1_OUT Tik drive J26-CNT3 J26-CNT2 Tik meter J26-CNT1 Coin meter J27-C_CLK2 J27-C_CLK1 Lock coin signal Note:OUT1 - OUT8IRF540---Output OUT9 - OUT16 TIP12---Output OUT17 -OUT32ULN280---Output, OUT26 - OUT32---fix output Expansion Board output: OUTPUT Content OUTPUT...
  • Page 35 Coconut Bash Setting： Long press Settings button enter into setting menu, short press the Settings button to choose the item, Test button+, Reset button-. Settings btn Description Defaults Test btn A.001 Game version 1=Chinese ver./2=GMP/3=UK +1loop A.002 Coin(s) per game...
  • Page 36 Coconut Bash Long press the Reset button to clear the owed tik Long press the Test button to clear the error Ticket group**： Group 0-49 50-99 100-299 300-499 500-699 700-999 1000-1999 Group 1 Group 2 Group 3 Group 4 Group 5...
  • Page 37 Coconut Bash Wheel score position picture Stand-alone interface board: AD PART: ITEM Content Content ITEM Content Content Display-GND +3.3V (A/D)0 PWM1 Marquee AD0 Wheel motor (J3) Front frame PWM2 light PWM1-6 PWM3 Link marquee Communication : (J15) PWM4 Display LAT...
  • Page 38 Coconut Bash Linking 1. Utilize linking cable to connect two cabinets.(Link1 and Link2 are both available.) 2. Set one cabinet to be the host. Long press Settings button to enter into setting menu, short press the Settings button to choose the item, Test button+, Reset button-. Choose “A.018”...

  • Page 39: Trouble Shootings

    Coconut Bash 7. TROUBLE SHOOTINGS 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service. Turn on power SW again. If appeared...

  • Page 40: Maintenance & Inspection

    Coconut Bash 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition 3.
  • Page 41 Coconut Bash 8.3 Lane Maintenance 2. Adjust wing screw direction to move the fixed plate to make the belt tight; if in CCW direction, the belt will become 1. Loosen the nuts in loose. CCW direction. 09/21/2018...
  • Page 42 Coconut Bash 1.Loosen the nuts in CCW direction. 2.Adjust wing screw in CW direction to move the fixed plate to make the belt tight; if in CCW direction, the belt will become loose. 09/21/2018...
  • Page 43 Coconut Bash 8.4 Coconut Height Adjustment Loosen the screw to adjust rod and plate up and down. 09/21/2018...

  • Page 44: Overall Construction

    Coconut Bash 9. OVERALL CONSTRUCTION 9.1 Front part Part No. Code No. Name 1 C146-728-000 20511702014 Control panel decal 2 C146-137-000 20211702091 Front door L bracket 3 C146-136-000 20211702090 Front door R bracket 4 C146-449-000 22003080001 5630 light 5 C146-475-000 25300172001...
  • Page 45 Coconut Bash Part No. Code No. Name C146-145-000 20211702096 Front L reinforced plate C146-146-000 20211702097 Front R reinforced plate C146-602-001 20211702078A L fender C146-603-001 20211702079A R fender C146-104-000 26000010000 Cabinet leveller bracket C146-103-000 26000008000 Cabinet leveller C146-476-000 25501000056 2.5' caster...
  • Page 46 Coconut Bash 9.2 Middle part No. Part No. Code No. Name 1 C146-220-000 20211702063 Middle support plate 2 C146-113-000 20211702006 Bottom middle connect plate 3 C146-222-000 20211702065 T molding 4 C146-219-000 20211702062 Middle connect plate 5 C146-115-000 20211702008 Middle back connect plate...
  • Page 47 Coconut Bash 9.3 Back part No. Part No. Code No. Name 1 C146-119-000 20211702012 Bottom fix bracket 2 C146-607-000 20611702016 Baffle 3 C146-101-000 20211603D104A Relay bracket 4 C146-128-000 20211702086 Power supply bracket 5 C146-127-000 20211702020 Small ball plate 6 C146-126-000 20211702019...
  • Page 48 Coconut Bash No. Part No. Code No. Name C146-104-000 26000010000 Cabinet leveller bracket C146-103-000 26000008000 Cabinet leveller C146-476-000 25501000056 2.5' caster 18 C146-139-000 20211702026 T molding 19 C146-101-000 20211603D104A Relay bracket 20 C146-138-000 20211702025 T molding 21 C146-128-000 20211702086 Power supply bracket...
  • Page 49 Coconut Bash No. Part No. Code No. Name C146-611-000 20611702B001 Clear light plastic C146-150-000 20611702007 Coconut fix post C146-151-000 20611702008 Fix bracket-L C146-152-000 20611702009 Fix bracket-R 3 C146-463-000 20106000002 BR 4 C146-162-000 20211702082 Ball pushing rod 5 C146-154-000 20211702112 Pushing rod spindle...
  • Page 50 Coconut Bash 9.5 Send ball assy. No. Part No. Code No. Name 1 C146-186-000 20211702116 Driven synchronous wheel 2 C146-187-000 20211702117 Driving synchronous wheel 3 C146-176-000 20211702035 R baffle 2 4 C146-181-000 20211702102 Top motor fix plate 5 C146-175-000 20211702034 R baffle 1...
  • Page 51 Coconut Bash 9.6 Wheel assy. No. Part No. Code No. Name 1 C146-194-000 20211702047 Inside axle sleeve bracket 2 C146-201-000 20211702119 Driving synchronous wheel 3 C146-200-000 20211702118 Driven synchronous wheel 4 C146-196-000 20211702104 Turnplate motor mounting plate 5 C146-192-000 20211702046 Inside axle sleeve...
  • Page 52 Coconut Bash 9.7 Front marquee No. Part No. Code No. Name C146-209-000 20211702056 Base-L C146-210-000 20211702057 Base-R 2 C146-453-000 22003130002 JN55 light C146-204-000 20211702051 Front light plastic-L C146-205-000 20211702052 Front light plastic-R 4 C146-207-000 20211702054 Front light cover 5 C146-211-000 20211702107 Front light sensor plate...
  • Page 53 Coconut Bash 9.8 Shake ball assy. No. Part No. Code No. Name 1 C146-215-000 20211702060 Shake ball plate 2 C146-218-000 20211702114 Adjustable axle sleeve 3 C146-217-000 20211702085 Rod 4 C146-216-000 20211702061 Eccentric shaft 5 C146-214-000 20211702108 Motor base 6 C146-478-000 26300020034 Hinge...
  • Page 54 Coconut Bash 9.9 Front light No. Part No. Code No. Name 1 C146-225-000 20211702068 Front light plate 2 C146-618-000 20611702005 Front light plastic 9.10 Bonus button No. Part No. Code No. Name 1 C146-226-000 20211702069 Button box 2 C146-619-000 20611702006 Button box plastic...
  • Page 55 Coconut Bash 9.11 Pointing arrow No. Part No. Code No. Name 1 C146-227-000 20211702070 Arrow fix plate 2 C146-620-000 20611702018 Arrow 9.12 L/R windows 09/21/2018...
  • Page 56 Coconut Bash No. Part No. Code No. Name C146-265-000 20211702137 L&R window net C146-230-001 20211702072A Window frame up&dn fix plate 2 C146-231-000 20211702073 Window frame L&R fix plate 9.13 Ball out assy. No. Part No. Code No. Name 1 C146-234-000 20211702110 Metal plate 2...
  • Page 57 Coconut Bash 9.14 Backdoor No. Part No. Code No. Name 1 C146-235-000 20211702076 Service door frame 2 C146-236-000 20211702077 Service door 3 C146-264-000 20211702138 Service door bar 09/21/2018...
  • Page 58 Coconut Bash 9.15 Large marquee No. Part No. Code No. Name 1 C146-720-000 20511702006 Large marquee decal 2 C146-238-000 20611702020 Large marquee plastic 3 C146-239-000 20211702121 Large marquee bracket 4 C146-501-000 29911702021 Large marquee back plate 5 C146-237-000 20211702120 Marquee back bracket...
  • Page 59 Coconut Bash 9.16 Sensor bar assy. No. Part No. Code No. Name 1 C146-260-000 20211702B005 Sensor cover 2 C146-261-000 20211702B006 Sensor plate C146-262-000 20211702B003 Sensor L box C146-263-000 20211702B004 Sensor R box 09/21/2018...
  • Page 60 Coconut Bash Artwork part No. Part No. Code No. Name 1 C146-733-000 20511702019 Turntable score decal 2 C146-714-000 20511702001 Main decal 3 C146-730-000 20511702016 Top decal 4 C146-724-000 20511702010 L side back decal 5 C146-723-000 20511702B009 L side middle decal...
  • Page 61 Coconut Bash Part No. Code No. Name 1 C146-701-000 25600000101 Meter label 2 C146-704-000 25600000033 No touching label 3 C146-713-000 25600000095 Service label 4 C146-707-000 25600000067 Service label 5 C146-706-000 25600000042 Service label 1 6 C146-739-000 20511702025 Link label 7 C146-737-000 20511702023 Wiring label...
  • Page 62 Coconut Bash No. Part No. Code No. Name 1 C146-720-000 20511702006 Large marquee decal No. Part No. Code No. Name 1 C146-744-000 20511702029 No Entry decal 09/21/2018...
  • Page 63 Coconut Bash Electrical part No. Part No. Code No. Name 1 C146-431-000 29711702003 Music board 2 C146-401-000 29711702007 M3 main board 3 C146-486-000 22900000004 Step motor drive 4 C146-402-000 29711702008 M3 expand board C146-403-000 21602000103 Power supply C146-404-000 21602000095 Power supply...
  • Page 64 Coconut Bash No. Part No. Code No. Name 1 C146-434-000 29711702006 fuse board 2 C146-433-000 29711702005 fuse board 3 C146-457-000 21412020009 Converted port 4 C146-424-000 22702010025 Fan 5 C146-427-000 22140000005 Relay 09/21/2018...
  • Page 65 Coconut Bash No. Part No. Code No. Name 1 C146-430-000 29711702002 sensor board C146-442-000 21503000052 Sensor SW(send) C146-443-000 21503000053 Sensor SW(receive) 3 C146-487-000 21501000047 Sensor 09/21/2018...
  • Page 66 Coconut Bash No. Part No. Code No. Name 1 C146-460-000 21602000076 Power supply 2 C146-437-000 29790700002 Ticket converted board 3 C146-422-000 22301000002 Coin mech 4 C146-423-000 23100000005 Ticket dispenser 5 C146-414-000 23000000006 Meter 09/21/2018...
  • Page 67 Coconut Bash 09/21/2018...
  • Page 68 Coconut Bash No. Part No. Code No. Name C146-450-000 22003080017 5630 light C146-451-000 22003080018 5630 light C146-444-000 22002016026 IC2811 light C146-440-000 29741614004 4 bit display 2 C146-453-000 22003130002 JN55 light 3 C146-438-000 29741213010 PCB board C146-448-000 22003080003 5630 light C146-447-000 22003080004 5630 light...

  • Page 69: Wiring Diagram

    Coconut Bash 10. WIRING DIAGRAM Power box 60Px2 45Qx2+45P 10Px2 09/21/2018...
  • Page 70 Coconut Bash 09/21/2018...
