Step 3 -- VPN Setup

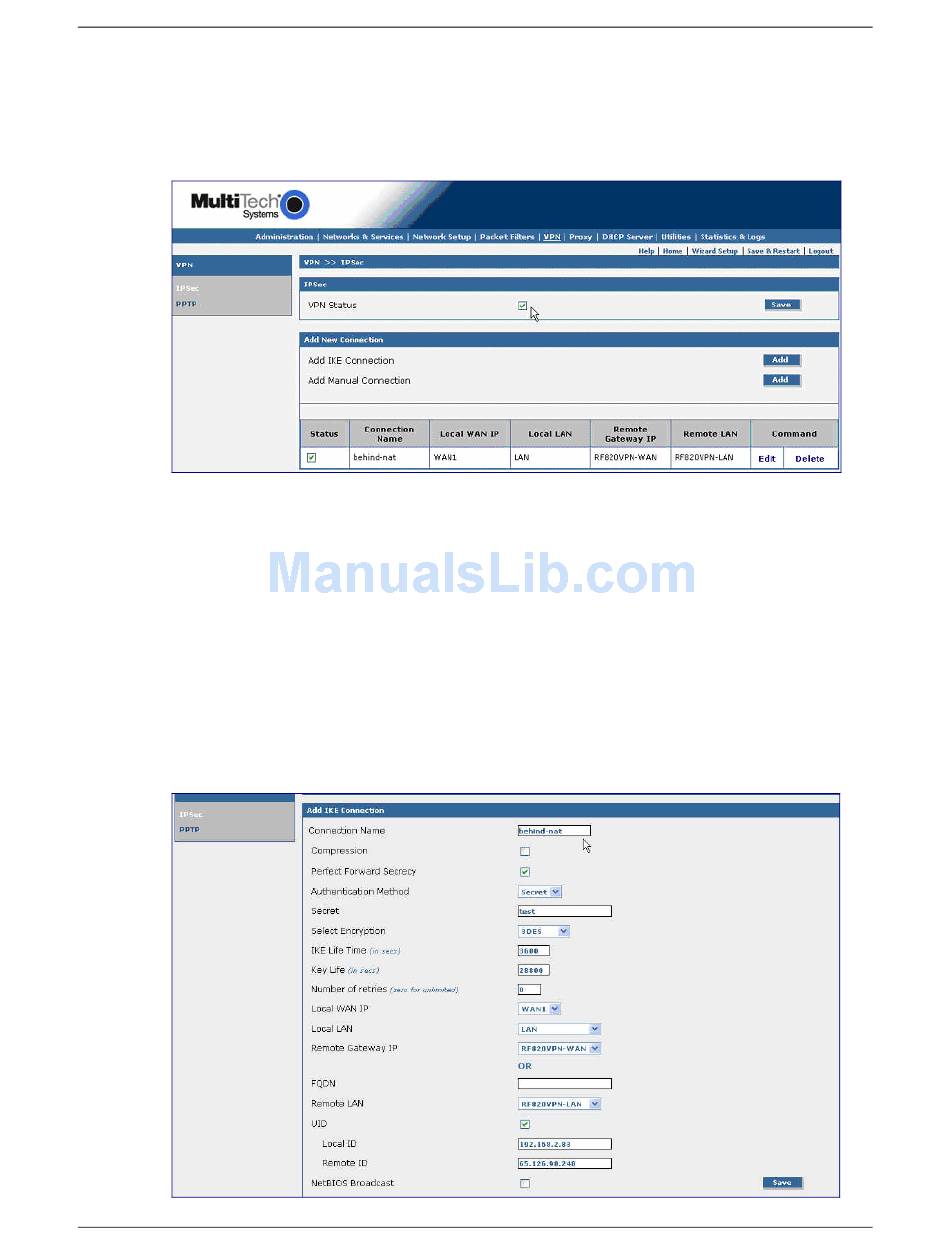

1. Go to the VPN > IPSec screen.
2. Click on the VPN Status check box to enable IPSec. Then click the Save button.
3. Select Add an IKE Connection by clicking the corresponding Add button.
The Add an IKE Connection screen displays. All settings can be left at the default unless
otherwise indicated:
1. Connection Name: Enter in the name of the VPN tunnel you want to create
2. Secret: Enter in the Secret (which has to match on both ends of the tunnel)
3. Local WAN IP: Select WAN1
4. Local LAN: Select LAN
5. Remote LAN: Select RF820VPN-LAN. (Any if unknown or the name you created for the
static IP)
6. UID: Click the UID checkbox to enable UID.
7. Local ID: Enter the IP Address of the RouteFinder's WAN IP.
8. Remote ID: Enter IP Address of the remote device that is at the other end of the VPN
tunnel.
9. Click the Save button to save your tunnel.
