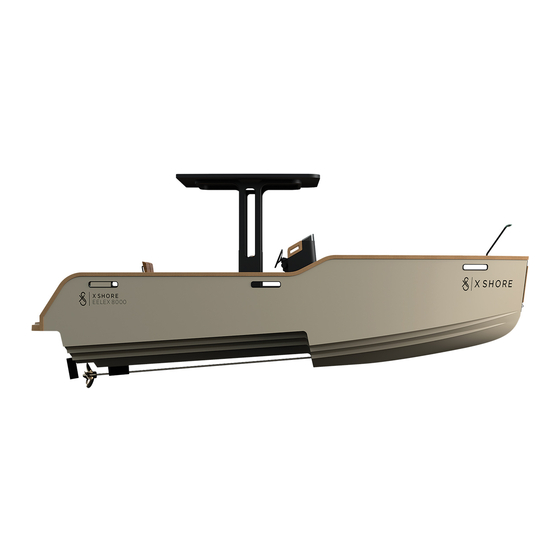

X SHORE EELEX 8000 Owner's Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

OWNERS MANUAL

EELEX 8000

Table of Contents

Summary of Contents for X SHORE EELEX 8000

Page 1 OWNERS MANUAL EELEX 8000...
Page 2 Congratulations. You are now the owner of the innovative and cutting edge Eelex 8000. We thank you for choosing an X Shore craft and wish you many enjoyable and sustainable moments at sea. In this owners manual you will find valuable information that will help you handle and maintain your boat in a safe and easy manner.
Page 3: Table Of Contents
Table of contents Getting to know Eelex 8000 ........18 Introduction ..............5 Modules (additional choice) ..........19 Passenger seating..............19 About this manual ..............5 Controls overview ..............20 Boat identification..............5 Standard features of the touchscreen......21 ...
Page 4 Stability and buoyancy ...............39 Switch panel....................59 Before leaving harbor................39 Fuses in the console ................60 When leaving the jetty................40 Fuses in the pump control cabinet ..........61 Avoid certain areas while the boat is under way......40 ...
Page 5: Introduction
X Shore or your boat dealer, or downloaded from xshore.com This owner's manual is not a detailed maintenance or trouble-shooting guide. In the case of difficulty, contact X Shore or any representative from X Shore. Boat identification Eelex 8000 Boat model X Shore Name of boat manufacturer...
Page 6: Responsibilities Of Owner And Operator
A NAME OF BOAT C WATERCRAFT MANUFACTURER IDENTIFICATION NUMBER B TYPE OF BOAT Responsibilities of owner and operator The boat owner must take local and international regulations into consideration concerning the boat crew, equipment, and handling of the boat.
Page 7 • Follow the rules of the road and the Convention of International Regulations for Preventing Collisions at Sea (COLREG). • Always adjust the speed and direction of the craft to sea conditions. • Keep a sharp lookout for people and objects in the water. •...
Page 8: Additional Manuals
Inspect the craft regularly especially after any kind of suspected damage. Any craft, no matter how strong it may be, can be severely damaged if not used properly. Additional manuals Your Eelex 8000 comes supplied with the manuals for the following third-party components. • Garmin Display (GPS Map 2474) •...
Page 9: Safety
Safety. Carefully read the instructions in this manual, and make sure you understand the described hazards before you operate or handle this boat. Admonitions in the manual DANGER! Indicates a situation that, if not avoided, results in death or serious injury. Indicates a hazardous situation which, if not avoided, could result in death or serious WARNING! injury.
Page 10: Safety Labels
E EXPANSION TANK FOR COOLING SYSTEM OF DRIVETRAIN F PUMP CONTROL CABINET G SIGNAL CABINET Safety equipment Your Eelex 8000 comes with a number of safety features and has the space for stowing a life raft.
Page 11: Design Category And Ce Marking
A EMERGENCY SHUTDOWN B HANDHELD FIRE EXTINGUISHER C EXPANDABLE SWIM LADDER D HANDLES E SUGGESTED STORAGE SPACE FOR LIFE RAFT (NOT INCLUDED) Design category and CE marking This craft carries the CE-mark to show compliance with the applicable EU directives and regulations about health, environment, and safety.
Page 12: Builder's Plate
Builder’s plate The builder’s plate is affixed on the craft. For full explanations of the information on the plate, see the relevant sections of this manual. A NAME OF MANUFACTURER B BOAT MODEL C CE MARKING ...
Page 13: Use A Life Raft
Use a life raft Switch off the boat motor. 2. Tie the life raft to the stern of the boat. 3. Prepare the life raft for use, following the instructions of use from the manufacturer. 4. Load the life raft through the swimming deck. 5.
Page 14: Grounding
NOTE Make sure that the handheld fire extinguisher is refilled or replaced after use. Grounding In the event of grounding, do the following: Immediately make a visual inspection internally. 2. Consider a haul out and external inspection as soon as practical and discuss with a marine professional to determine whether a survey of the affected area of the boat and any repair actions are required.
Page 15: Manual Switch For The Bilge Pump
All navigation lights are active. Use when the boat is in the dark. Running light Manual switch for the bilge pump A ON (FORCED) B AUTOMATIC (DEFAULT) Person overboard WARNING A revolving propeller is life-threatening to a swimmer or a person who has fallen overboard. Turn off the motor when someone is in the water near the boat or climbing the swim ladder.
Page 16: Technical Specifications
Technical specifications. Dimensions Length of Hull 7.95 m Length on waterline 7.40 m Length - maximum overall 8.02 m Beam of hull 2.58 m Beam on waterline 2.34 m Beam - maximum 2.58 m β Deadrise Angle 15.50 m Freeboard forward 1.42 m Freeboard amidships 1.12 m Freeboard aft 1.10 m Maximum draft 0.71 m...
Page 17 Mass of baggage and other carry-ons 50 kg Maximum weight of life raft 32 kg Weight of empty craft and laden craft Empty craft (empty craft condition according to ISO 2 518 kg 12217-1) Craft with standard equipment (light craft condition 2 518 kg according to ISO 12217-1) Craft with standard equipment and maximum load from 3 350 kg the builder’s plate...
Page 18: Getting To Know Eelex 8000
Getting to know Eelex 8000. A SEAWATER FILTER E EXPANSION TANKS OF LANTERN M PROPELLER AND SHAFT THE COOLING SYSTEMS B HIGH-VOLTAGE F NAVIGATION LIGHT ANCHOR AND ROPE N DRIVETRAIN LITHIUM-ION BATTERIES C POWER ELECTRONICS G STEERING CONSOLE...
Page 19: Modules (Additional Choice)
Modules (additional choice) The modular interior layout system lets you adapt your boat for different activities. The following illustrations show one possible layout. A SOFA B STORAGE SPACE C TABLE WITH CUPHOLDERS AND TELESCOPIC LEGS ...
Page 20: Controls Overview
A SEATING WITHOUT SOFA AND TABLE B SEATING WITH SOFAS AND TABLE Controls overview The controls of the boat are easy to access and manage from the steering console. What controls are available depends on what optional equipment that is installed on the boat. For more information on installed optional equipment, see the manual(s) of the equipment.
Page 21: Standard Features Of The Touchscreen
A TOUCHSCREEN B STEERING WHEEL WITH CONTROLS C BOW THRUSTER CONTROL D EMERGENCY SHUTDOWN E ACTIVATION BUTTON F ELECTRIC THROTTLE CONTROL G LOCK Standard features of the touchscreen Your touchscreen is a Garmin 8424 Multi-Function Display that is configured and set up to your requirements.
Page 22: Turn On And Turn Off The Touchscreen
Turn on and turn off the touchscreen The screen will adjust its brightness automatically. You can also adjust it manually. Press and hold the power button on the bottom right corner of the frame of the touchscreen. The touchscreen turns on or turns off. Set the brightness of the touchscreen The brightness of the screen will be adjusted automatically.
Page 23: Before First Use
Before first use. Pair your boat with your Captain’s watch (Optional) NOTE Please note that you need to be within 10 meters of the boat for the watch and the boat to communicate. Access the X Shore app on the Captain’s watch. 2.
Page 24 • Knife in protective sheath • Drinking water...
Page 25: Starting Up And Shutting Down The Boat
• Never step onto the swim ladder when the motor is running. You can unlock or shut down your Eelex 8000 using the key, the X Shore web app, or the Captain’s watch (optional accessory). The motor is activated separetely using the Activation button.
Page 26: Shut Down The Boat
Shut down using X Shore app on the Captain’s watch The Captain’s watch is an optional accessory for Eelex 8000. Please note that the watch and the boat must be paired and within 10 meters of each other to communicate. See Pair your boat with your Captain’s watch (Optional), page 23 On the watch, access the X Shore app.
Page 27 Shut down using the Captain’s watch Hold down the Activation button for 3 seconds. The motor is inactivated. 2. Lose the connection between boat and watch by walking more than 10 meters away from the boat. The boat shuts down.
Page 28: Charging
Your boat is provided with the most common adapter(s) for the region where the boat was put on the market. To prevent unauthorized unplugging of the charging cable, the latch of the cable remains locked while the Eelex 8000 system is turned off.
Page 29: Charge The Boat Continuously In Cold Weather
Locate the charging port on the side of the steering console. 2. Dock the boat securely and make sure the charging cable reaches the charging port. Do not shut down the boat. 3. If using the charge cable included with the boat, connect the charge cable to a power source. 4.
Page 30: Controls
H AUDIO MUTE Controls and X Shore information Via the touchscreen home view you can access three X Shore views: one boat overview and two navigational views. An X Shore panel is included in the navigational views. From the tabs of the X Shore panel you can control most of the features of your boat and see the current boat status...
Page 31: Shore Panel
This view is helpful during charging. It Boat overview shows the charging state of your Eelex (X Shore button in Home view) as well as the temperature of the charger, battery, motor, and water. The Navigate view shows a standard Navigate top-down map and the X Shore panel.
Page 32 Drive Tab Drive Tab – Range Extender Mode Information: • Top: battery state of Notification view to show charge, range. that the range extender mode is active. • Compass circle: power, Information: speed, depth, and, when •...
Page 33 Drive Tab – Idle Audio Tab Notification Quick and easy control of Notification view to alert your audio. you when the motor is on • Adjust volume but not used. This is to •...
Page 34 Lights Tab Motor and Pumps Tab Quick control of all lights on Control of motor, pumps, your Eelex. and battery heater On / off switches: Controls: • Anchor lights • Activate / deactivate range extender mode •...
Page 35 Charging Tab Temperatures Tab Control: Information: • Charging, start / stop • Battery, lowest temperature Information: • Battery, highest • Charging status (hours to temperature full charge, charging speed, charging rate, • External water temperature) temperature •...
Page 36 Information Tab Information Tab– Errors From here you can restart Error notification. If the 4G connection. something does not work Status for: properly, an error message • System and the suggested solution is shown on the information •...
Page 37 Information Tab– Alerts Alert notification. If your attention is needed, an alert and the suggested solution is shown on the information tab. Alerts are shown for the following: • Battery • Performance • Power system • Temperature •...
Page 38: Handling The Boat
Handling the boat. Considerations when operating the boat General considerations When you drive your boat, always follow the rules of navigation and the requirements of the Convention of International Regulations for Preventing Collisions at Sea (COLREG). Going out in a motorboat involves a responsibility, not just to those on board but also to others we meet on the water. Showing consideration for others makes boating comfortable.
Page 39: Stability And Buoyancy
WARNING • Do not exceed the maximum recommended number of persons on board. • Regardless of the number of persons on board, the total mass of persons and equipment must never exceed the maximum recommended load. • Always use the seats / occupancy areas provided. CAUTION •...
Page 40: When Leaving The Jetty
When driving at high speed Although Eelex 8000 has passed the CE requirements for swerve tests at full speed, we do not recommend making sharp turns at high speed. When exceeding a certain speed limit passengers may loose footing or grip and be thrown from the boat.
Page 41: When Driving In Rough Seas
Avoid sudden steering maneuvers at high speeds. • The turning radius is affected by the direction of rotation of the propeller. The propeller of Eelex 8000 is right-handed, which results in a smaller turning radius to port than to starboard.
Page 42: When Maneuvering In Narrow Channels
In a head sea Adjust speed to suit the size of the waves. In a following sea Planing boats can be particularly exposed in rough following seas. The stern of the boat rises, and the rudder does not answer, so the boat broaches while the bow cuts down into the sea. Remember to do the following: •...
Page 43: Docking, Towing, And Anchoring
• Sea conditions • Rain and thunderstorms • Darkness and fog • People and equipment that can block the helmsman’s view. Docking, towing, and anchoring Fastening points and strongpoint Fastening points (cleats) are located at the stern, midship and bow. Breaking strength of the bow strongpoint is 29.6 kN (3017 kg).
Page 44: Towing Advice
• Fenders and mooring lines must be in place, at lease one line fore and one aft. See Fastening points and strongpoint, page 43. • If possible, have someone on the foredeck that can go ashore and quickly turn the bow in the desired direction after the boat has stopped completely.
Page 45: Lifting And Transporting
Check the depth displayed from the Echo Sounder. 2. Study the seabed conditions and make sure that there is good holding ground. 3. Check that the safety chain has been released from the anchor. 4. Let out the anchor line equal to at least 6 times the depth of the water. 5.
Page 46: Lift The Boat
• Make sure the lifting equipment can handle the combined weight of the boat and the load of the boat. See Weights, page 16. Lift the boat Only use lifting equipment suitable for your boat. See Lifting equipment, page 45. WARNING • Be careful to take safety precautions near and around the boat when lifting. •...
Page 47: Load The Boat On A Trailer
Lift the boat: Position the lift slings. The position of the slings may need to be adjusted depending on how the boat is loaded. 2. If appropriate, tie the lifting slings together. 3. Lift the boat. Protect the hull sides well to avoid damages. WARNING Lift slings may slip on the hull.
Page 48 • Capacity and dimensions of the trailer must be sufficient to carry the boat and its load. • There must be enough support to distribute the weight of the boat properly without excessive point loads. • The trailer must be in good condition. If there is bilge water, drain it.
Page 49: System Overviews
System overviews. Self-draining system Your boat is equipped with a self-draining system with gullies in the forward deck and the aft deck. The system is intended to drain water from, for example, rain, splashing, and breaking waves, during normal use of the boat. It is important to make sure the water gullies do not clog, accumulated debris must be removed regularly.
Page 50: Bilge Pump System
The bilge pump system can be controlled manually as follows: • From the steering console touchscreen. See Controls and X Shore information , page 30. • By the switch on the electrical box inside the steering console. See Manual switch for the bilge pump, page 15.
Page 51: Cooling Systems
Cooling systems A EXPANSION TANK FOR B EXPANSION TANK FOR COOLING SYSTEM OF COOLING SYSTEM OF HIGH-VOLTAGE DRIVETRAIN BATTERIES There are two cooling systems, one for the high-voltage lithium-ion batteries, and one for the electric drivetrain. It is critical that both cooling systems function at all times, also when the boat is not in use.
Page 52: High-Voltage Batteries
A HIGH-VOLTAGE LITHIUM-ION BATTERIES B 12 V BATTERIES C POWER ELECTRONICS BOX D DC CHARGING BOX E FUSE BOXES High-voltage batteries Your boat is powered by two 400 V high-voltage lithium-ion batteries located under a service hatch in the aft deck. See Electrical system —...
Page 53 WARNING • Any work on a high-voltage lithium-ion battery is strictly forbidden without permission from X Shore. • Do not open any high-voltage lithium-ion batteries without authorization. • Do not expose a high-voltage lithium-ion battery to external heating sources and direct sunlight. Risk of fire if the battery temperature exceeds 60 °C.
Page 54: Response In Case Of Battery Malfunction
To avoid damage to the batteries do not use the battery compartment as a storage area. The battery compartment is designed to protect the batteries. Although the batteries are designed to withstand direct environmental influences, the service life of a battery may be reduced if the battery is exposed to for example corrosive media (such as water) or aggressive media.
Page 55 Liquid escaping from a high-voltage lithium-ion battery is usually a liquid used for controlling the temperature of the battery and not battery electrolyte. Only small quantities (milliliters) of electrolyte are distributed across the individual cells. Escaping cooling liquid or heating liquid can cause suffocation near the floor in enclosed spaces. Ensure sufficient ventilation before approaching a damaged battery.
Page 56: Safe Handling Of High-Voltage Battery System
Safe handling of high-voltage battery system WARNING • In case of unintended use, damage, or malfunction, a high-voltage battery can result in burns, other injuries, and fatal electric shock. • The high-voltage lithium-ion battery may only be inspected, installed, and commissioned by qualified persons with appropriate high-voltage knowledge.
Page 57 Working on high-voltage batteries WARNING • Usage of a high-voltage lithium-ion battery after deep discharge can result in malfunction, damage, and spontaneous fire. • If the battery voltage is less than 277 V OCV for more than 3 hours, the battery can be damaged irreversibly. •...
Page 58: Fuses, Circuit Breakers And Switches
Fuses, circuit breakers and switches A SWITCH PANEL B CONSOLE CABINET C PUMP CONTROL CABINET D SIGNAL CABINET ...
Page 59: Switch Panel
Switch panel A MAIN SWITCH TO ELECTRONICS EXCEPT BOW THRUSTER B BOW THRUSTER SWITCH C BOW THRUSTER FUSE D AUTOMATIC FUSE TO THE SIGNAL CABINET E AUTOMATIC FUSE TO THE CONSOLE CABINET AND THE PUMP CONTROL CABINET ...
Page 60: Fuses In The Console
Fuses in the console A AUTOMATIC FUSE FOR THE EMPIRBUS CONNECT-50 (50 A) B AUTOMATIC FUSE FOR THE AUTOPILOT (40 A) C BILGE PUMP OVERRIDE (10 A) D NAVIGATION LIGHTS (3 A) E AXOTEC (3 A) ...
Page 61: Fuses In The Pump Control Cabinet
Fuses in the pump control cabinet A RESERVE B BILGE PUMPS (7.5 A) C SEAWATER PUMP FOR HIGH-VOLTAGE BATTERIES (15 A) D SEAWATER PUMP FOR DRIVETRAIN (15 A) E CIRCULATION PUMP FOR HIGH-VOLTAGE BATTERIES (10 A) ...
Page 62: Fuses In The Signal Cabinet
Fuses in the signal cabinet A EMERGENCY STOP (5 A) B HIGH-VOLTAGE BATTERY CONTACTORS (10 A) C HIGH-VOLTAGE BATTERY AUX POWER (3 A) D CHARGE CONTROLLER (7.5 A) E ACTIVATION BUTTON (1 A) F ECU WAKEUP (1 A) ...
Page 63: Maintenance And Service
Maintenance and service. Maintenance schedule WARNING Risk of severe electrical shock. All high-voltage parts are marked with yellow labels and all high-voltage cables are orange. Periodicity Activity • Check the hydraulic oil. See Level of oil in the steering system, page 64 Every time you head out •...
Page 64: Level Of Oil In The Steering System
Periodicity Activity Before launching See Prepare for launch, page 67 After launching See Start up and check the seawater pump after launch, page 68 For maintenance and service of third-party equipment, refer to the manual from the manufacturer. See Additional manuals, page 8. Level of oil in the steering system The steering system uses hydraulic oil.
Page 65: Clean The Cover
Wash the boat with freshwater. 2. Polish the stainless and chromed parts with chrome polish. 3. Clean the aluminium parts with fresh water. If necessary, us a soap solution. 4. For a teak deck: clean with fresh water. If necessary, us a soap solution. Over time, the teak deck takes on a satin grey appearance.
Page 66: Lay Up For Winter
Lay up for winter Always lay up your boat before the first freeze of the season. WARNING • Never use flammable solvents (i.e., kerosene) for cleaning the bilge, however oily it might become. • It is important that both cooling systems function during storage as the high-voltage lithium-ion batteries will be charged.
Page 67: Prepare For Launch
Prepare for launch Prepare the hull Remove the tarpaulin in good time before launching. 2. Wash the hull with a regular shampoo and soft brush. 3. Wax the hull if necessary. Use a standard boat wax. 4. If there are small scratches on the hull, or if some of the surface gelcoat has lost its shine, use a rubbing compound on these are-as before polishing.
Page 68: Start Up And Check The Seawater Pump After Launch
Check fluids Check the level of hydraulic oil in the steering system. 2. Check the level of coolant in the battery cooling system. See Check coolant for high-voltage batteries, page 68. 3. Check the level of coolant in the cooling system for the electric high voltage components. See Check coolant for drivetrain, page 69.
Page 69: Check Coolant For Drivetrain
Locate the transparent tubing of the cooling system. 2. If the fluid is dirty, contact X Shore. 3. Check that the level of the liquid in the transparent tubing is above the minimum level indicated by the sticker. 4. If needed, refill coolant. Check coolant for drivetrain In the cooling system for the drivetrain (with components such as motor, gearbox, inverter, charger and DCDC), a 50/50 mix of glycol and water is used as coolant.
Page 70: Check The Bilge Pump System For Debris
Close the seawater outlet: turn the lever perpendicular to the housing of the ball valve. 2. Place the seawater filter tool to on top of the lid of the seawater filter. Loosen the lid by turning it counterclockwise. 3. Remove filter assembly by pulling upwards. 4.
Page 71: Charging Of Battery When Boat Not In Water
5. Reinstall the pumps. 6. In the aft hatch, open the valve by turning the lever parallell to the tubing. 7. Make sure the hatches are closed properly. Charging of battery when boat not in water When the boat is out of the water, charge the high-voltage lithium-ion batteries using low current (maximum 10 A). The on-board charger is cooled using seawater.
Page 72 Find and fix the problem causing the interruption. Any damaged equipment must be repaired or exchanged before taken into use. 2. Replace the fuse or reset the circuit breaker.
Page 73: Troubleshooting
Troubleshooting. If you experience any problems with your Eelex 8000, see if the instructions and the troubleshooting information can help you find a solution. If the problem persists, contact X Shore for support. Problem Cause Remedy Bilge water system is leaking Remove debris from pump.
Page 74: Appendix
Appendix. Wiring diagam You can download the wiring diagram from www.xshore.com. Warranty See the purchase agreement / order for the scope of your purchase. In case something does not work satisfactorily with your boat or its equipment, you can check the service documents for possible service and repair measures. In the event of uncertainty, you should always contact your X Shore dealer.
Page 75 www.xshore.com info@xshore.com Specifications, illustrations and examples and related constructional data in this publication are not binding. We reserve the rights for changes where regular updates can be found in the digital version of the manual. This document and its content, including written material and images, are the property of X Shore AB. You may not copy, reproduce, modify, republish or distribute this document or any of its content without permission from X Shore AB.
