Wiring Diagram - With Oem Remote Start And Without T-Harness - Directed DIRECTECHS FORD12 Installation Manual

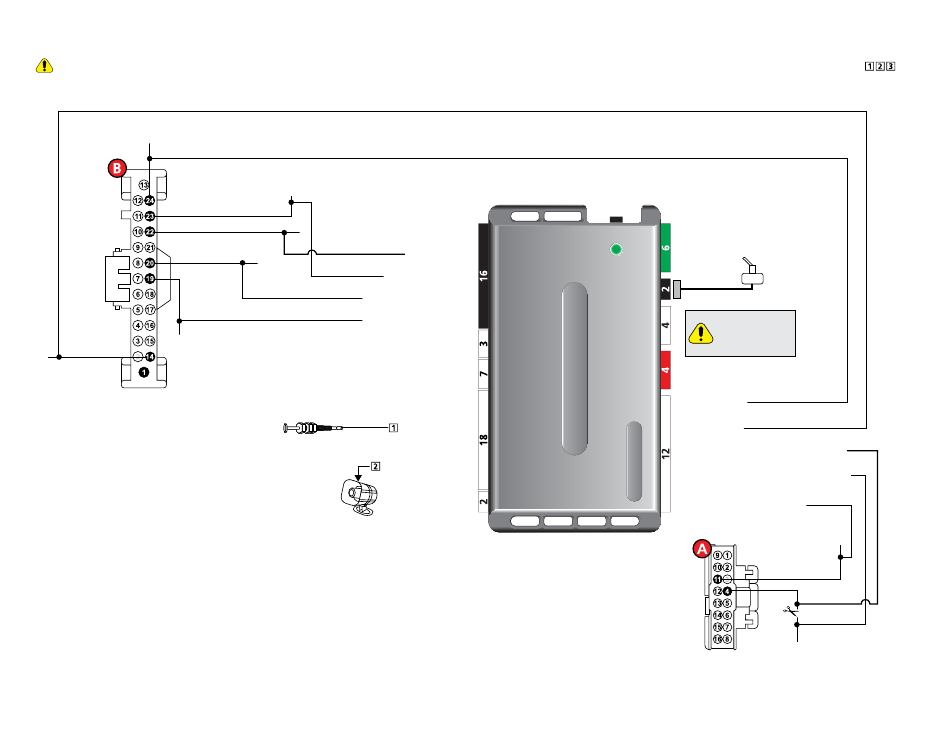

Wiring Diagram - with OEM Remote Start and
Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of each special note referenced in the diagram (
(+)12V: Pin 24
MS CAN High:
Gray/Orange or Orange, pin 23
MS CAN Low:
Violet/Orange or Violet, pin 22
HS CAN 2 High:
White/Blue or Blue, pin 20
HS CAN 2 Low: White, pin 19
(-) Ground: Pin 14
Gateway Module
(on OBDII connector or
right of steering column)
9
without T-Harness
MS CAN Low: Tan: 4
MS CAN High: Tan/Black: 5
HS CAN 2 High: Orange/Green: 7
HS CAN 2 Low: Orange/Brown: 8
Hood Pin Hood Pin
(-) Hood Input: Gray: 3
(+) Siren Output: Brown: 17
Siren
Remote Start Safety
Override Switch
The Remote Start
Safety Override
Switch MUST be in
the ON position.
10: Red: (+) 12V Input
9: Black: (-) Ground
5: Orange/Red: Parking Light Interrupt (conn. side)
4: Yellow/Red: Parking Light Interrupt (vehicle side)
3: Brown/Red: (-) Parking Light Output
(-) Parking Lights:
Gray or Yellow, pin 11
Cut
Parking Light Interrupt: Pin 4
Headlight Switch
Directed Digital Solutions FORD12
