Wiring Diagram - with OEM Remote Start and
Refer to "Pre-installation and application warnings" on page 4 and "Vehicle wiring reference chart" on page 12 for important information on this installation.

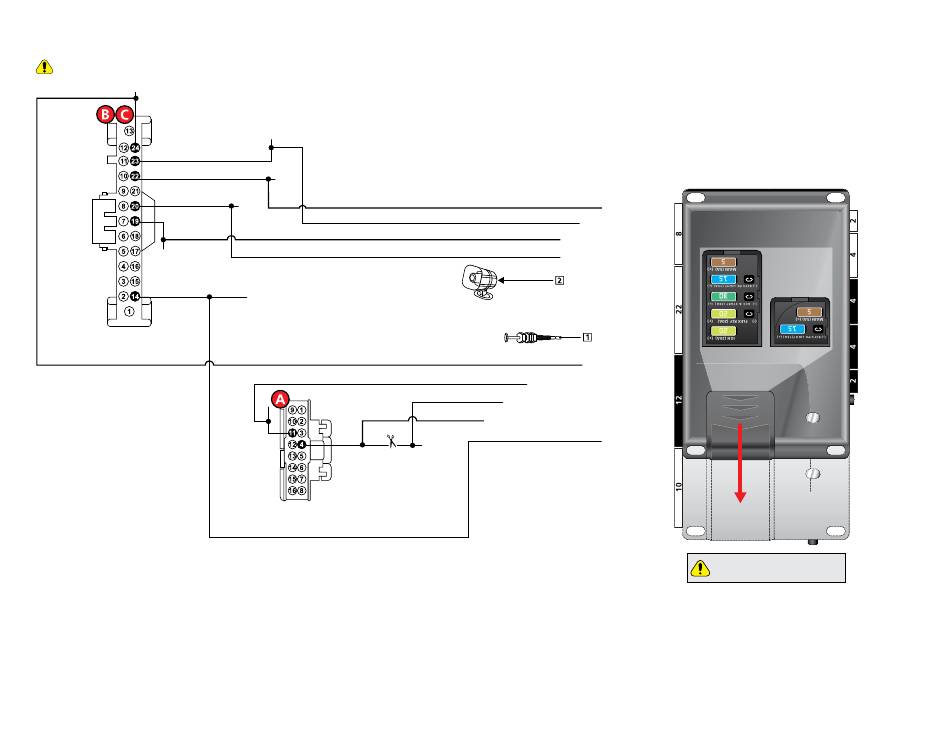

Wiring diagram with OEM Remote Start
(+)12V: Pin 24
MS CAN High: Orange, pin 23
MS CAN Low: Violet, pin 22
HS CAN 2 High:
White/Blue or Blue, pin 20
HS CAN 2 Low:
White, pin 19
(-) Ground: Pin 14
Gateway Module
(black conn. on OBDII connector)
9
without T-Harness
Cut
(-) Parking Lights:
Gray or Yellow,
Parking Light Interrupt: Pin 4
pin 11
Headlight Switch
MS CAN Low: Tan: 1
MS CAN High: Tan/Black: 2
HS CAN 2 Low: Orange/Brown: 3
HS CAN 2 High: Orange/Green: 4
(+) Siren Output: Brown/Red: 11
Siren
Hood Pin
(-) Hood Input: Gray: 21
(+) 12V Input: Red: 6 & 12
(-) Parking Lights Output: Lt. Green/Red: 7
Parking Lights Interrupt (vehicle side): Lt. Green: 8
Parking Lights Interrupt (conn. side): Lt. Green/White: 9
(-) Ground: Black: 10
DS4+ DS4
Proper Fuse
Positioning
DS4
Slide
DS4+
to open
It is important to check that the
fuses are positioned correctly.
DS4+ FORD11
