Takara Belmont YUME SWING Installation Manual

Hide thumbs Also See for YUME SWING:

Advertisement

Quick Links

Download this manual
YUME SWING Installation Manual
■Yume Swing
○Basin Unit
EX-YMSBXYM (Yume Basin: for back wash)
EX-YMSBXSS* (Side Basin: for side wash)
○SWING Arm
EX-YMSAF (Front Layout)
EX-YMSAR (Rear Layout)
○Plumbing Cover
EA-YMSPK (Wall mounted plumbing)
EA-YMSPY (Under the floor plumbing)
EA-YMSPU (Above the floor plumbing)

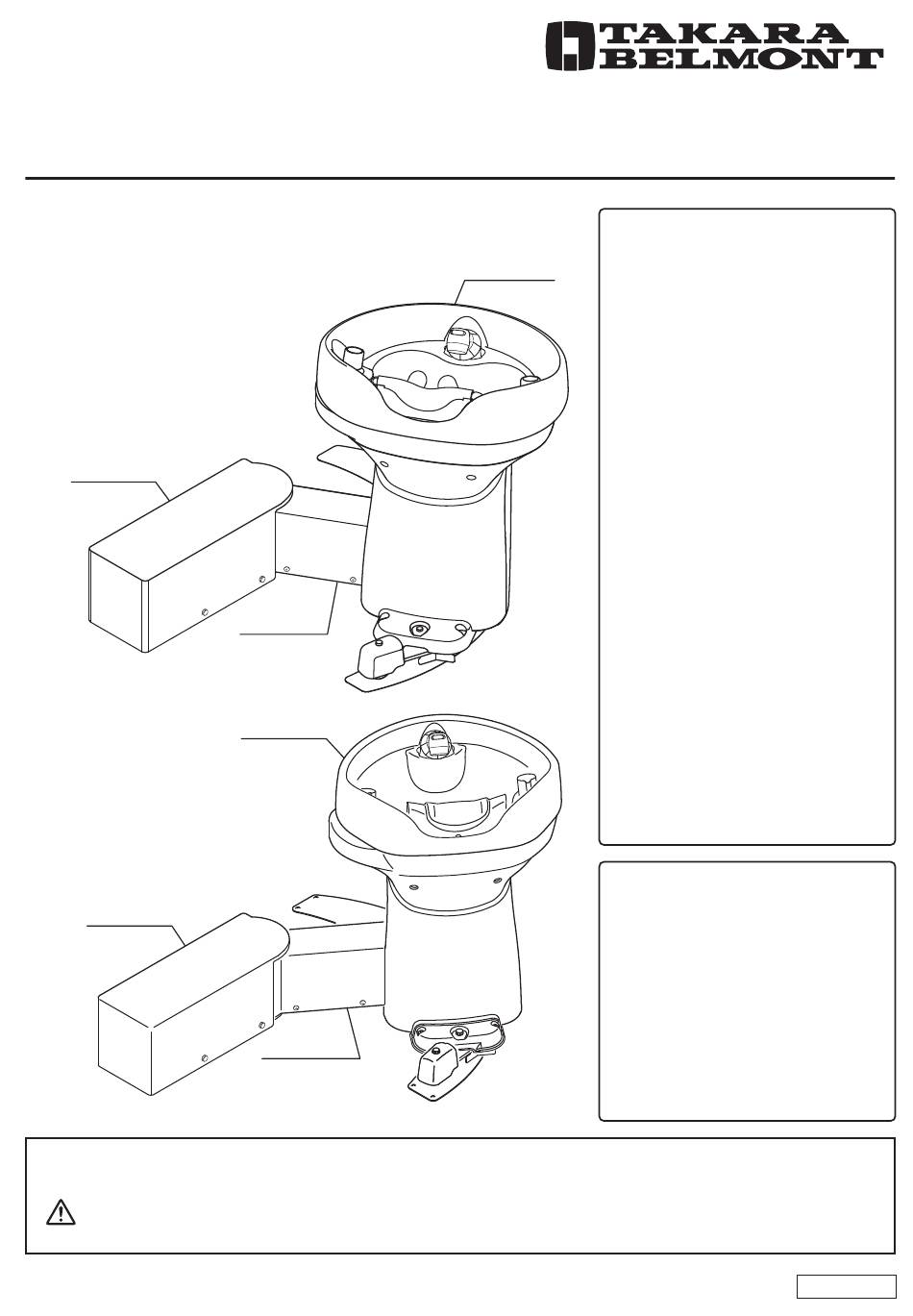

Plumbing Cover
(Image is of EX-YMSBXYM/EX-YMSAR/EA-YMSPY)
Plumbing Cover
(Image is of EX-YMSBXSS/EX-YMSAF/EA-YMSPY)
●The precautions listed here are to ensure that YUME SWING can be installed safely, and to prevent any danger or risk to the person installing
YUME SWING or those around them. All of these precautions are important for safety. Takara Belmont is not responsible for any damage or risk
to the person installing YUME SWING or those around them due to accidents if YUME SWING is installed without adhering to the precautions.
Caution
If YUME SWING is installed after ignoring this symbol, "there is the risk of light or moderate injury or physical damage".
SWING Arm
Basin Unit
SWING Arm
Before Installation
Basin Unit
 1 Overall Layout Diagram
 2 Product Fixing Position
 3 Installation Conditions
Usage Conditions
Name of Parts
Contents of Packaging
Carrying the Product
Installation of the Product
 1 Check the Position of Mirror and Cabinet 17
 2 Installation of SWING Arm
 3 Installation of Caster Rail
 4 Installation of Basin Unit
 5 Plumbing
 6 Installation of Chair
 7 Adjustment of Center of Basin Unit and Chair 29
 8 Checking after Plumbing
 9 Installation of Base Front Cover
 10 Installation of Rotation Arm Cover 32
 11 Installation of Maintenance Cover 33
 12 Installation of Caster Cover
 13 Installation of Plumbing Cover
After Installation
Installation of Neck Cushion
To the installer
・  The manuals should be thoroughly read and
・  After installation, give these instructions to
To the clients
・  Clients must ask professional to install
・  Clients must not install YUME SWING by
・  Clients must store these manuals in a safe
*The actual shape of YUME SWING, the images
and dimensions listed in these manuals may be
modified and are subject to change without notice.
1
Table of Contents
understood before installation to ensure that
YUME SWING is installed correctly.
the client.
YUME SWING.
themselves.
place so as not to lose them.
Version 9
2
2
5
8
9
10
11
15
16
17
19
23
25
27
31
32
33
34
35
35
2024.01

Advertisement

loading
Need help?

Need help?

Do you have a question about the YUME SWING and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Takara Belmont YUME SWING

Summary of Contents for Takara Belmont YUME SWING

  • Page 1 (Image is of EX-YMSBXSS/EX-YMSAF/EA-YMSPY) ●The precautions listed here are to ensure that YUME SWING can be installed safely, and to prevent any danger or risk to the person installing YUME SWING or those around them. All of these precautions are important for safety. Takara Belmont is not responsible for any damage or risk to the person installing YUME SWING or those around them due to accidents if YUME SWING is installed without adhering to the precautions.
  • Page 2 Drain [X] and [Y] dimensions differ depending on the type of VU/VP40 *Be sure to use the Water supply chair using with YUME SWING. H=140 plumbing cover for Rc1/2” Under the floor plumbing. Check the dimensions from the list as shown below.
  • Page 3 *Be sure to use ■Detail view of the plumbing [X] and [Y] dimensions differ depending on the type of the plumbing Hot water chair using with YUME SWING. ＜In case of Wall mounted cover for Above supply Water Drain or Above the floor plumbing＞...
  • Page 4 ＜Front LayoutーPiping construction diagram＞ ＜In case of Under the floor plumbing/ ＜In case of Wall mounted plumbing/ Above the floor plumbing＞  Above the floor plumbing＞ ・Be sure to use the plumbing cover for Above the floor plumbing. ・Be sure to use the plumbing cover for Wall mounted plumbing. ■Top View Above the floor plumbing（Diagonal lin）...
  • Page 5 Product Fixing Position ＜Floor template / Front Layout＞ [Unit: mm] Chair front...
  • Page 6 ＜Floor template / Rear Layout＞ [Unit: mm]...
  • Page 7 ＜Caster Rail Floor Template / Front Layout＞ [Unit: mm] Perforations Caster Rail Perforations Arm rotation center line Caster rail fixing hole Arm rotation center line Align to the edge of the fixing base. Perforations Fixing base Perforations ＜Caster Rail Floor Template / Rear Layout＞ Perforations Caster Rail Perforations...
  • Page 8 Installation Conditions ■Floor surface ○Ensure that the material or finishing of the floor surface is waterproof or has a waterproof coating applied. ○Always ensure that the floor surface is horizontally level so that the product slides smoothly. ○Ensure that the floor surface is smooth and free from bumps around the attachment areas. ○Raised pipes 【Plumbing specifications】...
  • Page 9 ・ Use a pressure between 0.1 - 0.4 MPa (1 - 4 kgf/cm ). If multiple Yume Swing are Hot water, used, ensure that the pressure does not drop below 0.1MPa (1 kgf/cm water supply ・...
  • Page 10 Name of Parts ○This page shows the name of parts which is necessary for the installation, and instruction pages for each parts. Before executing installation, please check this page. “10. Installation of Rotation Arm Cover” Plumbing cover Rotation arm cover (page 32) “13.
  • Page 11 Contents of Packaging ○Before installation, check if all of the below parts is coming with the product. ＜Basin Unit＞ ■Contents Basin Air mattress Film tape Basin unit cover * The Knurled thumb screws are held Maintenance cover down the main body with the maintenance cover.
  • Page 12 ■Packing size and weight [Unit: mm] ＜Basin Unit: YUME Basin＞ Basin unit 37kg, Wood frame 30kg ＜Basin unit: Side Basin＞ Basin unit 34kg, Wood frame 30kg...
  • Page 13 ＜SWING Arm＞ Hot water supply pipe Rotation arm cover Water supply pipe ■Contents of Packaging Rotation arm Drain pipe Hot water supply pipe Water supply pipe Fixing base Caster ■Accessories ＜Common parts for YUME Basin and Side Basin＞ □ Drain hose (1) □...
  • Page 14 ＜Plumbing cover: Under the floor plumbing, Above Plumbing cover 5kg, carton case 1kg the floor plumbing and Wall mounted plumbing＞ ＜Paper Template＞ ○Paper template is supplied separately. (Refer to pages 5 to 7.) For receiving it, please contact the nearest dealer or Takara Belmont directly.
  • Page 15 Carrying the Product ■Carrying the Basin Unit 1 Remove the maintenance cover from the main body. ○Remove the protective tape and the Knurled thumb screws from the maintenance cover. *Remove the maintenance cover keeping the protective tape taped to the main body cover. Caution Do not lose the Knurled thumb screws holding down the maintenance cover.
  • Page 16 Installation of the Product *Be sure to follow the below instructions to install the product. Failure to follow these instructions or not in order may prevent to install the basin unit and SWING arm correctly. Flow of installation of the product 【In case of new construction】 ＜Front Layout＞＜Rear Layout＞...
  • Page 17 *The floor fixing point of the fixing base differs pipe depending on the chair used with Yume Swing. Drill Drain pipe (2) Mark the screw or bolt anchor position of the fixing base of SWING arm (five locations).
  • Page 18 ３ Attach plumbing gasket. Plumbing gasket (Sponge) (1) Cut a slit in the plumbing gasket to suit the position of the Cut a slit raised pipes. (2) Peel away the sheet from the adhesive surface of the plumbing gasket and stick it to the floor surface. (3) Cut out a circle around the slit cut in the plumbing gasket to suit the pipes, and fill in any gaps with caulking materials.
  • Page 19 Installation of Caster Rail １ Hold the rotation arm and set the paper template. Caution Do not apply excessive force when carrying the rotation arm. ・ Failure to follow this caution may result in product breakage. (1) Carry the rotation arm and insert the paper template (Refer to page 7.). (2) Align the caster of rotation arm and caster rail (perforations).
  • Page 20 ■Wooden floor ２ Drill holes on the caster rail attachment position. (1) Insert the caster rail under the rotation arm and set to the paper template position. *Hairline surface to be placed upward. Upper surface : Hairline finish (Surface containing the line in the same direction) Caution Caster rail Hairline surface of caster rail to be placed upward.
  • Page 21 ■Other than wooden floor ２ Hammer anchor bearing in the caster rail attachment positions. (1) Insert the caster rail under the rotation arm and set Upper surface : Hairline finish (Surface containing the line in the same direction) it aligning with the paper templates. Caster rail *Hairline surface to be placed upward.
  • Page 22 ３ Caulking the caster rail fixed positions. Around 30mm *Keep the holes not (1) Apply caulking material on the floor where the caster rail get concealed. will be installed. Apply caulking materials. Caution Be sure to apply caulking material. ・ Without caulking, water leaks inside between rail and floor and it may cause degradation of the floor material or the rail rust.
  • Page 23 Installation of Basin Unit Hexagon screws (M8 x 50) １ Attach hexagon screws to the rotation arm tentatively. (1) Attach the hexagon screws (M8 x 50) tentatively on the Shower head side attachment holes (2 locations) of rotation arm. Neck cushion side Rotation arm ２...
  • Page 24 (2) Align the basin unit with the attachment holes Shower head side (2 locations) on the neck cushion side, and fix the basin unit with 2 pcs. of hexagon screws (M8 x 50). Basin unit *Fasten the hexagon screws completely. Note Do not use the attachment covered by seal.
  • Page 25 Plumbing 5-1 Connecting the raised pipes (1) Check the followings before installation. ・ Raised pipes are set properly according to the overall layout diagram (Refer to pages 2, 3) and paper template (Refer to pages 5, 6) according to the product specifications. ・...
  • Page 26 5-2 Connecting the basin unit side Note If the water leakage occurs due to breakage of drain trap, etc., contact the nearest dealer or Takara Belmont directly. Drain trap Frame 5-2-1 Connecting drain hose (1) Install and glue PVC pipe (L=65mm） to PVC 90° elbow pipe.
  • Page 27 Installation of Chair 6-1 Installation of Chair ○Refer to the overall layout diagram (pages 2, 3) and paper template (pages 5, 6) and install the chair. *Refer to the supplied installation manual of each chair for checking the details of chair installation. ■Sliding the basin unit When sliding the basin unit, hold the edge of basin.
  • Page 28 6-3 Checking after installing the chair ○After moving the basin unit to the shampooing position (Refer to pages 2, 3), move the chair to preset position, and check the followings. *Refer to the operating manual supplied with each chair for checking the chair operation. ■Inspection items 1) If the space between backrest edge of the chair and the basin is around 15 mm.
  • Page 29 Adjustment of the Center of Basin Unit and Chair ○After the completion of chair installation, if the center of chair and the basin unit need adjustment, perform the following processes. ＜Adjusting the position of basin＞ (1) Check the difference between the center of chair and basin unit.
  • Page 30 (5) Centering the loosened bolt, rotate the basin unit to Shower head side the desirable direction for adjustment. Plate (6) Secure the bolts on the screw holes which locate at Rotate the basin （Basin unit the desired direction for the adjustment and fix the *Remove the seal and attachment part）...
  • Page 31 Connect a pressure reducing valve (Optional) on the upper side (mixer side) of the check valve with filter, then adjust the pressure. (It is recommended that water supply pressure and hot water supply pressure become the same pressure) *For the pressure reducing valve, contact the nearest dealer or Takara Belmont directly.
  • Page 32 Installation of Base Front Cover １ Install the base front cover to basin unit (1) Attach the base front cover to the base of basin unit. (2) Secure the base front cover with 2 pcs. of screws (M6 x 20, with resin washer). Caution Resin washers come with the product attached to the screws.
  • Page 33 If any problem is found, contact the other parts. Failure to follow this instruction may cause nearest dealer or Takara Belmont directly. scratches or product malfunction. (1) Install the maintenance cover to the main unit cover.
  • Page 34 If any problem found, contact pinch other parts. Failure to follow this instruction may the nearest dealer or Takara Belmont directly. cause scratches or product malfunction. (1) Attach the plumbing cover to fixing base.
  • Page 35 After Installation (1) Remove the air mattress attached to the basin and the film tape sealed on the basin cover. (2) Inspect the following points. Caution Be sure to execute the inspection without fail to prevent accidents during operation. ■Inspection items 1) Check that there is no unsecured screws.
  • Page 36 ● If the holes of the neckrest fittings are clogged with dust, etc., use them after cleaning the holes. If above is not applicable, and the reason of trouble is not found out, contact the nearest dealer or Takara Belmont directly.
