Section Overview

This section contains information that will help the user identify and correct common
problems that might occur during normal machine operation. It also outlines the
diagnostic tools available in the EDGE String system controller. In addition to displaying
common error codes, the system controller also includes text-based and graphics-based
diagnostic menus that display several machine parameters during operation. These tools
can help the user quickly restore normal machine operation in the event of a malfunction.

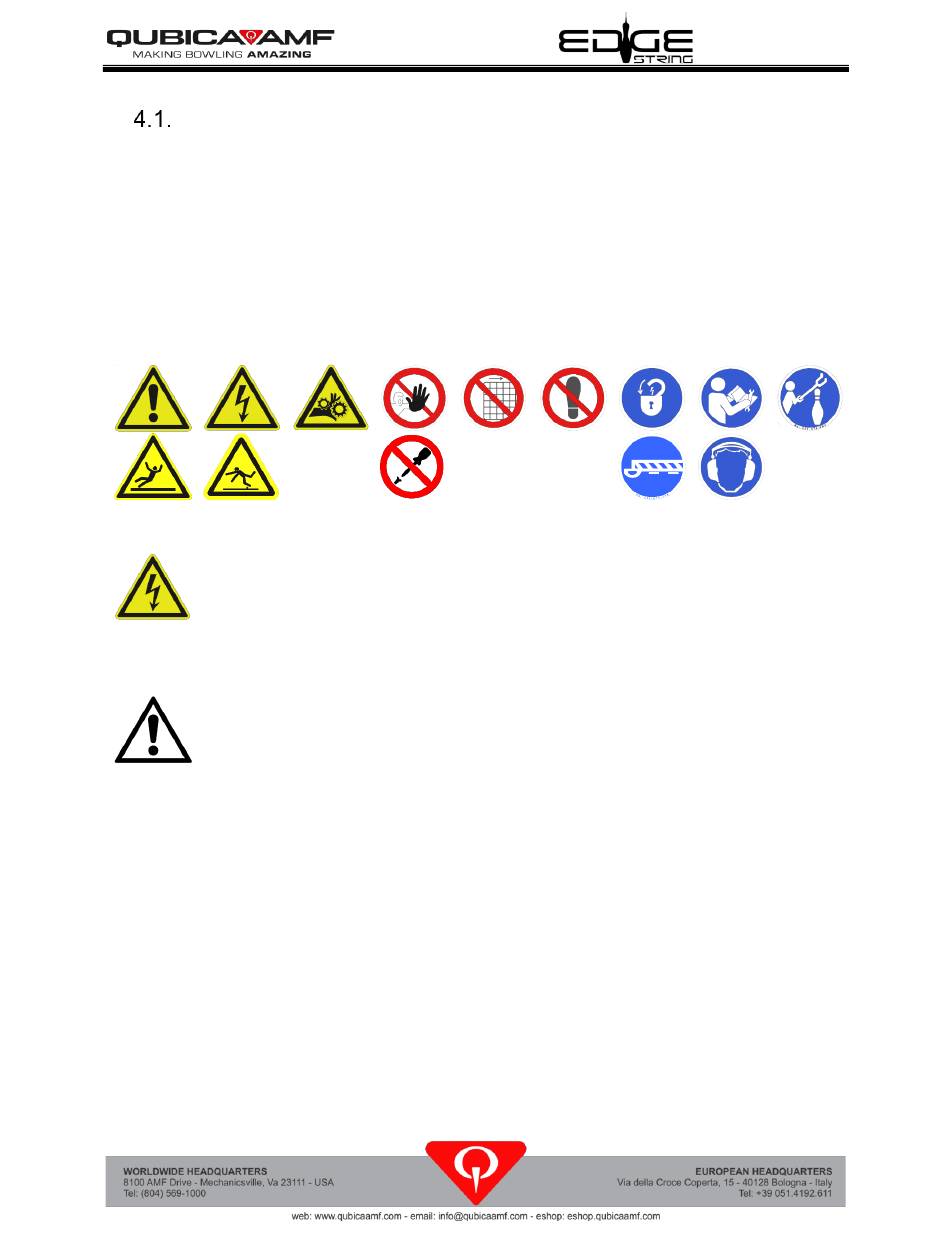

Applicable Safety Warnings
WARNING:
• High voltage is present inside the system controller. Use caution when
operating or handling this equipment. Implement lockout/tagout (LOTO)
before servicing any electrical components (see Appendix A). The main
circuit breaker must always be OPEN, or the power plug
DISCONNECTED, prior to performing any service/repair to electrical
systems.
• The system controller contains no user-serviceable parts.
• The system controller includes a tamper indicator. Opening the system
controller enclosure will void the warranty.
Read This First
If you have a problem with your EDGE String, always verify the following points before
replacing system components or consulting QubicaAMF technical support.
• Check that the main electrical power at the system controller is ON. Verify that the
main breaker has not been tripped.
• Check that the system controller is set to BOWL mode.
• Restart the system controller by cycling the main breaker OFF and then ON.
• Check that all power and signal cables are securely connected. Confirm that all
electrical contacts are fully inserted in their respective connectors.
• Reset any customized settings on the system controller back to factory defaults.
• Verify that the ball detector functions properly. The assembly should be activated
ONLY when the light beam is obstructed.
400-051-202-01 Rev. B
Owner's Manual
Page 4-3
