1.5.3. Single Even Machine (Config. #: 612-051-114 Rev. H or later)

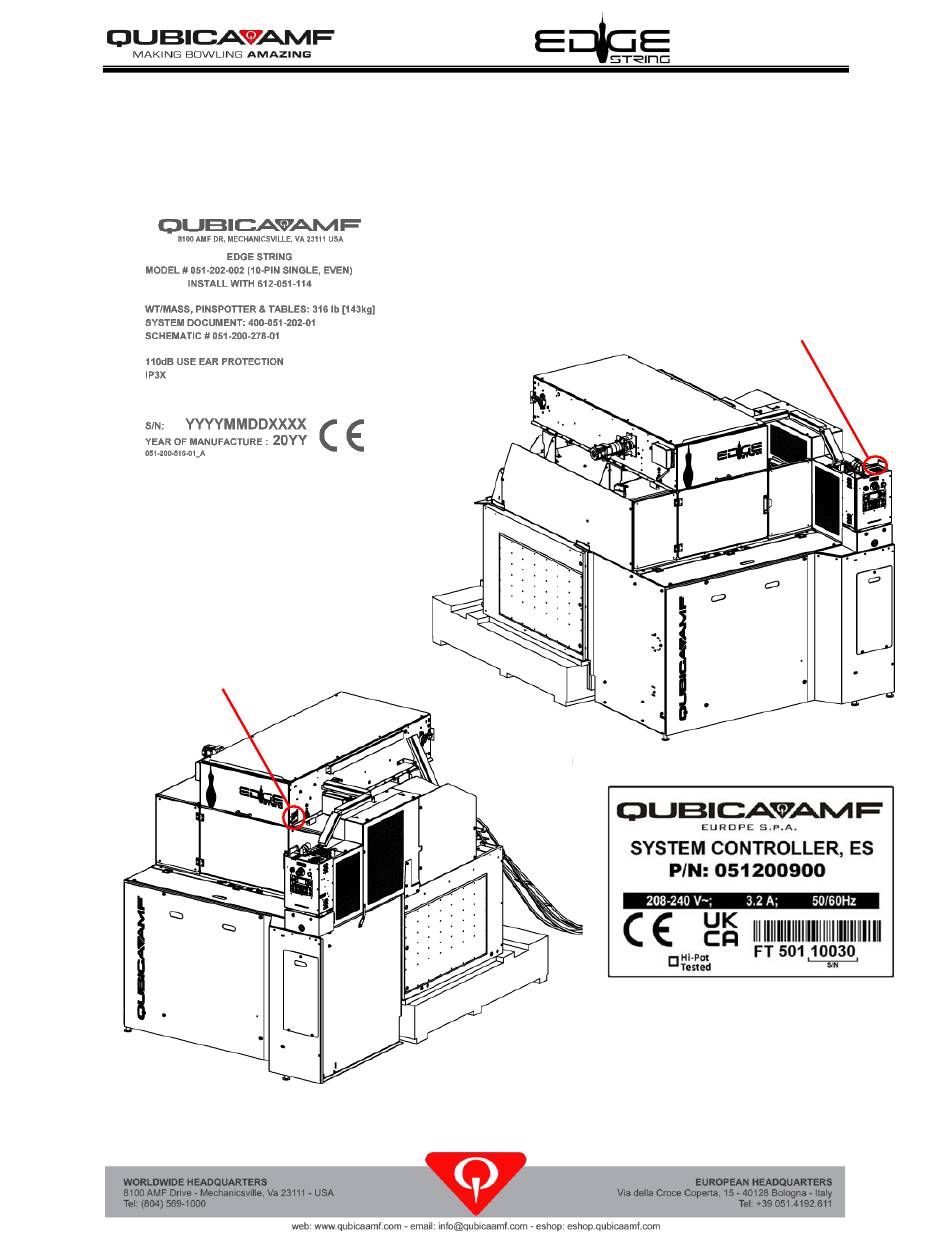

Detail A, Model Label
Machines to be installed per
local electrical codes.
Detail A
400-051-202-01 Rev. B
Description
Single pinspotter installation used for 10-Pin bowling
game. Mounted on an Even lane (e.g. 2, 4, 6, ...).
Machine uses a chain lift mounted in double division on
7-pin side.
Owner's Manual
Detail B
Detail B, System Controller Label
