1.5.2. Single Odd Machine (Config. #: 612-051-113 Rev. H or later)

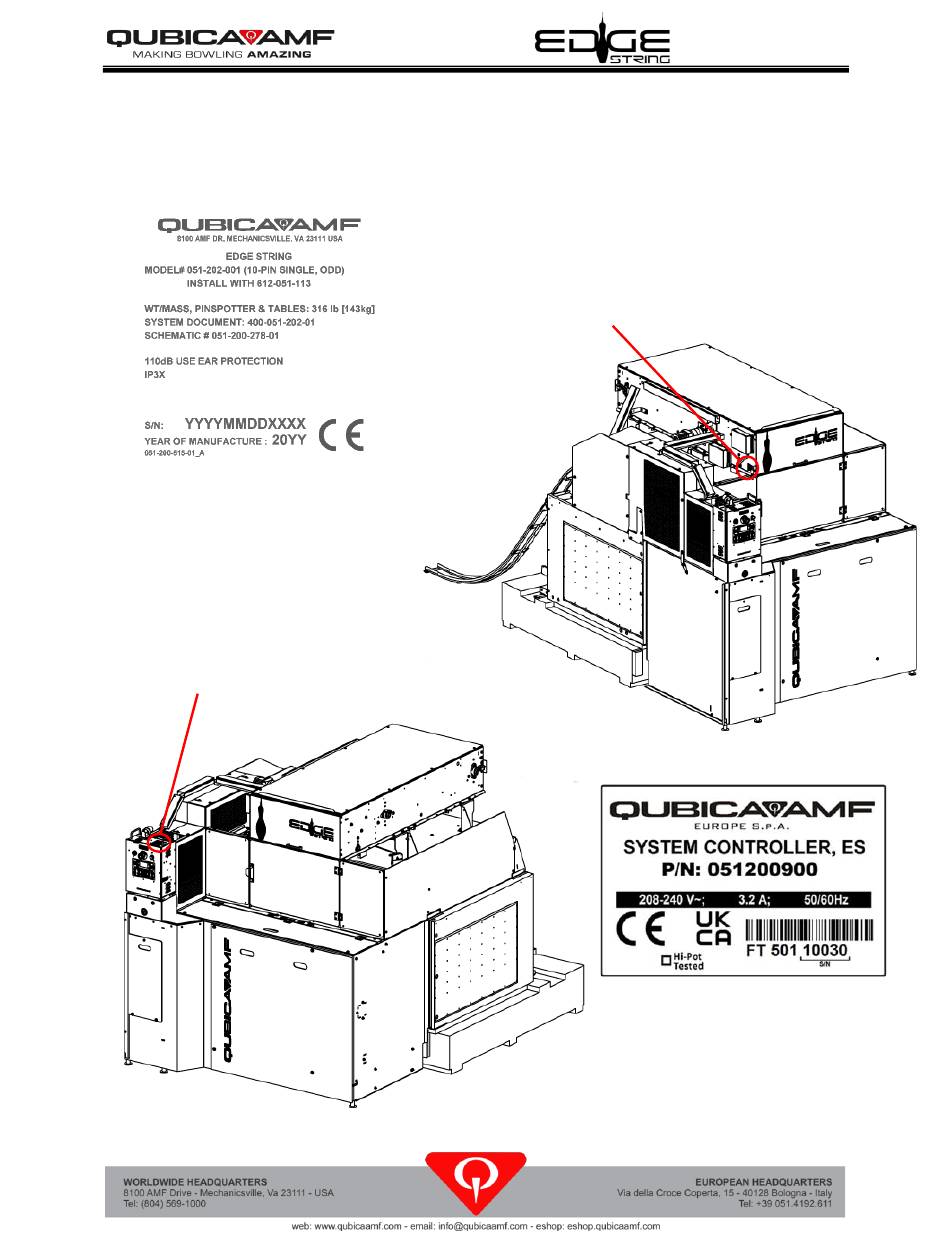

Detail A, Model Label
Machines to be installed per
local electrical codes.
Detail B
400-051-202-01 Rev. B
Description
Single pinspotter installation used for 10-Pin bowling
game. Mounted on an Odd lane (e.g. 1, 3, 5, ...).
Machine uses a chain lift mounted in double division on
10-pin side.
Detail A
Detail B, System Controller Label
