Precautions: LOTO, Lane Barriers, Slip Hazard
Tools:
• Ratchet or Impact Driver
• ½" Socket
• Diagonal Cutters
Location: Pit
Est. Time: 10 min
Note:
• Replace all removed cable ties before returning machine to service.
Procedure:
1. Implement LOTO and deploy lane barriers.
2. Disconnect chain lift motor plugs from chain lift control box.
3. Cut all cable ties holding motor cable to chain lift ground wire.
4. Remove bolts (2) from gearmotor mounting plate. Support gearmotor as needed.
5. Remove gearmotor. Inspect coupling spider for wear.
6. Follow above steps in reverse order to install chain lift gearmotor.
7. Remove LOTO and lane barriers. Return machine to service.
400-051-202-01 Rev. B

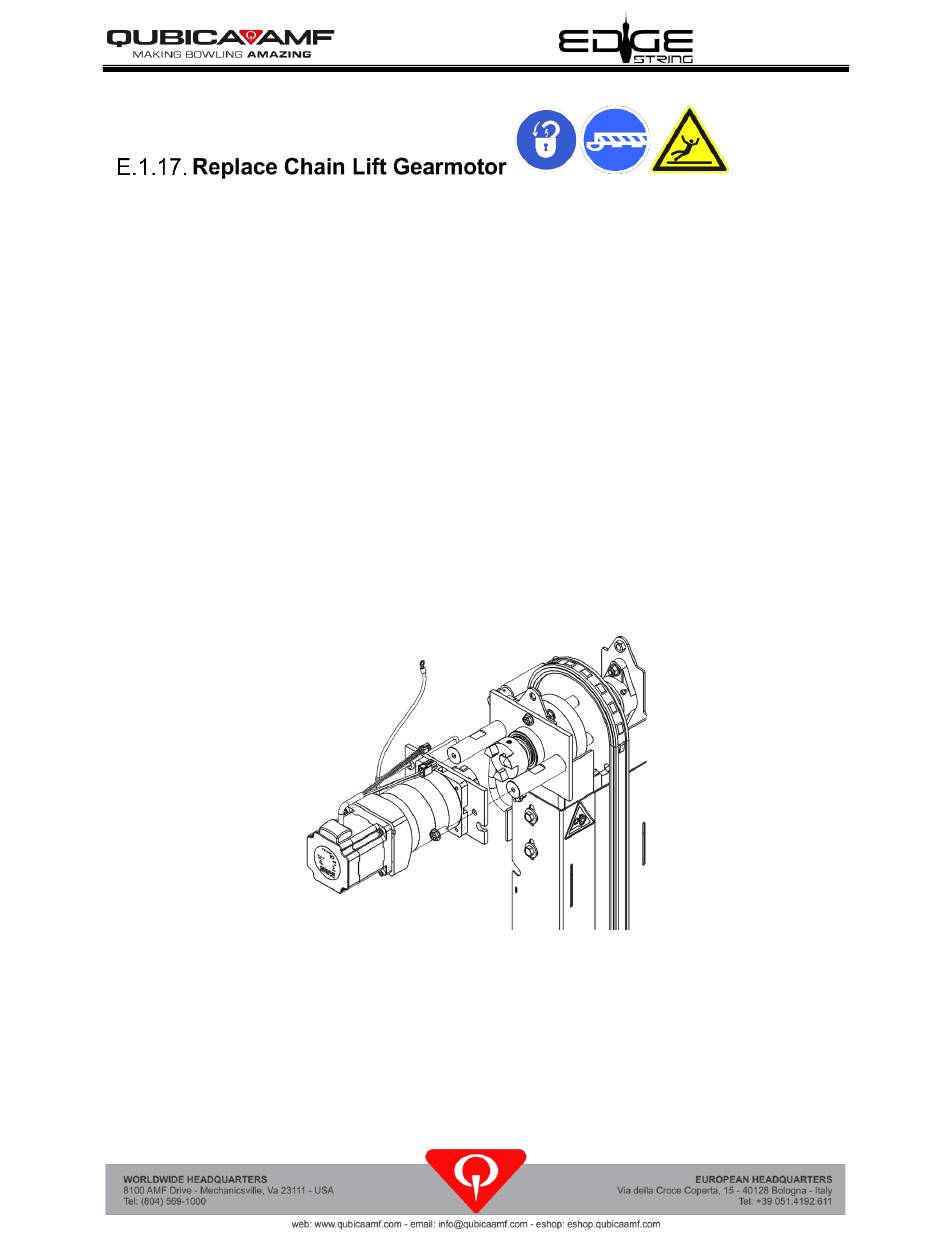

Figure E-16, Chain Lift Gearmotor
