Safety Tools

The following tools are provided with the EDGE String and are required for the safe
execution of Level 1 and Level 2 interventions. Operator(s) must use these tools
whenever indicated by the following labels located throughout this manual and on the
machine.
Pin Hook
Required tool for some Level 1 interventions. Use Pin Hook to detangle
pins and strings or to clear a ball jam near pit ball door. Operator must
always remain outside machine boundary while using Pin Hook. Do not
reach below pit hinged top cover when clearing a ball jam. Always keep end
of Pin Hook away from face.
Lockout/Tagout (LOTO)
Process to remove electrical power from machine so that it cannot be re-
energized by anyone except operator who performed LOTO. Required for
all Level 2 interventions or whenever operator crosses machine boundary.
See LOTO instructions (Appendix A).
Lane Barrier
Rigid barrier that adheres to lane surface. Prevents a thrown ball from
contacting operator when used during maintenance interventions. Required
whenever operator is working in front of machine(s) or inside machine
boundary. Use Lane Barriers on both lanes of machine pair. Install Lane
Barriers 10 ft [3m] in front of each machine when in use.
400-051-202-01 Rev. B

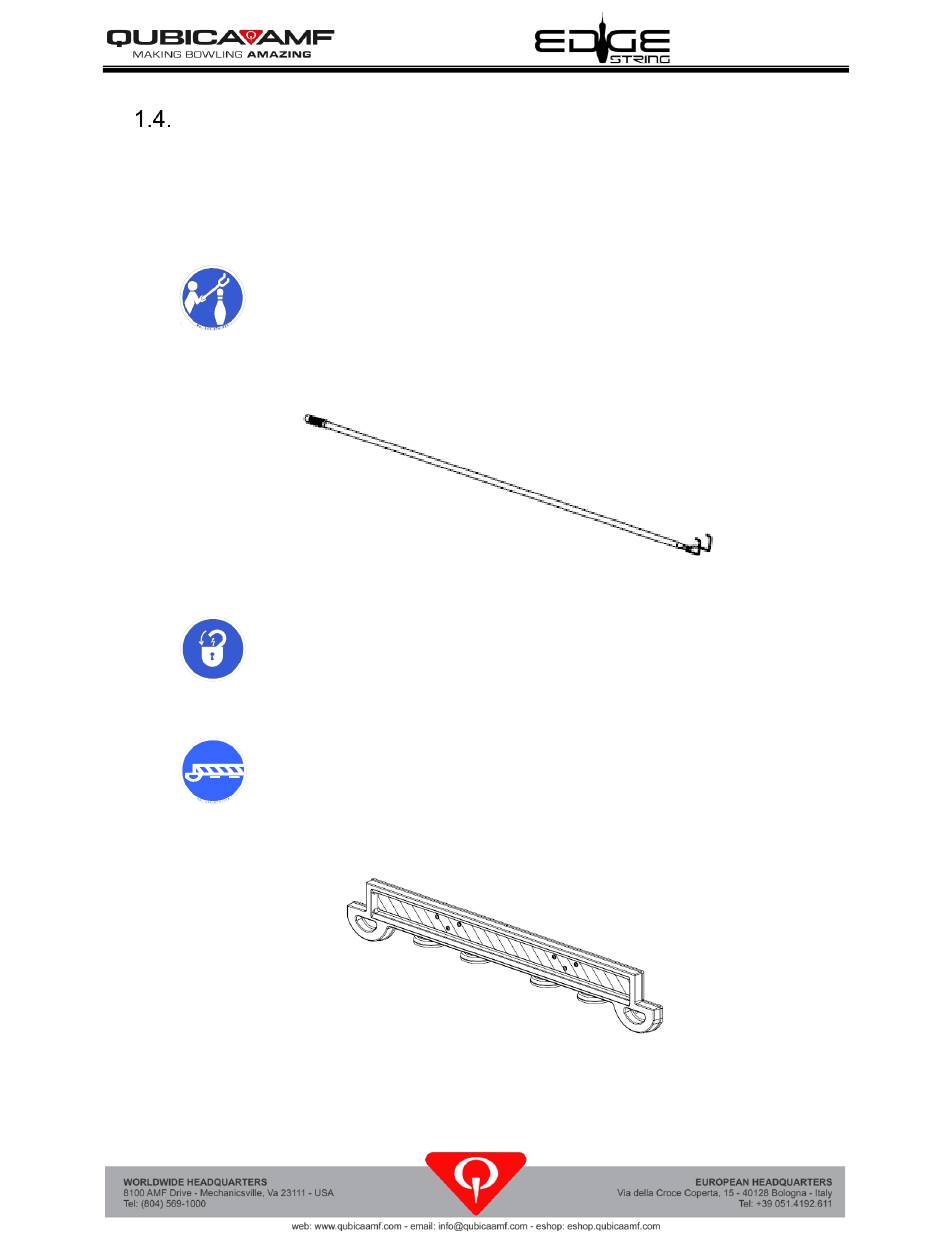

Figure 1-1, Pin Hook
Figure 1-2, Lane Barrier
Owner's Manual
Page 1-7
