QubicaAMF Edge String Owner's Manual page 191

Precautions: LOTO, Lane Barriers, Slip Hazard
Tools:
• Ratchet or Impact Driver
• ½" Socket
•
" Allen Key
1
/
8
• Diagonal Cutters
Location: Pit
Est. Time: 30 min
Note:
• It is recommended to have replacement shaft keys (P/N: 907-237-080) available. Shaft
keys may be lost during removal.
• Replace all removed cable ties before returning machine to service.
Procedure:
1. Implement LOTO and deploy lane barriers.
2. Remove all cable ties holding gearmotor cable to machine. Unplug gearmotor cables
from control box.
3. Remove bolts (2) from gearmotor mounting plate. Support gearmotor as needed.
4. Remove gearmotor and set aside. Inspect coupling spider for wear.
5. Loosen coupling hub setscrew and remove coupling hub. Keep track of shaft key.
6. Follow above steps in reverse order to install replacement drive coupling.
a. Gearmotor coupling hub must sit against output shaft shoulder.
b. Inside face of drive shaft coupling hub must be flush with shaft end.
c. Install coupling hub set screws with threadlocker.
7. Remove LOTO and lane barriers. Return machine to service.
Precautions: LOTO, Lane Barriers, Slip Hazard
Tools:
• Ratchet or Impact Driver
• ½" Socket
Location: Pit
Est. Time: 20 min
Procedure:
1. Implement LOTO and deploy lane barriers.
2. Remove bolts (2) to remove pulley flip bracket from pinspotter side frames.
3. Follow above steps in reverse order to install replacement pulley flip bracket.
4. Remove LOTO and lane barriers. Return machine to service.
400-051-202-01 Rev. B
Owner's Manual

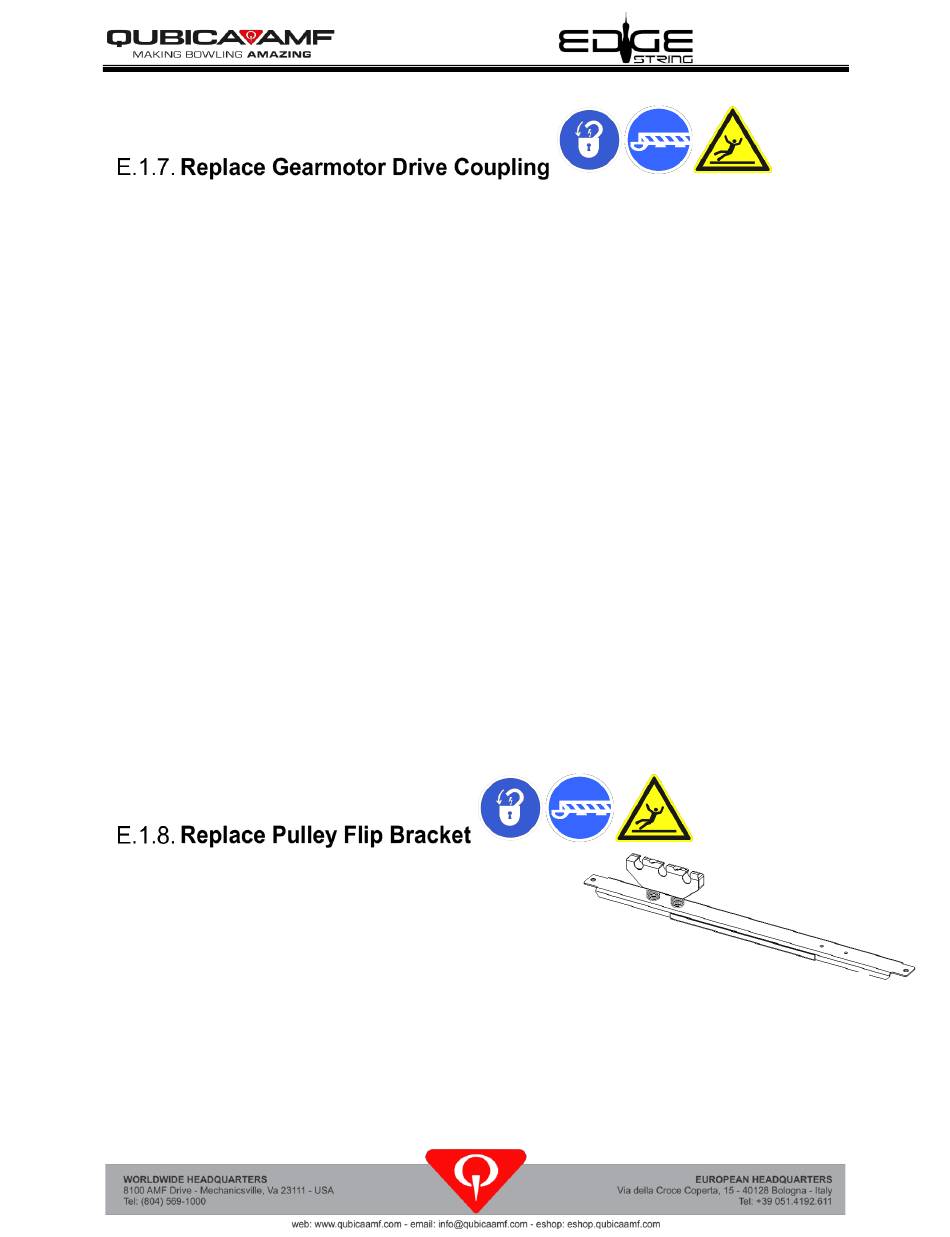

Figure E-7, Pulley Flip Bracket
Page E-11
