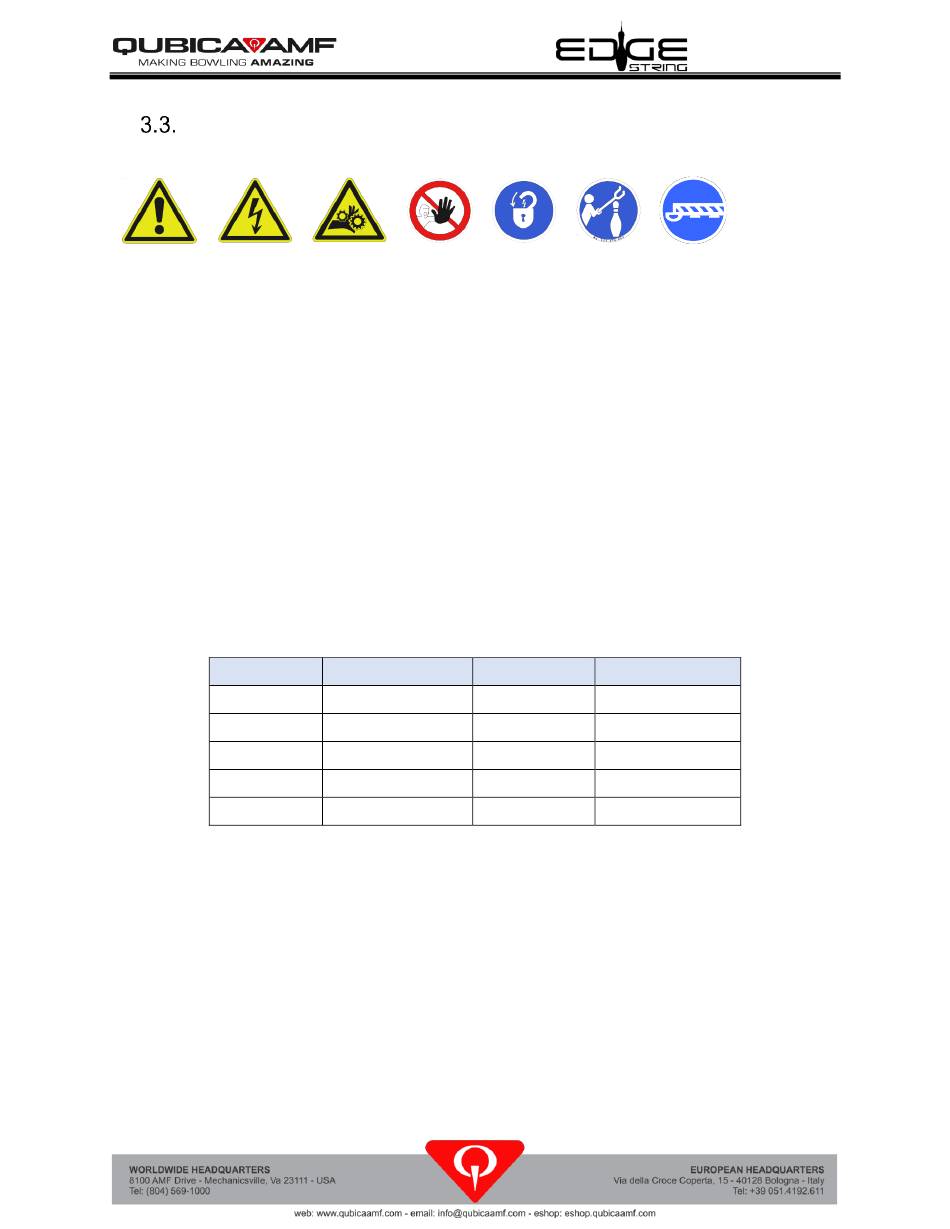

Level 2 Interventions – Lockout/Tagout (LOTO) Required
CAUTION
• LOCKOUT/TAGOUT PROCEDURE MUST BE PERFORMED whenever an
operator crosses machine boundary to perform maintenance. Ensure that all power is off
and machine cannot re-energize. Lockout/Tagout operation protects against potential
entanglement and potential electrical hazard. See Appendix A.
• Thrown balls and scattering pins can cause injury if bowling play is allowed during an
operator intervention. Operator is responsible to perform all required safety procedures.
Deploy lane barriers to protect against thrown balls during maintenance (see Page 1-7).
• Level 2 interventions may only be performed by qualified personnel. Owner/facility
manager must verify that operators are trained to work safely and perform required safety
tasks.
Bolt Torque Table
Table 3-1 shows typical bolt tightening torque values for reference in inch-pounds, foot-
pounds and Newton-meters. If a different torque value is specified in this or another
manual, then follow the specification given.
Table 3-1, Bolt Torques
Bolt Size
# 10
"
1
/
4
"
5
/
16
"
3
/
8
"
1
/
2
400-051-202-01 Rev. B
lb-in lb-ft
20 – 30 1.6 – 2.5
144 – 180 12 – 15
216 – 240 18 – 20
276 – 300 23 – 25
336 – 360 28 – 30
Owner's Manual
Nm
2.2 – 3.4
16 – 20
24 – 27
31 – 34
38 – 41
Page 3-6
