System Controller

The system controller is the primary control module for a pair of pinspotters and can be
used with or without a scoring system. It is located above the double division ball return
area at the rear of the machines.
This device must only be used indoors to protect all the electrical components from any
outdoor weather conditions. It must also be used in temperatures between 0-40ºC and at a
maximum altitude of 3000mt.
Main electrical power (208-230VAC) is supplied from a center's main service
distribution panel limited to 20A current and is routed to the main power inlet connector
on the top of the system controller. Operating current is 3.2A. Warning: Proper
protective grounding of the product is required.
An ON-OFF switch is located next to the main power inlet connector. This switch
controls power to a pinspotter pair and is used to shut down/re-boot all machine systems.
A power supply inside the system controller converts the main supply power to 24VDC
which is distributed to the control boxes of the pinspotters and chain lift. The system
controller also handles communication tasks among all machine subsystems, including
the pinspotter control boxes, chain lift control box, pit light, mask lights, ball detector,
foul detector, ball lift control box, and scoring system.
The system controller is the primary user interface for machine operation and routine
maintenance tasks.
A display and pushbutton keypad are located on the front face of the unit for accessing
machine functions, user-configurable settings, and system diagnostics tools.
E-Stop Button
ON-OFF
Switch
Alarm
Buzzer
Display
Keypad
400-051-202-01 Rev. B
Chain Lift Fuse 10A SLO-BLO
Odd Pinspotter Fuse 10A SLO-BLO
748-510-400
Reset E-Stop
E-Stop Receptacle

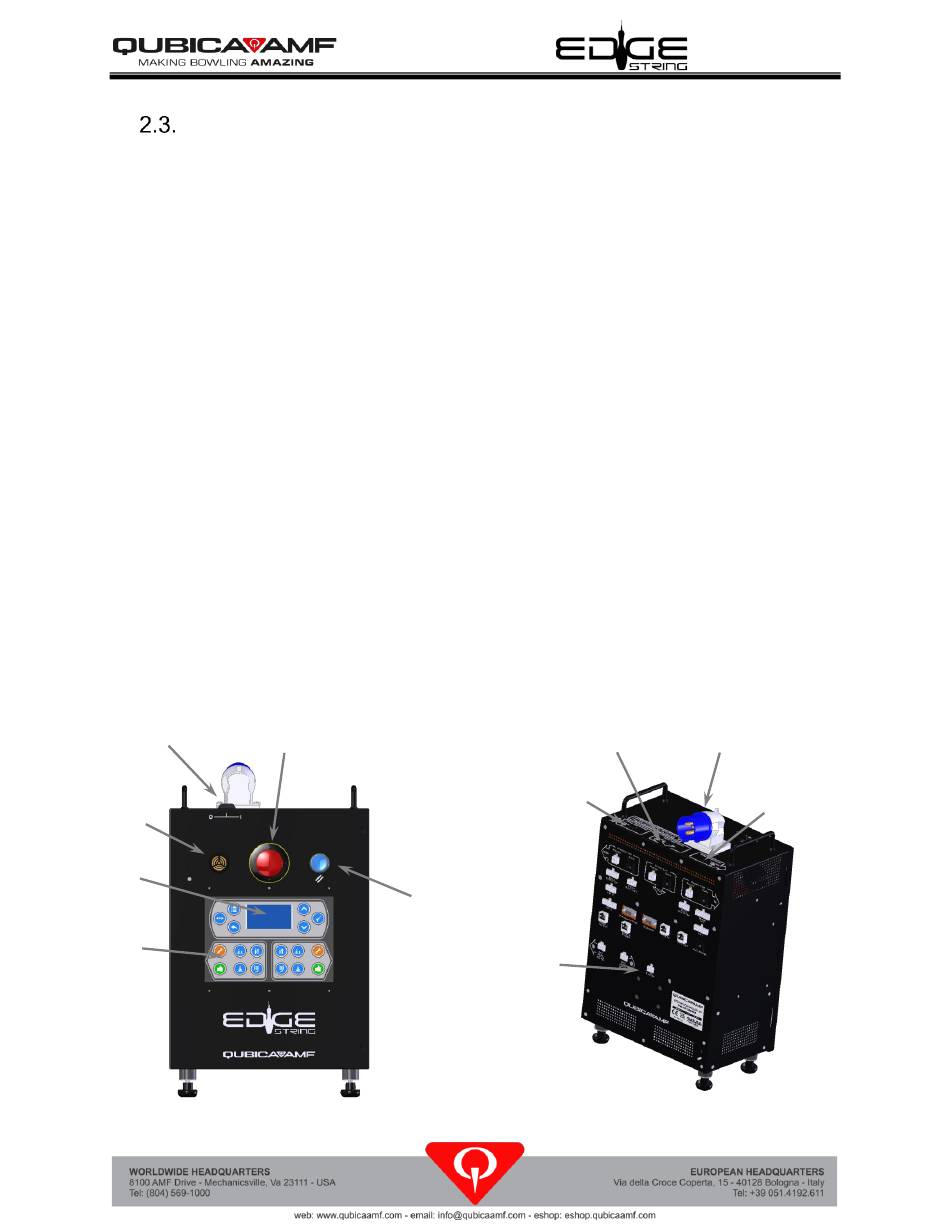

Figure 2-47, System Controller
Owner's Manual
Power Inlet
Connector
748-510-400
Even Pinspotter Fuse
10A SLO-BLO
748-510-400
Page 2-15
