Sames Inocoat Inogun M Instruction Manual

Powder spray gun
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Inogun M / Inogun M +
Powder Spray Gun
Instruction manual
DRT7132
D - 2022/09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Inocoat Inogun M and is the answer not in the manual?

Questions and answers

Related Manuals for Sames Inocoat Inogun M

Summary of Contents for Sames Inocoat Inogun M

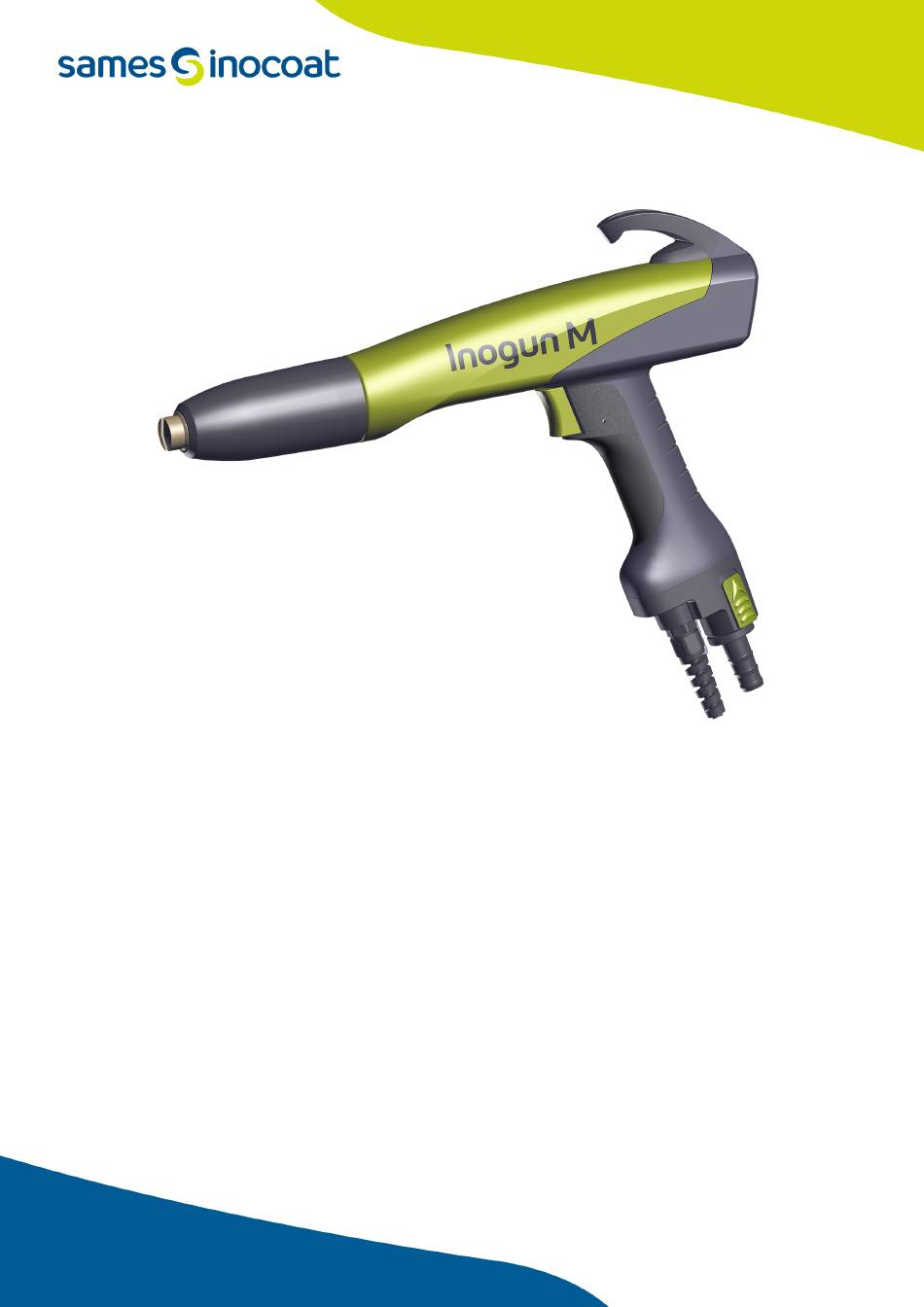

  • Page 1 Inogun M / Inogun M + Powder Spray Gun Instruction manual DRT7132 D - 2022/09...
  • Page 2 Sames operating manuals are written in French and translated into English, German, Spanish, Italian and Portuguese. The French version is deemed the official text and Sames will not be liable for the translations into other languages. Member of Exel group...
  • Page 3 Services Certification and referencing Sames is certified as a training center by the DIRRECTE of the Auvergne Rhône Alpes region under the number 84 38 06768 38. Our company provides, throughout the year, training courses allowing you to acquire the essential know-how for the implementation and maintenance of your equipment in order to guarantee its performance in the long term.

  • Page 4: Table Of Contents

    Inogun M / Inogun M + 1. Health and safety instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6 1.1.
  • Page 5 8. Spare parts list - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 39 8.1.

  • Page 6: Health And Safety Instructions

    DRT7132 D - 2022 /09 1. Health and safety instructions This manual contains links to the following operating instructions: • see DRT7145 for the Inobox control module. • see DRT7134 for the Inocontroller control module. 1.1. Configuration of the certified equipment All of these operating manuals define the configuration of the certified equipment.

  • Page 7: Marking

    DRT7132 D - 2022 /09 1.2. Marking The Inogun M and Inogun M + guns are classified as type "A-P" according to EN50050-2. Marking of the guns: The X sign placed after the EU/UK type examination certificate number indicates that this device is subject to special operating conditions: •...
  • Page 8 DRT7132 D - 2022 /09 * ATEX/UKCA Inogun M configurations Inobox P/N 910029983 Inocontroller P/N Inogun M P/N 910029984 P/N 910028596 P/N 910030576 910030034 910030034-12 910030034-18 * ATEX/UKCA Inogun M + configurations Inobox P/N 910029983 Inocontroller P/N Inogun M + P/N 910029984 P/N 910028596 P/N 910030576...

  • Page 9: Meaning Of Pictograms

    DRT7132 D - 2022 /09 1.3. Meaning of pictograms Warning electricity Warning Warning Warning General warning Automatic start-up Hot surfaces Explosive material sign Warning Warning Warning for Warning: Warning: High pressure Crushing of hands explosive Flammable material Corrosive substance atmospheres Warning: Warning No access for people...

  • Page 10: Precautions For Use

    Before any use of the projector, check that all operators: • have previously be trained by the company Sames, or by their distributors registered by them for this purpose. • have read and understood the user manual and all rules for installation and operation, as laid out below.
  • Page 11 12The ambient operating temperature must be between 0 and 40°C. 13The electrostatic powder spraying equipment must be maintained regularly in accordance with the indications and instructions given by Sames. Repairs must be carried out in strict accordance with these instructions.

  • Page 12: Regulatory Tests To Be Carried Out On The Equipment According To Standard

    DRT7132 D - 2022 /09 14The electrostatic powder spraying equipment should only be operated if it is in perfect condition. Damaged equipment must be removed from service immediately and repaired. 15Before cleaning the projectors or doing any other work in the spray area, the power supply to the high-voltage generator must be disconnected, protected against restarting and the HV circuit protected.

  • Page 13: Guarantee

    • use of seals not complying with Sames recommendations, • pollution of air circuits by fluids or substances other than air. The Sames guns type Inogun M / M + are covered by a warranty (refer to the general sales conditions for its application).

  • Page 14: Description

    DRT7132 D - 2022 /09 2. Description The Inogun M guns is a manual gun designed to project powder by means of a high voltage unit integrated in the gun which delivers up to 100 kV and 110 μA.. It is associated with an Inobox or Inocontroller control module which controls both the high voltage and the powder flow rate of the gun connected to it.

  • Page 15: Characteristics

    DRT7132 D - 2022 /09 3. Characteristics 3.1. Dimensions (mm) inches 10.67 13.35 1.97 Member of Exel group...

  • Page 16: General Characteristics

    A 5 μm filter must be installed upstream of the compressed air supply of the Inocontroller or Inobox control modules. This filter is sized according to the size of the installation. Sames recommends using a filter of the type indicated in the section (see § 8.7 page 59).

  • Page 17: Operating Principle

    DRT7132 D - 2022 /09 3.4. Operating principle By pulling the gun trigger, the power supply and electrical charging of the powder is triggered. Keys on the back keyboard are used to adjust: • Powder flow when simultaneously pressing the trigger and the keyboard. •...

  • Page 18: Diagrams

    DRT7132 D - 2022 /09 4. Diagrams Synoptic of an installation with Inogun M and Inobox Vibrator Supply Power fluidisation Air supply Powder suction Inogun M Synoptic of an installation with Inogun M and Inocontroller + 24VDC LPS Module of Air supply Powder suction Inogun M...

  • Page 19: Electrical Connections

    DRT7132 D - 2022 /09 The Inogun M guns are connected to the Inobox or Inocontroller control module. This module provides the low-voltage and high-frequency power supply necessary for the operation of the integrated high-voltage unit and the air distribution and regulation. 4.1.

  • Page 20: Startup

    DRT7132 D - 2022 /09 5. Startup 5.1. Tools Description Unit of sale 240000301 Seal extractor tool Description Unit of sale H1GMIN017 White Vaseline (100 ml) H1GSYN037 Dielectric grease for high voltage unit (100 ml) Additional tools and accessories required: The tools listed below should be available for product installation and maintenance operations.

  • Page 21: Installation

    DRT7132 D - 2022 /09 5.2. Installation The Inogun M guns are installed either on the different types of cart (vibrating table, tank or penetrant testing) or on a manual station of a booth (see corresponding operating manuals). 5.2.1. Installation of an extended nozzle (option) The Inogun M guns can be equipped with optional extended nozzles for flat spray and round spray (see §...

  • Page 22: Procedure For Mounting The Counter-Electrode

    DRT7132 D - 2022 /09 5.2.2. Procedure for mounting the counter-electrode The Inogun M can be equipped with an optional counter-electrode (see § 8.5 page 56). • Switch off high voltage, • Step 1: Unscrew the 2 screws (1 and 2)at the back of the gun.

  • Page 23: Maintenance

    After a fall, it is recommended to check the operation of the gun out of the area before re- use and its condition. 6.1. Summary table of maintenance operations The maintenance intervals indicated in the procedures below are only indicative. The user will have to create his own maintenance schedule as he use Sames equipment. Procedure Detail Duration...

  • Page 24: Preventive Maintenance Plan - Pmp 7132

    The objective of the proposed preventive maintenance plan is to define in an exhaustive way, the verification, replacement and cleaning actions of the installed Sames equipment. In order to anticipate breakdowns and malfunctions that may be due to technical deviations of the installation, the preventive maintenance plan attached to the user manual lists the routine maintenance operations necessary for better comfort in the use of the production tool.

  • Page 25: Procedure A2: Electrode Support

    DRT7132 D - 2022 /09 6.3.2. Procedure A2: Electrode support. • Switch off high voltage, • Step 1: Manually unscrew the nozzle nut then remove the deflector. • Step 2: Remove the electrode support. • Step 3: Clean the electrode support with compressed air and also the deflector Make sure that there is no accumulation of powder.

  • Page 26: Replacement

    DRT7132 D - 2022 /09 6.4. Replacement 6.4.1. Procedure B1: Replacement of fixing hook • Step 1: Unscrew the 2 screws at the back of the gun. • Step 2: Slide the hook towards the front of the gun. • For reassembly: Fit the new hook, slide it in until it stops and tighten the 2 screws KA 30 x 20 to a torque of 0.65 N.m.

  • Page 27: Procedure B2: Replacement Of Trigger

    DRT7132 D - 2022 /09 6.4.2. Procedure B2: Replacement of trigger • Using a pin punch D: 1.8 mm, pull the trigger pin out of the trigger in the handle. Remove the trigger. Be careful not to lose the spring. •...
  • Page 28 DRT7132 D - 2022 /09 4 Push it in with the pin punch, it must be correctly centred and don't go out either way. 5 Check that the trigger is working properly without hard points and/or noise. Member of Exel group...

  • Page 29: Procedure C1: Assembly / Disassembly Barrel / Handle

    DRT7132 D - 2022 /09 6.4.3. Procedure C1: Assembly / Disassembly barrel / handle • Step 1: Unscrew the 4 screws at the back of the gun. • Step 2: Separate the handle from the barrel by simultaneously making small horizontal and vertical movements.
  • Page 30 DRT7132 D - 2022 /09 • Step 4: Reassembly of the barrel/handle: 1 Put a light coat of Vaseline in the powder channel duct to facilitate its reassembly. 2 Insert the powder duct, connect the HVU. 3 Place the connector (1) under the UHT, wedge it under the cable guide clip (2), make sure that the wires loop over the connectors.

  • Page 31: Procedure C2: Replacement Of Hvu

    DRT7132 D - 2022 /09 6.4.4. Procedure C2: Replacement of HVU • Unscrew the HV contact. • Using a multigrip pliers, extract the HVU from the barrel. • Replace the HVU, apply a light coat of dielectric grease (P/N H1GSYN037) to the seal of the new HVU. •...

  • Page 32: Procedure C3: Replacement Of Air Connector O-Rings

    DRT7132 D - 2022 /09 6.4.5. Procedure C3: Replacement of air connector o-rings • Step 1: Using a flat screwdriver, extract the air connector from the barrel. • Step 2: Using the tool (P/N 240000301), remove the o-rings of the air connector one by one. •...

  • Page 33: Procedure D1: Powder Duct

    DRT7132 D - 2022 /09 6.4.6. Procedure D1: Powder duct • Step 1: Extract the powder duct from the handle. • Step 2: Reassembly 1 Clean the inside of the powder duct with compressed air. 2 Check the condition of the seal and the powder duct, change them if necessary.

  • Page 34: Procedure D2: Replacement Of Low Voltage Cable

    DRT7132 D - 2022 /09 6.4.7. Procedure D2: Replacement of low voltage cable • Step 1: Push the 2 bolts so that the powder hose can be unlocked and removed. • Step 2: Remove the air hose. • Step 3: Loosen the 3 screws. •...
  • Page 35 DRT7132 D - 2022 /09 • Step 5: Replace the LV cable. 1 Insert the connector (1) connecting the HVU into the handle. Leave enough space to correctly reposition the powder duct. 2 Insert the powder duct into the handle, making sure not to pinch the wires.

  • Page 36: Procedure D3: Replacement Of Control Box

    DRT7132 D - 2022 /09 6.4.8. Procedure D3: Replacement of control box By having previously followed steps 1 to 4 of procedure D2 (see § 6.4.7 page 34), • Step 1: Unscrew the 5 screws, take the housing out of its housing.
  • Page 37 DRT7132 D - 2022 /09 • Step 4: Control box replacement 1 Push the plug into the grip of the handle 2 Insert the REED light into its housing with the wires facing down as far as they will go. 3 Place the wires on the opposite side of the air channel.

  • Page 38: Troubleshootings

    DRT7132 D - 2022 /09 7. Troubleshootings Symptoms Probable causes Remedies Soiling of the powder duct Disassemble the gun, clean it or change the duct. Plugging of the powder supply hose Clean the powder hose with compressed air. Powder flow drop Wear and tear clogging of the Refer to the powder pump instruction manual.

  • Page 39: Spare Parts List

    DRT7132 D - 2022 /09 8. Spare parts list The spare parts are classified in 2 different types: • 1st emergency parts: The 1st emergency parts are strategic components which are not necessarily consumables but which in case of failure prohibit the operation of the equipment. Depending on the production line's commitment and the production rates imposed, the first emergency parts are not necessarily kept available in the customer's stock.

  • Page 40: Manual Spray Guns

    DRT7132 D - 2022 /09 8.1. Manual spray guns 8.1.1. Inogun M spray gun 12 13 14-15 Member of Exel group...
  • Page 41 DRT7132 D - 2022 /09 Unit Maintenance Item Part Number Description level for sale spare parts (*) 910030034 Equipped Inogun M gun (with cable length: 6 m) 910030034-12 Equipped Inogun M gun (with cable length: 12 m) 910030034-18 Equipped Inogun M gun (with cable length: 18 m) 900018342 Nozzle nut 900016321...

  • Page 42: Inogun M + Spray Gun

    DRT7132 D - 2022 /09 8.1.2. Inogun M + spray gun 12 13 14-15 Member of Exel group...
  • Page 43 DRT7132 D - 2022 /09 Unit Maintenance Item Part Number Description level for sale spare parts (*) 910031951 Equipped Inogun M + gun (with cable length: 6 m) 910031951-12 Equipped Inogun M + gun (with cable length: 12 m) 900018342 Nozzle nut 900016321 Medium flat spray deflector...

  • Page 44: Barrel Assembly

    DRT7132 D - 2022 /09 8.2. Barrel assembly Unit Maintenance Item Part Number Description level for sale spare parts (*) 910029992 Inogun M barrel assembly 910033168 Inogun M + barrel assembly 910029993 Air connector assembly J2CTPC020 O-ring (included in item 7.1) Level 1: 1st emergency parts Level 2: Wearing parts Member of Exel group...

  • Page 45: Handle Assembly

    DRT7132 D - 2022 /09 8.3. Handle assembly Trigger detail 17.1 17.2 Unit Maintenance Item Part Number Description level for sale spare parts (*) 910029996 Handle assembly 17.1 910032827 Trigger assembly 17.2 1408849 Spring of trigger Level 1: 1st emergency parts Level 2: Wearing parts Member of Exel group...

  • Page 46: Electrode Supports

    DRT7132 D - 2022 /09 8.4. Electrode supports 8.4.1. Flat spray Unit Maintenance Item Part Number Description level for spare sale parts (*) 910027640 Flat spray electrode support J2CTCN054 O-ring (included in item 4) 900016321 Medium flat spray deflector (grey) 900019952 Narrow flat spray deflector (green) option...

  • Page 47: Optional: Extended Flat Spray Nozzle

    DRT7132 D - 2022 /09 8.4.2. Optional: Extended flat spray nozzle Nozzle Number of Reinforce- Part Spray Spring Electrode Electrode length Body electrode ment Number deflector ionizer extension Support (mm) extensions (*) sleeve 910028485 900021080 900018342 900020896 910027640 910028486 900021081 900021863 900017811 900017797 910032772...
  • Page 48 DRT7132 D - 2022 /09 8.4.2.1. Lengths 150 and 300 mm x 1: length 150 mm x 2: length. 300 mm Member of Exel group...
  • Page 49 DRT7132 D - 2022 /09 Maintenance Unit of level for Item Part Number Description sale spare parts 910028485 Extended flat spray nozzle length: 150 mm 910028486 Extended flat spray nozzle length: 300 mm 900018342 Extended nozzle nut length: 150 to 300 900020896 Flat spray narrow deflector for Extended nozzle 900021863...
  • Page 50 DRT7132 D - 2022 /09 8.4.2.2. Lengths 450 and 600 mm x 3: length 450 mm x 4: length. 600 mm Maintenance Unit of level for Item Part Number Description sale spare parts 910032772 Extended flat spray nozzle length: 450 mm 910032773 Extended flat spray nozzle length: 600 mm 900020473...

  • Page 51: Round Spray

    DRT7132 D - 2022 /09 8.4.3. Round spray Unit Maintenance Item Part Number Description level for sale spare parts (*) 910027641 Round spray electrode support J2CTCN054 O-ring (included in item 4) J2CTPC020 O-ring (included in item 4) 1409259 Round spray deflector, Dia.: 16 mm (white) 900008026 HD Round spray deflector, Dia.: 16 mm (grey) option...

  • Page 52: Option, Extended Round Spray Nozzles

    DRT7132 D - 2022 /09 8.4.4. Option, Extended round spray nozzles Nozzle Number of Reinforce- Part Spray Spring Electrode Electrode length Body electrode ment Number déflector ionizer extension Support (mm) extensions (*) sleeve 910028576 900021080 900018342 910027641 910028575 900021081 910030942 900021083 900020904 900018523 900017552 910029099...
  • Page 53 DRT7132 D - 2022 /09 Mainte- nance level Unit of Item Part Number Description sale spare parts 910028576 Extended round spray nozzle length: 150 mm 910028575 Extended round spray nozzle length: 300 mm 900018342 Extended nozzle nut length: 150 to 300 1409259 Round spray deflector, Dia.: 16 mm (white) 900008026...
  • Page 54 DRT7132 D - 2022 /09 8.4.4.2. Lengths from 450 to 1500 mm 4.10 x 3 : length 450 mm x 4: length. 600 mm x 5: length. 1050 mm x 10: length. 1500 mm Member of Exel group...
  • Page 55 DRT7132 D - 2022 /09 Mainte- nance level Unit of Item Part Number Description sale spare parts 910030942 Extended round spray nozzle length: 450 mm 910029099 Extended round spray nozzle length: 600 mm 910031754 Extended round spray nozzle length: 1050 mm 910032347 Extended round spray nozzle length: 1500 mm 900020473...

  • Page 56: Counter-Electrode Assembly

    DRT7132 D - 2022 /09 8.5. Counter-electrode assembly Maintenance Unit of Item Part Number Description level for sale spare parts (*) 910031755 Counter-electrode assembly J3ETOR097 O-ring (included in item 1) 110001096 Banana plug Dia:4 (included in item 1) 900021017 Conductive hook Level 1: 1st emergency parts Level 2: Wearing parts Member of Exel group...

  • Page 57: Spray Type Conversion Kits For Extended Nozzles

    DRT7132 D - 2022 /09 8.6. Spray type conversion kits for extended nozzles 8.6.1. Kit for converting a flat spray into a round spray for extended nozzles 4.10 Unit Maintenance Item Part Number Description level for sale spare parts (*) Kit for converting a flat spray into a round spray 910032710 for extended nozzles...

  • Page 58: Kit For Converting A Round Spray Into A Flat Spray For Extended Nozzles

    DRT7132 D - 2022 /09 8.6.2. Kit for converting a round spray into a flat spray for extended nozzles Unit Maintenance Item Part Number Description level for sale spare parts (*) Kit for converting a round jet into a flat spray 910032709 for extended nozzles 900020896...

  • Page 59: Additional Equipment

    DRT7132 D - 2022 /09 8.7. Additional equipment Manual flush filter Unit Maintenance Part Number Description level for sale spare parts (*) 160000148 5μm air filter 1 - 2 F6RLCS204 Male union X3AVSY119 Screw Chc M4 x12 steel 8/8 zinc plated X2BDMU004 Washer M4 U zinc plated steel Level 1: 1st emergency parts...

  • Page 60: Revision Index History

    DRT7132 D - 2022 /09 9. Revision index History Created by Checked by: E. Ghio Approuved by S. Court Date Index Purpose of the modification and location 07/2020 S. Court First issue Addition of the dual control of the gun, modification of the tightening torques, addition of spare parts o-rings, 09/2020 S.

  • Page 61: Appendices

    DRT7132 D - 2022 /09 10. Appendices 10.1. Preventive maintenance plan Member of Exel group...
