Connection Of The Water Softening System With The Salt Reservoir - Judo QUICKSOFT MEGA 4 Installation And Operating Instructions Manual

4.3

Connection of the water softening system with the salt reservoir

Lance
Salt
reservoir

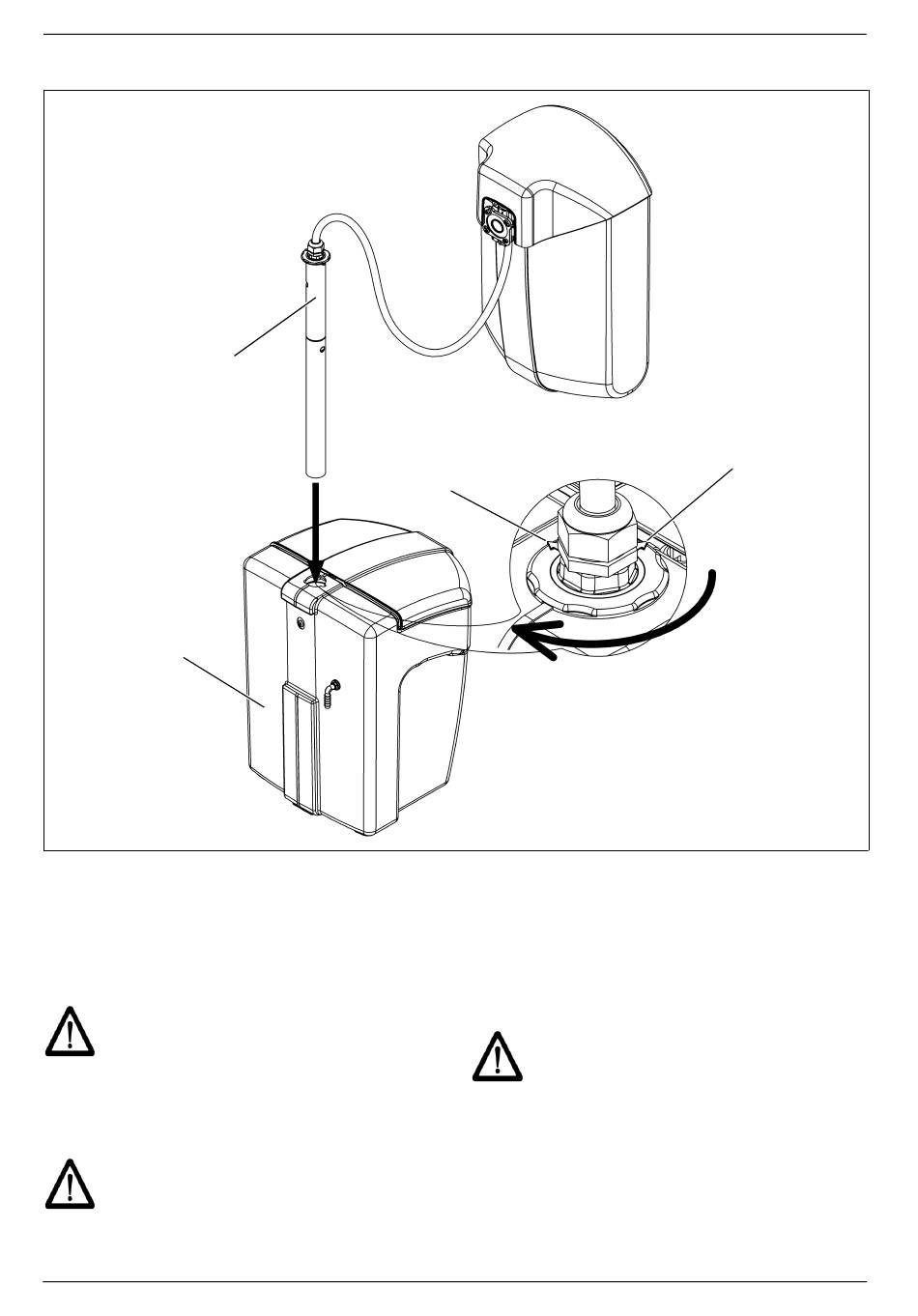

Fig. 6: Connection of the water softening system with the salt reservoir
Procedure (see fig. 6):
1. Push the lance up to the stop in the salt
reservoir.
Note the marking arrow:
In doing so the arrow must point to
the side (see fig. 6)!
2. To lock, turn the lance through 90° in the
clockwise direction (up to the stop).
Note the marking arrow:
The arrow must now point to the
front side of the salt reservoir (see
fig. 6)!
12
Installation
Marking arrow
unlocked
1.
JUDO QUICKSOFT MEGA 4
The salt reservoir can be placed below the
water softening system or next to it on the
floor.
If the salt reservoir is placed di-
rectly next to the water softener,
make sure that the jacket hose
(see fig. 7) has a steady downward
slope from the water softener to
the salt reservoir.
Marking arrow
locked
2.
