4.2.3 Installing the support ele-
ments
Parallel
connection flange
Bracket
set

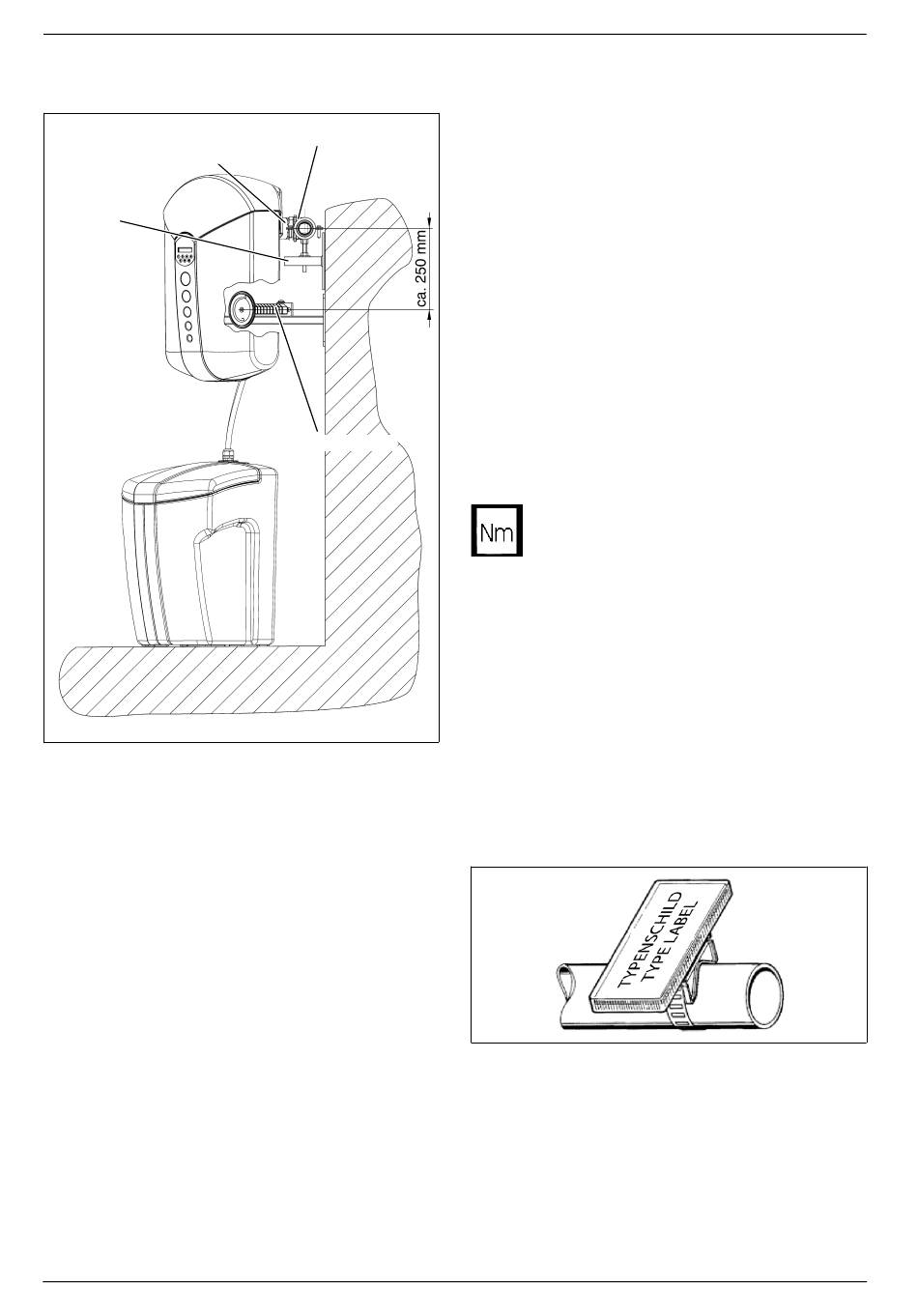

Fig. 4: Support elements
The bracket set (2 brackets with one pipe
clamp each) is screwed to the wall with 4
hexagon head screws.
Notes on installing the wall support (contain-
er support) are included in the correspond-
ing installation instructions.
4.2.4 Installing the two individual
softeners
The connection flange of the water softening
system is covered by a white protective cap.
This protective cap is secured using four
hexagon socket head screws M6×130.
– Loosen all four hexagon socket head
screws M6×130, but do not screw out
completely (bayonet connection)!
– Remove the white protective cap.
Installation
Rotary flange fitting
Wall support
JUDO QUICKSOFT MEGA 4
The profile of the profile flange seal must
point towards the parallel connection flange.
If this is not observed, water leaks may oc-
cur This can result in water damage to the
building, furnishings and equipment.
– Raise the water softening system and
swivel approximately 30° in counter-
clockwise direction.
– Place it on the parallel connection flange
so that the screw heads project through
the bayonet holes.
– Swivel the water softening system back
approximately 30° in a clockwise direc-
tion.
– Fully tighten the four M6×130 hexagon
socket head screws.
Select the tightening torque (about
4 Nm) so that the seal is effective
and the water softening system is
not damaged or strained!
After installation of the water softening sys-
tems, push out the wall support until it touch-
es the cladding of the devices and the devic-
es hang vertically on the wall. Then tighten
the screws of the wall support.
4.2.5 Attaching the unit label
Attach the unit label near the unit, e.g. on the
parallel connection flange or on the pipe.
Fig. 5: Unit label
