– Regeneration will not take place,
– No fault warnings will be output.
– Water leakage or even water damage
may occur during a regeneration as a re-
sult of a loss of power.
4.2
Installation of the
water softening system
The two individual softeners are connected
to the pipe via the parallel connection flange
(JQT) The spatial requirements of the sys-
tem can be found in chapter 9.3 "Installation
dimensions".
A rotary flange fitting (JQE) is included with-
in the scope of supply of the parallel connec-
tion flange (JQT).
4.2.1 Installation of the
rotary flange fitting (JQE)
The rotary flange fitting serves as a connect-
ing piece between the pipe and the water
softening system.
It is suitable both for horizontal and vertical
pipes.
The rotary flange fitting must be installed
in the direction of flow. This is indicated
by an arrow integral with the casting (see
fig. 2).
Profile flange seal

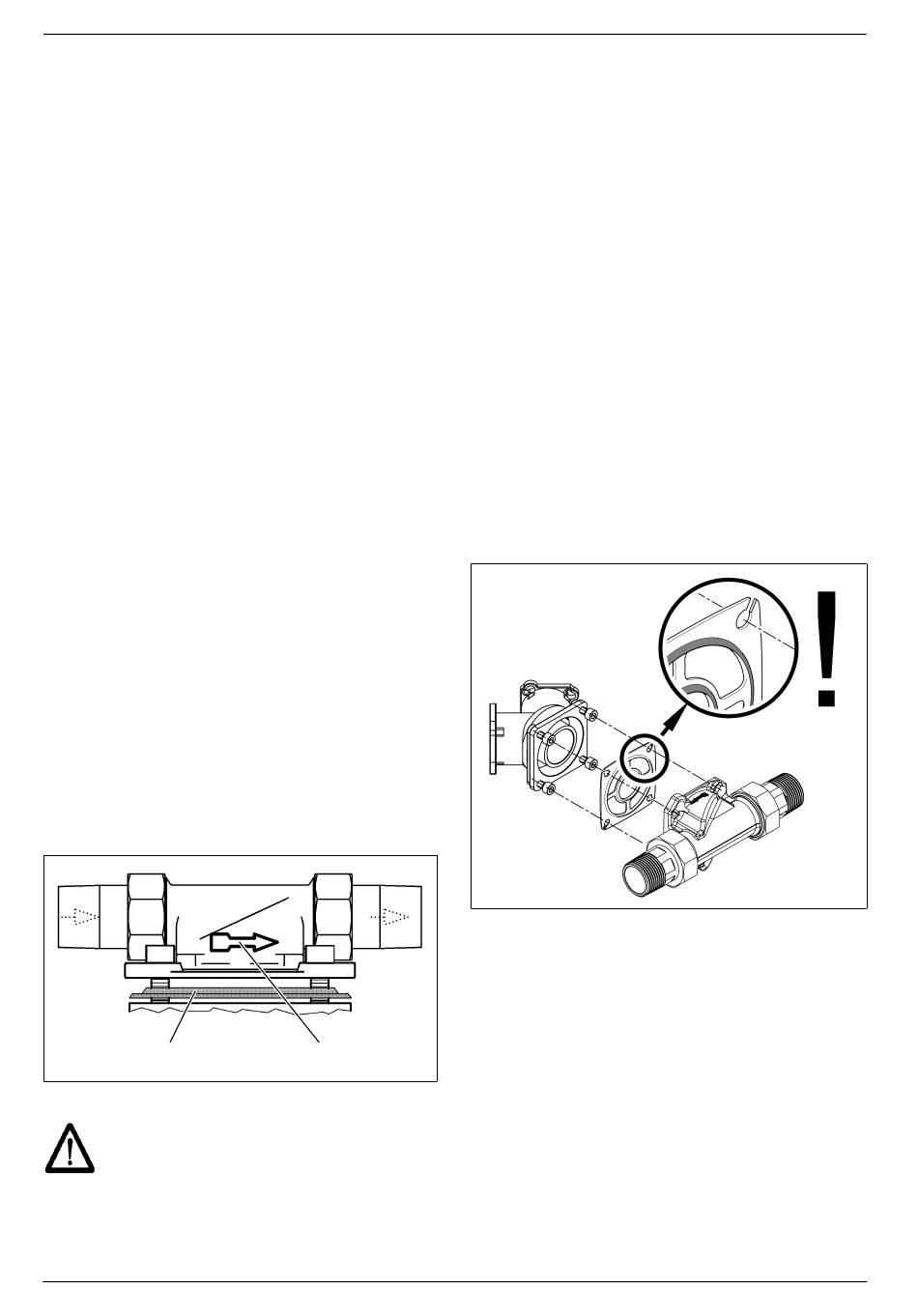

Fig. 2:
Rotary flange fitting
If this requirement is ignored, the
water softening system will not
work.
10
Installation
Direction of flow arrow
JUDO QUICKSOFT MEGA 4
The flange surface of the rotary flange fitting
must be upright! The rotary flange fitting
must be fitted so that it is free from mechan-
ical stress or strain. Otherwise mechanical
damage of the rotary flange fitting may re-
sult. This can result in severe water dam-
age.
Therefore when installing, ensure that no
large forces act on the pipe, rotary flange fit-
ting or water softening system.
4.2.2 Installation of the parallel con-
nection flange (JQT)
– After flushing the water pipe, remove the
black mounting cover of the rotary flange
fitting.
– Check whether the profile of the profile
flange seal is pointing toward the rotary
flange fitting (see fig. 3).
Fig. 3:
Profile flange seal
– Connect the flange of the parallel con-
nection flange to the rotary flange fitting
by latching in the bayonet connection
and then tighten the four hexagon socket
head screws.
