8.2 ...via LAN
To connect to the TempDefender G2 via LAN, all you need is the unit's IP address (Default IP address is
192.168.1.100).
If you DON'T have LAN, but DO have physical access to the TempDefender G2, connect using a LAN
crossover cable. NOTE: Newer PCs should be able to use a standard straight-through LAN cable and handle the
crossover for you. To do this, you will temporarily change your PC's IP address and subnet mask to match the
TempDefender G2's factory default IP settings. Follow these steps:
1. Get a LAN crossover cable and plug it directly into the TempDefender G2's LAN port.
2. Look up your PC's current IP address and subnet mask, and write this information down.
3. Reset your PC's IP address to 192.168.1.200. Contact your IT department if you are unsure how to do this.
4. Reset your PC's subnet mask to 255.255.0.0. You may have to reboot your PC to apply your changes.
5. Once the IP address and subnet mask of your computer coincide with the unit, you can access the unit via
a Telnet session or via Web browser by using the unit's default IP address of 192.168.1.100.
6. Provision the TempDefender G2 with the appropriate information, then change your computer's IP
address and subnet mask back to their original settings.
Now you're ready to do the rest of your configuration via LAN. Plug your LAN cable into the TempDefender G2 and
see "Logging On to the TempDefender G2" to continue databasing using the Web Browser.

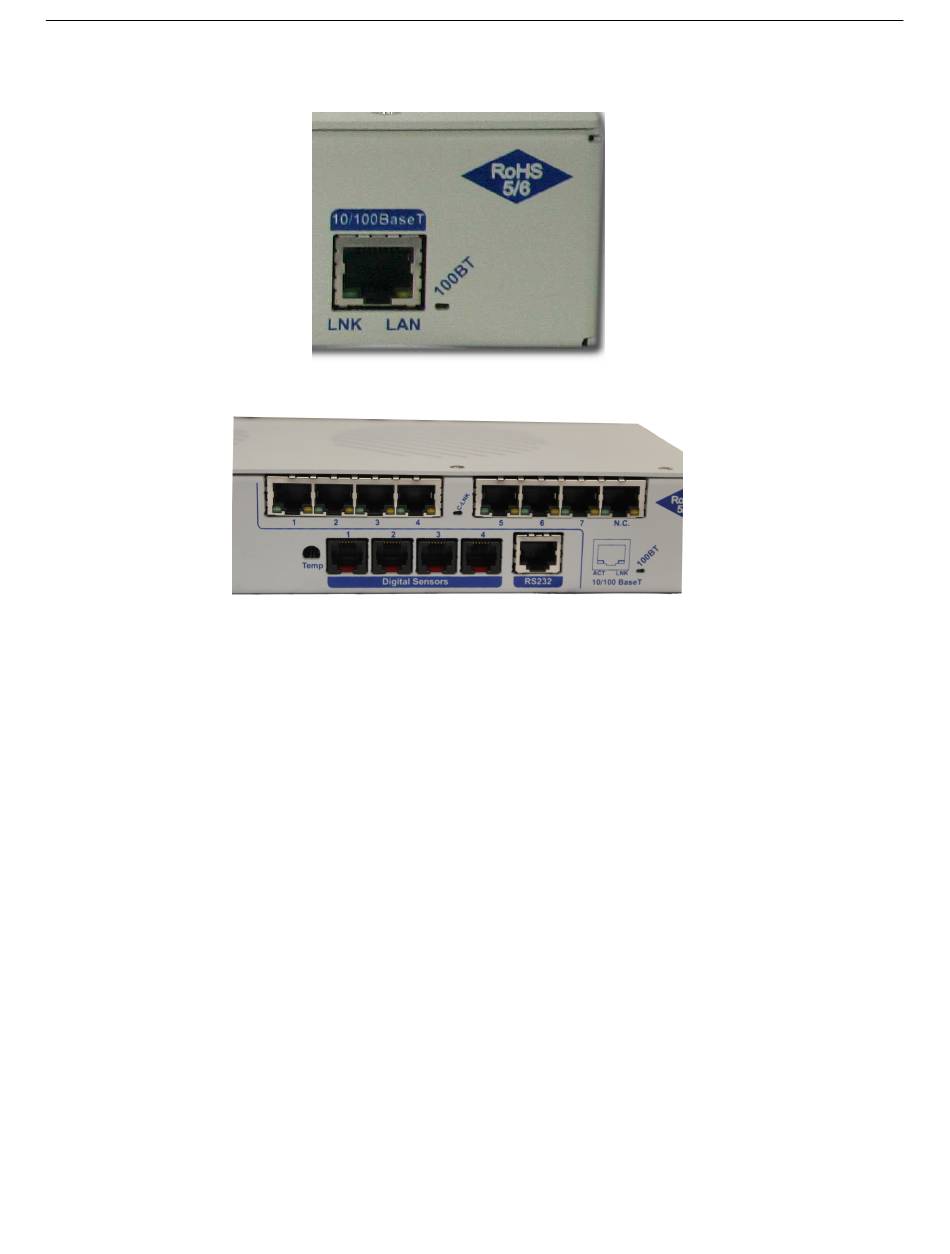

TempDefender G2 Ethernet Port
TempDefender G2 Ethernet Port (with switch)
