Hardware Options

Enter topic text here.
5.1

Integrated 10/100BaseT Ethernet Switch (Optional)

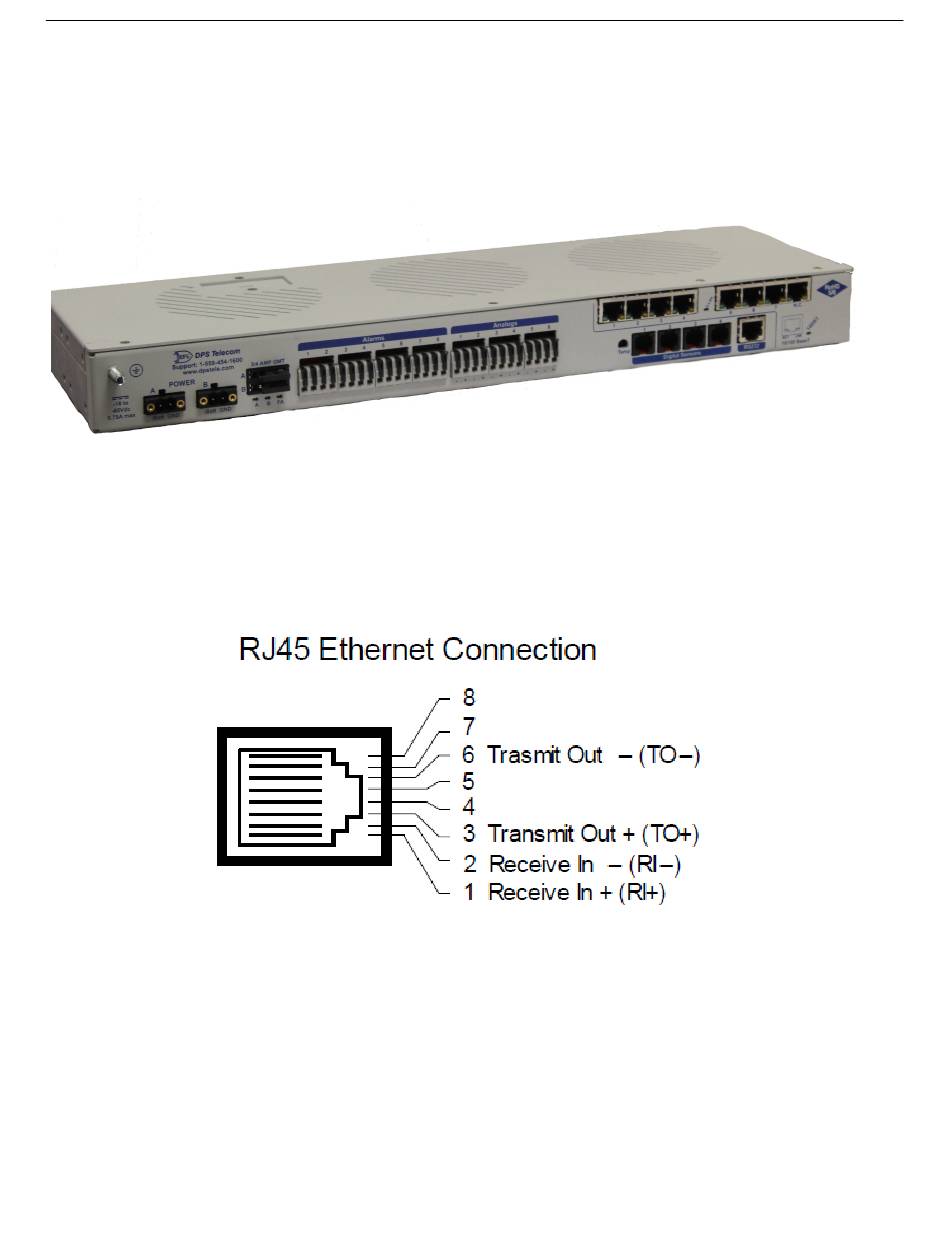

TempDefender G2 with integrated 10/100Base T Ethernet switch
You can order your TempDefender G2 with an optional integrated Ethernet switch, which provides seven regular
Ethernet ports. The integrated switch is powered by the same power as the TempDefender, which provides more
secure, more robust operation than switches that run off commercial power. The integrated switch also frees valuable
rack space be eliminating an unnecessary extra unit.
Regular Ethernet port pinout
The seven Ethernet ports of the switch are regular straight-through Ethernet ports. The pinout for the regular Ethernet
ports is shown in the figure above.
