2 Display screens and pages
structure
The displayed information is structured into "pages" and "screens". Use PAGE button to switch overthe pages.
The page Measurement consists of screens which display measured values like voltages,
current, oil pressure etc., computed values like i.e. gen-set power, statistic data and the alarm list on the
last screen.
The page Setpoints contains all setpoints organized to groups and also a special group
forentering password.
The page History log shows the history log in the orderthat the last record is displayed first.
2.1 Main Screen
2.1.1 Symbols
Padlock – active when LBI A
R – active when there is active remote connection to controller
Exclamation mark – active when there is any alarm in alarmlist
2.1.2 Optional
Value can be chosen via setpoints
Posibilities are: RPM, PF, Run Hours, ATT, AIN1
2.2 Measurement Screens
InteliLite 4 AMF20+AMF25 Operator Guide
L is active
CCESS OCK

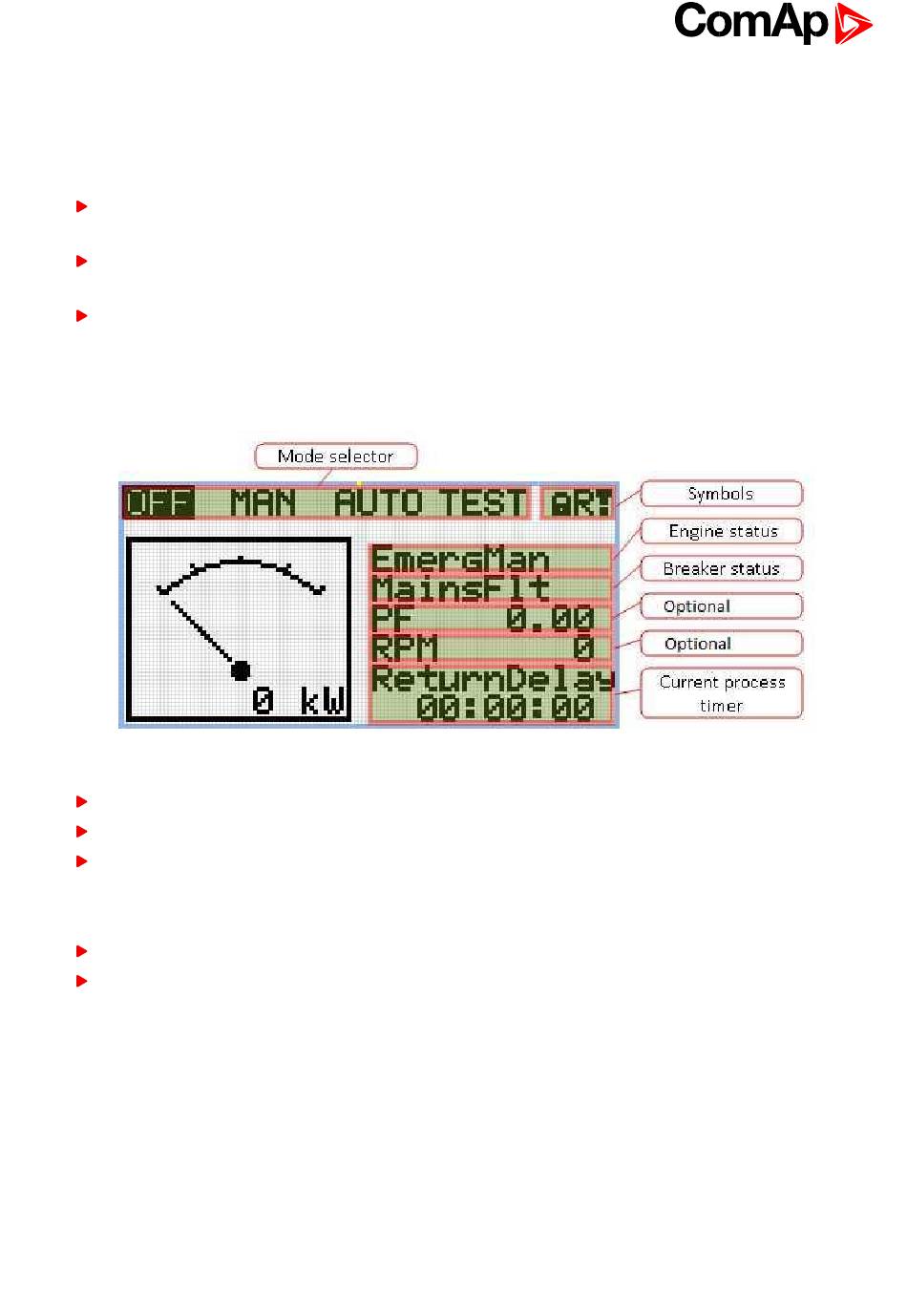

Main Screen Line 1 (page 1)and Main Screen Line 2 (page 1).
