2 Display screens and pages
structure
The displayed information is structured into "pages" and "screens". Use PAGE button to switch over the pages.
The page Measurement consists of screens which display measured values like voltages, current, oil
pressure etc., computed values like i.e. gen-set power, statistic data and the alarm list on the last screen.
The page Setpoints contains all setpoints organized to groups and also a special group for entering
password.
The page History log shows the history log in the order that the last record is displayed first.

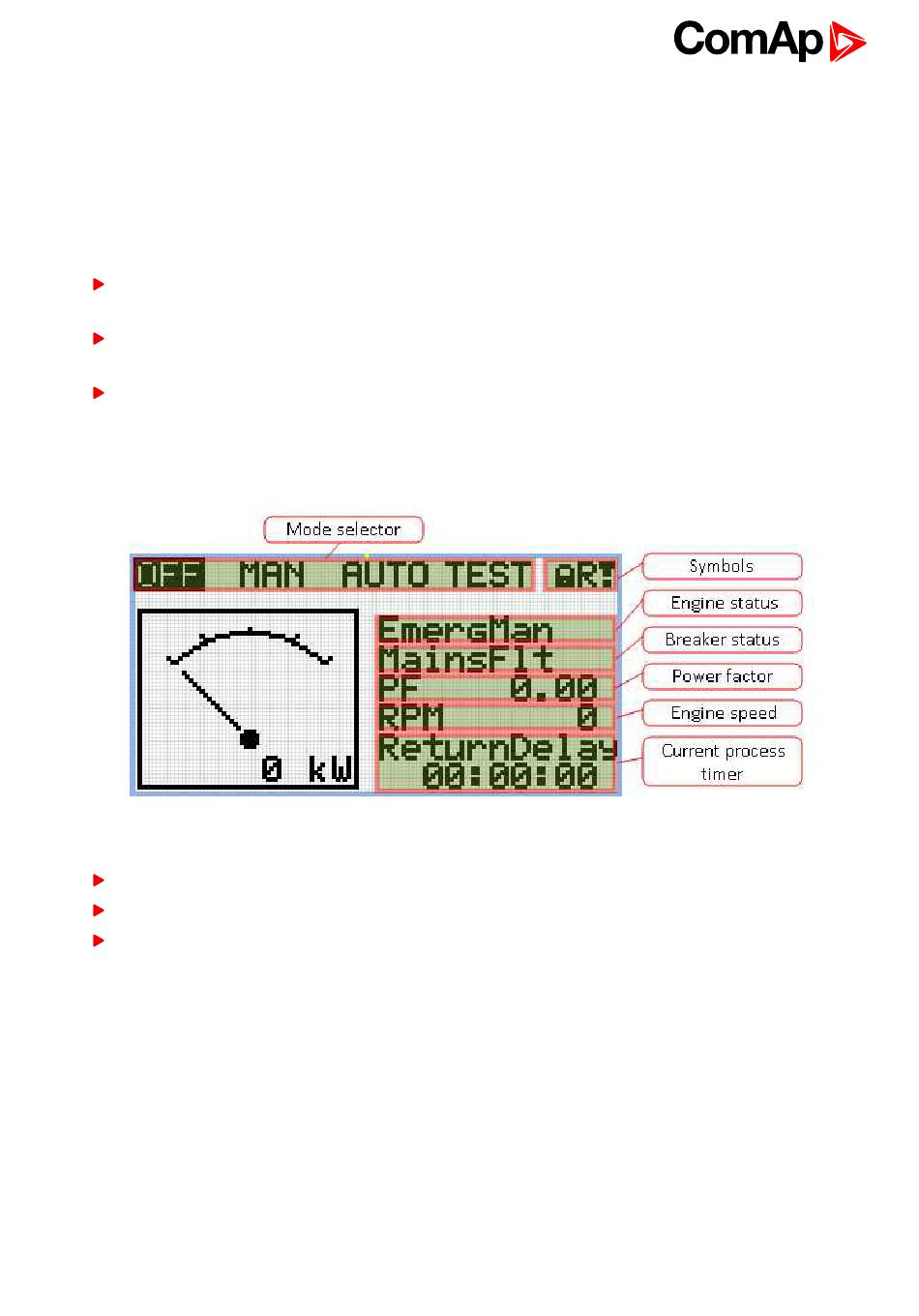

2.1 Main Screen
2.1.1 Symbols
Padlock - active when LBI A
R - active when there is active remote connection to controller
Exclamation mark - active when there is any alarm in alarmlist
InteliGen 200 Global Guide
L is active
CCESS OCK
