1 Front panel elements

Control buttons
Position Picture
InteliLite 4 AMF20+AMF25 Operator Guide

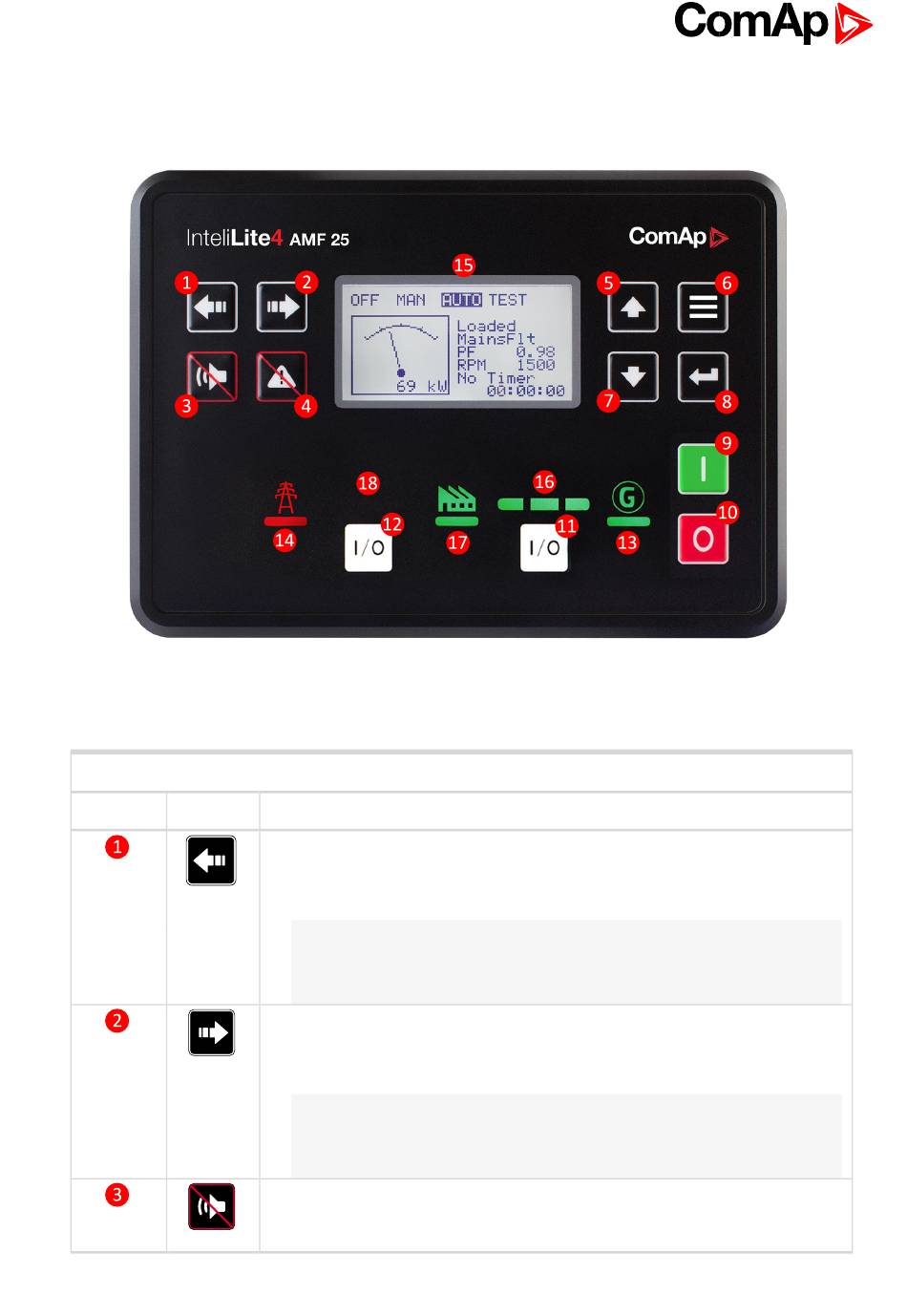

Image 1.1 Operator interface of InteliLite 4 AMF20/AMF25
Description
LEFT button. Use this button to move left orto change the mode. The
button can change the mode only if the main screen with the indicatorof
currently selected mode is displayed.
Note: This button will not change the mode if the controller mode is
forced by one of binary inputs listed in the Reference Guide – "Operating
modes" chapter.
RIGHT button. Use this button to move right orto change the mode.
The button can change the mode only if the main screen with the
indicatorof currently selected mode is displayed.
Note: This button will not change the mode if the controller mode is
forced by one of binary inputs listed in the Reference Guide – "Operating
modes" chapter.
HORN RESET button. Use this button to deactivate the horn output without
acknowledging the alarms.
