Technical data
6.3

Mechanical data

Dimensions See data sheet
Material
H ousing material Plastic-coated aluminium
Other external parts S tainless steel (V4A), PC, PE, POM,
PTFE
Sealing material EPDM, NBR, FKM
Weight approx. 1.0 kg
6.4

Type label

Type Operating voltage
8791 24V DC 5W
Remote IO-Link REV.2
P=1.4...7bar IP65/67
Tamb –10...+60°C
®
C US
S/N 1000
00123456 W17MA

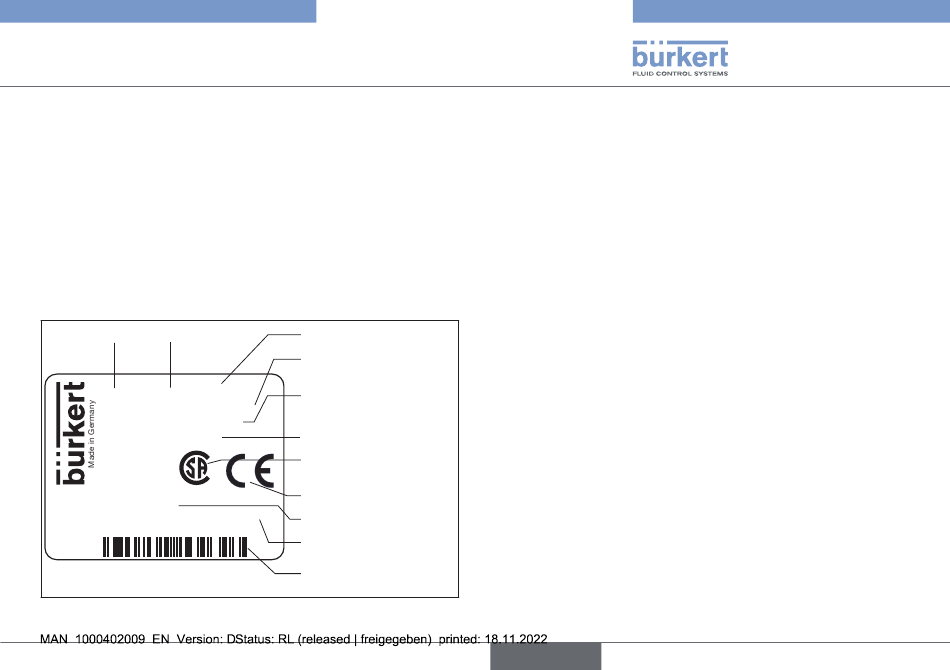

Fig. 3: Type label (example)
Nominal power
Device variant, communi-
cation, version
Operating pressure,
degree of protection
Ambient temperature
Approval marking CSA
(for Canada and USA)
CE marking
Serial number
Order number, manu-
facture code
Barcode
6.5

Electrical data

6.5.1 Electrical data, without field bus
communication
Protection class I II in accordance with DIN EN 61140
(VDE 0140-1)
Connections 2 cable glands (M20 x 1.5) with screw-
type terminals 0.14 – 1.5 mm
plug-in connector (M12, 8-pin plug)
Operating voltage 2 4 V DC ±25 %, max. residual ripple 10%
Current consumption max. 190 mA
Power consumption max. 3.5 W
Input resistance for
set-point value signal 7 5 Ω in 0/4 – 20 mA / 12 bit resolution
Analog position feedback
max. Burden (load)
for current output
0/4 – 20 mA 560 Ω
Inductive proximity
switches 100 mA current limit
Digital input 0 –5 V = logical "0", 10–30 V = logical "1"
logic invertible in software
(input current < 6 mA)
Communications Connection to PC via USB bus interface
interface s et
Communication
software Bürkert Communicator
english
