7.2 Operating and display elements of the
positioner
To operate the DIP switches and buttons, make sure that
the local control lock is deactivated/unlocked (factory
setting): with communication software or fieldbus
communication.
Button 1
DIP Switches
Button 2
Communications interface

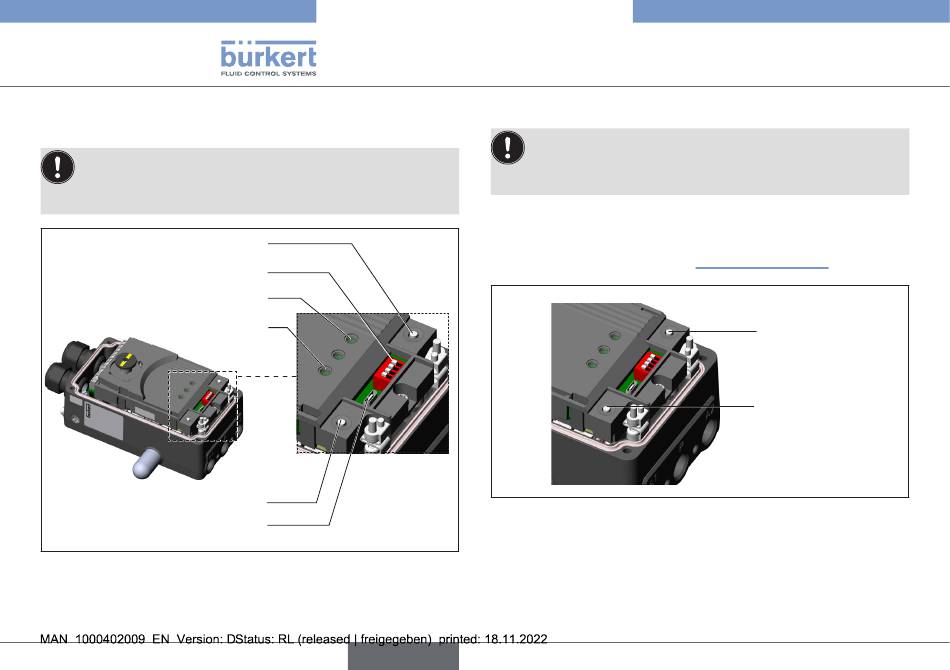

Fig. 4: Description of control elements
The positioner features 2 buttons, 4 DIP switches and 2 LEDs as
a display element.
12
LED 1
LED 2
english
Type 8791 REV.2
Operating
7.2.1 Configuration of the buttons
To operate the DIP switches and buttons, make sure that
the local control lock is deactivated/unlocked (factory
setting): with communication software or fieldbus
communication.
The configuration of the 2 buttons inside the housing varies
depending on the operating state (AUTOMATIC / MANUAL).
The description of the operating state (AUTOMATIC / MANUAL) can
be found in the chapter entitled "7.1 Operating state".
Fig. 5: Description of the buttons
→ To operate the buttons and DIP switches, unscrew the 4
screws on the housing cover and remove the housing cover.
Button 1
Button 2
