TECHNICAL DATA

6.1

Conformity

In accordance with the EU Declaration of conformity, the
positioner Type 8694 is compliant with the EU Directives.
6.2

Standards

The applied standards, which verify conformity with the EU
Directives, can be found on the EU-Type Examination Certificate
and / or the EU Declaration of Conformity.
6.3

Licenses

The product is approved for use in zone 2 and 22 in accordance
with ATEX directive 2014/34/EU category 3GD.
Observe instructions on operation in an explosion-risk (Ex)
area. Observe the ATEX additional instructions.
The product is cULus approved. Instructions for use in the UL
area see chapter "6.8 Electrical data".
6.4

Mechanical data

Dimensions See data sheet
Housing material e xterior: PPS, PC, VA,
interior: PA 6; ABS
Sealing material EPDM / (NBR)
Stroke range
of valve spindle 2 – 45 mm
8
english
Type 8694 REV.2
Technical data
6.5

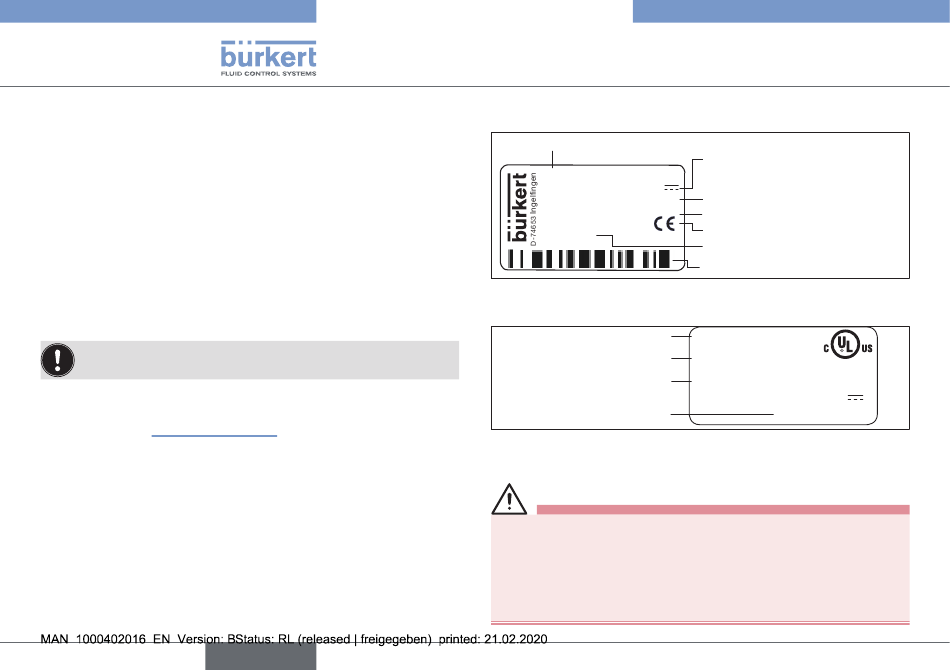

Type labels

Type, Features of the type code applicable to UL and ATEX
8694 -E3-...-0 PU02
Single act Pilot 3.0 24V
Pmax 7 bar
Tamb -10 - +60 °C REV.2
S/N 1001
00123456
W15MA
Fig. 3: UL type label (example)
UL additional label:
Degree of protection
Circuit with limited power
Communication,
supply voltage
Power consumption
Fig. 4: UL additional label (example)
6.6

Operating conditions

WARNING!
Solar radiation and temperature fluctuations may cause mal-
functions or leaks.
▶ If the device is used outdoors, do not expose it unprotected
to the weather conditions.
▶ Ensure that the permitted ambient temperature does not
exceed the maximum value or drop below the minimum value.
Control function, pilot valve,
Supply voltage pilot valve
Max. operating pressure
Ambient temperature, version
Serial number, CE marking
Order number, manufacture code
Barcode
Type 4X enclosure
NEC Class 2 only
E238179
Power Supply: b üS
24V ±25%
max. 3,5 W
