Installation

1. Turn off the computer.
2. Connect the video cable from VGA connector and audio line from output of the computer to the
monitor.
3. Connect power cable to the power outlet.
4. Turn on the monitor and the computer. Wait about 30 seconds to adjust the picture with the
adjustment controls to obtain the most optimum picture.
Note: Please do not press the panel heavily because the surface of LCD panel is soft.

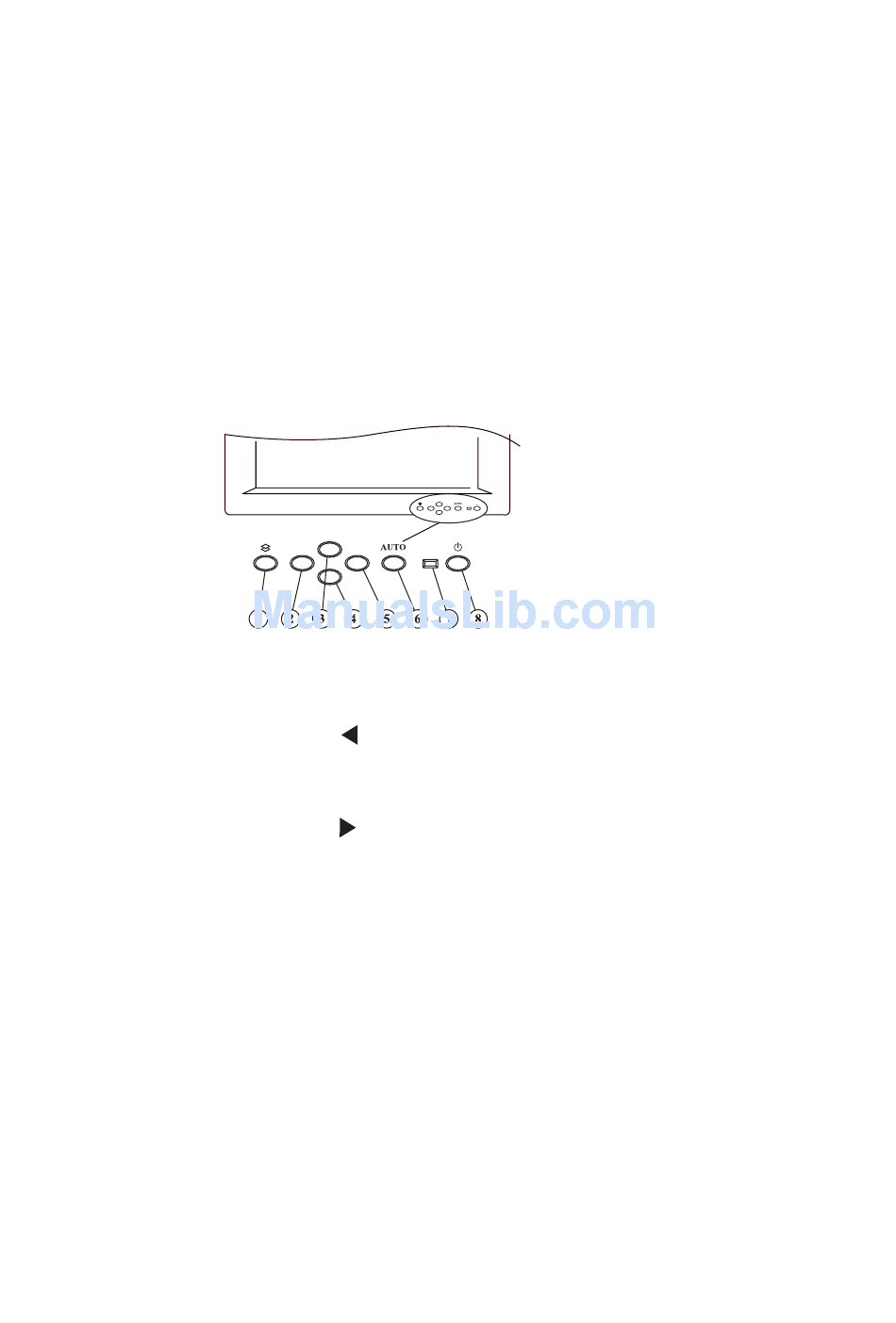

Control Key Pads on the Front Panel

1. Menu Button :
2. Left :
3. Up :
4. Down :
5. Right :
6. Auto :
7. Power LED Indicator Green : Normal operation.
8 Power Switch :
2
Press the keypad to enter OSD menu or swap between icon and sub-
items in OSD menu.
Press button to activate the adjustment of volume when OSD is
off. Select icon or adjust the setting value of sub-item in OSD menu.
Select sub-items in OSD menu.
Select sub-items in OSD menu.
Press button to activate the adjustment of brightness when OSD is
off. Select icon or adjust the setting value of sub-item in OSD menu.
Press the keypad to activate auto tuning when OSD is off. Press the
keypad to exit OSD menu or sub-items in OSD menu.
Orange : Enter soft-power off state.
Orange Blinking : No signal input or frequency out of range.
Press the keypad to power on or off.
