How to Use the OSD

The OSD (On-Screen Display) lets you easily adjust the various
settings for your LCD Monitor to desired levels of performance.
The OSD includes various function menus (SCREEN, GAIN
CONTROL, COLOR, and MODE SELECT). You can toggle through
these OSD function menus by pressing the MENU button.
Operation Procedure
The buttons on the bottom of the monitor are used to navigate
the OSD. Follow the sequence below to do the following: toggle
through the OSD function menu, select the function item, adjust
the setting, save or cancel the setting, and finally exit the OSD
menu.
1. Power on the LCD monitor and computer.
2. Press the "MENU" button to display the OSD function menu.
The OSD function menu — SCREEN appears the first time.
3. Press the "MENU" button to toggle through the four function
menu screens -- SCREEN, GAIN CONTROL, COLOR, and
MODE SELECT.
4. Use the " " button to select "MANUAL " . or "AUTO" .
5. In MANUAL mode, press the " / MODE" button to navigate
the available function items.
6. In MANUAL mode, press the " " to decrease or " " to
increase the value of a setting.
Once a user setting is set, the monitor displays the user
setting on the screen immediately.
7. Press the MENU button to exit the OSD menu.

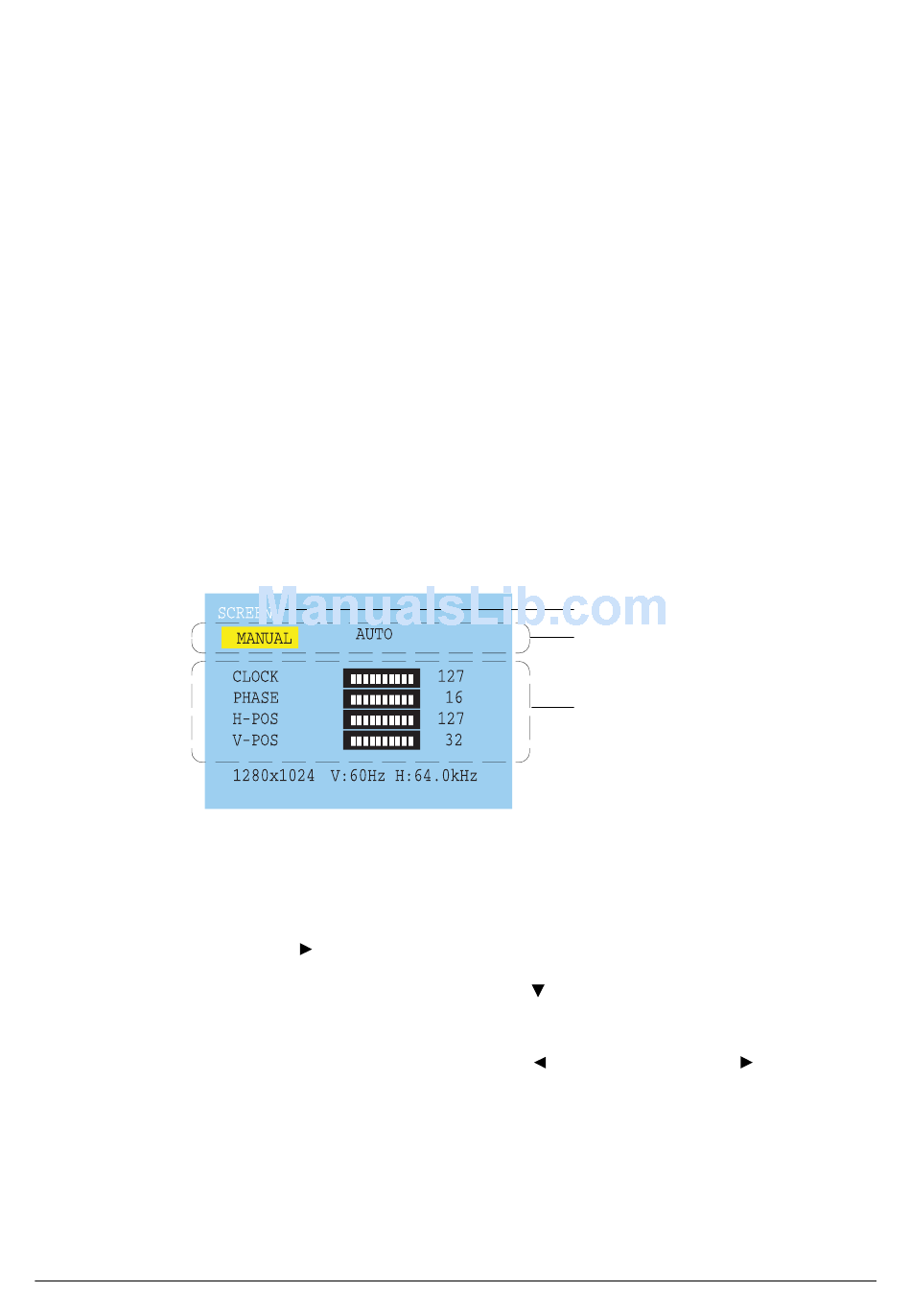

(On-Screen Display)
OSD function menu
Switch "Auto" and "Manual"
mode
Function items and user
settings
9
