- Page 1 USER'S MANUAL www.microtek.com...
- Page 3 FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.
- Page 4 Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada. ” Energy Star Notice As an ENERGY STAR Partner, Microtek International, Inc. has determined that this monitor meets the ENERGY STAR guidelines for energy efficiency. TCO’99, TCO’95 This product has passed TCO’99 and TCO’95 approval...
-
Page 5: Table Of Contents
Table of Contents Introduction Product Features ..............1 Unpacking ................1 Precautions ................2 Cleaning ................. 3 Installation Installing the Monitor ............4 Connecting the Monitor ............5 Adjusting the Viewing Angle ..........7 Operating the Monitor How to Use the OSD ............. 8 Operating Procedure ............. -
Page 7: Introduction

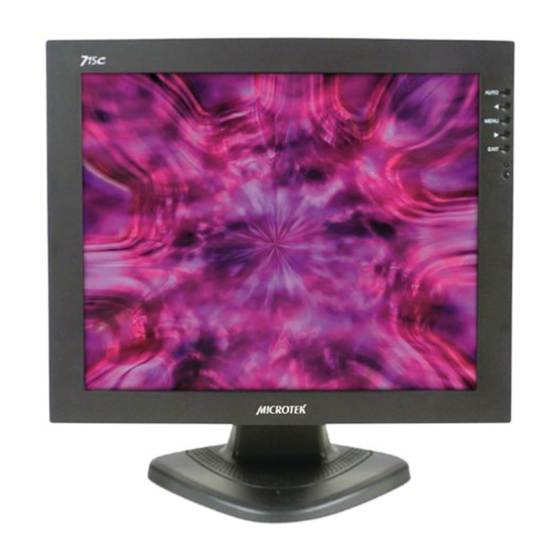

Introduction Congratulations on the purchase of your new Microtek LCD monitor! Providing a maximum resolution of 1280 x 1024 pixels with a flicker-free display at up to 75Hz refresh rate, your LCD monitor offers sharp and vibrant color display without the radiation emission and hazards associated with CRT monitors. -
Page 8: Unpacking
Unpacking Before unpacking your LCD monitor, prepare a stable, level, and clean surface near a wall outlet for your LCD monitor. 1. Set the LCD monitor box in an upright position and open from the top of the box before removing the right/left cushions. -
Page 9: Cleaning
• Do not apply pressure to the screen, as the screen is very delicate. • Keep the monitor away from extremely hot, cold or humid places. • Do not place the monitor directly under sunlight, in dusty surroundings, or near equipment which may generate strong magnetic fields. -
Page 10: Installation
Installation Installing the Monitor • DO NOT install the monitor where sudden temperature changes may occur, or in humid, dusty, or smoky areas as fire, electric shock or damage may ensue. • DO NOT place your LCD monitor near a window as it may be severely damaged if exposed to rain, water, moisture, or sunlight. -
Page 11: Connecting The Monitor
Connecting the Monitor Warning: Do not operate the LCD monitor with unspecified power supply. Usage of incorrect voltage will cause the unit to malfunction and may cause fire or electric shock. 1. Turn off your computer and LCD monitor. 2. From the box, take out the Plastic rear cover monitor and place on the table, with the front side facing... - Page 12 7. Engage the plastic rear cover back on the top of the stem. 8. Connect the other end of the VGA cable to your computer’s VGA port. 9. Plug the power cord’s female end into the AC adapter, and plug the male end into a wall outlet or power source. 10.
-
Page 13: Adjusting The Viewing Angle
Adjusting the Viewing Angle Your LCD monitor is designed to allow adjustment for optimal viewing angles. You can adjust the monitor upward to 25 degrees and downward to -3 degrees. Note: Do not touch the screen while changing the viewing angle, as this may damage the screen. -
Page 14: Operating The Monitor
Operating the Monitor The LCD monitor has been preset at the factory with the Timing shown in the “Appendix B” section to achieve optimal display. You can adjust the display to the desired brightness and sharpness by following the instructions below. Buttons Functions AUTO... -
Page 15: Operating Procedure
Operating Procedure The buttons on the right side of the Control Panel are used to navigate the OSD. Follow the sequence below to do the following: Navigate the OSD menu item, go through the submenus, select a setting, save or cancel the setting, and finally exit the OSD item. -
Page 16: The Menu Table
The Menu Table To access the menu and submenu items shown in the table below, refer to the section “Operating Procedure” (p. 9). Main Menu Submenu Function (All Reset) Restores all values to factory default settings. (Auto Adjust) Automatically adjusts image Clock, Phase, H-Position, and V-Position settings. -
Page 17: Appendixes A: Specifications
Appendix A: Specifications LCD Type 17” SXGA Color TFT Display Area 13.3” x 10.6” (337.9 x 270.3 mm) Input Signal Analog ( 0.7 Vp-p/75 ohm positive) Dot Pitch 0.264 mm Scanning Frequency (H) 30 ~ 80 KHz (V) 55 ~ 75 Hz Resolution 1280 x 1024 pixels Display Color... -
Page 18: B: Supported Timing
Appendix B: Supported Timing... -
Page 19: C: Troubleshooting
Appendix C: Troubleshooting If the LCD monitor fails to function correctly, please follow the following steps for a possible solution. 1. Perform the adjustments according to the section, “Operating the Monitor. ” 2. Refer to the rest of this section if you cannot find a proper item listed in “Operating the Monitor”... - Page 20 . . .
-
Page 21: D: Power Management
Appendix D: Power Management The LCD monitor complies with the VESA DPMS (version 1.0p) power management proposal. The VESA DPMS proposal provides four phases of power saving modes by detecting the horizontal or vertical sync signal. -
Page 22: E: For Your Safety
Appendix E: For Your Safety ARNING ALWAYS OPERATE UNDER THE SPECIFIED POWER SUPPLY Usage of incorrect voltage will cause malfunction and may cause fire or electric shock. PROTECT AND USE THE CABLE CORRECTLY Do not pull or bend the power cable and VGA cable or place the monitor or any heavy objects on the cables. - Page 23 AUTION DISCONNECT CABLES WHEN MOVING THE MONITOR When moving the monitor, always turn off the switch, unplug the monitor, and disconnect the VGA cable. If the cables are not properly disconnected when moving the monitor, fire or electric shock may ensue. DO NOT TOUCH THE PLUG WITH WET HANDS Pulling or inserting the plug with wet hands may cause electric shock.
-
Page 24: Special Notes On Lcd Monitors
Special Notes On LCD Monitors The following conditions are normal with LCD monitors and do not indicate a problem. • When turning on the LCD monitor for the first time, the picture may not fit in the display area. This is because of the type of computer being used.
